Double Plunging Front CV Axle Pair for Yamaha Grizzly 660 4x4 2003-2008

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
YA-111MO/YA-211MO

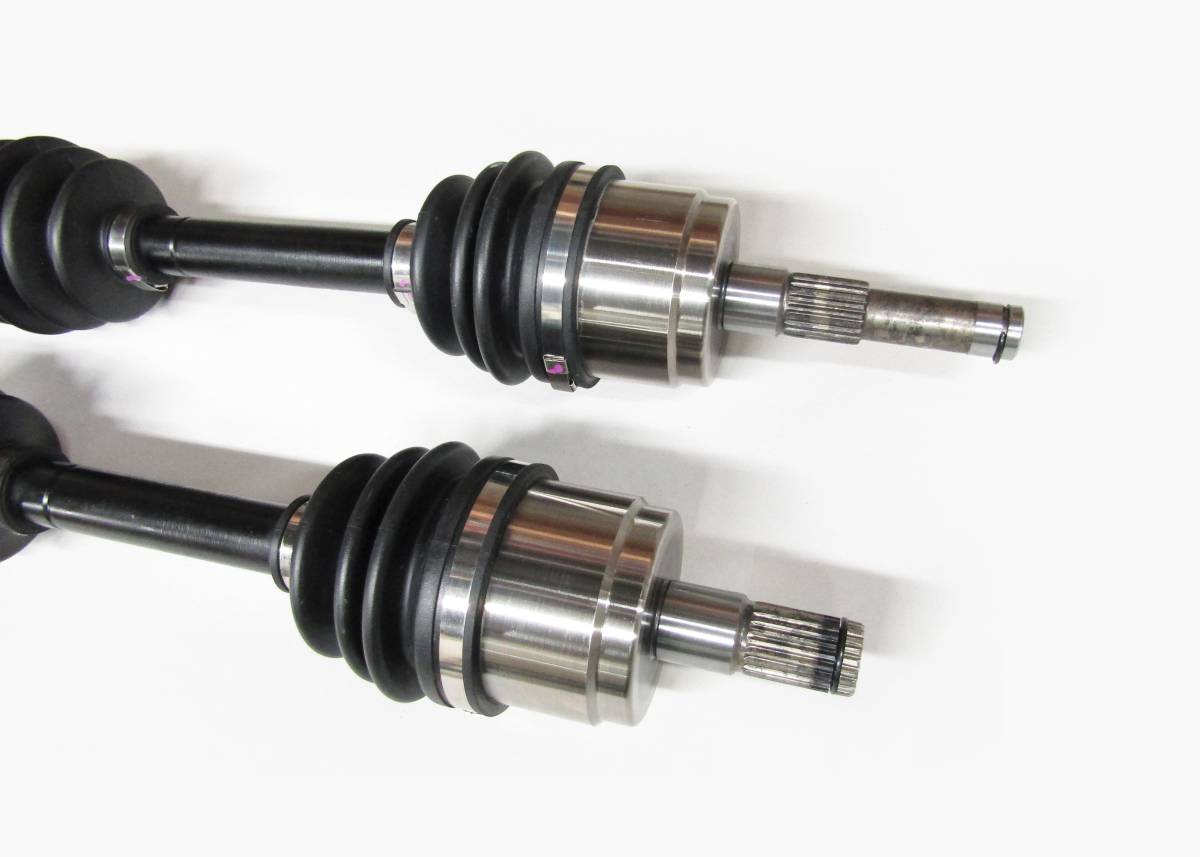

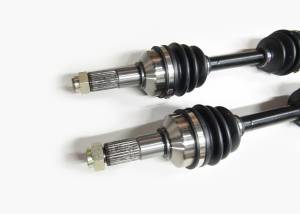

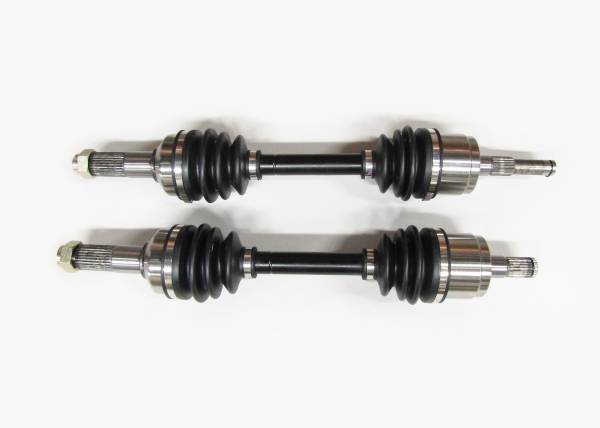

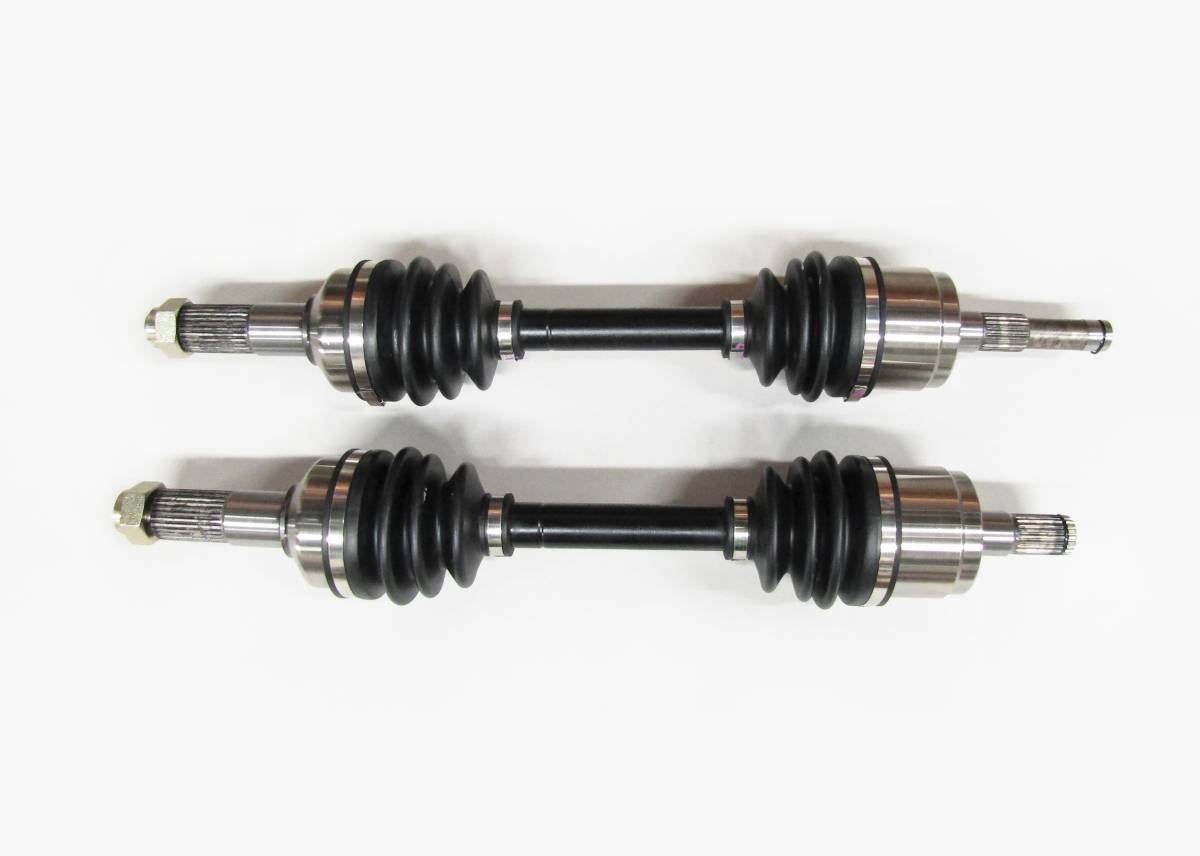

This is a pair of new front double plunging CV axles for a Yamaha ATV.

They fit the following 4x4 models:

2003-2008 ..... Grizzly 660

front, left & right

***supports lift kits up to 2 inches***

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Both CV joints plunge to allow for better movement
  • Greased with a moly based grease to provide superior joint lubrication
  • CV joints fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: left - 530 mm, right - 491.5 mm
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Application List

YearMakeModelSubmodelNotes
2008YamahaGrizzly 660YFM660FA 4x4
2008YamahaGrizzly 660YFM660FG 4x4
2008YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
2007YamahaGrizzly 660YFM660FG 4x4
2007YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
2006YamahaGrizzly 660YFM660FA 4x4
2006YamahaGrizzly 660YFM660FAH 4x4 Hardwoods Hunter Edition
2006YamahaGrizzly 660YFM660FAH 4x4 Outdoorsman Edition
2006YamahaGrizzly 660YFM660FAHD 4x4 Ducks Unlimited Edition
2006YamahaGrizzly 660YFM660FASE 4x4 Special Edition
2005YamahaGrizzly 660YFM660FA 4x4
2005YamahaGrizzly 660YFM660FAH 4x4 Hunter Edition
2005YamahaGrizzly 660YFM660FAHW 4x4 Wetlands Hunter Edition
2005YamahaGrizzly 660YFM660FASE 4x4 Special Edition
2004YamahaGrizzly 660YFM660F 4x4
2004YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
2004YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition
2004YamahaGrizzly 660YFM660FLE 4x4 Limited Edition
2003YamahaGrizzly 660YFM660F 4x4
2003YamahaGrizzly 660YFM660F 4x4 Limited Edition
2003YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
2003YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition

Product Notes

  • Fits front, left and right on the following Yamaha ATV models: 2003-2008 Grizzly 660 4x4.
  • Supports lift kits up to 2 inches. Both inner and outer CV joints are able to plunge. Also features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces OEM # 5KM-2510F-11-00, 5KM-2510J-30-00, 5KM-2510F-10-00, 5KM-2510F-11-00, 5KM-2510J-20-00. Compressed axle length: left - 530 mm, right - 491.5 mm, Inner splines - 21 (both), Outer splines - 27 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 19.4 lbs.
    • W10.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
