Axle Set for Can-Am Maverick X3 Turbo R RR XRS XMR XRC 72" 705402048, 705502362

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CA-127/CA-127/CA-328/CA-328

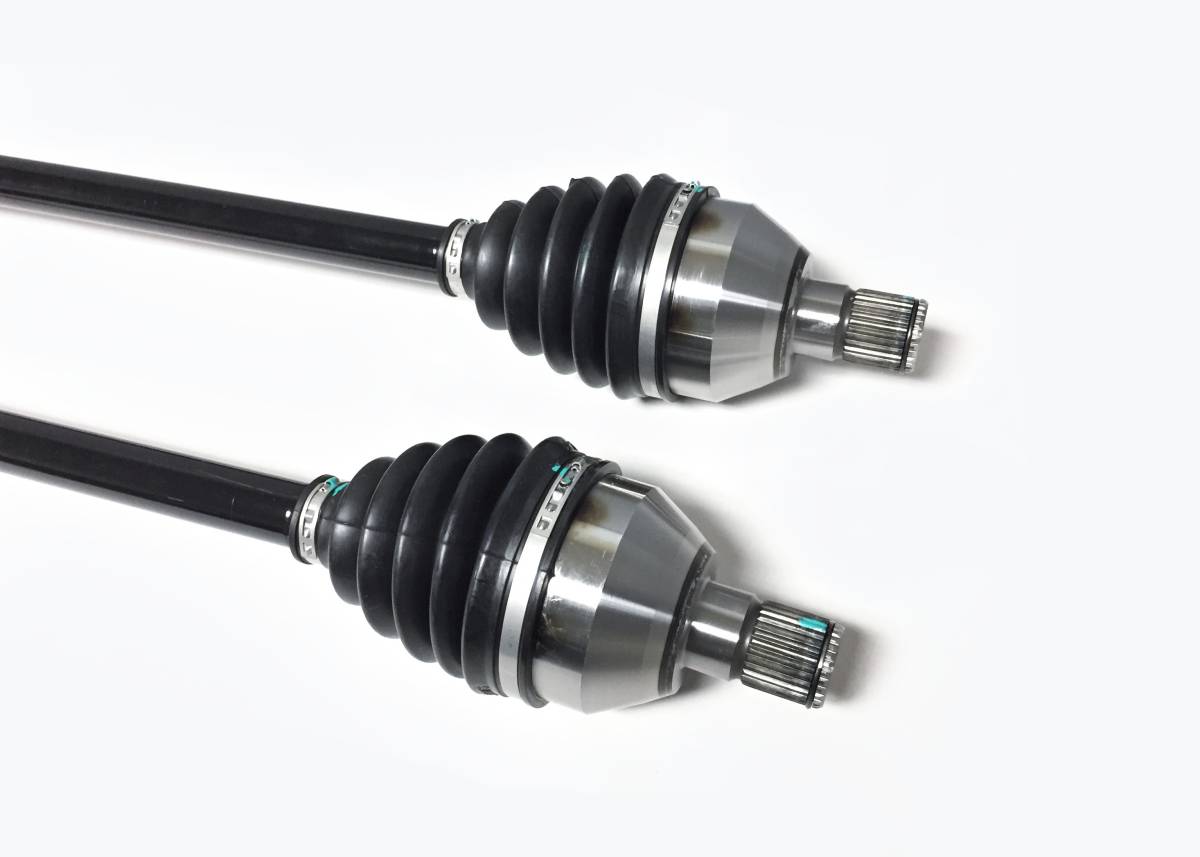

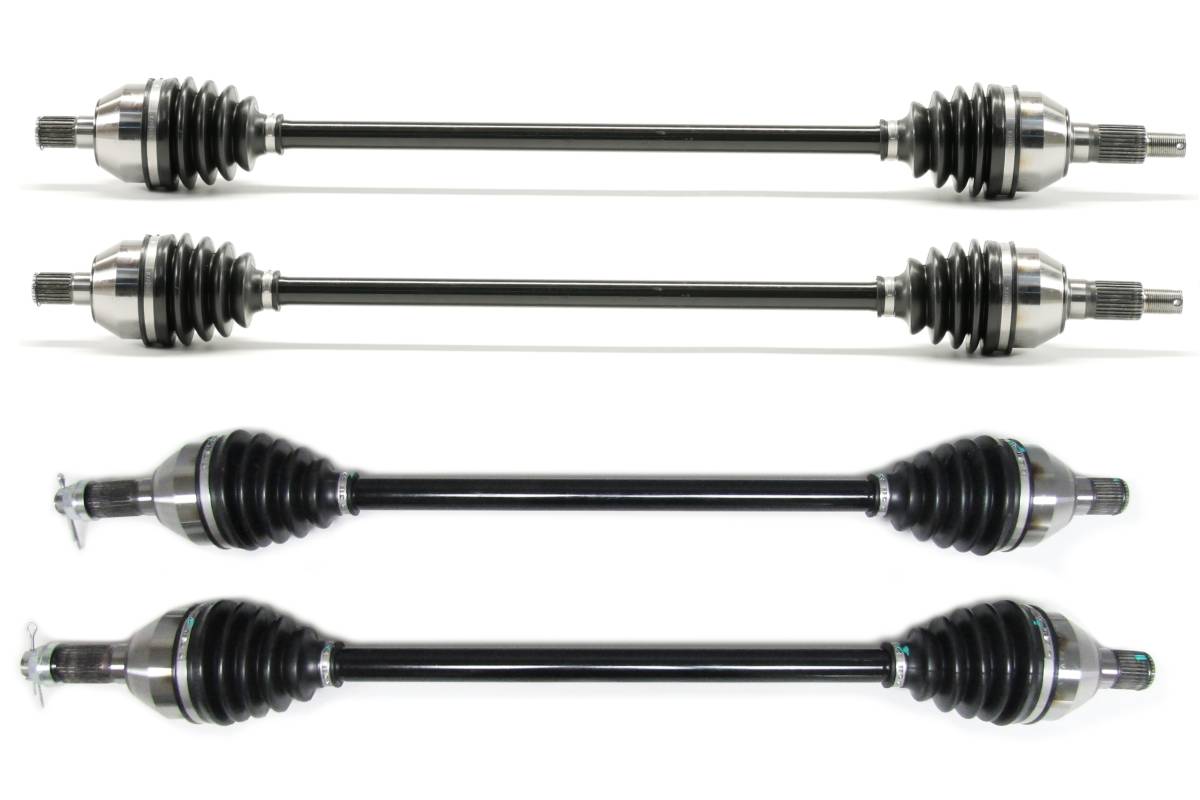

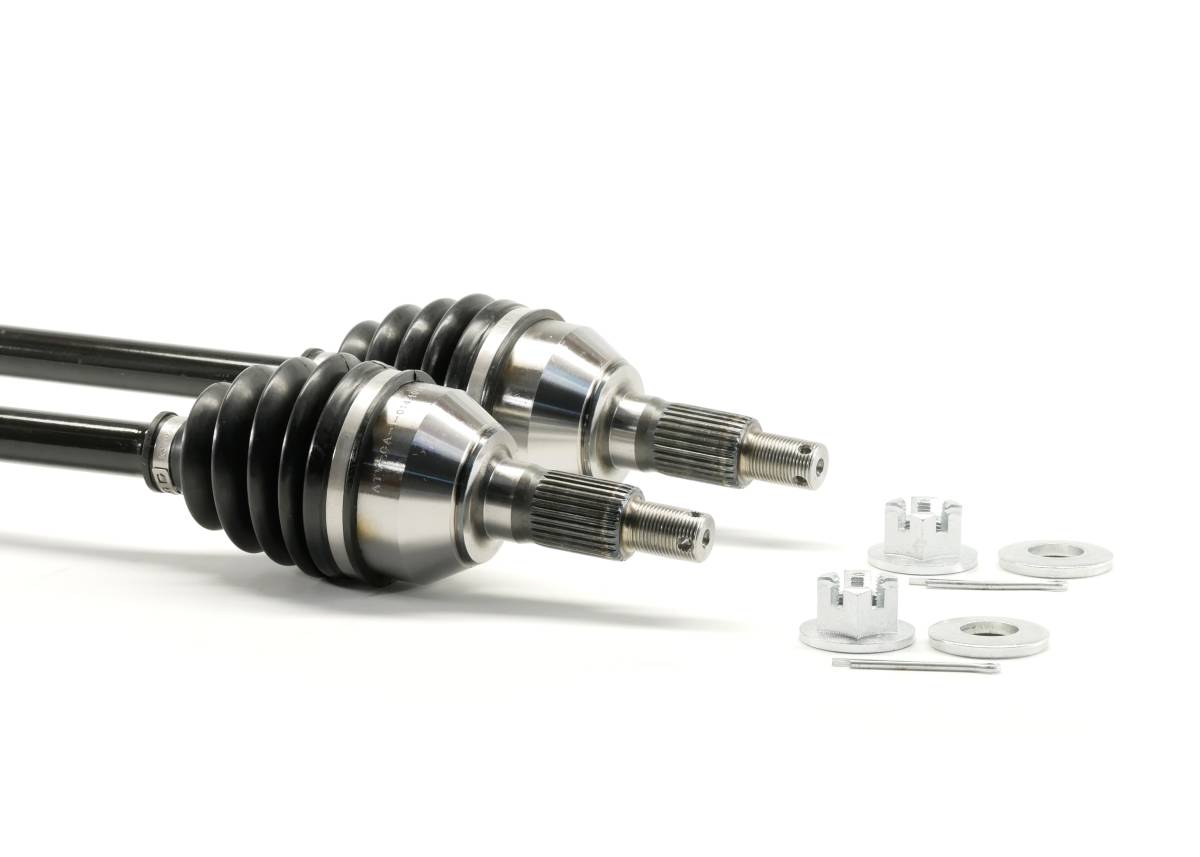

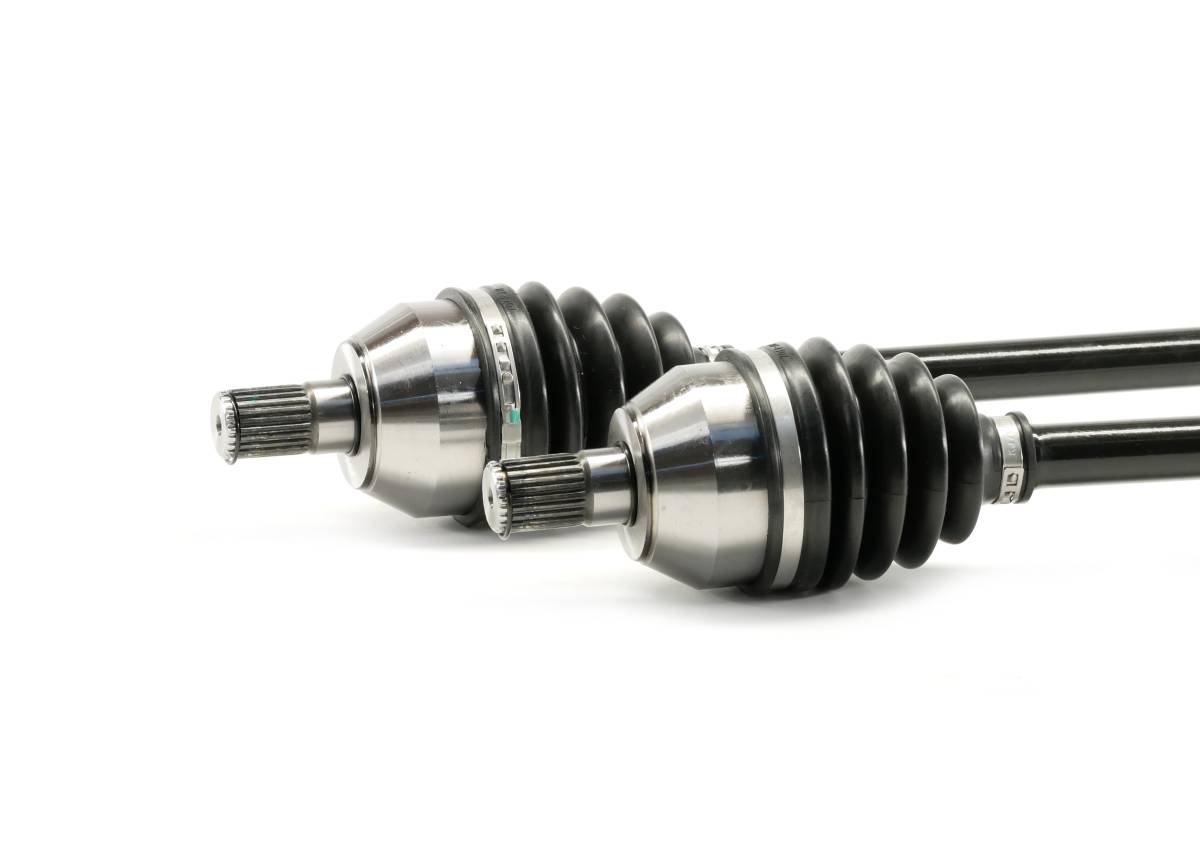

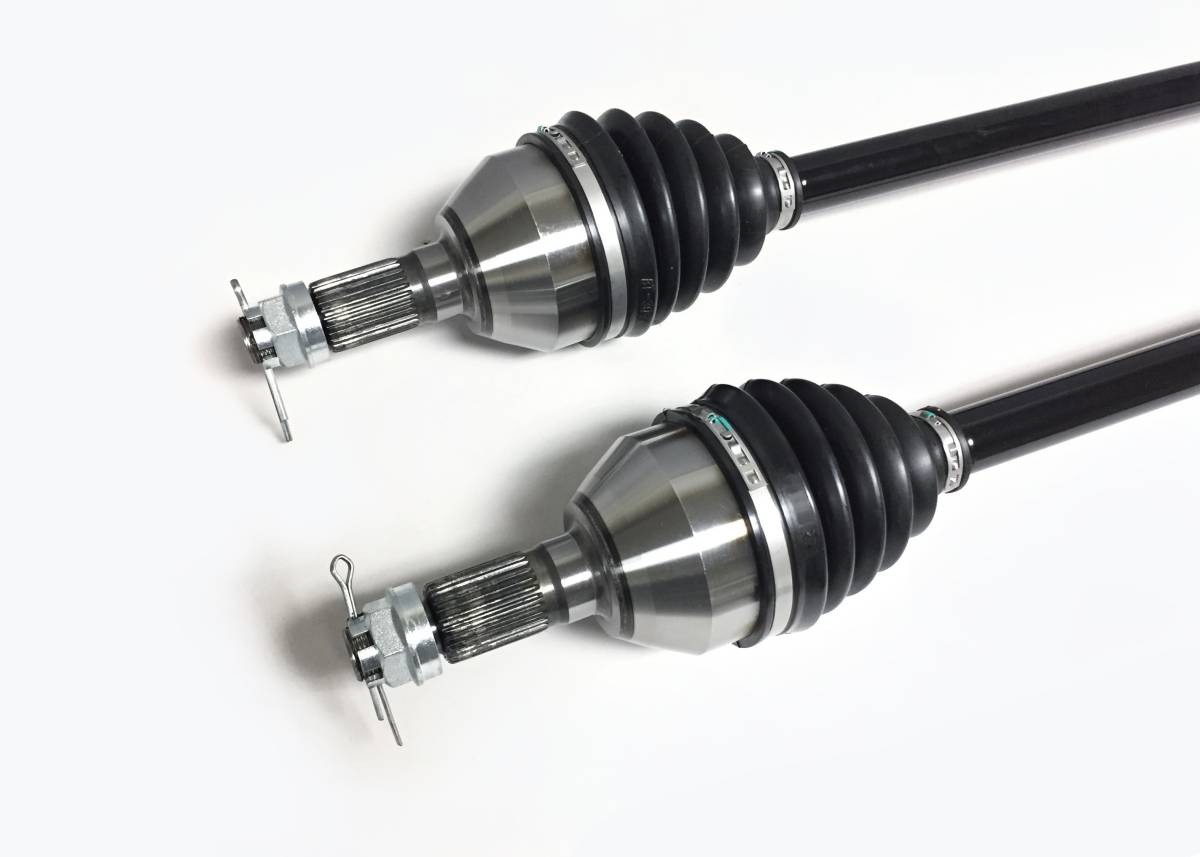

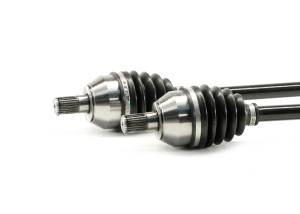

This is a full set of CV axles for a Can-Am Maverick X3.

They fit the following 72" models models:

2018-2019 ... Turbo R: XRC, XMR, XRS (with Smart Lok)

2022-2023 ... Turbo RR RS

2019 ... Max Turbo R XRS

2020-2023 ... Turbo RR/MAX Turbo RR: XRC, XMR, XRS

*made as an OE replacement, and is not intended for lifted/ modified vehicles

*please note these will not fit any 64" models

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • Inboard CV joint spline count: Fronts - 24, Rears - 30
  • Outboard CV joint spline count: Fronts - 29, Rears - 29
  • Compressed overall axle length: Fronts - 845.5 mm, Rears - 845 mm
  • Replaces OEM # 705402048, 705502362
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $419.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2019Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
2023Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
2023Can-AmMaverick X3 Max RR4x4 XRS SMART-SHOX Turbo
2023Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
2022Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
2022Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
2021Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
2021Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
2020Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
2020Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
2019Can-AmMaverick X3 R4x4 XMR Turbo DPS
2019Can-AmMaverick X3 R4x4 XRC Turbo DPS
2019Can-AmMaverick X3 R4x4 XRS Turbo DPS
2018Can-AmMaverick X3 R4x4 XMR Turbo DPS
2018Can-AmMaverick X3 R4x4 XRC Turbo DPS
2018Can-AmMaverick X3 R4x4 XRS Turbo DPSmodels with Smart Lok
2023Can-AmMaverick X3 RR4x4 RS Turbo DPS
2023Can-AmMaverick X3 RR4x4 XMR Turbo DPS 72
2023Can-AmMaverick X3 RR4x4 XRC Turbo DPS 72
2023Can-AmMaverick X3 RR4x4 XRS SMART-SHOX Turbo
2023Can-AmMaverick X3 RR4x4 XRS Turbo DPS
2022Can-AmMaverick X3 RR4x4 RS Turbo DPS
2022Can-AmMaverick X3 RR4x4 XMR Turbo DPS 72
2022Can-AmMaverick X3 RR4x4 XRC Turbo DPS 72
2022Can-AmMaverick X3 RR4x4 XRS Turbo DPS72 inch models
2021Can-AmMaverick X3 RR4x4 XMR Turbo DPS
2021Can-AmMaverick X3 RR4x4 XRC Turbo DPS
2021Can-AmMaverick X3 RR4x4 XRS Turbo DPS
2020Can-AmMaverick X3 RR4x4 XMR Turbo DPS
2020Can-AmMaverick X3 RR4x4 XRC Turbo DPS
2020Can-AmMaverick X3 RR4x4 XRS Turbo DPS

Product Notes

  • Fits the following Can-Am Maverick X3 72" models: 2018-2019 Turbo R: XRC, XMR, XRS (with Smart Lok), 2022-2023 Turbo RR RS, 2019 Max Turbo R XRS, 2020-2023 Turbo RR/MAX Turbo RR: XRC, XMR, XRS. Set includes 4 axles.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 705402048, 705502362. Inboard spline count: Fronts - 24, Rears - 30, Outboard spline count: Fronts - 29, Rears - 29, Compressed axle length: Fronts 845.5 mm, Rears - 845 mm. Please note these are for 72" models only and will not fit any 64" models.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-127/CA-127/CA-328/CA-328
    • CA-127/CA-127/CA-328/CA-328
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 62.0 lbs.
    • W10.0000” x H10.0000” x L42.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
