Double Plunging Front Left CV Axle for Yamaha Grizzly 660 4x4 2003-2008

Location on vehicle: Front,Left

YA-111MO

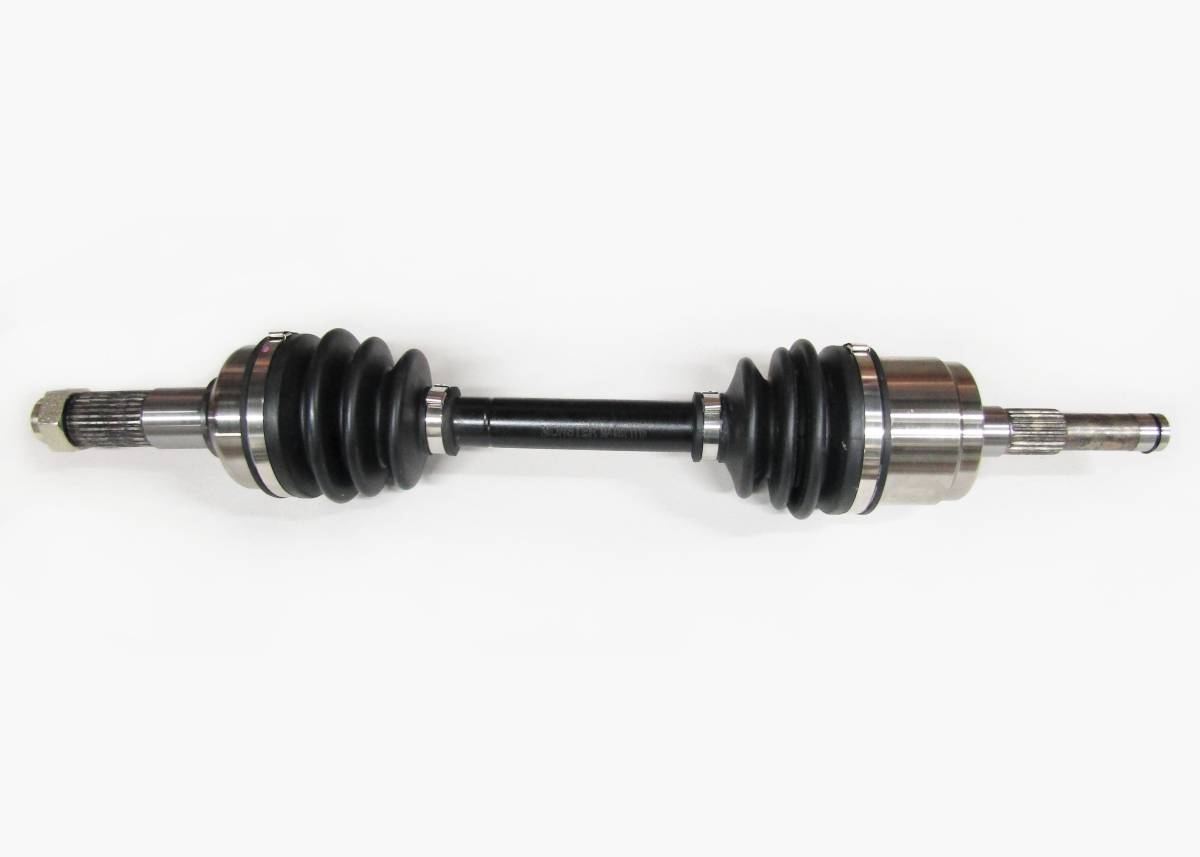

This is a new Front, Left double plunging CV axle for a Yamaha ATV.

It will fit the following 4x4 models:

2003-2008 ..... Grizzly 660

Front, Left / Driver's Side

***supports lift kits up to 2 inches***

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Both CV joints plunge to allow for better movement
  • Greased with a moly based grease to provide superior joint lubrication
  • CV joints fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 530 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $56.00
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left (driver's side) on the 2003-2008 Yamaha Grizzly 660 4x4 ATV *
  • Supports lift kits up to 2 inches. Both CV joints are able to plunge.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces Yamaha OEM # 5KM-2510F-11-00, 5KM-2510J-30-00. Compressed Length - 530 mm, Inner Spline Count - 21, Outer Spline Count - 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2008YamahaGrizzly 660YFM660FA 4x4
    2008YamahaGrizzly 660YFM660FG 4x4
    2008YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2007YamahaGrizzly 660YFM660FG 4x4
    2007YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2006YamahaGrizzly 660YFM660FA 4x4
    2006YamahaGrizzly 660YFM660FAH 4x4 Hardwoods Hunter Edition
    2006YamahaGrizzly 660YFM660FAH 4x4 Outdoorsman Edition
    2006YamahaGrizzly 660YFM660FAHD 4x4 Ducks Unlimited Edition
    2006YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2005YamahaGrizzly 660YFM660FA 4x4
    2005YamahaGrizzly 660YFM660FAH 4x4 Hunter Edition
    2005YamahaGrizzly 660YFM660FAHW 4x4 Wetlands Hunter Edition
    2005YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2004YamahaGrizzly 660YFM660F 4x4
    2004YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2004YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition
    2004YamahaGrizzly 660YFM660FLE 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660F 4x4
    2003YamahaGrizzly 660YFM660F 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2003YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition

    Details

    Shipping Information

    • Item Requires Shipping
    • 7.7 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
