CV Axle Set for Polaris Ranger 570 & Crew 570 2022-2024, 1336966, 1334361

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
PO-501/PO-501/PO-561/PO-561
This is a set of new CV axles for a Polaris UTV.

They fit the following models:

2022-2024 ... Ranger 570 (incl. Base, RC, Premium, & NSTR)

2022-2024 ... Ranger Crew 570 (incl. Base, RC, Premium, & NSTR)

*made as an OEM replacement, and not intended for lifted/ modified vehicles

*please note these do not fit 'HDPE', 'HD', or any 'Full Size' models

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

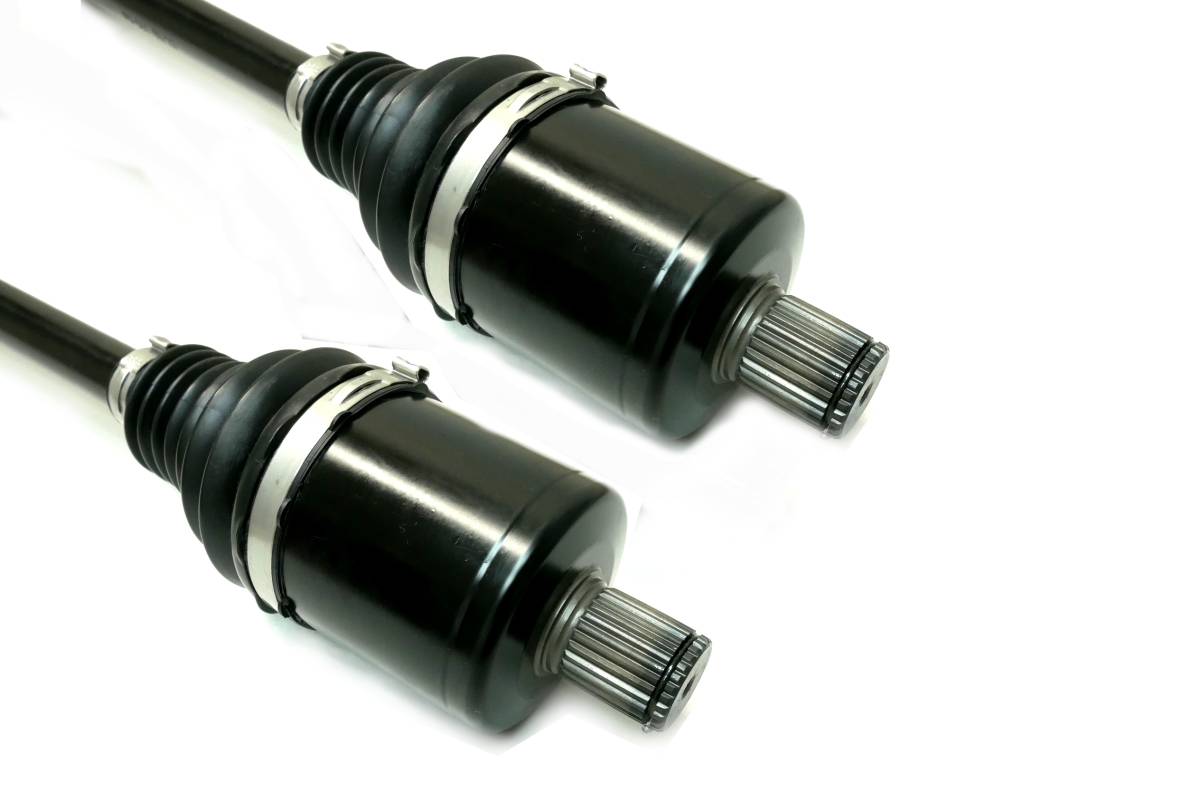

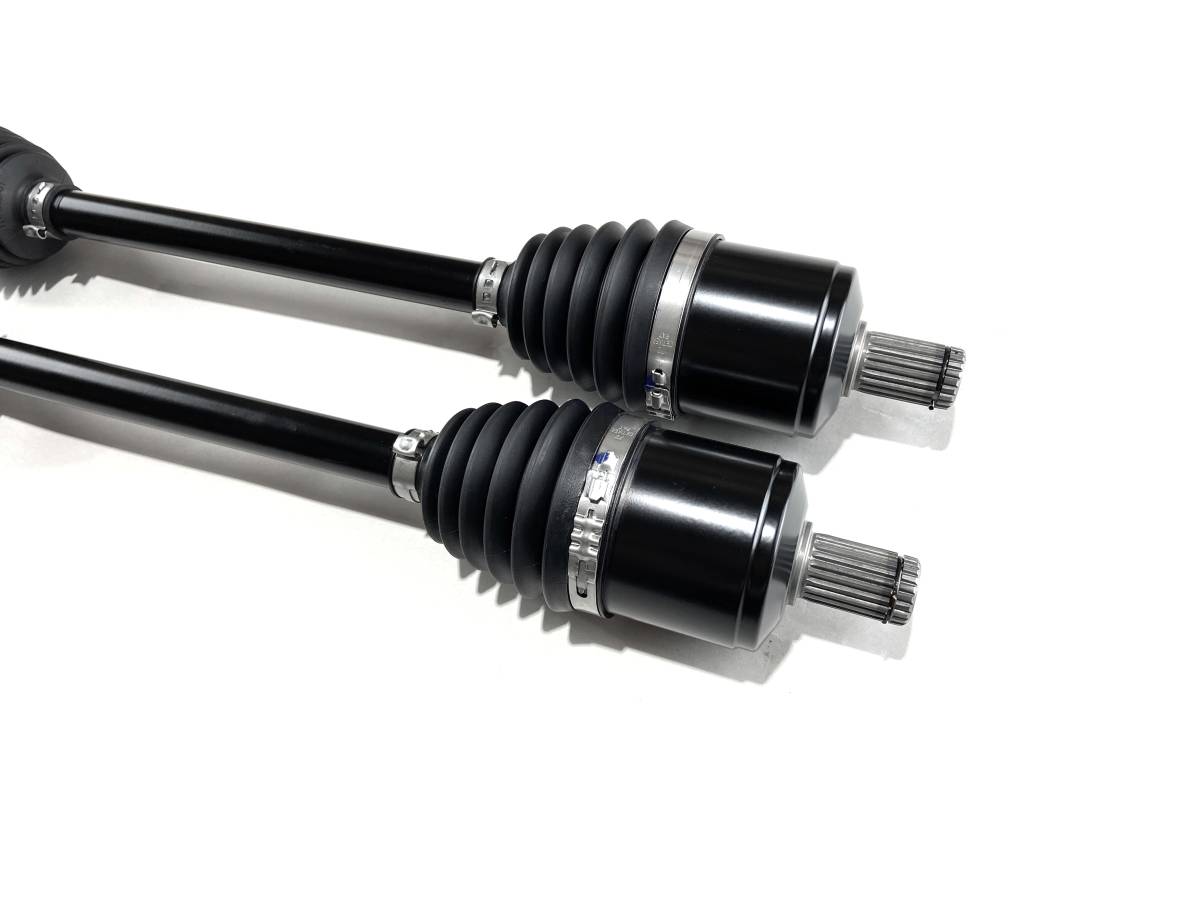

  • Inboard spline count: Fronts - 22, Rears - 28

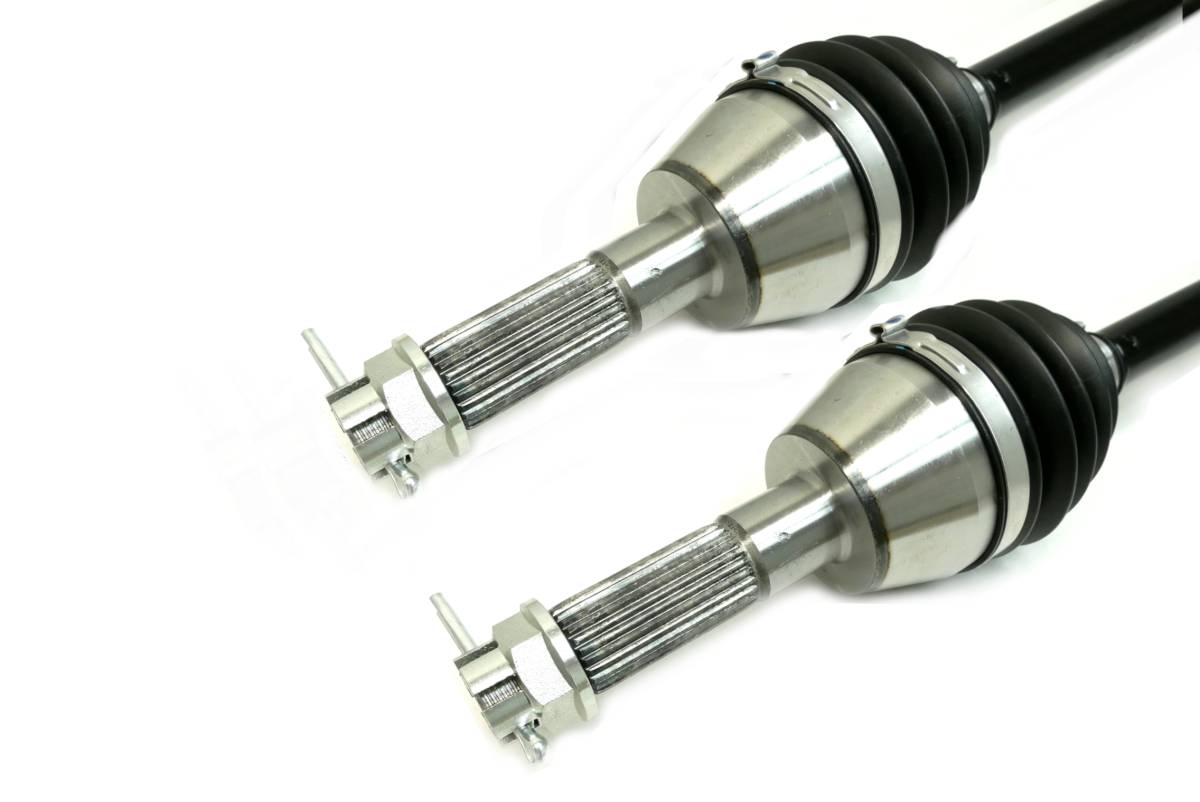

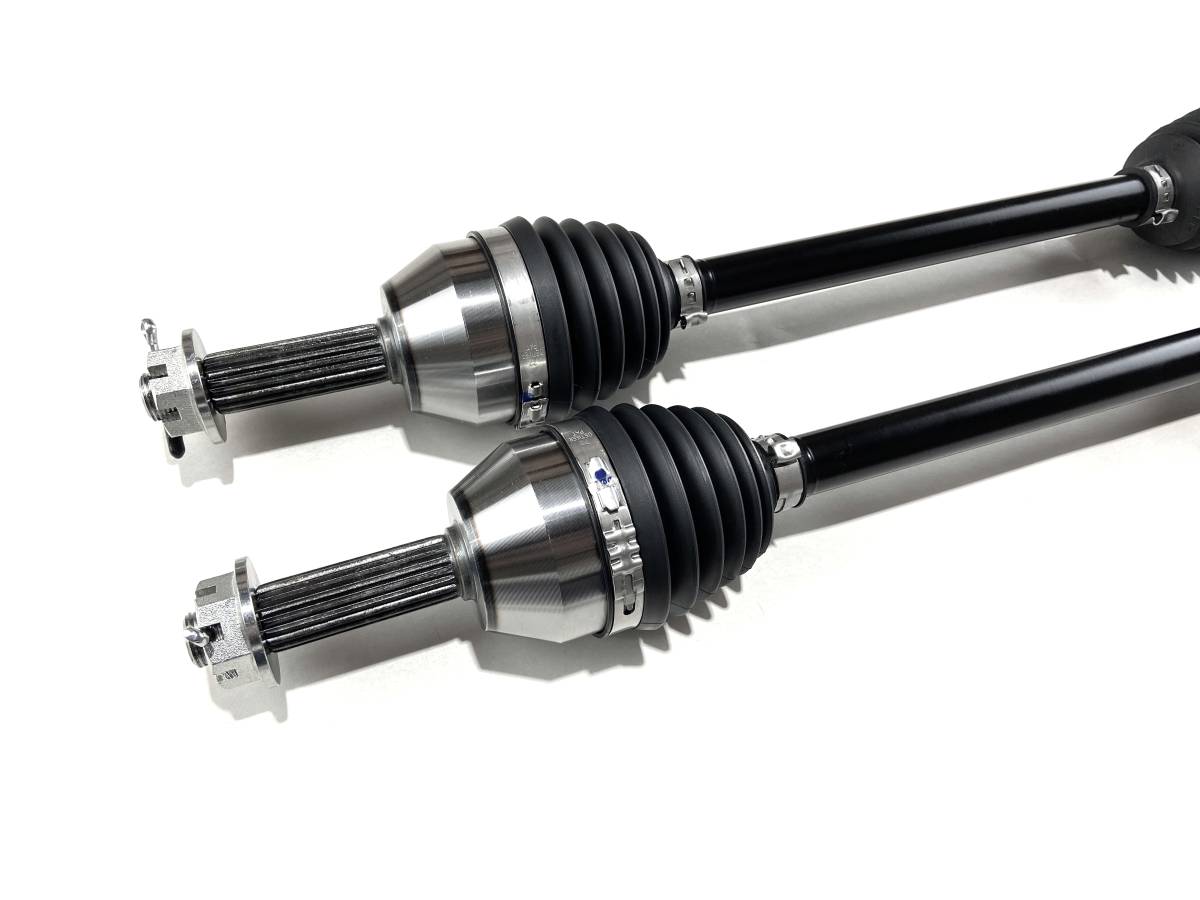

  • Outboard spline count: Fronts - 20, Rears - 26
  • Compressed axle length: Fronts - 616 mm, Rears - 643 mm
  • Replaces OEM # 1336966, 1334361
Limited Supply: only 8 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $319.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2024PolarisRanger Crew SP 570--
2024PolarisRanger Crew SP 570Northstar Edition EPS
2024PolarisRanger Crew SP 570Premium EPS
2023PolarisRanger Crew SP 570--
2023PolarisRanger Crew SP 570Northstar Edition EPS
2023PolarisRanger Crew SP 570Premium EPS
2023PolarisRanger Crew SP 570Sport
2022PolarisRanger Crew SP 570--
2022PolarisRanger Crew SP 570Northstar Edition EPS
2022PolarisRanger Crew SP 570Premium EPS
2022PolarisRanger Crew SP 570Sport
2024PolarisRanger SP 570--
2024PolarisRanger SP 570Northstar Edition EPS
2024PolarisRanger SP 570Premium EPS
2023PolarisRanger SP 570--
2023PolarisRanger SP 570Northstar Edition EPS
2023PolarisRanger SP 570Premium EPS
2023PolarisRanger SP 570Sport
2022PolarisRanger SP 570--
2022PolarisRanger SP 570Northstar Edition EPS
2022PolarisRanger SP 570Premium EPS
2022PolarisRanger SP 570Sport

Product Notes

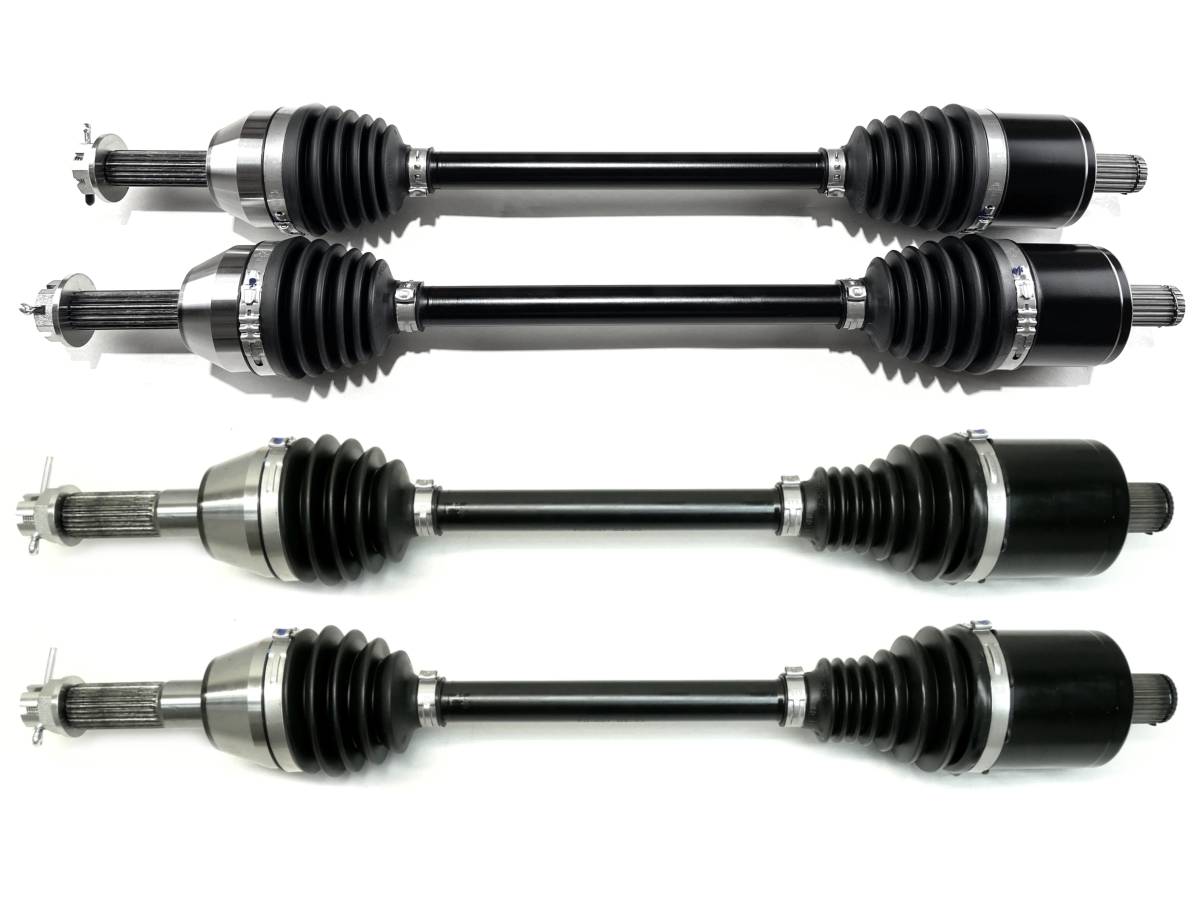

  • Fits the following Polaris UTV models: 2022-2024 Ranger 570/Crew 570. Please note these do not fit 'HDPE HD' or any 'Full Size' models. Set includes 4 axles (as pictured).
  • Features stronger than OEM, 4340 Chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 1336966, 1334361. Compressed axle length: Fronts - 616 mm, Rears - 643 mm, Inboard spline count: Fronts - 22, Rears - 28, Outboard spline count: Fronts - 20, Rears - 26.
  • 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles. Please note for 2020 - these only fit models built after October 8th, 2019.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-501/PO-501/PO-561/PO-561
    • PO-501/PO-501/PO-561/PO-561
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 31.0 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
