CV Axle Set for Polaris Ranger 570 900 & 1000 1332637, 1332947

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
PO-307/PO-307/PO-397/PO-397

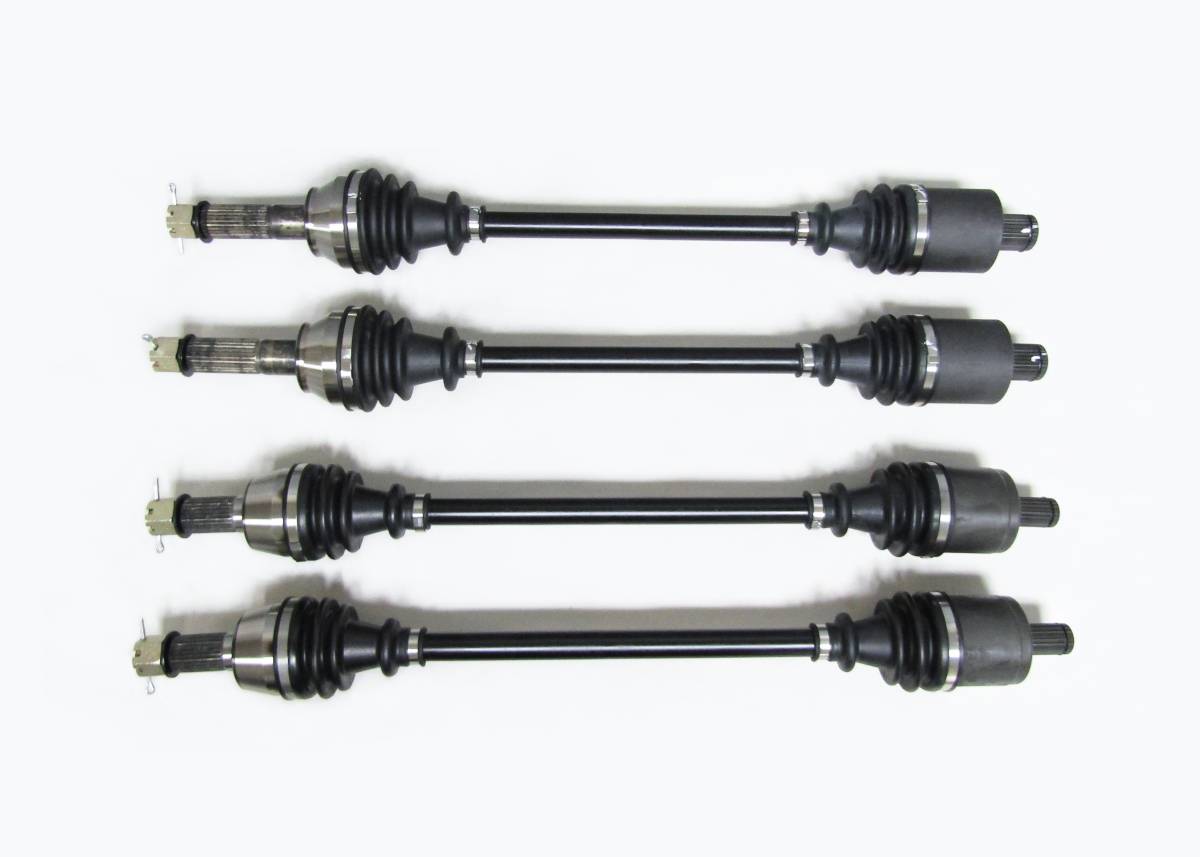

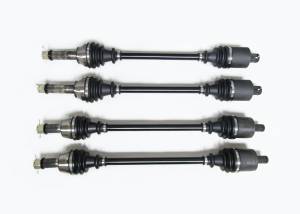

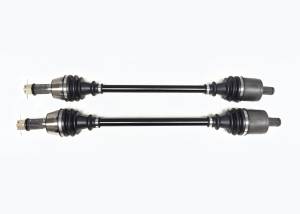

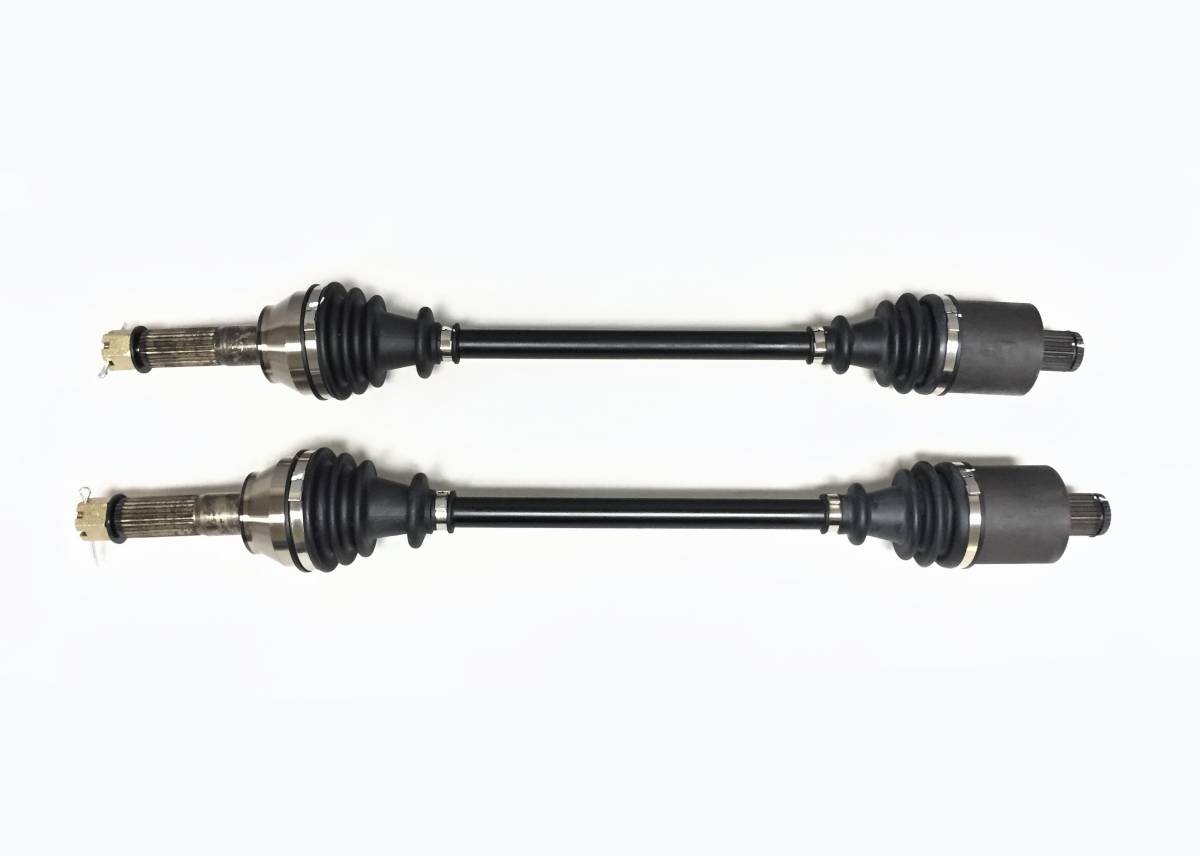

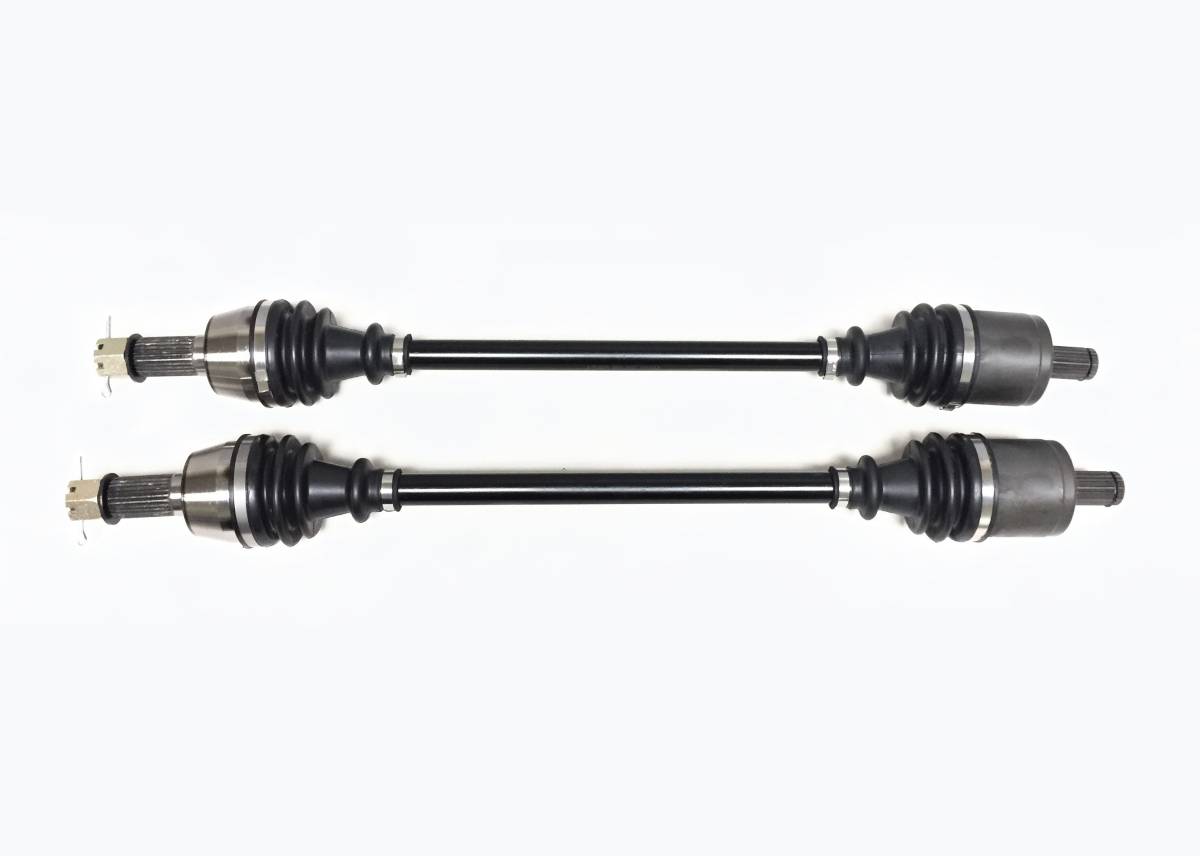

This is a set of new Front and Rear axles for a Polaris UTV.

They fit the following 4x4 models:

2015-2016 ... Full Size Ranger 570/Crew 570/Crew 570-6

2016 ... Ranger XP 570/XP Crew 570-6

2013-2018 ... Ranger 900/XP 900/Crew 900 (all excluding Diesel)

2015-2018 ... Ranger 1000 /XP 1000/Diesel 1000 (all excluding HST)

2017 ... RZR S 570 (Sport)

*Not intended for use in lifted / modified vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard Spline Count: Fronts - 22, Rears - 28
  • Outboard spline count: Fronts - 26, Rears - 26
  • Compressed overall axle length: Fronts - 685.5 mm, Rears - 684 mm
  • Replaces Polaris OEM # 1332637, 1332947
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $264.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2015-2016 Full Size Ranger 570, 2016 Ranger XP 570/XP Crew 570-6, 2013-2018 Ranger 900/XP 900/Crew 900 (all excluding Diesel), 2015-2018 Ranger 1000 /XP 1000/Diesel 1000 (all excluding HST), 2017 RZR S 570.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inboard Spline Count: Fronts - 22, Rears - 28, Outboard spline count: Fronts - 26, Rears - 26, Compressed overall axle length: Fronts - 685.5 mm, Rears - 684 mm.
  • Replaces Polaris OEM # 1332637, 1332947.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Application List

    YearMakeModelSubmodelNotes
    2015PolarisRanger 5704x4 Full Size
    2015PolarisRanger 5704x4 Full Size EPS
    2015PolarisRanger Crew 5704x4 Full Size
    2015PolarisRanger Crew 5704x4 Full Size EPS
    2015PolarisRanger Crew 900--
    2015PolarisRanger Crew 900EPS
    2014PolarisRanger Crew 900--
    2014PolarisRanger Crew 900EPS
    2014PolarisRanger Crew 900LE EPS
    2016PolarisRanger Crew 900-5--
    2016PolarisRanger Crew 900-5EPS
    2016PolarisRanger Crew 900-6--
    2016PolarisRanger Crew 900-6EPS
    2015PolarisRanger Crew 900 6--
    2015PolarisRanger Crew 900 6EPS
    2018PolarisRanger Crew Diesel--
    2017PolarisRanger Crew Diesel--
    2016PolarisRanger Crew Diesel--
    2015PolarisRanger Crew Diesel--
    2016PolarisRanger Crew XP 570-6EPS
    2016PolarisRanger Crew XP 570-6Pursuit Camo EPS
    2018PolarisRanger Crew XP 900--
    2018PolarisRanger Crew XP 900EPS
    2017PolarisRanger Crew XP 900--
    2017PolarisRanger Crew XP 900EPS
    2018PolarisRanger Crew XP 1000EPS
    2018PolarisRanger Crew XP 1000EPS High Lifter Edition
    2018PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger Crew XP 1000--
    2017PolarisRanger Crew XP 1000EPS
    2017PolarisRanger Crew XP 1000EPS High Lifter Edition
    2017PolarisRanger Crew XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger Crew XP 1000EPS pursuit camo
    2018PolarisRanger Diesel--
    2017PolarisRanger Diesel--
    2016PolarisRanger Diesel--
    2015PolarisRanger Diesel--
    2016PolarisRanger XP 570--
    2016PolarisRanger XP 570EPS
    2016PolarisRanger XP 570Pursuit Camo
    2018PolarisRanger XP 900--
    2018PolarisRanger XP 900EPS
    2017PolarisRanger XP 900--
    2017PolarisRanger XP 900EPS
    2016PolarisRanger XP 900--
    2016PolarisRanger XP 9004x4 High Lifter Edition EPS
    2016PolarisRanger XP 9004x4 Hunter Deluxe Edition EPS
    2016PolarisRanger XP 9004x4 Hunter Edition EPS
    2016PolarisRanger XP 9004x4 Northstar Edition EPS
    2016PolarisRanger XP 9004x4 Trail Edition EPS
    2016PolarisRanger XP 900EPS
    2016PolarisRanger XP 900Pursuit Camo
    2015PolarisRanger XP 900--
    2015PolarisRanger XP 9004x4 EPS Deluxe
    2015PolarisRanger XP 9004x4 Hunter Deluxe Edition EPS
    2015PolarisRanger XP 9004x4 Hunter Edition EPS
    2015PolarisRanger XP 900EPS
    2015PolarisRanger XP 900LE EPS
    2015PolarisRanger XP 900Northstar Edition EPS
    2014PolarisRanger XP 900--
    2014PolarisRanger XP 9004x4 Deluxe
    2014PolarisRanger XP 900Browning
    2014PolarisRanger XP 900EPS
    2014PolarisRanger XP 900LE Browning EPS
    2014PolarisRanger XP 900LE EPS
    2014PolarisRanger XP 900Pursuit
    2013PolarisRanger XP 900--
    2013PolarisRanger XP 900EPS
    2013PolarisRanger XP 900LE
    2013PolarisRanger XP 900LE Browning EPS
    2013PolarisRanger XP 900LE EPS
    2018PolarisRanger XP 1000EPS
    2018PolarisRanger XP 1000EPS High Lifter Edition
    2018PolarisRanger XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger XP 1000--
    2017PolarisRanger XP 1000EPS
    2017PolarisRanger XP 1000EPS High Lifter Edition
    2017PolarisRanger XP 1000EPS Hunter Edition
    2017PolarisRanger XP 1000EPS Northstar HVAC Edition
    2017PolarisRanger XP 1000EPS Ranch Edition
    2017PolarisRZR S 570EPS

    Details

    • PO-307/PO-307/PO-397/PO-397
    • PO-307/PO-307/PO-397/PO-397
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 49.0 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
