Front Left Axle & Bearing for Can-Am Maverick X3 Turbo & XDS 64" 17-21 705402097

Location on vehicle: Front,Left

(0) Reviews: Write first review
CA-126/WB-1751

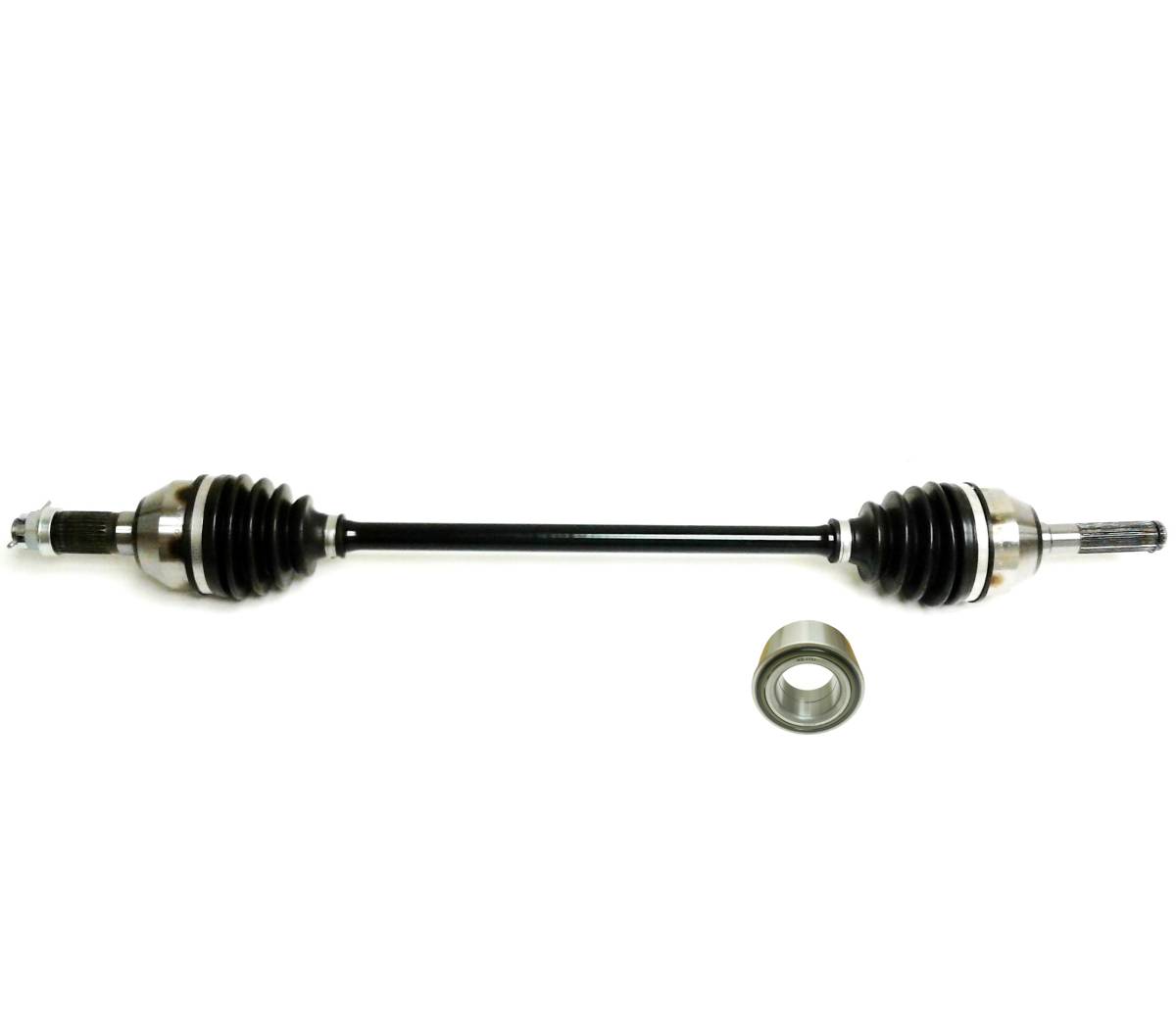

This is a fully-assembled cv axle & wheel bearing for a 64" Can-Am Maverick X3.

They fit FRONT, LEFT (driver side) on the following models:

2017 ... X3 STD, XDS-DPS

2017 ... X3 MAX STD, MAX XDS-DPS

2018 ... X3 STD, 900 HO, Turbo R STD, XDS-DPS

2018 ... X3 MAX Turbo STD

2019 ... X3 Turbo, Turbo R STD

2019 ... X3 MAX Turbo R

2020 ... X3 Turbo STD, Turbo R STD

2020 ... X3 MAX Turbo STD, MAX Turbo R STD

2021 ... X3 Turbo - DS, Turbo R - DS

2021 ... X3 MAX Turbo, MAX Turbo R - DS

*Axle made as OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

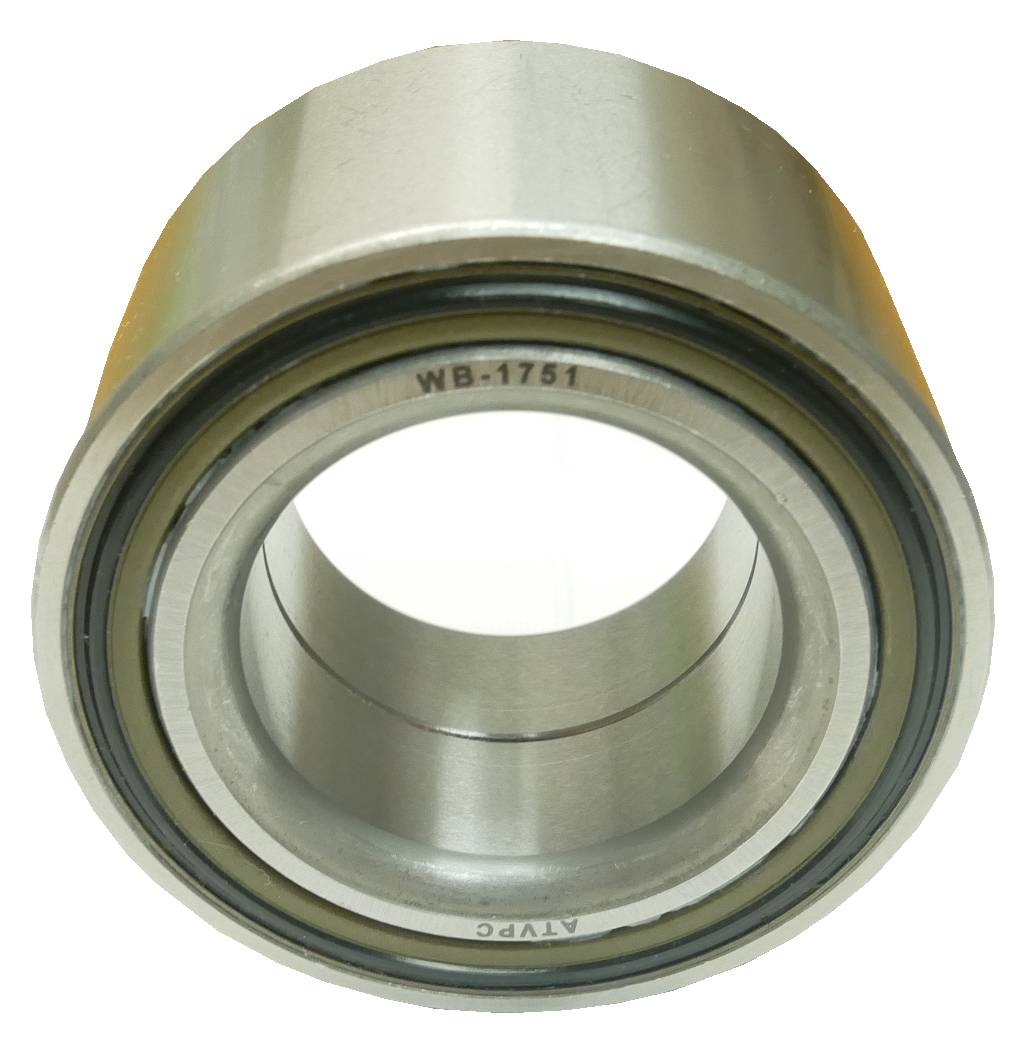

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Replaces OEM # (axle) 705401686, 705402097, (bearing) 293350129, 293350151
  • Compressed overall axle length: 778 mm

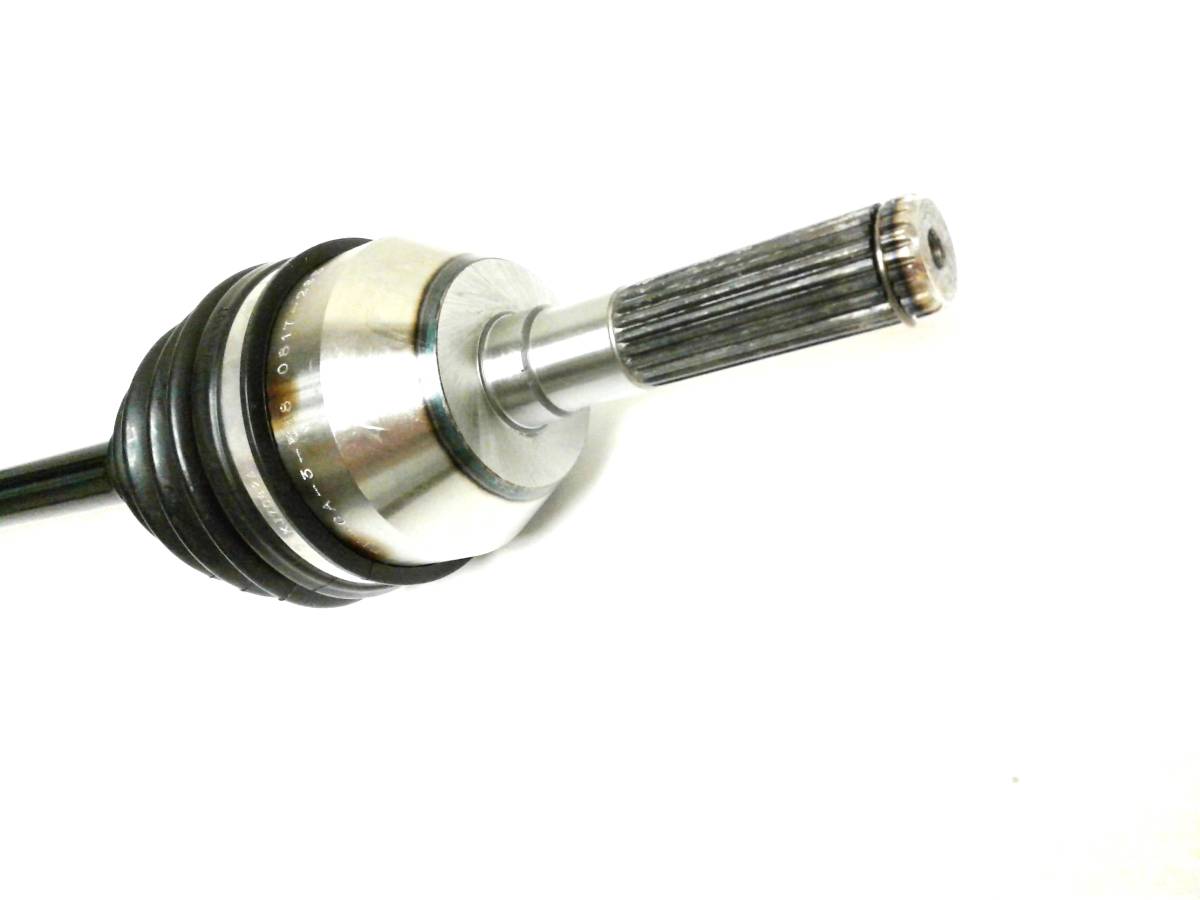

  • Inboard CV joint spline count: 21

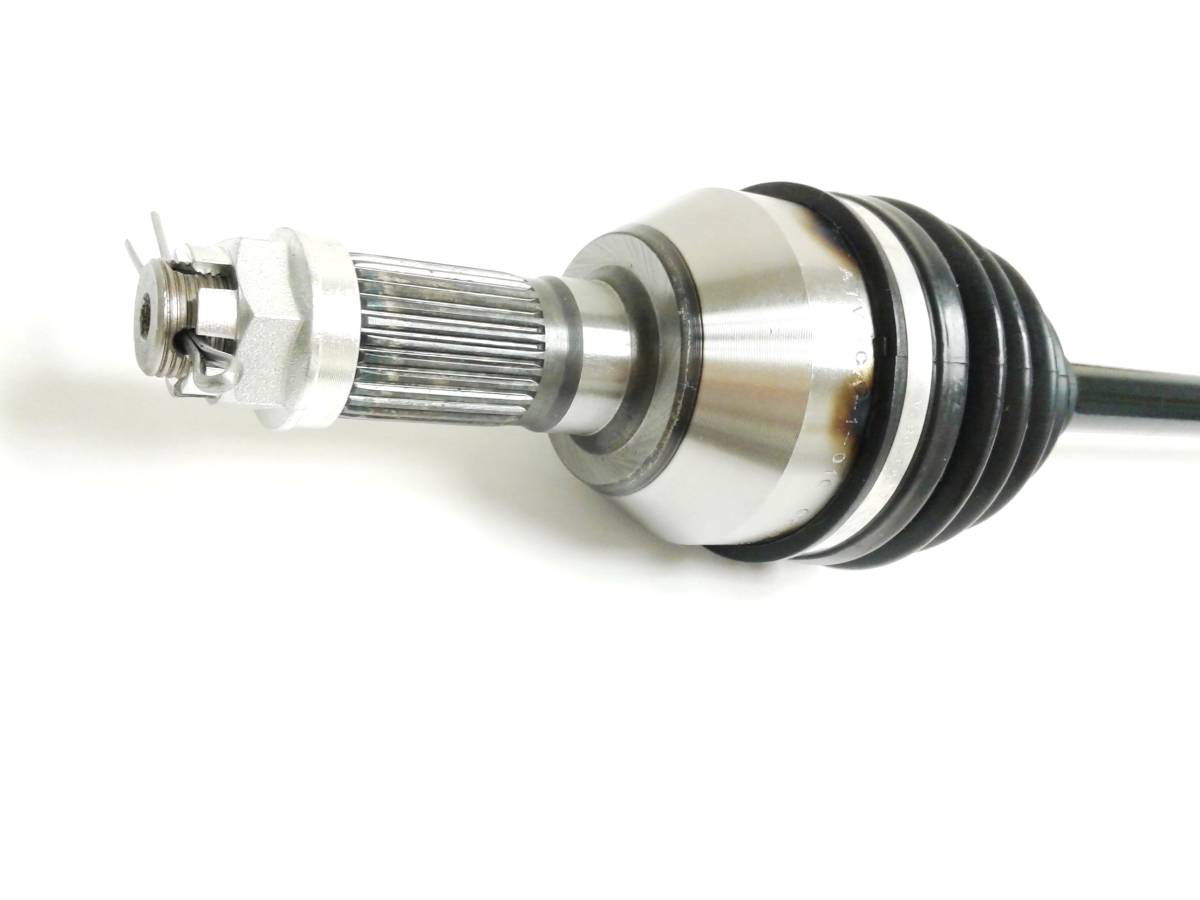

  • Outboard CV joint spline count: 29
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021Can-AmMaverick X34x4 DS Turbo DPS
2020Can-AmMaverick X34x4 Turbo DPS
2019Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X34x4 Turbo DPS
2017Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X3 900 HO4x4 DPS
2021Can-AmMaverick X3 Max4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max4x4 Turbo DPS
2018Can-AmMaverick X3 Max4x4 Turbo DPS
2021Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2019Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2021Can-AmMaverick X3 R4x4 DS Turbo DPS
2020Can-AmMaverick X3 R4x4 DS Turbo DPS
2019Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 XDS Turbo DPS
2017Can-AmMaverick X3 R4x4 Turbo DPS
2017Can-AmMaverick X3 R4x4 XDS Turbo DPS

Product Notes

  • Fits FRONT, LEFT on the following Can-Am Maverick 64" models: 2017 X3 STD, XDS-DPS, X3 MAX STD, MAX XDS-DPS, 2018 X3 STD, 900 HO, Turbo R STD, XDS-DPS, MAX Turbo STD, 2019 X3 Turbo, Turbo R STD, MAX Turbo R.
  • 2020 X3 Turbo STD, Turbo R STD, MAX Turbo STD, MAX Turbo R STD, 2021 X3 Turbo - DS, Turbo R - DS, MAX Turbo, MAX Turbo R - DS. Please note this will not fit 72" models.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out. Set includes 1 axle & 1 wheel bearing.
  • Replaces OEM # (axle) 705401686, 705402097, (bearing) 293350129, 293350151. Inboard Splines: 21, Outboard splines: 29, Compressed axle length: 778 mm. Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles).

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-126/WB-1751
    • CA-126/WB-1751
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.0 lbs.
    • W5.0000” x H5.0000” x L40.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
