Rear CV Axle & Wheel Bearing for Honda Pioneer 700 & 700-4 4x4 2015-2021

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
HO-370/WB-1728

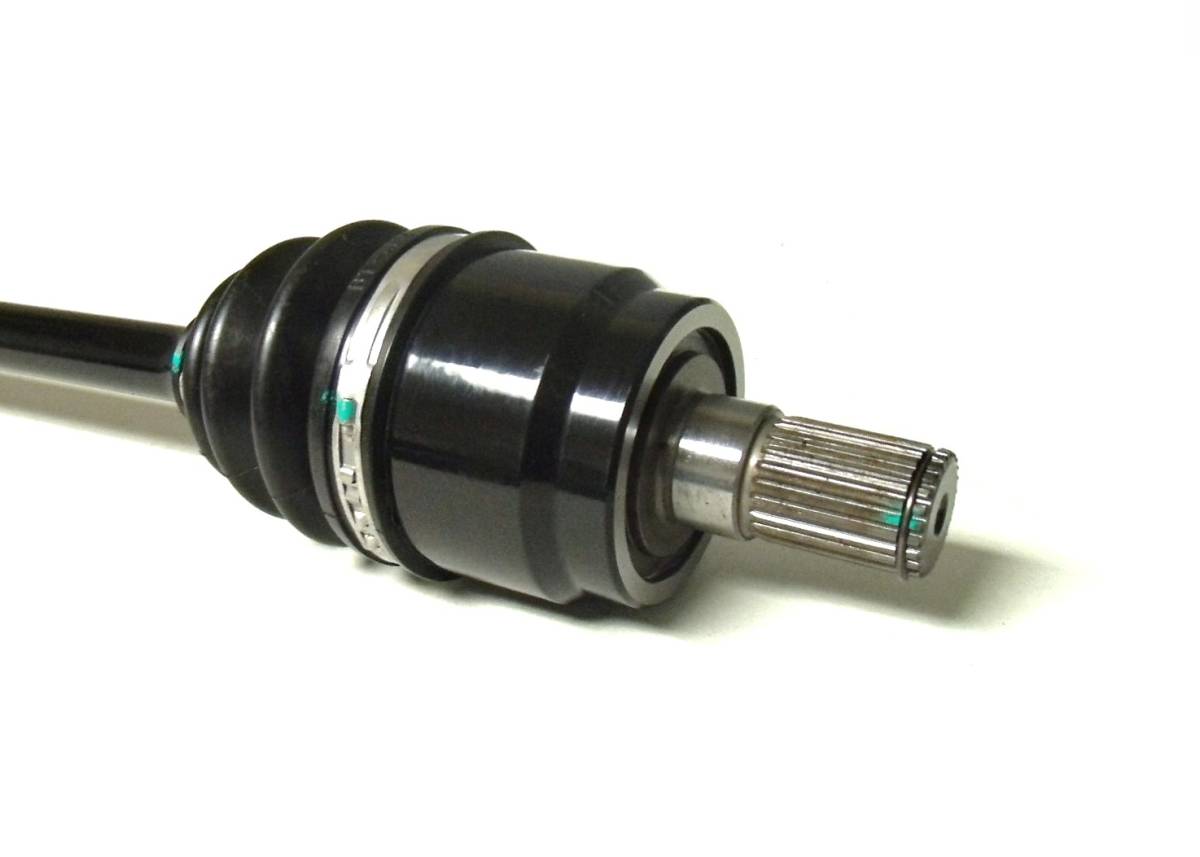

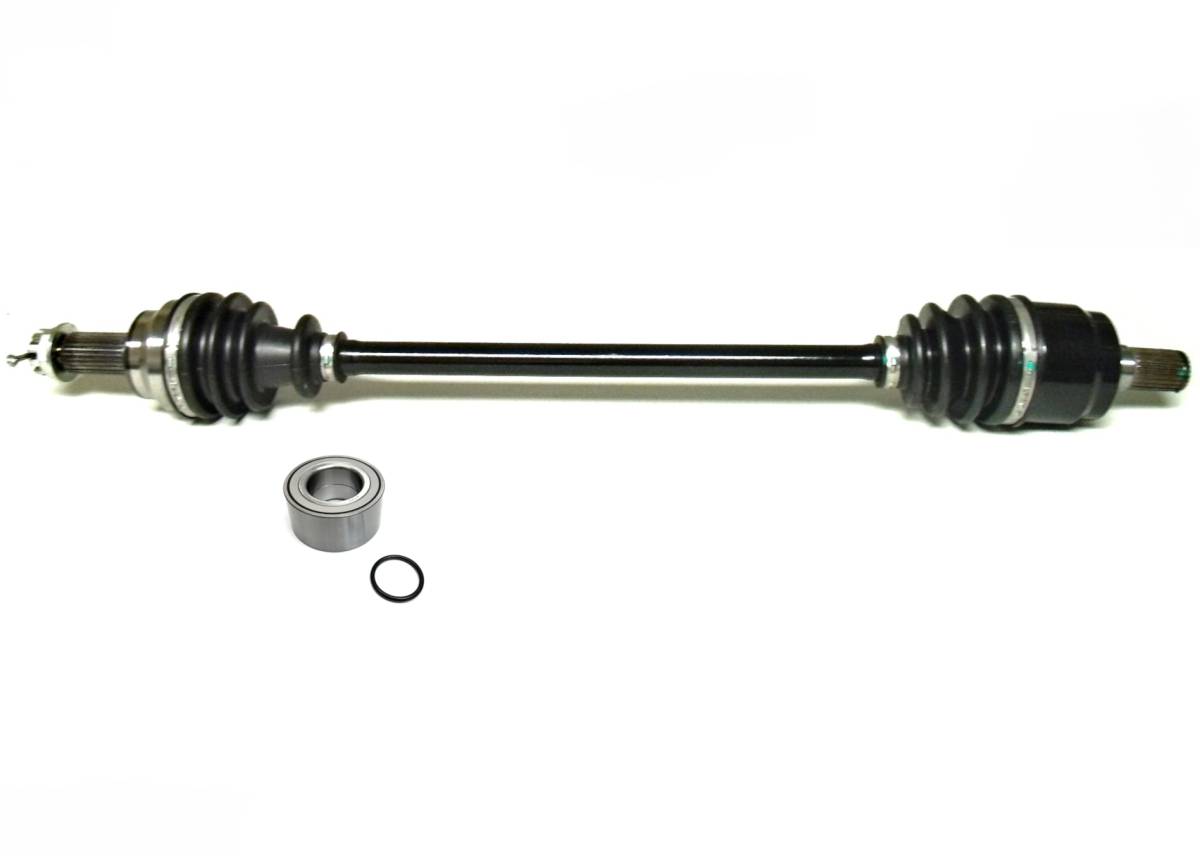

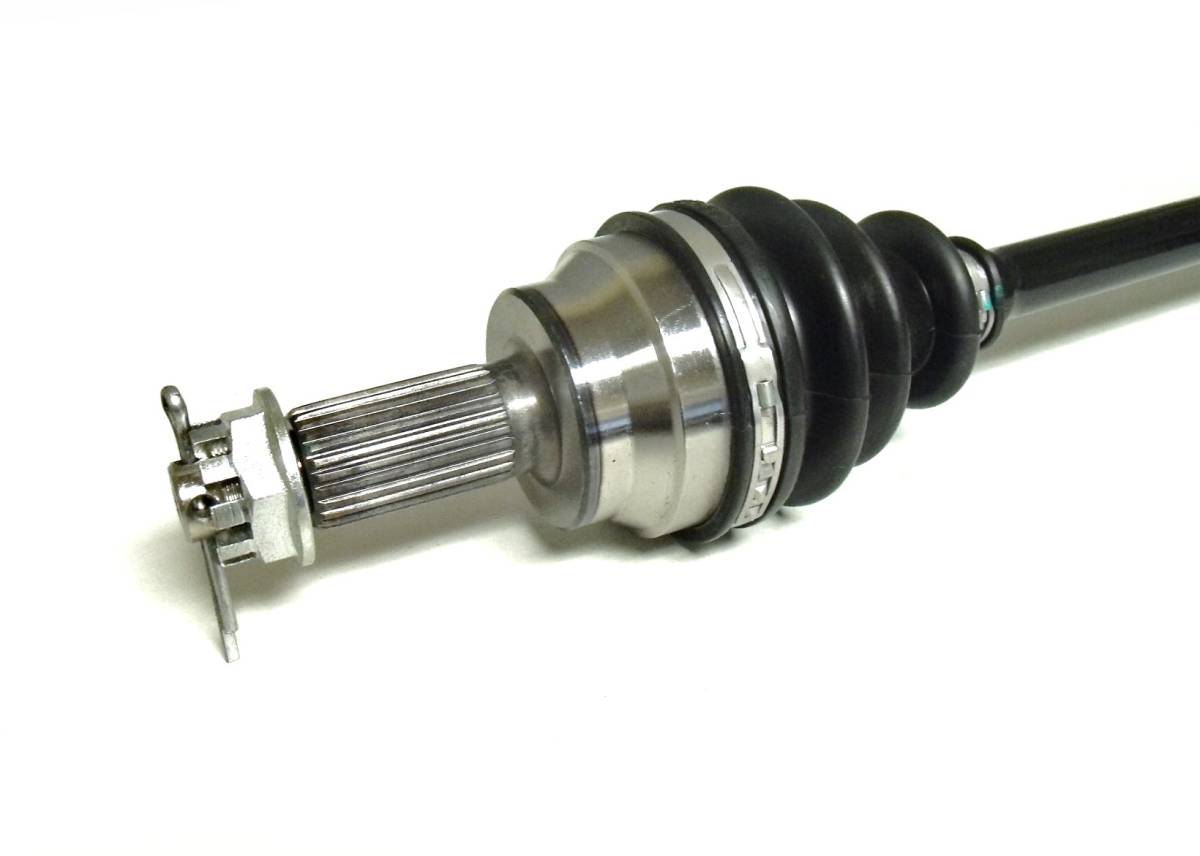

This is a new CV axle & wheel bearing for a Honda UTV.

They fit REAR, LEFT or RIGHT on the following models:

2015-2021 ... Pioneer 700

2015-2021 ... Pioneer 700-4

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

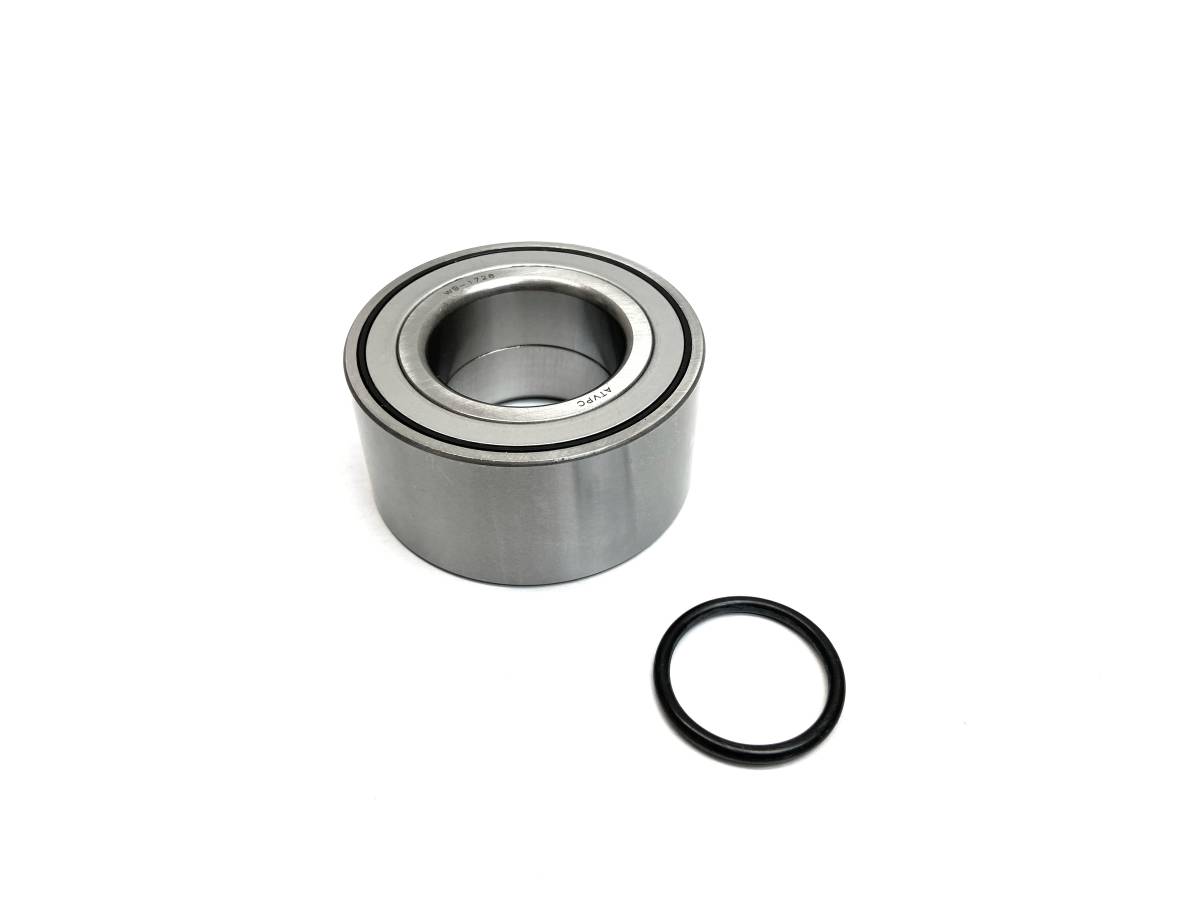

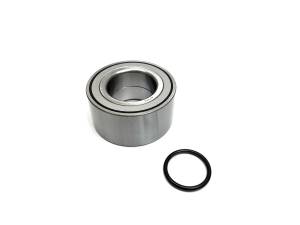

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 25
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 691 mm
  • Replaces OEM # (axle) 42300-HL3-A41, 42200-HL3-A41, 42220-HL3-A01, (bearing) 91054-HL3-A41
Limited Supply: only 4 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $82.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021HondaPioneer 700SXS700M2
2021HondaPioneer 700SXS700M2D Deluxe
2020HondaPioneer 700SXS700M2
2020HondaPioneer 700SXS700M2D Deluxe
2019HondaPioneer 700SXS700M2
2019HondaPioneer 700SXS700M2D Deluxe
2018HondaPioneer 700SXS700M2
2018HondaPioneer 700SXS700M2D Deluxe
2017HondaPioneer 700SXS700M2
2017HondaPioneer 700SXS700M2D Deluxe
2016HondaPioneer 700SXS700M2
2015HondaPioneer 700SXS700M2
2021HondaPioneer 700-4SXS700M4
2021HondaPioneer 700-4SXS700M4D Deluxe
2020HondaPioneer 700-4SXS700M4
2020HondaPioneer 700-4SXS700M4D Deluxe
2019HondaPioneer 700-4SXS700M4
2019HondaPioneer 700-4SXS700M4D Deluxe
2018HondaPioneer 700-4SXS700M4
2018HondaPioneer 700-4SXS700M4D Deluxe
2017HondaPioneer 700-4SXS700M4
2017HondaPioneer 700-4SXS700M4D Deluxe
2016HondaPioneer 700-4SXS700M4
2015HondaPioneer 700-4SXS700M4

Product Notes

  • Fits REAR, LEFT or RIGHT on the 2015-2021 Honda Pioneer 700 & 700-4 (SXS700, SXS700-2, SXS700-4). Set includes 1 axle & 1 wheel bearing.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures. Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces OEM # (axle) 42300-HL3-A41, 42200-HL3-A41, 42220-HL3-A01, (bearing) 91054-HL3-A41. Inner joint spline count: 25, Outer joint spline count: 26, Compressed axle length: 691 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • HO-370/WB-1728
    • HO-370/WB-1728
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.2 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
