Rear CV Axle & Wheel Bearing for Honda Pioneer 700 4x4 2014

Location on vehicle: Rear,Left,Right

HO-325/WB-1701

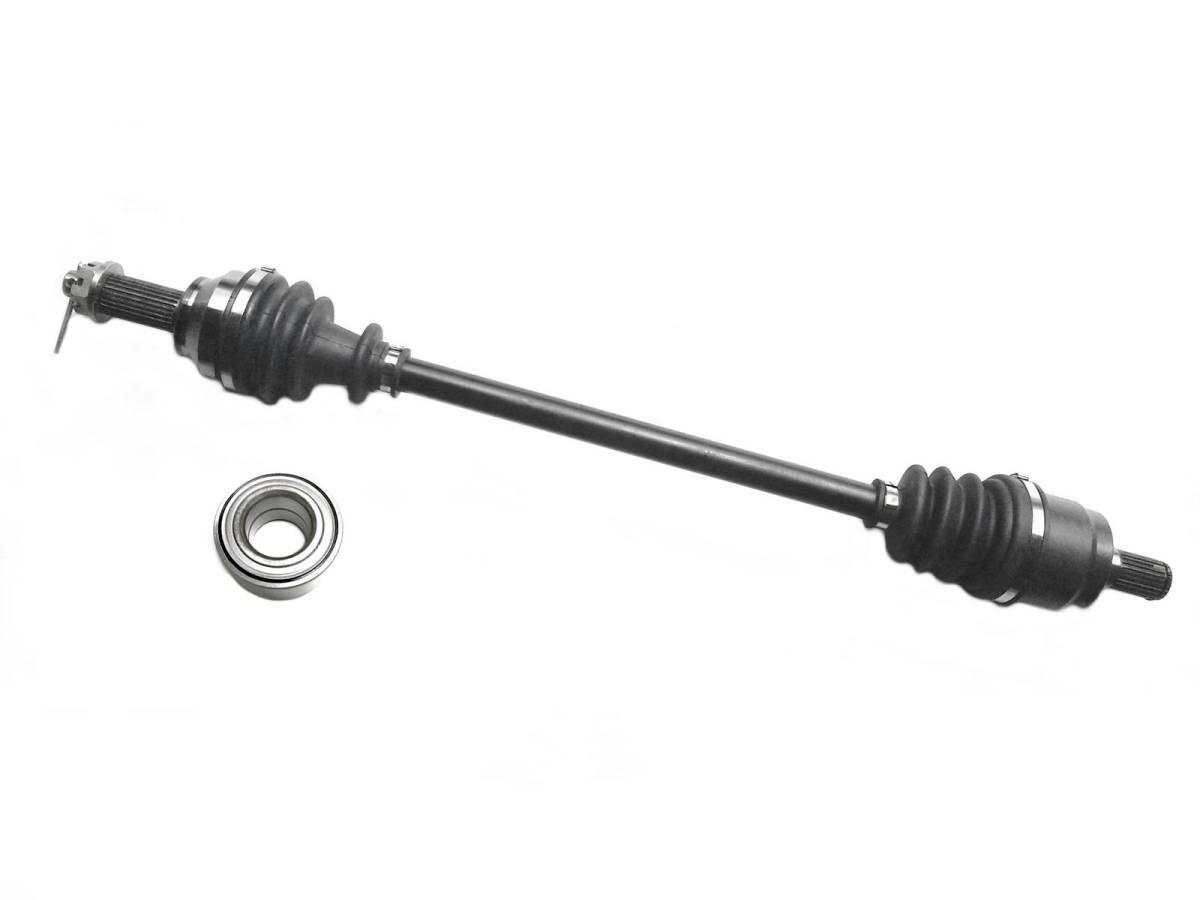

This is a new CV axle and wheel bearing for a Honda UTV.

They fit REAR, LEFT or RIGHT on the following models:

2014 Honda Pioneer 700 / 700-4

2014 Honda Pioneer 700 / 700-4

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 25
  • Outboard CV joint spline count: 26
  • Compressed axle length: 689.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $74.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014HondaPioneer 700SXS700M2
2014HondaPioneer 700-4SXS700M4

Product Notes

  • Fits rear, left or right on the following Honda UTV models: 2014 Pioneer 700, 2014 Pioneer 700-4.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axle) 42220-HL3-A0, 42350-HL3-A02, (bearing (91056-HL3-A01). Compressed length: 689.5 mm, Inboard spline count: 25, Outboard spline count: 26.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV axle & 1 wheel bearing
  • Warranty

    1 year factory defect limited warranty

    Details

    • HO-325/WB-1701
    • HO-325/WB-1701
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 12.0 lbs.
    • W6.0000” x H6.0000” x L32.0000”
