Front CV Axle Pair with Bearings for Honda Pioneer 1000 & 1000-5 2016-2021

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
HO-125/HO-125/WB-1728/WB-1728

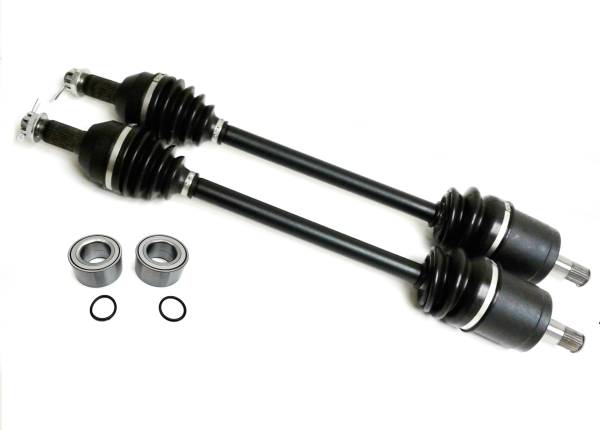

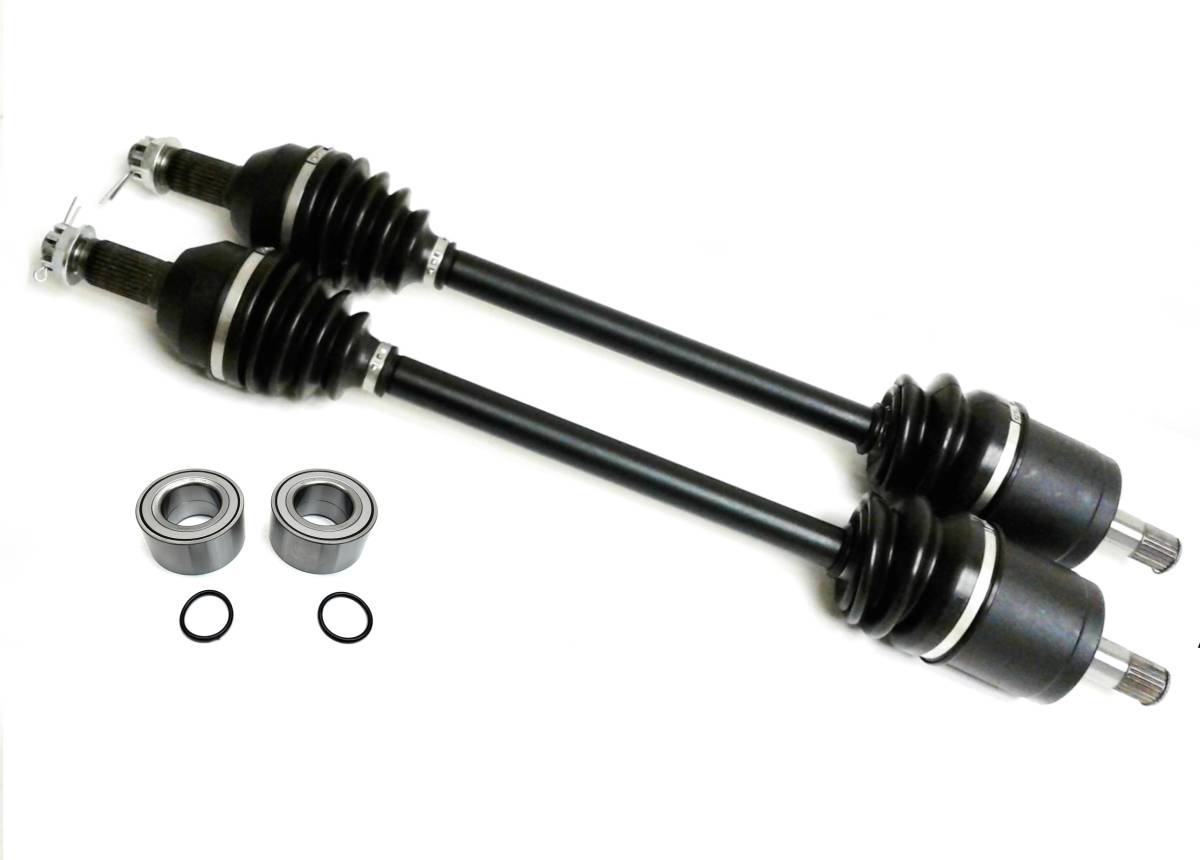

This is a pair of CV axles & wheel bearings for a Honda UTV.

They will fit the following models:

2016-2021 ... Pioneer 1000 (excluding LE)

2016-2021 ... Pioneer 1000-5 (excluding LE)

*please note these will not fit any Limited Edition models

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out

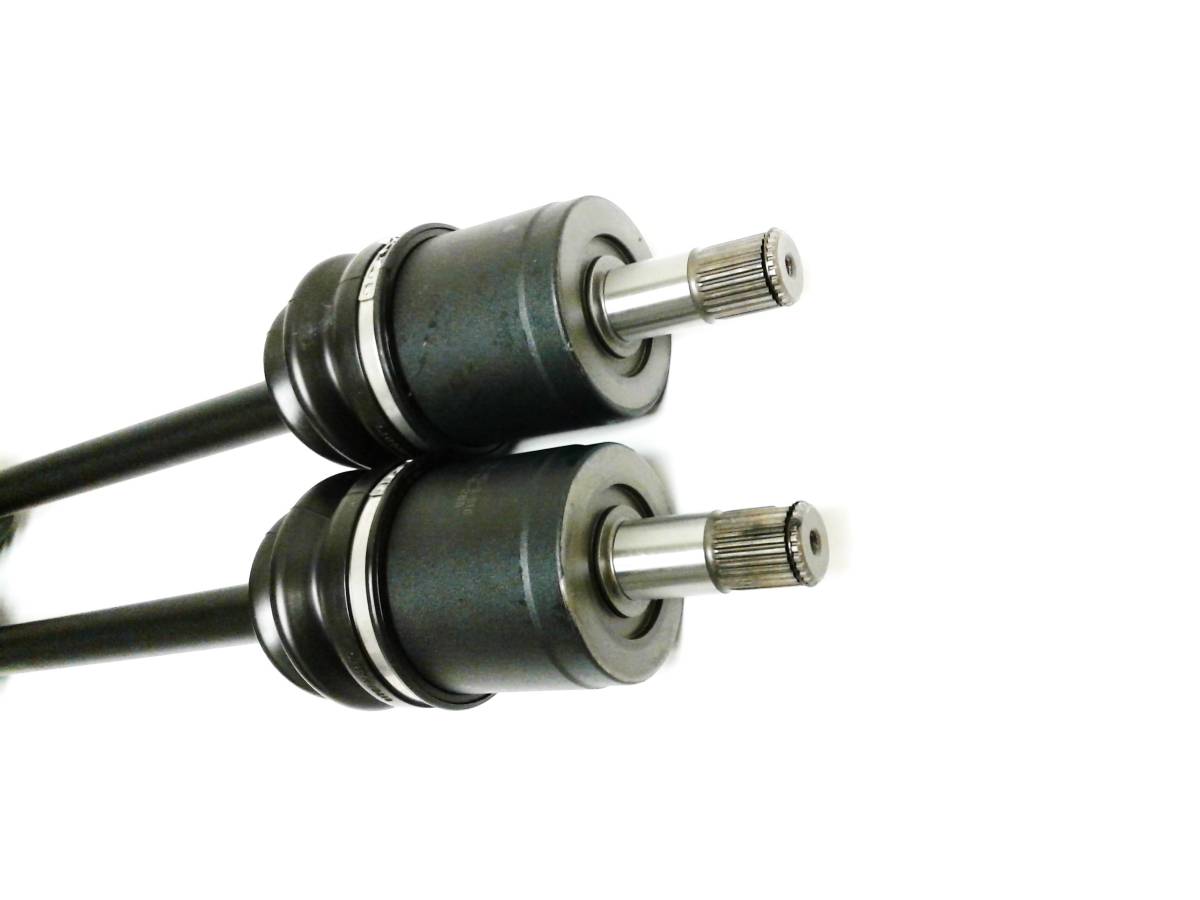

  • Inboard CV joint spline count: 25 (both)

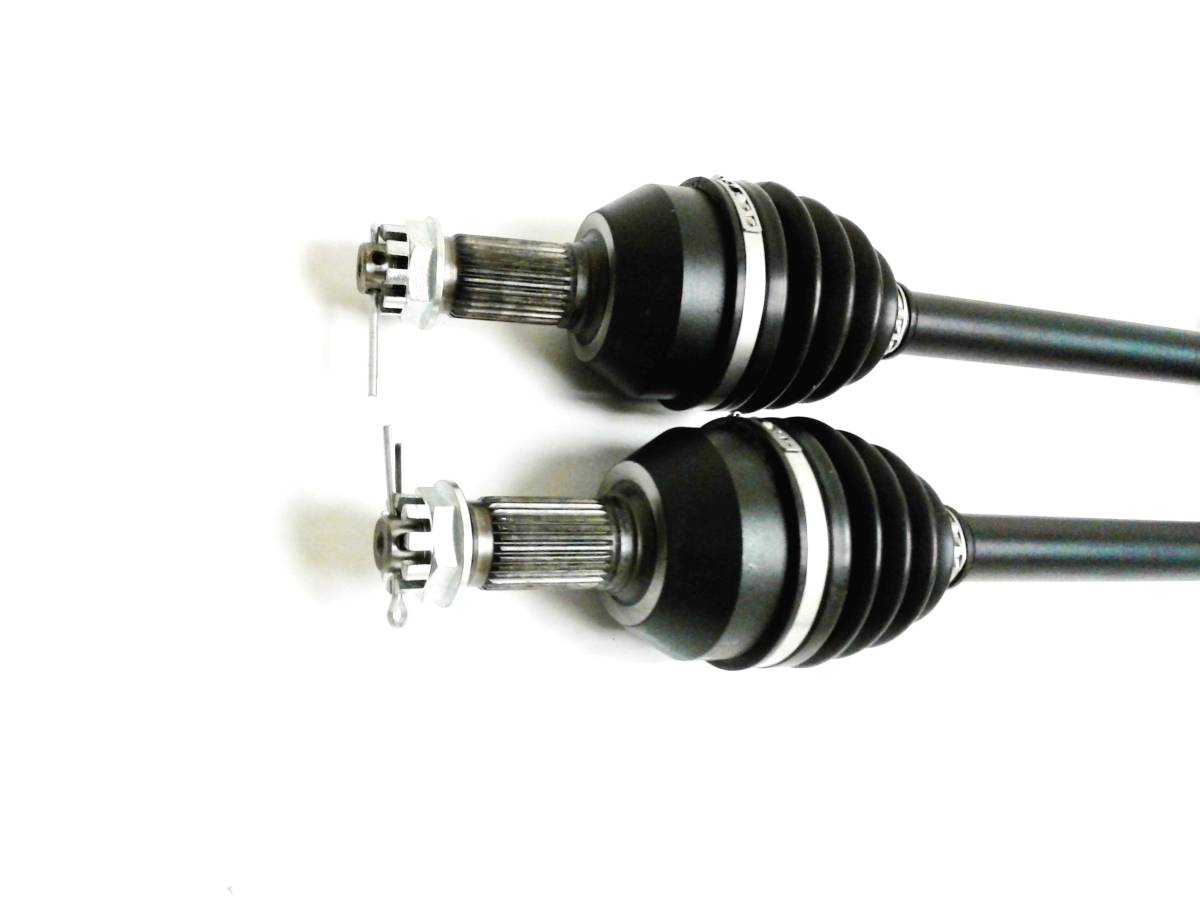

  • Outboard CV joint spline count: 28 (both)
  • Compressed overall axle length: 711 mm (both)
  • Replaces OEM # (axles) 44350-HL4-A01, 44250-HL4-F01, 44220-HL4-A01, (bearings) 91054-HL3-A41
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $174.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021HondaPioneer 1000SXS1000M3
2021HondaPioneer 1000SXS1000M3 Deluxe
2020HondaPioneer 1000SXS1000M3
2020HondaPioneer 1000SXS1000M3 Deluxe
2019HondaPioneer 1000SXS1000M3
2019HondaPioneer 1000SXS1000M3 EPS
2018HondaPioneer 1000SXS10M3P EPS
2018HondaPioneer 1000SXS1000M3
2018HondaPioneer 1000SXS1000M3 EPS
2017HondaPioneer 1000SXS1000M3
2017HondaPioneer 1000SXS1000M3 EPS
2016HondaPioneer 1000SXS1000M3
2016HondaPioneer 1000SXS1000M3 EPS
2021HondaPioneer 1000-5SXS1000M5
2021HondaPioneer 1000-5SXS1000M5 Deluxe
2020HondaPioneer 1000-5SXS1000M5
2020HondaPioneer 1000-5SXS1000M5 Deluxe
2019HondaPioneer 1000-5SXS1000M5
2019HondaPioneer 1000-5SXS1000M5 Deluxe
2018HondaPioneer 1000-5SXS10M5D Deluxe
2018HondaPioneer 1000-5SXS1000M5
2018HondaPioneer 1000-5SXS1000M5 Deluxe
2017HondaPioneer 1000-5SXS1000M5
2017HondaPioneer 1000-5SXS1000M5 Deluxe
2016HondaPioneer 1000-5SXS1000M5
2016HondaPioneer 1000-5SXS1000M5 Deluxe

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Honda UTV models (excluding Limited Edition): 2016-2021 Pioneer 1000, 2016-2021 Pioneer 1000-5. Will fit Base, Premium, & Deluxe, just not any LE editions. Set includes 2 axles & 2 wheel bearings.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (axles) 44350-HL4-A01, 44250-HL4-F01, 44220-HL4-A01, (bearings) 91054-HL3-A41. Overall axle length 711 mm (both), Inboard spline count: 25 (both), Outboard spline count: 28 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

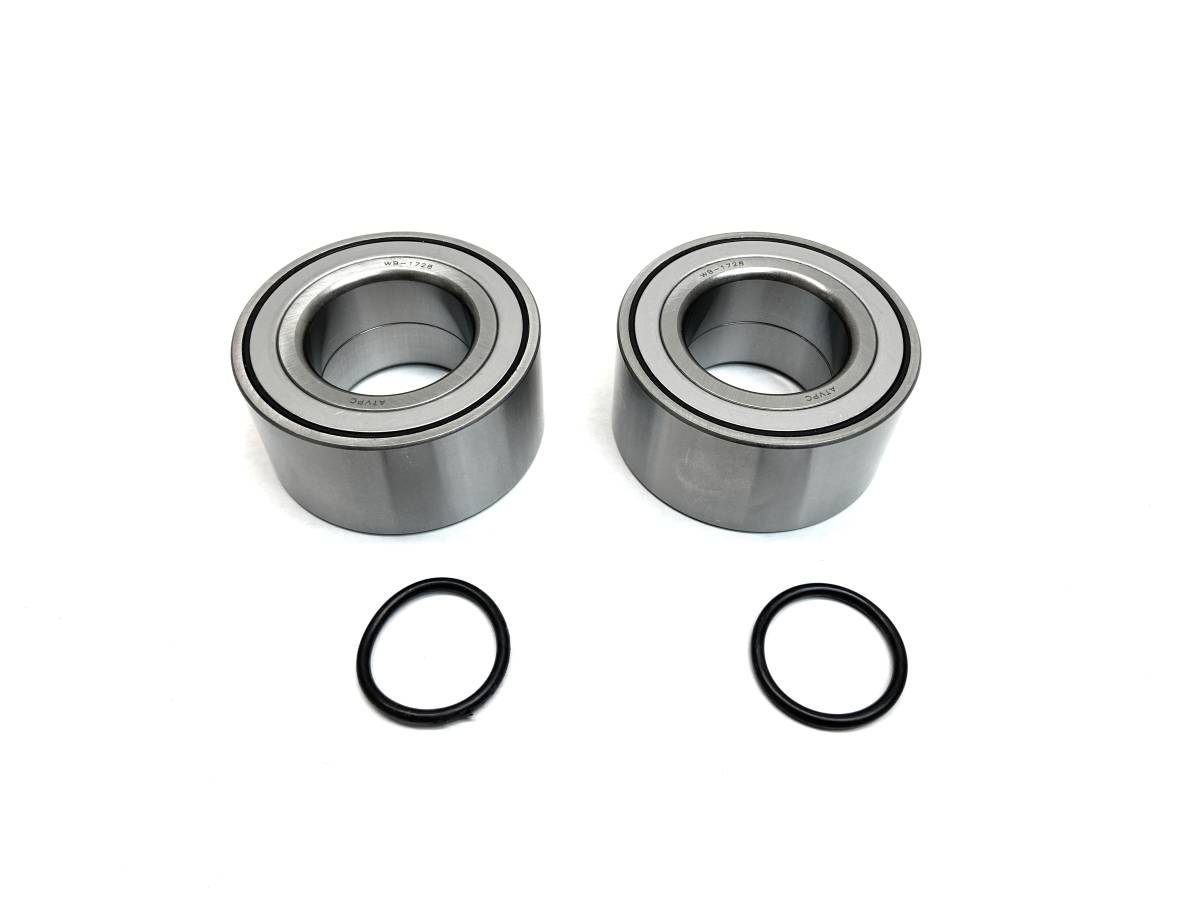

  • 2 axles, 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • HO-125/HO-125/WB-1728/WB-1728
    • HO-125/HO-125/WB-1728/WB-1728
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 22.0 lbs.
    • W10.0000” x H5.0000” x L27.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
