Rear CV Axle Pair for Polaris Ranger 500 & 570 2020-2022, 1334361

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
PO-561/PO-561

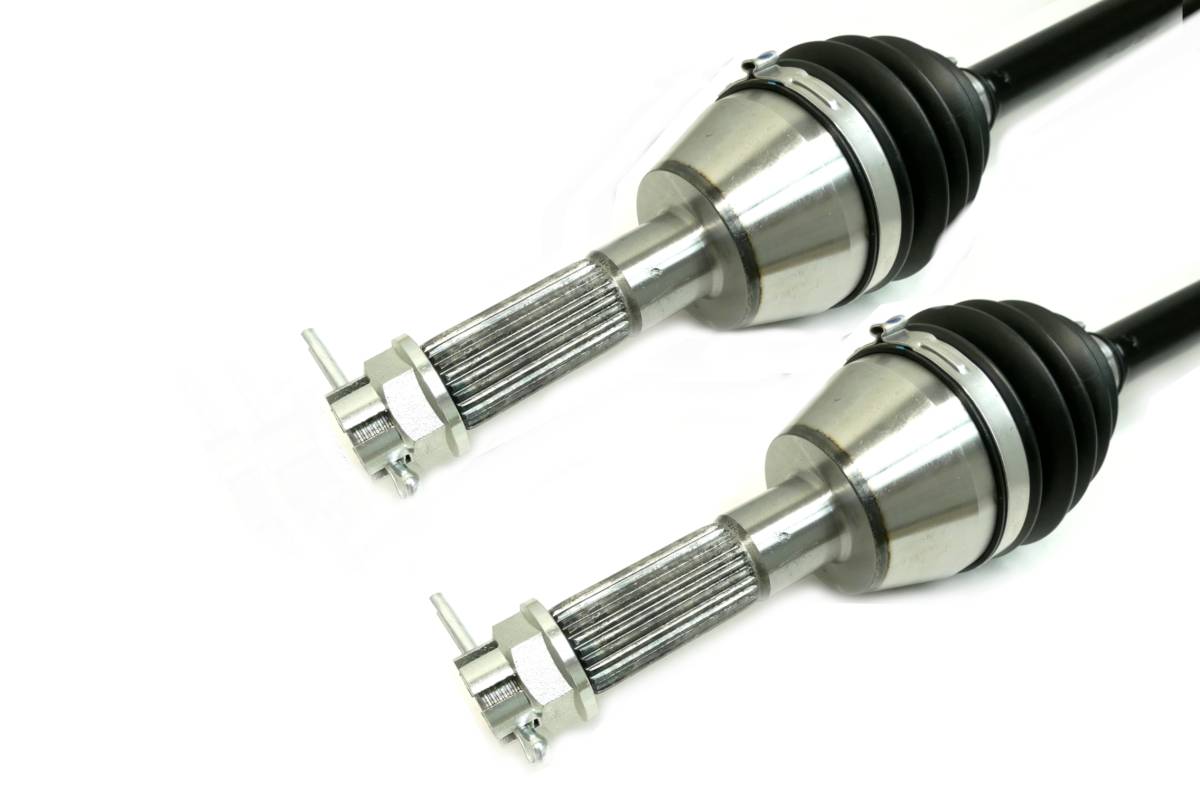

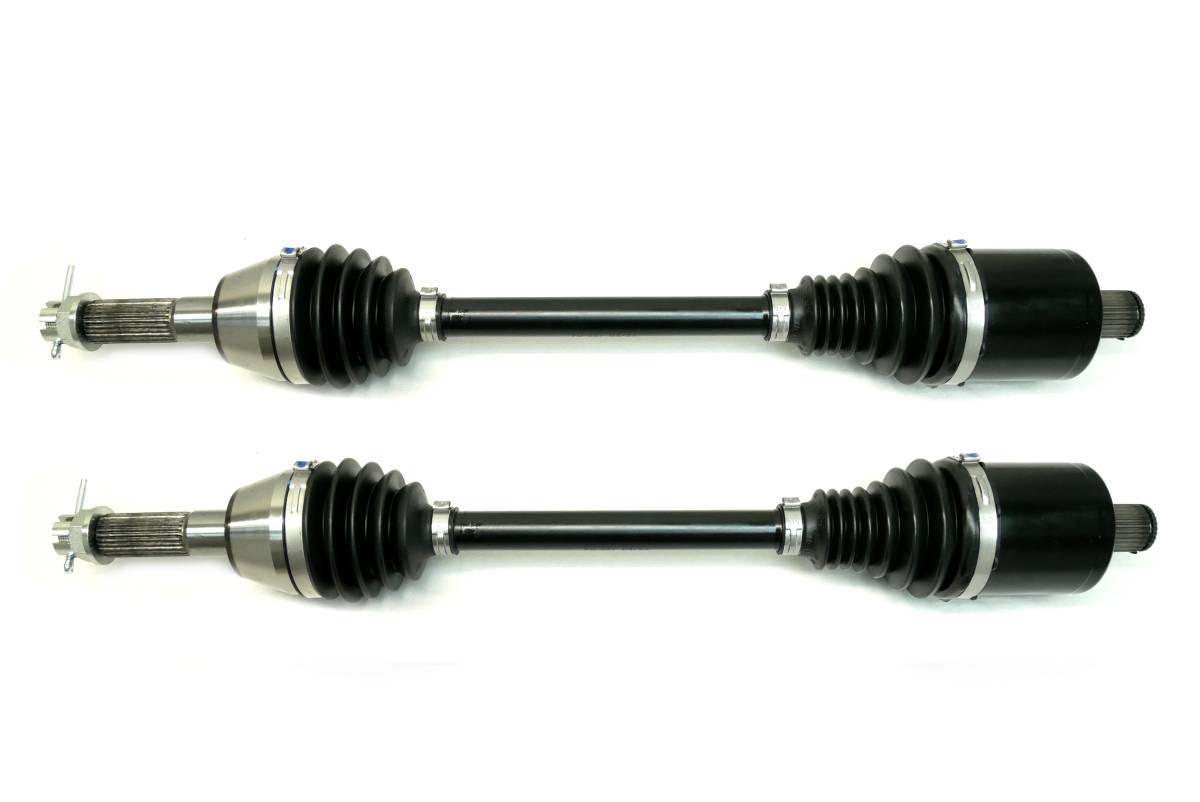

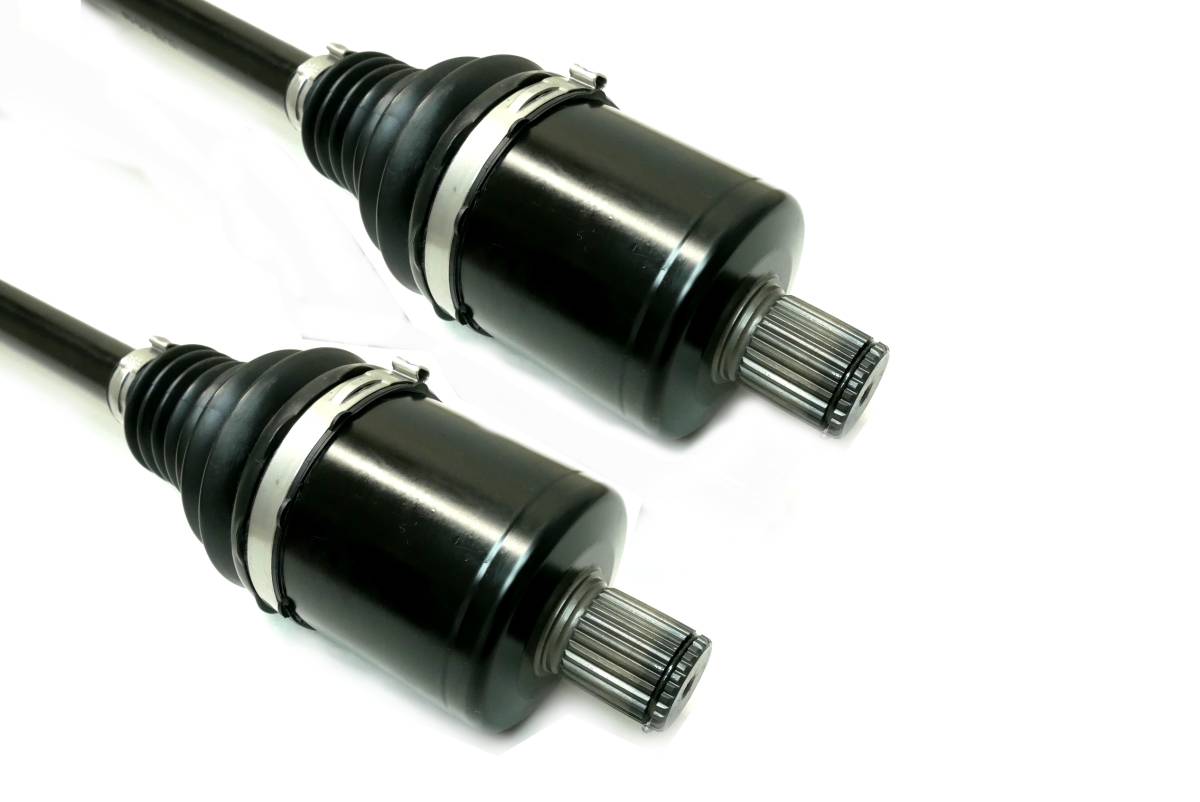

This is a pair of new CV axles for a Polaris UTV.

They fit REAR, LEFT & RIGHT on the following models (built after 10/08/2019):

2020-2022 Ranger 500/500 IS

2020-2023 Ranger 570/Crew 570 (including EPS, Ride Command, HDPE)

2020-2023 'Full Size' Ranger 570/Crew 570

*Please note for 2020 - these only fit models built after October 8th, 2019

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard spline count: 28 (both)
  • Outboard spline count: 26 (both)
  • Compressed axle length: 643 mm (both)
  • Replaces OEM # 1334361
Limited Supply: only 6 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022PolarisRanger 500--
2021PolarisRanger 500--
2020PolarisRanger 500--only models built after Oct. 8th, 2019
2023PolarisRanger 5704x4 Full Size
2022PolarisRanger 5704x4 Full Size
2021PolarisRanger 570--
2021PolarisRanger 5704x4 Full Size
2021PolarisRanger 570Premium
2020PolarisRanger 570--only models built after Oct. 8th, 2019
2020PolarisRanger 5704x4 Full Sizeonly models built after Oct. 8th, 2019
2020PolarisRanger 570EPSonly models built after Oct. 8th, 2019
2023PolarisRanger Crew 5704x4 Full Size
2022PolarisRanger Crew 5704x4 Full Size
2021PolarisRanger Crew 570-64X4
2020PolarisRanger Crew 570-64X4only models built after Oct. 8th, 2019

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Polaris models (built after Oct. 8th, 2019): 2020-2022 Ranger 500/500 IS, 2020-2023 Ranger 570/Crew 570 (including EPS, Ride Command, HDPE), 2020-2023 'Full Size' Ranger 570/Crew 570. Set includes 2 axles.
  • Features a stronger than OEM, 4340 Chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Compressed axle length: 643 mm (both), Inboard spline count: 28 (both), Outboard spline count: 26 (both). Replaces OEM # 1334361.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles. Please note for 2020 - these only fit models built after October 8th, 2019.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-561/PO-561
    • PO-561/PO-561
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 31.0 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
