Rear CV Axle Pair for Polaris Ranger 500 & 700 2x4 4x4 2005-2007

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
PO-384/PO-385

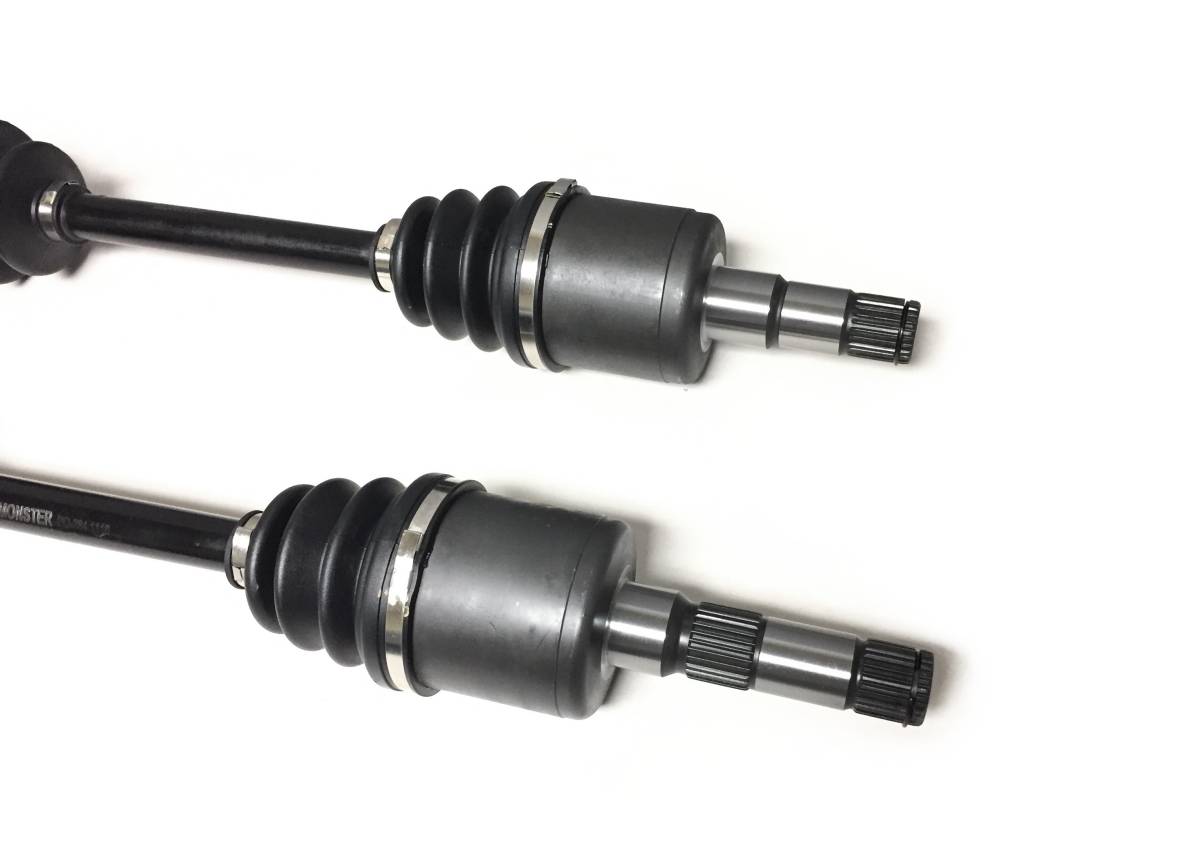

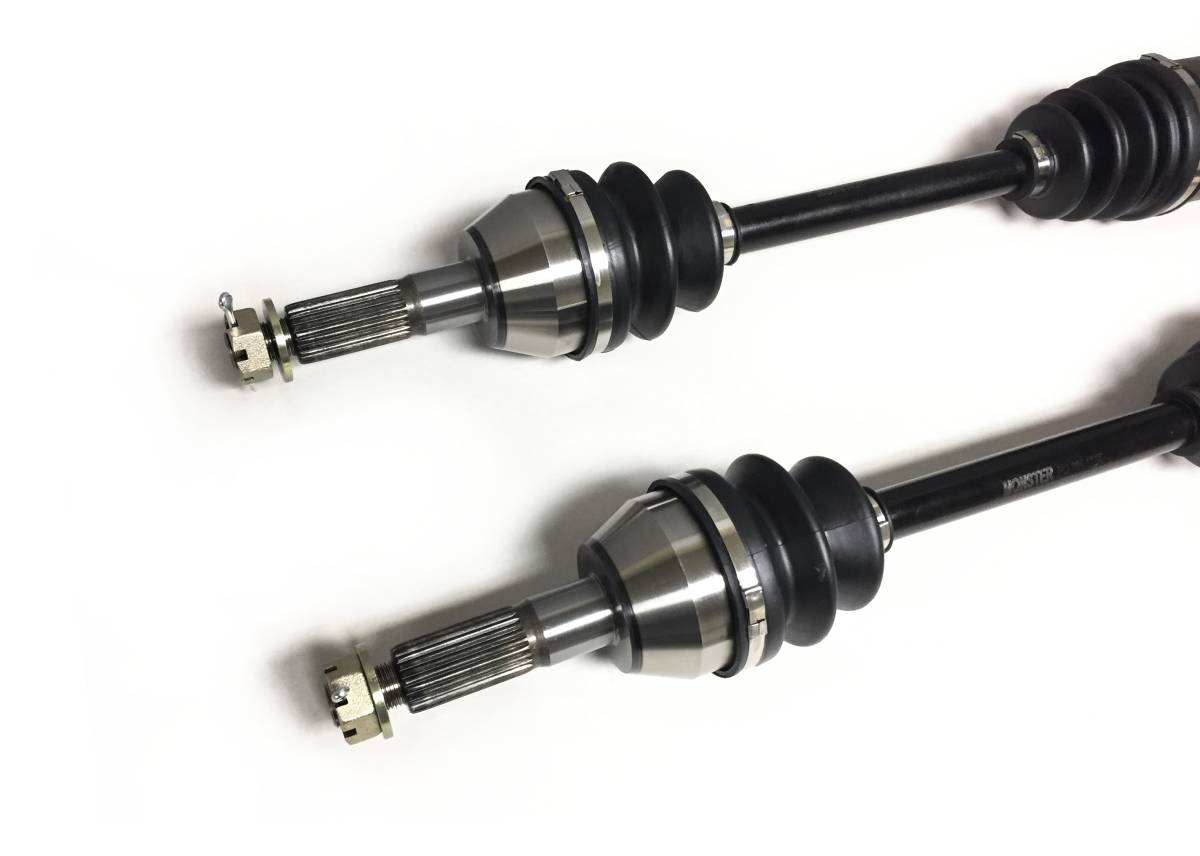

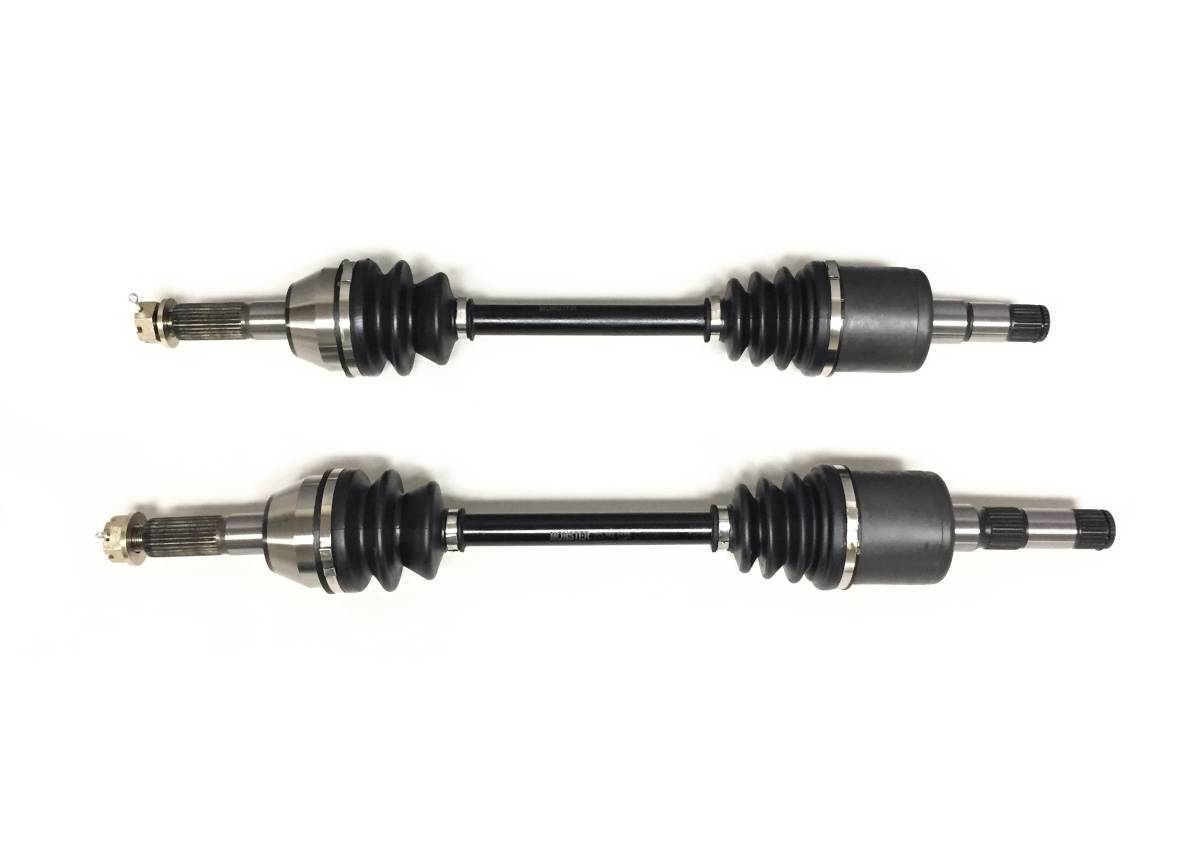

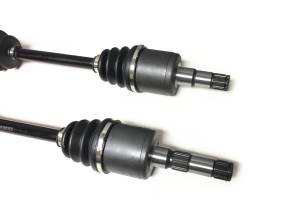

This is a pair of new Rear CV axles for a Polaris UTV.

They fit the following models:

2005-2007 ... Ranger 500 2x4 4x4

2005-2007 ... Ranger 700 / XP 700 4x4

(please note for 2007 this will only fit models built before August 28, 2006)

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Left - 29, Right - 27
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left - 691.5 mm, Right - 662.5 mm
  • Replaces Polaris OE # 1332284, 1332285
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $169.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2005PolarisRanger XP 7004x4 EFI
2006PolarisRanger XP 7004x4 EFI
2007PolarisRanger XP 7004x4 EFI
2007PolarisRanger XP 7004x4 Browning EFI
2007PolarisRanger 7004x4 EFImade before 08/28/2006
2005PolarisRanger 5004x4 Limited Edition
2005PolarisRanger 5004X4
2005PolarisRanger 5002x4
2006PolarisRanger 5004x4 EFI
2006PolarisRanger 5004X4
2006PolarisRanger 5002x4
2007PolarisRanger 5004x4 EFIbuilt before 08/28/2006
2007PolarisRanger 5004X4built before 08/28/2006

Product Notes

  • Fits rear, left and right on the following Polaris UTV models: 2005-2007 Ranger 500 2x4/4x4 (built before August 28, 2006), 2005-2007 Ranger 700 / XP 700 4x4 (built before August 28, 2006).
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 1332284, 1332285. Compressed length: left - 691.5 mm, right - 662.5 mm, Inboard spline count: left - 29, right - 27, Outboard spline count: 26 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty
