Front CV Axle Pair for Kubota RTV-X1140R & RTV-X1140W 4x4 2016-2020

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: KU-502/KU-502

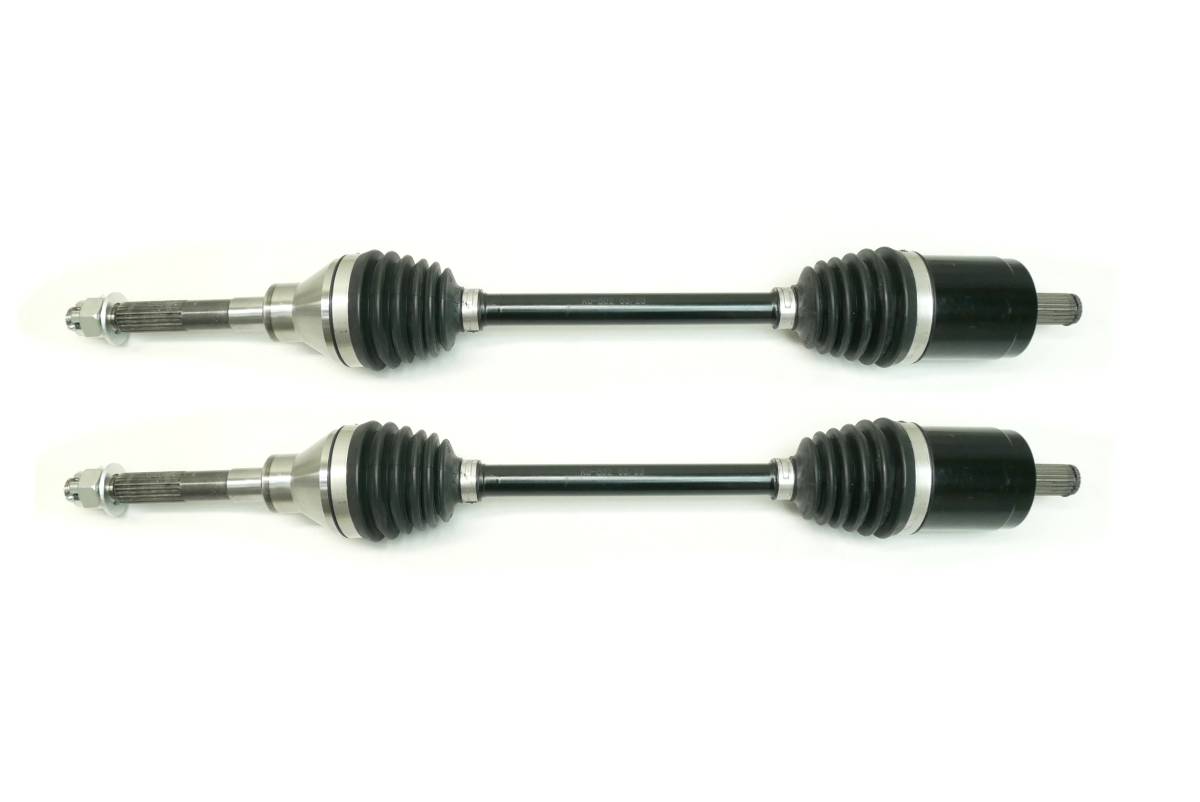

This is a pair of complete CV axles for a Kubota 4x4.

They fit FRONT, LEFT & RIGHT on the following RTV-X models (with serial # above 13023):

2016-2020 RTV-X1140R

2016-2020 RTV-X1140W

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

Stronger than OEM, 4340 chromoly steel axle bars
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
Compressed overall axle length: 655 mm (both)

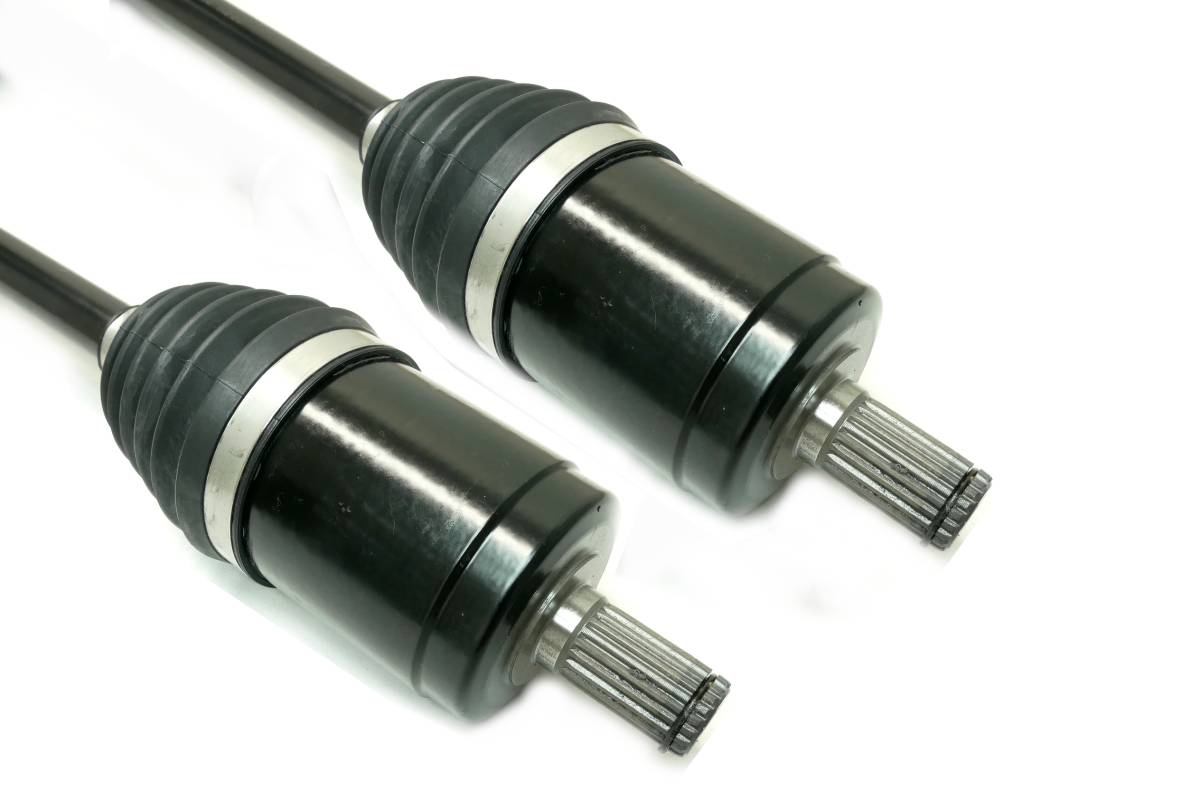

Inboard CV joint spline count: 21 (both)

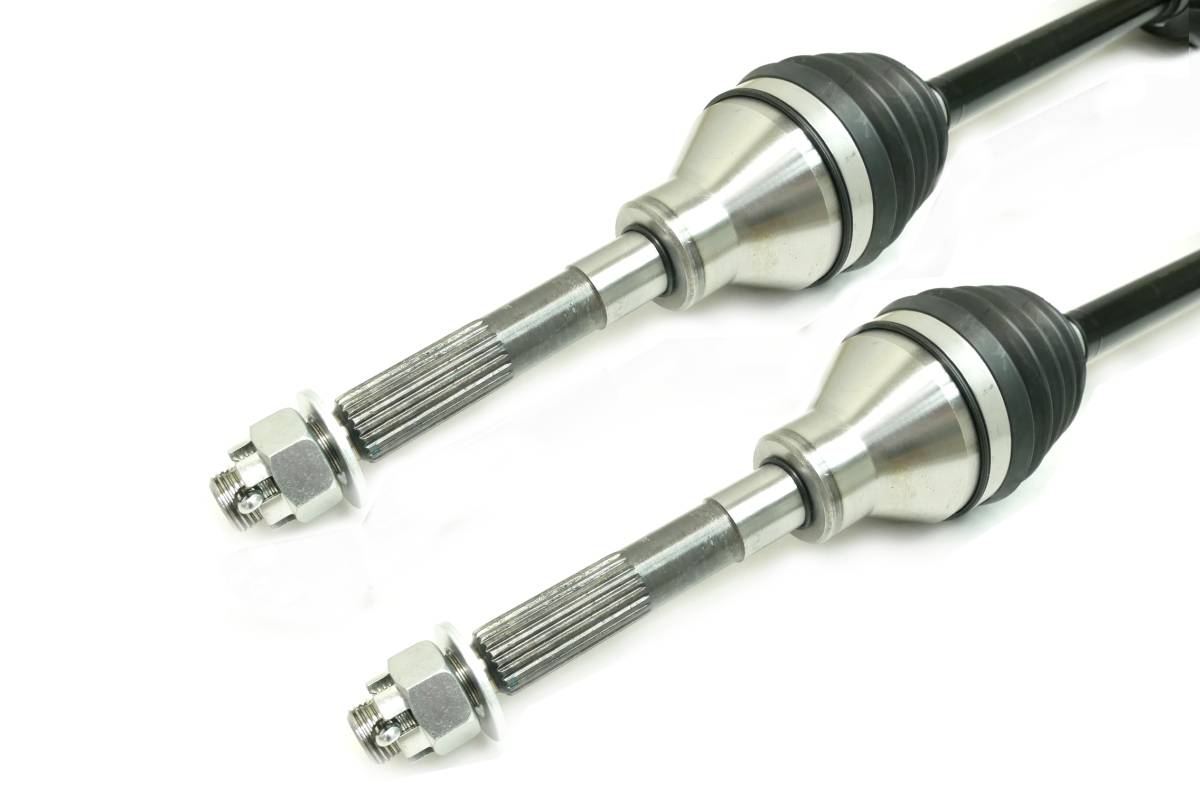

Outboard CV joint spline count: 21 (both)

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $154.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel	Notes
2020	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023
2020	Kubota	RTV-X1140	Worksite	only models with serial number above #13023
2019	Kubota	RTV-X1140	Orange	only models with serial number above #13023
2019	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023
2019	Kubota	RTV-X1140	Worksite	only models with serial number above #13023
2018	Kubota	RTV-X1140	Orange	only models with serial number above #13023
2018	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023
2017	Kubota	RTV-X1140	Orange	only models with serial number above #13023
2017	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023
2016	Kubota	RTV-X1140	Orange	only models with serial number above #13023
2016	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023

Product Notes

Fits FRONT, LEFT & RIGHT on the following Kubota RTV-X models (with serial # above 13023): 2016-2020 RTV-X1140R, 2016-2020 RTV-X1140W. Please note these are only for 'RTV-X' type models. Set includes 2 axles.

Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.

Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.

Compressed axle length: 655 mm (both), Inner spline count: 21 (both), Outer spline count: 21 (both).

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

What's In The Box

2 axles

Warranty

1 year factory defect limited warranty

Details

SKU: KU-502/KU-502
Item #: KU-502/KU-502
Brand: ATV Parts Connection

Availability: Available
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 24.0 lbs.
Package Dimensions: W6.0000” x H12.0000” x L32.0000”
