Front CV Axle Pair for Kubota RTV-X900, X1100C, X-1120D 4x4 UTV

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
KU-501/KU-501

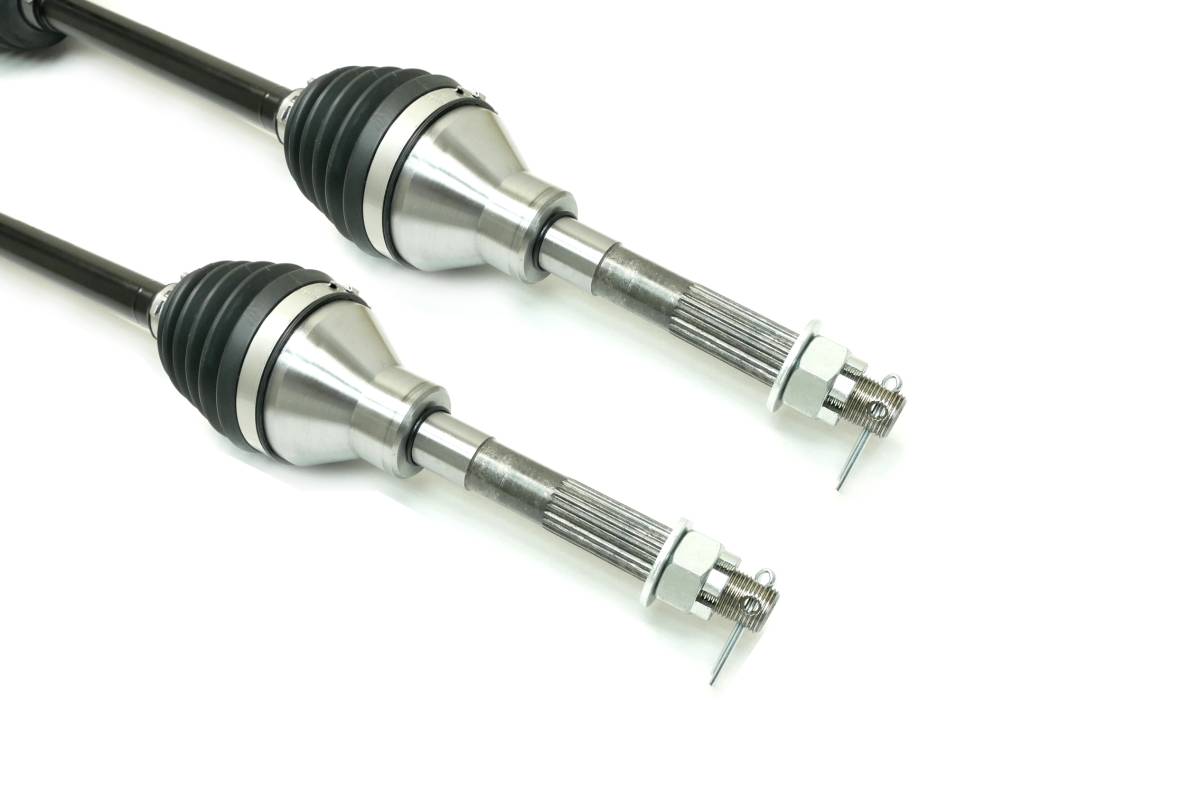

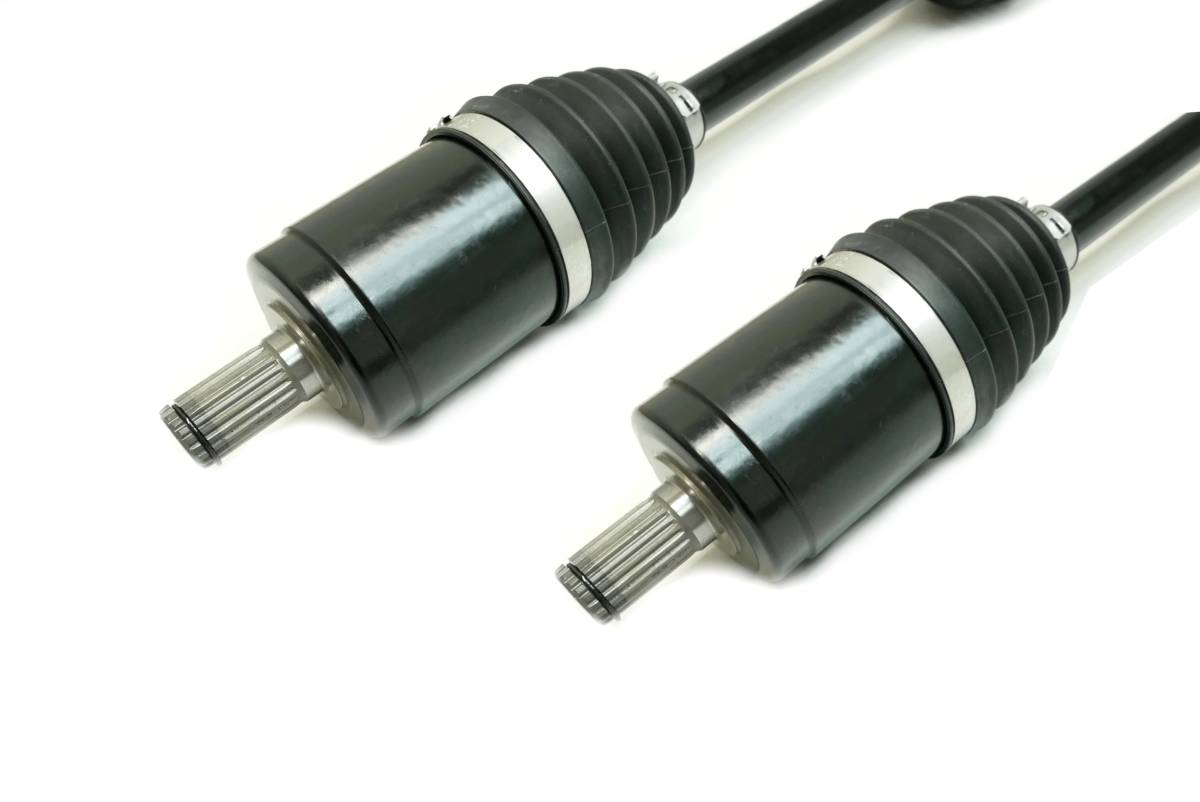

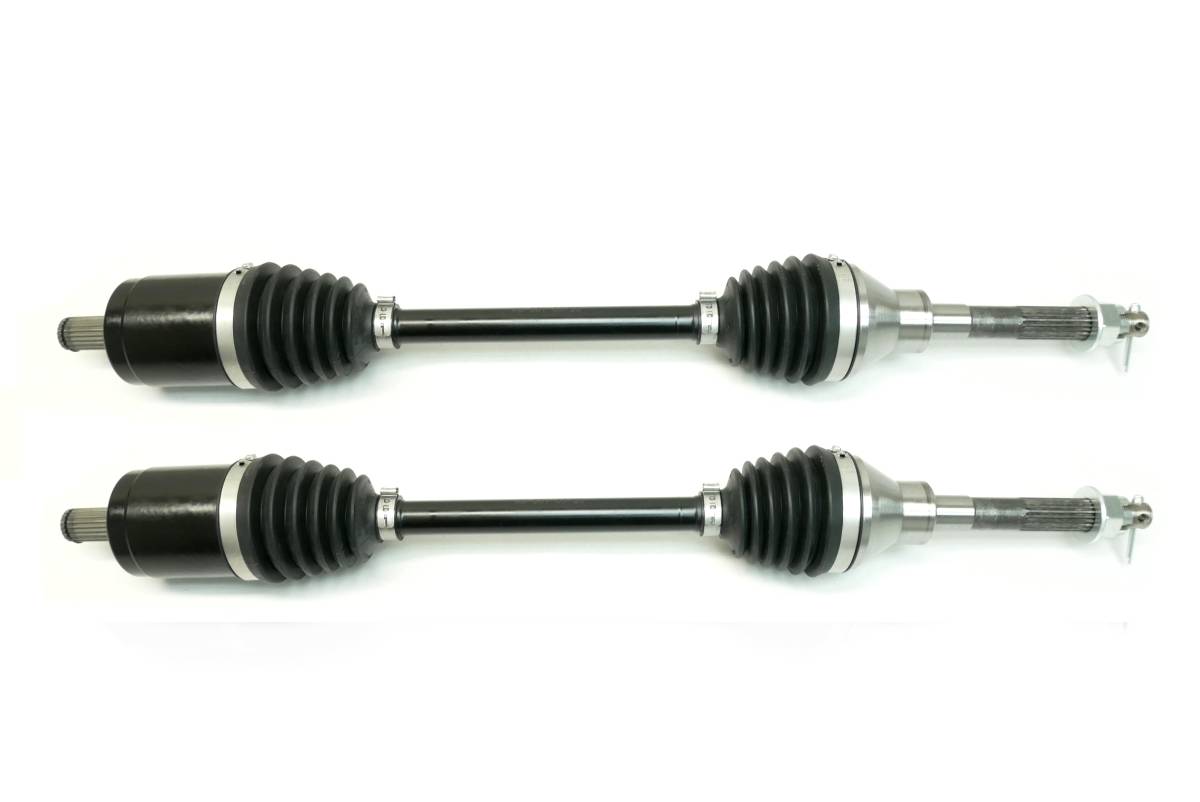

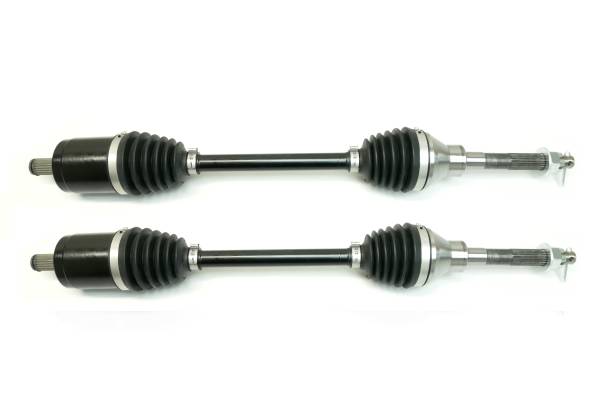

This is a pair of new CV axles for a Kubota UTV.

They fits FRONT, LEFT & RIGHT on the following models:

2014-2020 ... RTV-X900 (models with serial # less than 61791)

2014-2018 ... RTV-X1100C,

2014-2020 ... RTV-X1120D

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

*Please note these axles are for RTV-X Series models

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Compressed overall axle length: 645 mm (both)
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 21 (both)
Limited Supply: only 8 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $199.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2020KubotaRTV-X900General Purposeonly models with serial # less than 61791
2020KubotaRTV-X900Worksite Orangeonly models with serial # less than 61791
2020KubotaRTV-X900Worksite Realtree AP Camouflageonly models with serial # less than 61791
2019KubotaRTV-X900General Purposeonly models with serial # less than 61791
2019KubotaRTV-X900Worksite Orangeonly models with serial # less than 61791
2019KubotaRTV-X900Worksite Realtree AP Camouflageonly models with serial # less than 61791
2018KubotaRTV-X900General Purposeonly models with serial # less than 61791
2018KubotaRTV-X900Worksite Orangeonly models with serial # less than 61791
2018KubotaRTV-X900Worksite Realtree AP Camouflageonly models with serial # less than 61791
2017KubotaRTV-X900General Purposeonly models with serial # less than 61791
2017KubotaRTV-X900Worksite Orangeonly models with serial # less than 61791
2017KubotaRTV-X900Worksite Realtree AP Camouflageonly models with serial # less than 61791
2016KubotaRTV-X900General Purposeonly models with serial # less than 61791
2016KubotaRTV-X900Worksite Orangeonly models with serial # less than 61791
2016KubotaRTV-X900Worksite Realtree AP Camouflageonly models with serial # less than 61791
2015KubotaRTV-X900General Purposeonly models with serial # less than 61791
2015KubotaRTV-X900Worksite Orangeonly models with serial # less than 61791
2015KubotaRTV-X900Worksite Realtree AP Camouflageonly models with serial # less than 61791
2014KubotaRTV-X900General Purposeonly models with serial # less than 61791
2014KubotaRTV-X900Worksite Orangeonly models with serial # less than 61791
2014KubotaRTV-X900Worksite Realtree AP Camouflageonly models with serial # less than 61791
2018KubotaRTV-X1100COrange
2018KubotaRTV-X1100CRealtree AP Camouflage
2017KubotaRTV-X1100COrange
2017KubotaRTV-X1100CRealtree AP Camouflage
2016KubotaRTV-X1100COrange
2016KubotaRTV-X1100CRealtree AP Camouflage
2015KubotaRTV-X1100COrange
2015KubotaRTV-X1100CRealtree AP Camouflage
2014KubotaRTV-X1100COrange
2014KubotaRTV-X1100CRealtree AP Camouflage

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Kubota RTV-X models: 2014-2020 RTV-X900 (models with serial # less than 61791), 2014-2018 RTV-X1100C, 2014-2020 RTV-X1120D. Please note these are for RTV-X type models only and will not fit standard RTV900. Set includes 2 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Compressed length: 645 mm (both), Inner spline count: 21 (both), Outer spline count: 21 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • KU-501/KU-501
    • KU-501/KU-501
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 25.0 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
