Rear Axles with Bearings for Polaris RZR XP/XP4 1000, Turbo & RZR RS1, 1333718

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
PO-404/PO-404/WB-1628/WB-1628

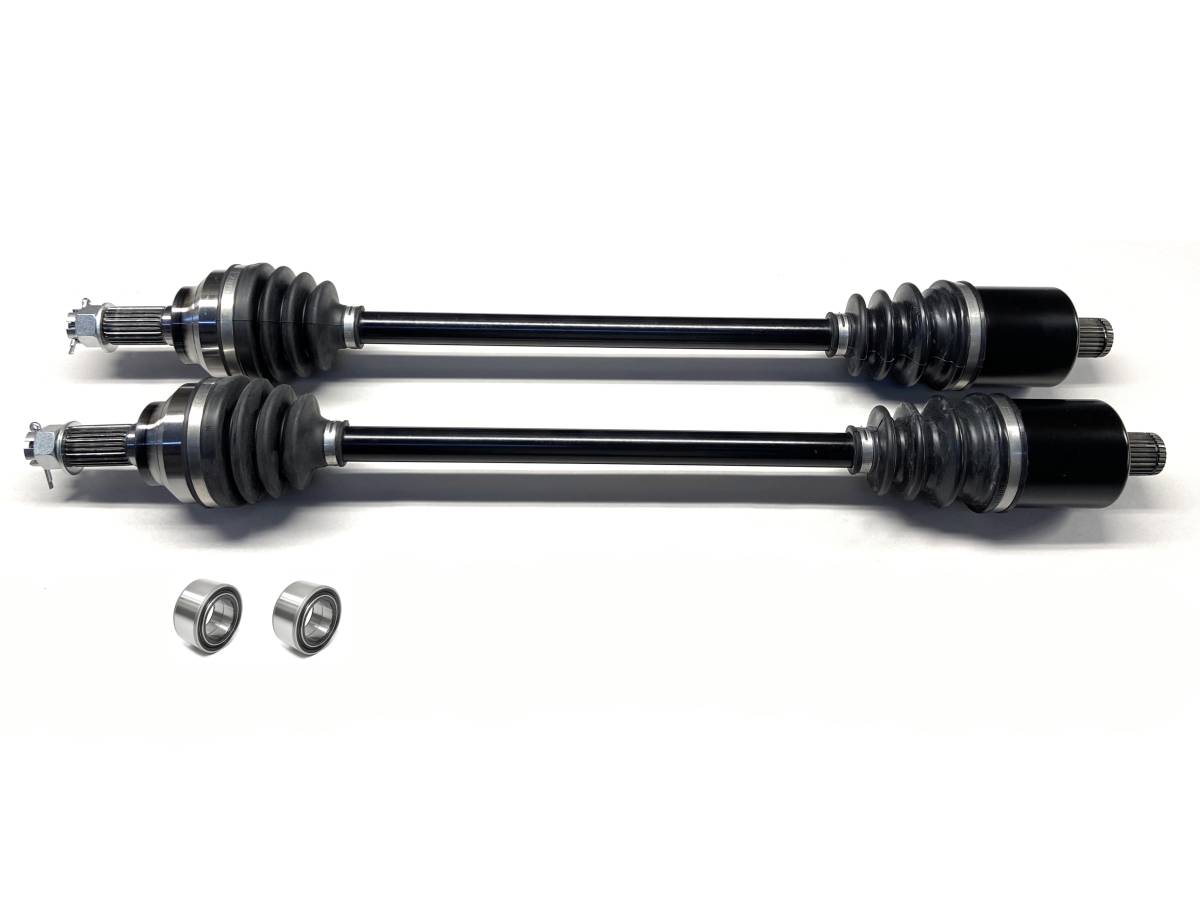

This is a set of new CV axles & wheel bearings for a Polaris RZR.

They fit REAR, LEFT & RIGHT on the following models:

2016-2021 RZR XP Turbo (all excluding S models)

2016-2021 RZR XP4 Turbo (all excluding S4 models)

2016-2021 RZR XP 1000 (all excluding S models)

2016-2021 RZR XP4 1000 (all excluding S models)

2018-2021 RZR RS1

*Please note these will not fit any 'S' or 'S4' - 60" sport models

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

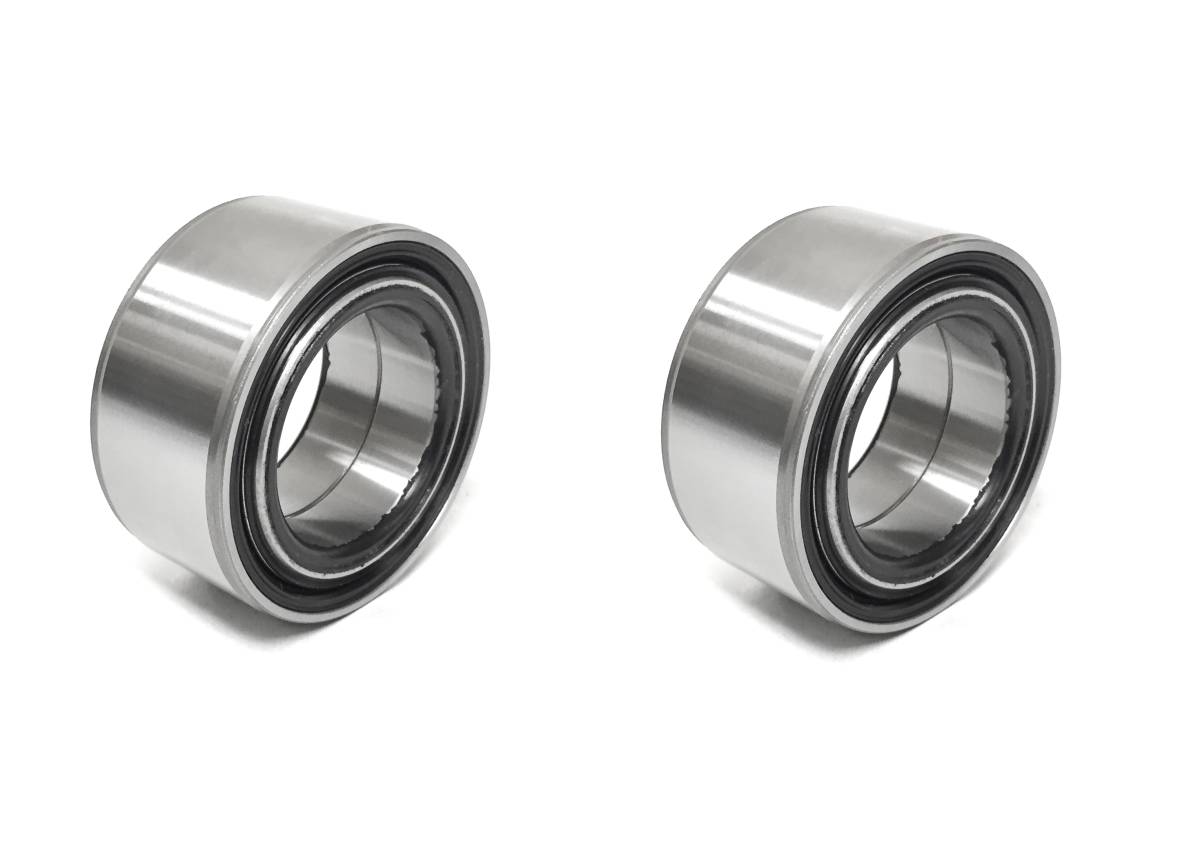

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 28 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 730 mm (both)
  • Replaces OEM # (axles) 1333718, 1333858, (bearings) 3514627, 3514699.
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $214.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021PolarisRZR RS1EPS
2020PolarisRZR RS1EPS
2019PolarisRZR RS1EPS
2018PolarisRZR RS1EPS
2021PolarisRZR XPTurbo EPS
2020PolarisRZR XPTurbo EPS
2019PolarisRZR XPTurbo EPS
2019PolarisRZR XPTurbo EPS DYNAMIX Edition
2019PolarisRZR XPTurbo EPS LE
2018PolarisRZR XPTurbo EPS
2018PolarisRZR XPTurbo EPS DYNAMIX Edition
2018PolarisRZR XPTurbo EPS Fox Edition
2017PolarisRZR XPTurbo EPS
2016PolarisRZR XPTurbo EPS
2021PolarisRZR XP 4Turbo
2021PolarisRZR XP 4Turbo S
2021PolarisRZR XP 4Turbo S Velocity
2020PolarisRZR XP 4Turbo
2020PolarisRZR XP 4Turbo S
2020PolarisRZR XP 4Turbo S Velocity
2019PolarisRZR XP 4Turbo
2019PolarisRZR XP 4Turbo EPS
2019PolarisRZR XP 4Turbo EPS DYNAMIX Edition
2019PolarisRZR XP 4Turbo EPS LE
2018PolarisRZR XP 4Turbo EPS
2018PolarisRZR XP 4Turbo EPS DYNAMIX Edition
2018PolarisRZR XP 4Turbo EPS Fox Edition
2017PolarisRZR XP 4Turbo EPS
2016PolarisRZR XP 4Turbo EPS
2021PolarisRZR XP 4 1000EPS
2021PolarisRZR XP 4 1000High Lifter Edition EPS
2021PolarisRZR XP 4 1000Premium
2020PolarisRZR XP 4 1000EPS
2020PolarisRZR XP 4 1000High Lifter Edition EPS
2020PolarisRZR XP 4 1000Limited Edition
2020PolarisRZR XP 4 1000Premium
2019PolarisRZR XP 4 1000DYNAMIX Edition EPS
2019PolarisRZR XP 4 1000EPS
2019PolarisRZR XP 4 1000High Lifter Edition EPS
2019PolarisRZR XP 4 1000Ride Command Edition EPS
2018PolarisRZR XP 4 1000EPS
2018PolarisRZR XP 4 1000High Lifter Edition EPS
2018PolarisRZR XP 4 1000Ride Command Edition EPS
2017PolarisRZR XP 4 1000EPS
2017PolarisRZR XP 4 1000High Lifter Edition EPS
2016PolarisRZR XP 4 1000EPS
2016PolarisRZR XP 4 1000High Lifter Edition EPS
2021PolarisRZR XP 1000EPS
2021PolarisRZR XP 1000High Lifter Edition EPS
2021PolarisRZR XP 1000Premium
2021PolarisRZR XP 1000Trails and Rock Edition EPS
2020PolarisRZR XP 1000EPS
2020PolarisRZR XP 1000High Lifter Edition EPS
2020PolarisRZR XP 1000Limited Edition
2020PolarisRZR XP 1000Premium
2020PolarisRZR XP 1000Ride Command Edition EPS
2020PolarisRZR XP 1000Trails and Rock Edition EPS
2019PolarisRZR XP 1000DYNAMIX Edition EPS
2019PolarisRZR XP 1000EPS
2019PolarisRZR XP 1000High Lifter Edition EPS
2019PolarisRZR XP 1000Ride Command Edition EPS
2019PolarisRZR XP 1000Trails and Rock Edition EPS
2018PolarisRZR XP 1000EPS
2018PolarisRZR XP 1000High Lifter Edition EPS
2018PolarisRZR XP 1000Ride Command Edition EPS
2018PolarisRZR XP 1000Trails and Rock Edition EPS
2017PolarisRZR XP 1000EPS
2017PolarisRZR XP 1000Gold Matte Metallic LE EPS
2017PolarisRZR XP 1000High Lifter Edition EPS
2017PolarisRZR XP 1000Veliocity Blue LE EPS
2016PolarisRZR XP 1000EPS
2016PolarisRZR XP 1000High Lifter Edition EPS

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Polaris models: 2016-2021 RZR XP/XP4 Turbo (excluding S/S4 models), 2018-2021 RZR RS1, & 2016-2021 RZR XP/XP4 1000 (excluding S/S4 models). Set includes 2 axles & 2 wheel bearings.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axle) 1333718, 1333858, (bearing) 3514627, 3514699. Compressed axle length: 730 mm (both). Inboard spline count: 28 (both), Outboard spline count: 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles & 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-404/PO-404/WB-1628/WB-1628
    • PO-404/PO-404/WB-1628/WB-1628
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 30.0 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
