CV Axle Set for Polaris RZR XP Turbo 2016-2019 & RZR RS1 2018-2020

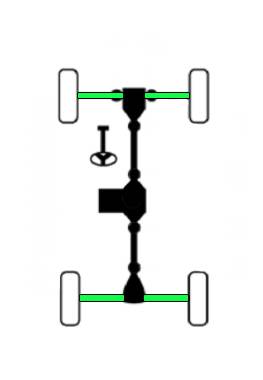

Location on vehicle: Front,Rear,Left,Right

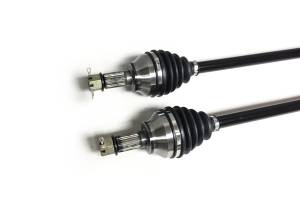

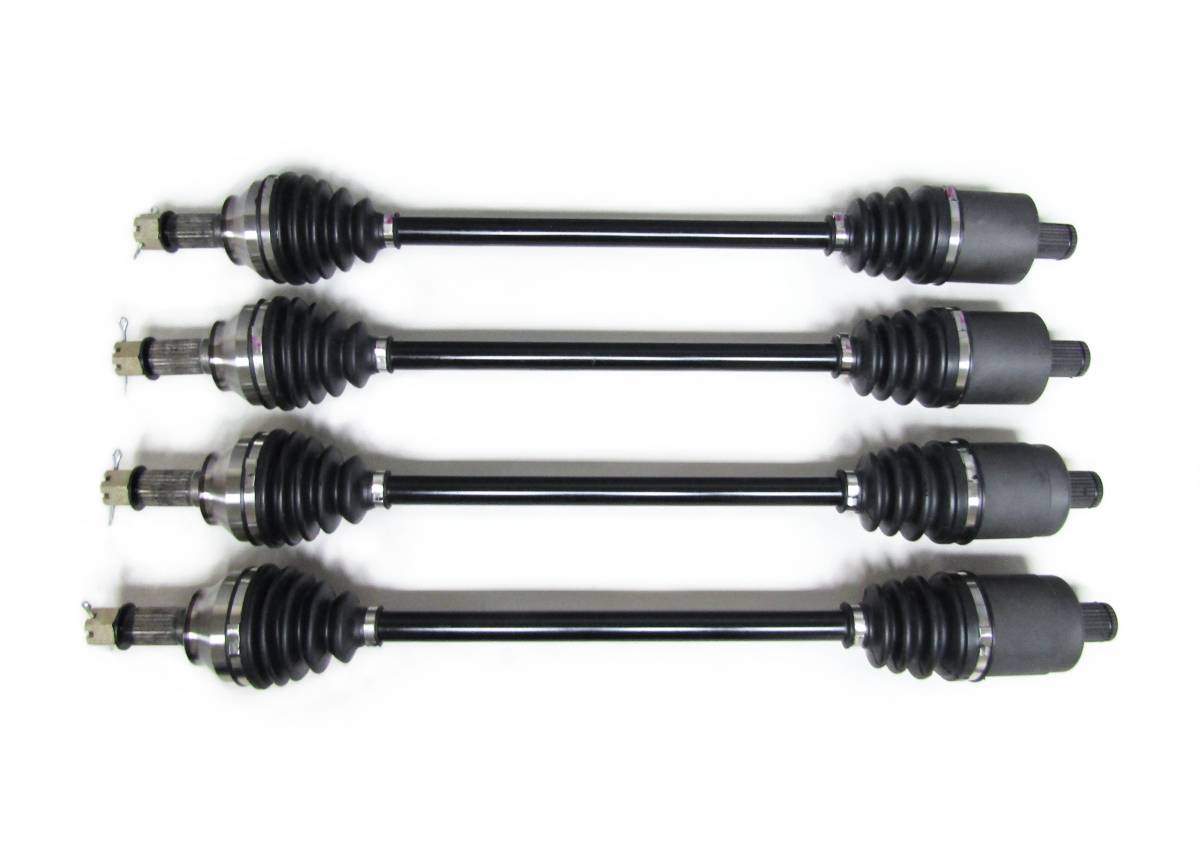

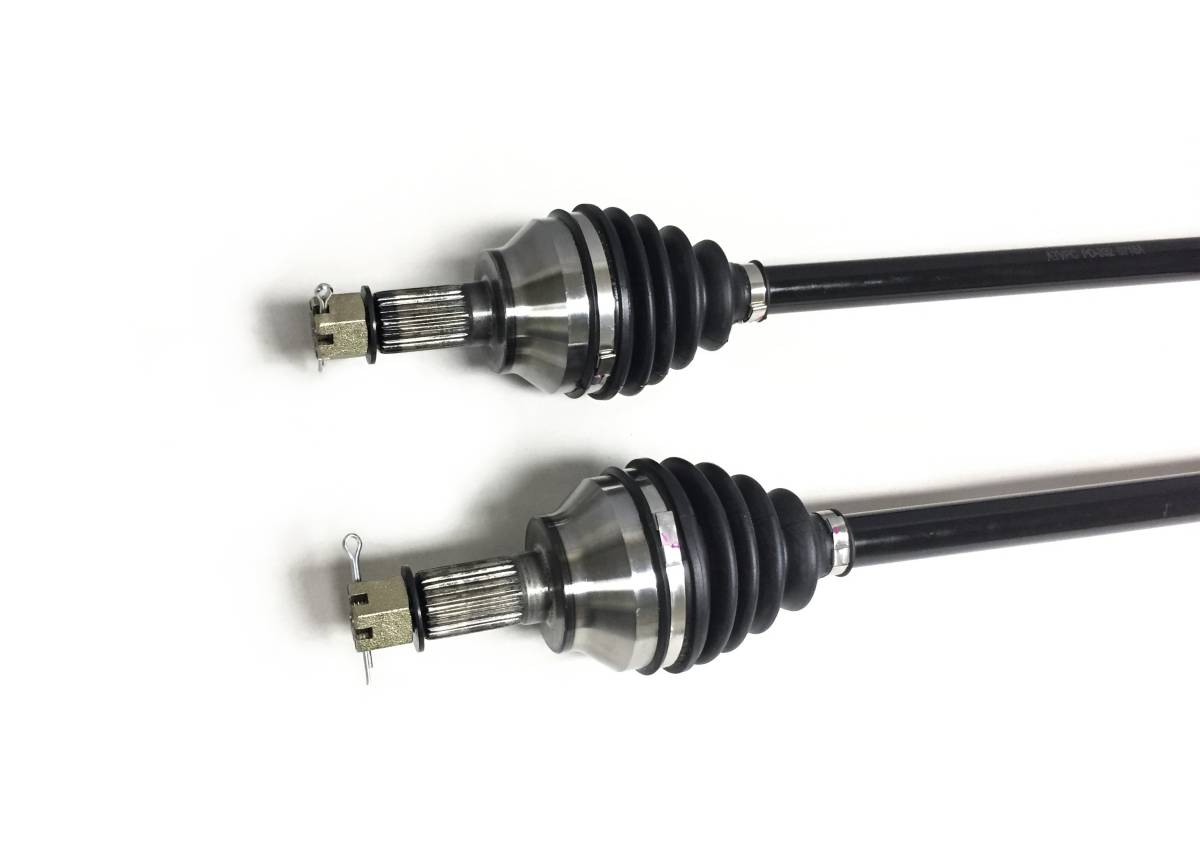

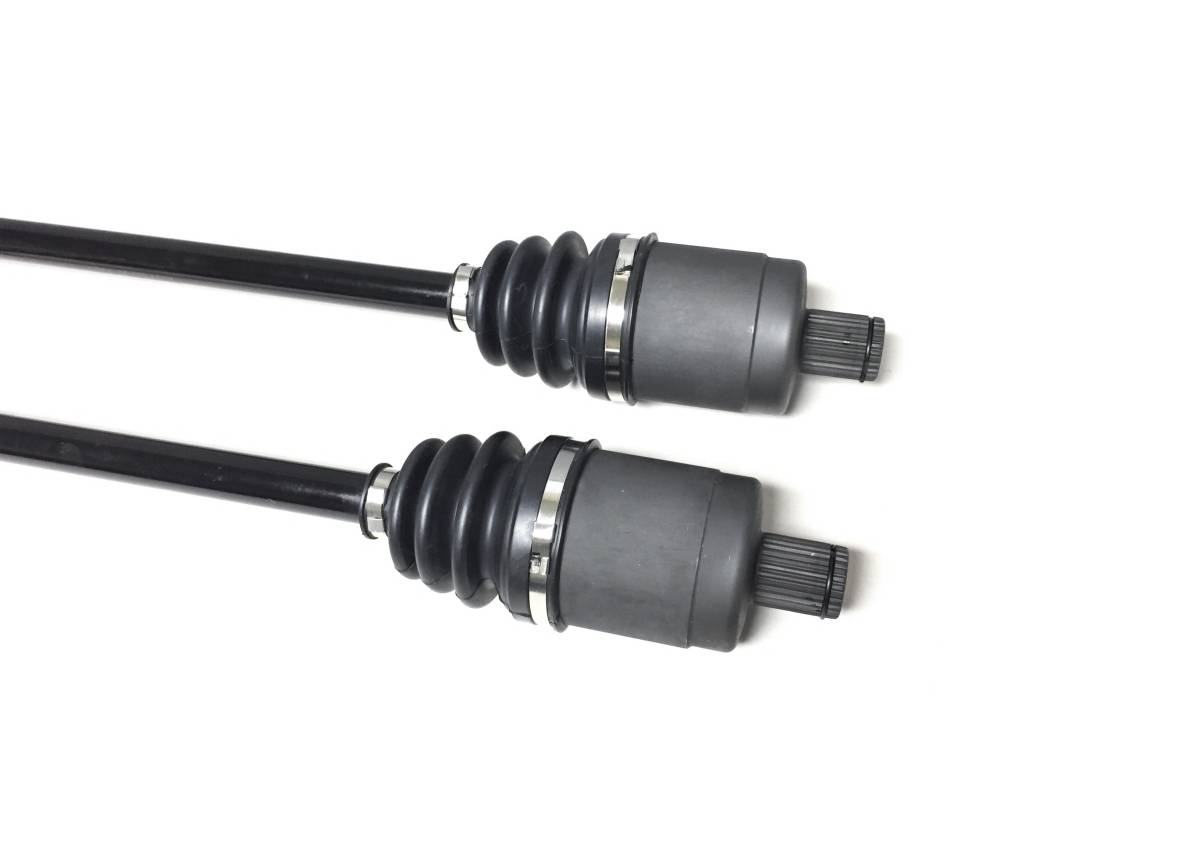

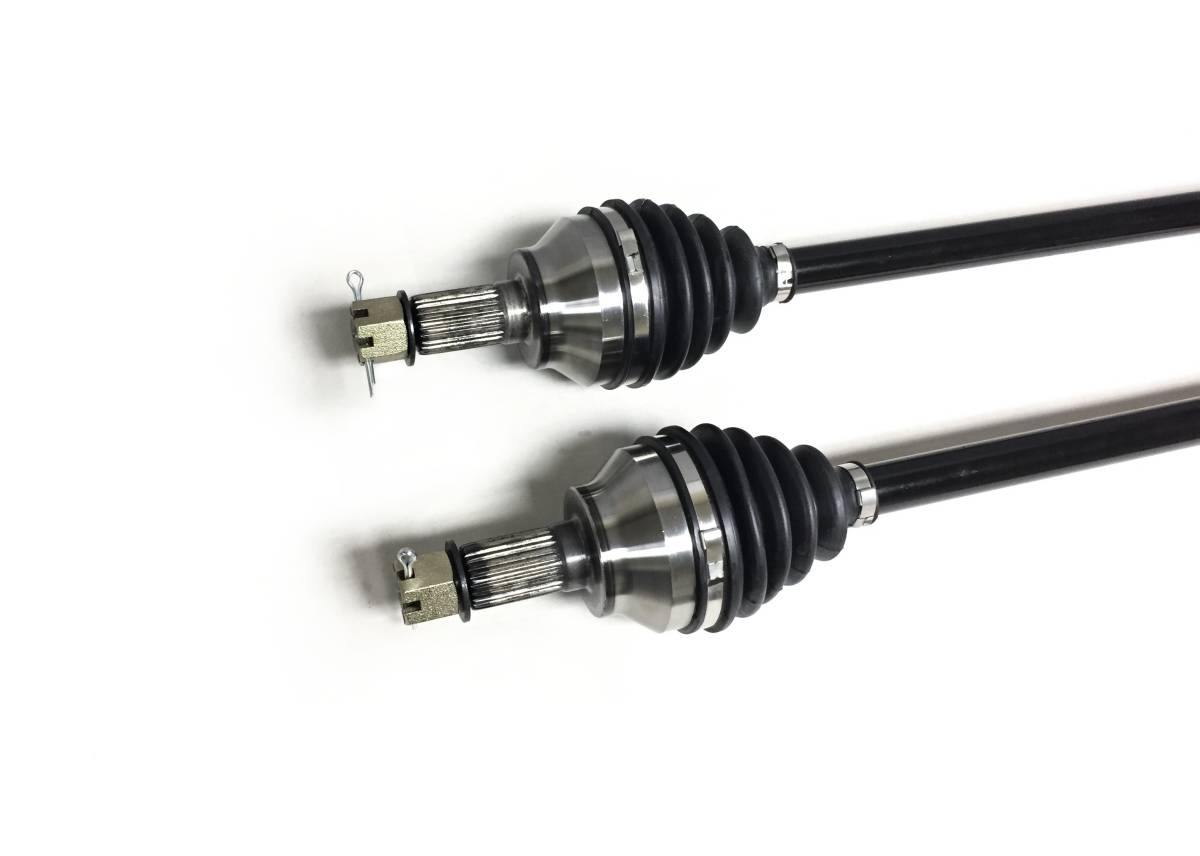

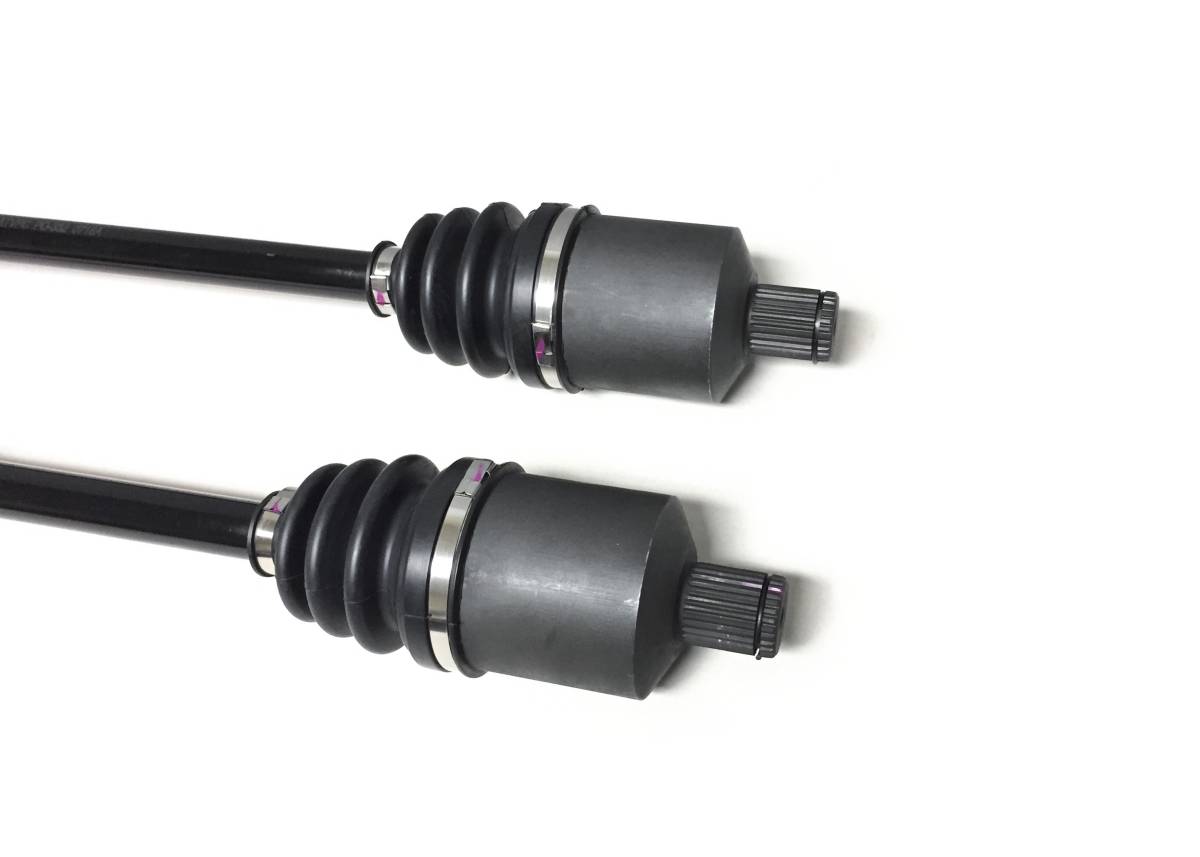

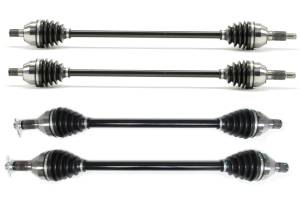

This is a set of new Front & Rear CV axles for a Polaris RZR.

They fit the following 4x4 models:

2018-2020 ... RZR RS1

2016-2019 ... RZR XP Turbo

2016-2019 ... RZR XP4 Turbo

(please note these will not fit Turbo S models)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts- 28, Rears- 28
  • Outboard CV joint spline count: Fronts- 26, Rears- 26
  • Compressed overall axle length: Fronts- 722 mm, Rears- 737 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $274.99
Free Ground Shipping


1 year factory defect warranty

Product Notes

  • Fits: 2016-2019 RZR XP Turbo / XP 4 Turbo, 2018-2020 RZR RS1.
  • Axle features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces OE # (front) 1333870 1333434 1333942 1334273, (rear) 1333439, 1333944, 1333858.
  • Compressed Length: Fronts -722 mm, Rears -737 mm. Inboard Splines: Fronts -28, Rears -28. Outboard Splines: Fronts -26, Rears -26.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    2020PolarisRZR RS1EPS
    2019PolarisRZR RS1EPS
    2018PolarisRZR RS1EPS
    2019PolarisRZR XPTurbo EPS
    2019PolarisRZR XPTurbo EPS DYNAMIX Edition
    2019PolarisRZR XPTurbo EPS LE
    2018PolarisRZR XPTurbo EPS
    2018PolarisRZR XPTurbo EPS DYNAMIX Edition
    2018PolarisRZR XPTurbo EPS Fox Edition
    2017PolarisRZR XPTurbo EPS
    2016PolarisRZR XPTurbo EPS
    2019PolarisRZR XP 4Turbo
    2019PolarisRZR XP 4Turbo EPS
    2019PolarisRZR XP 4Turbo EPS DYNAMIX Edition
    2019PolarisRZR XP 4Turbo EPS LE
    2018PolarisRZR XP 4Turbo EPS
    2018PolarisRZR XP 4Turbo EPS DYNAMIX Edition
    2018PolarisRZR XP 4Turbo EPS Fox Edition
    2017PolarisRZR XP 4Turbo EPS
    2016PolarisRZR XP 4Turbo EPS


    • PO-332/PO-332/PO-339/PO-339
    • PO-332/PO-332/PO-339/PO-339
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 58.0 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
