Front Axle Pair for Can-Am Maverick X3 Turbo STD & XDS 64", 705402097, 705402098

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-126/CA-226

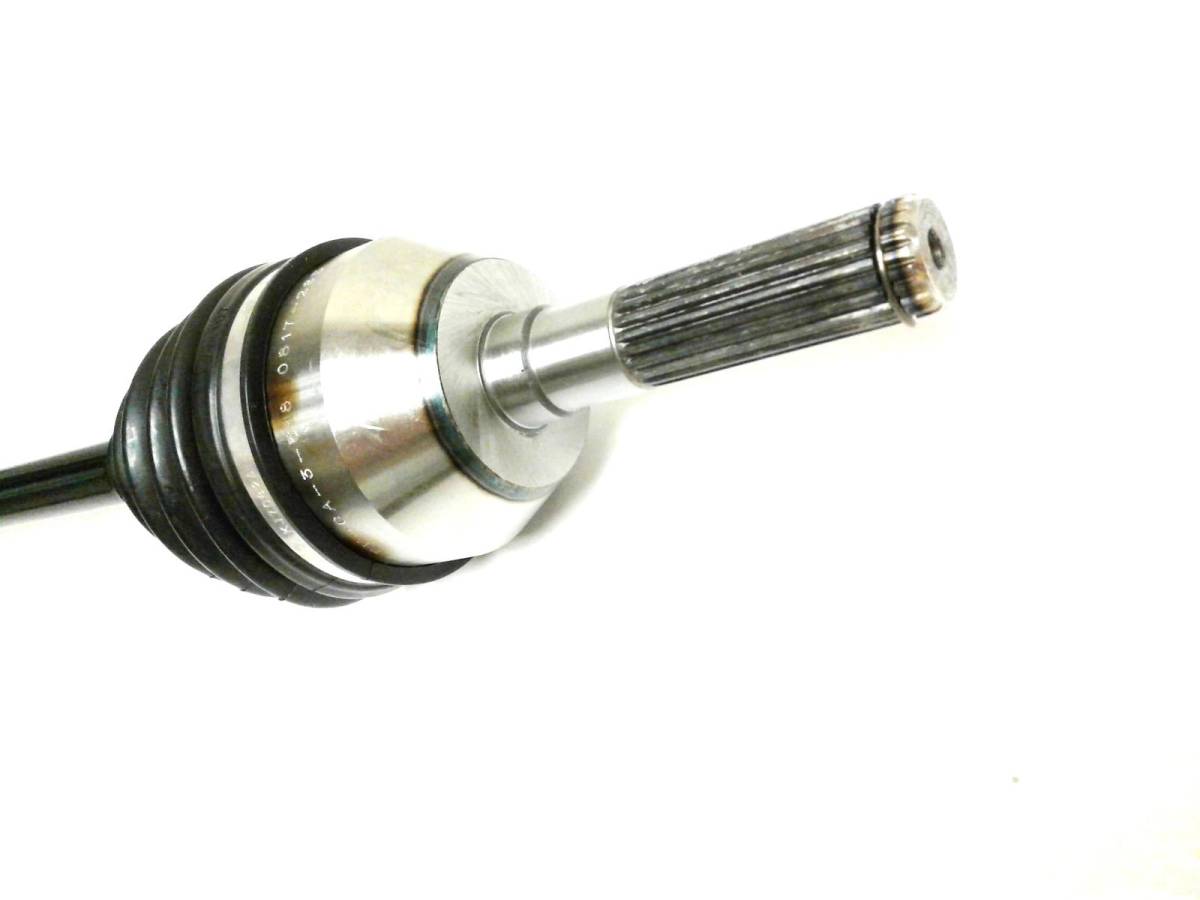

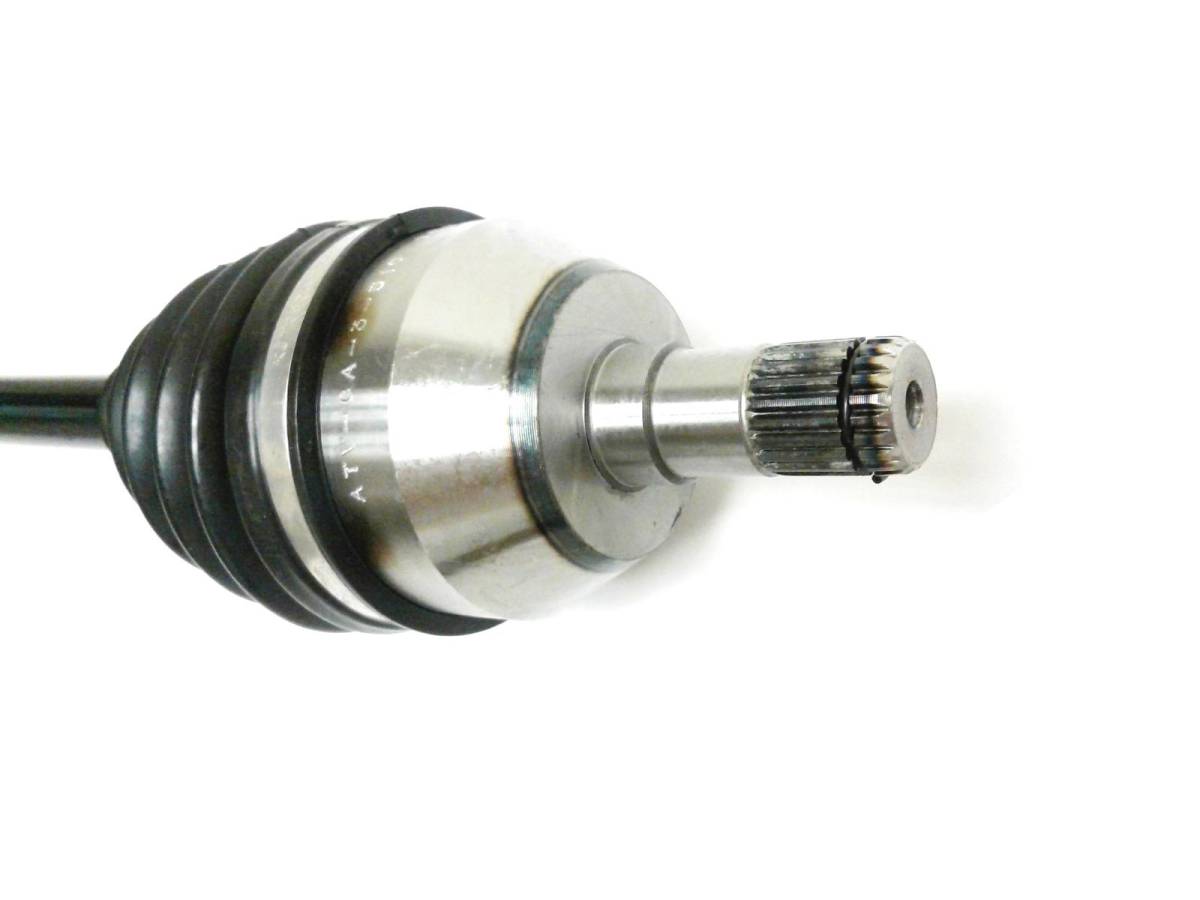

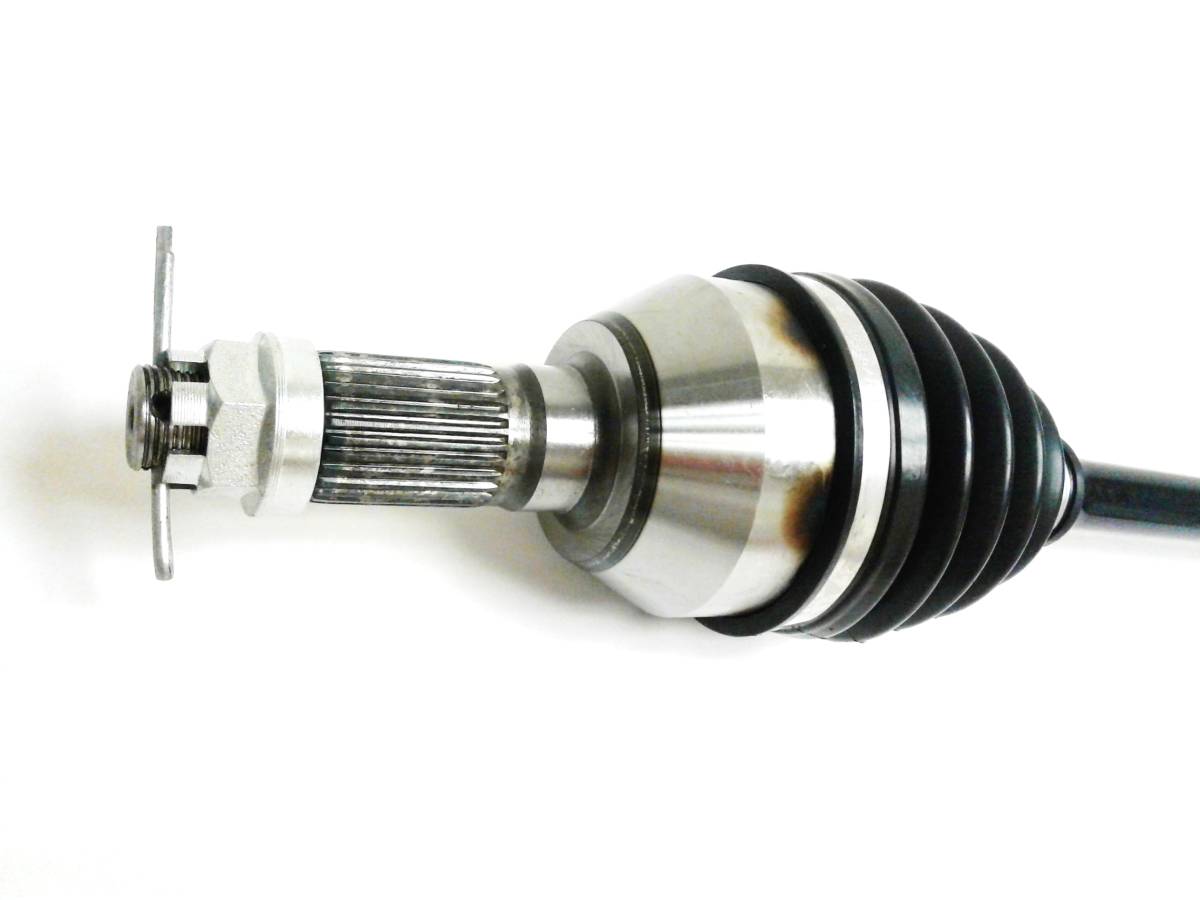

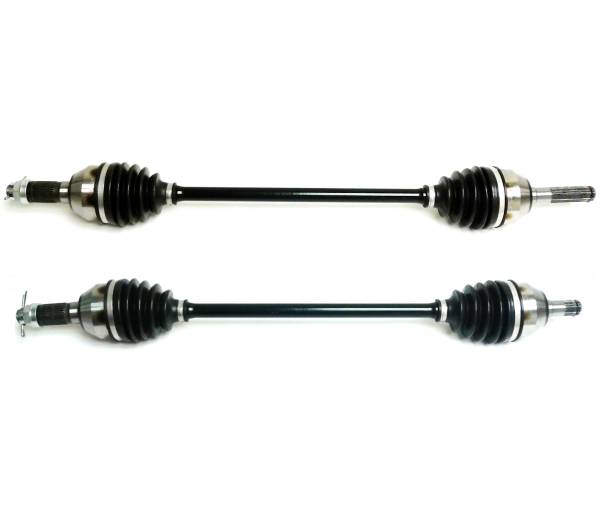

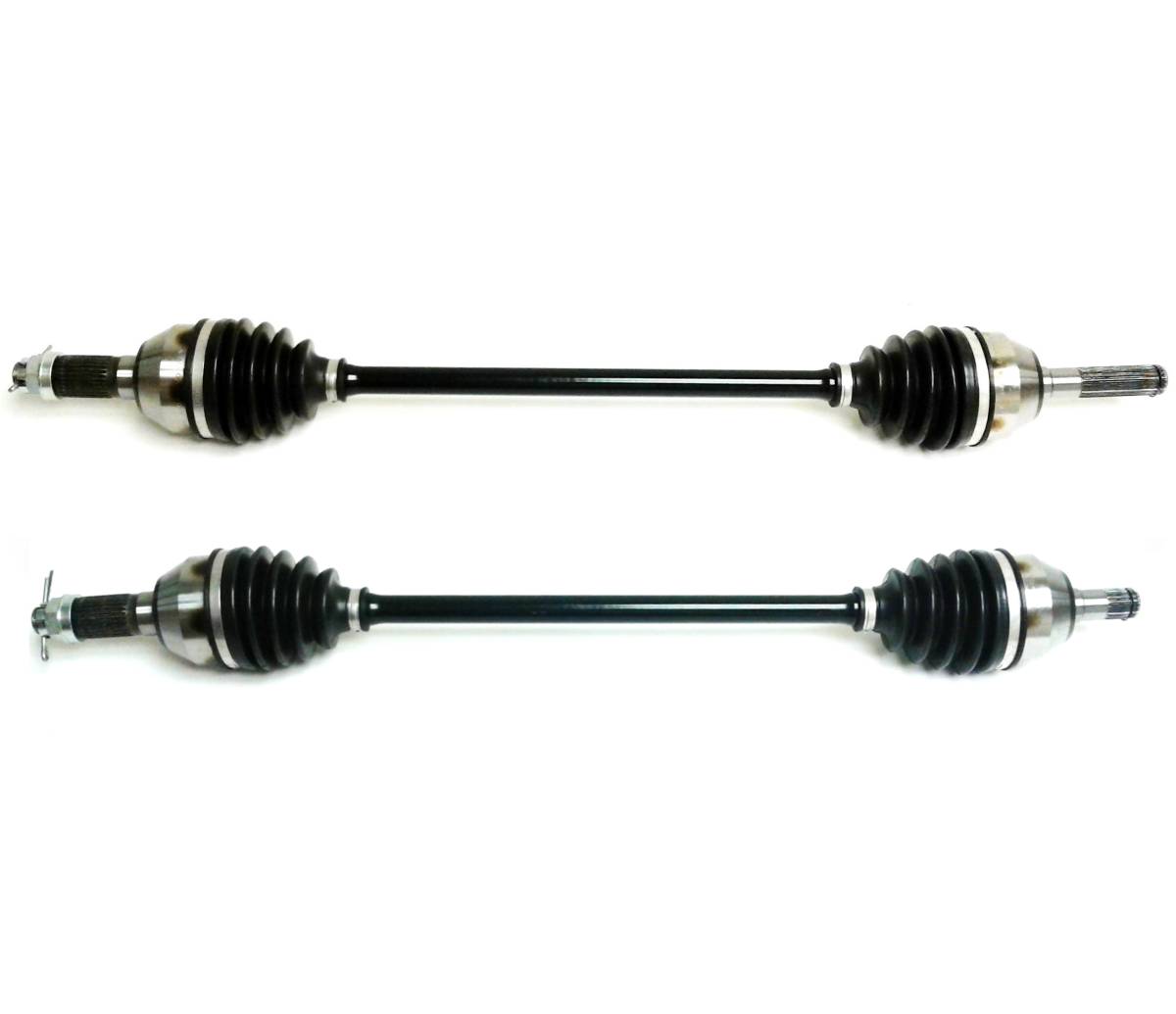

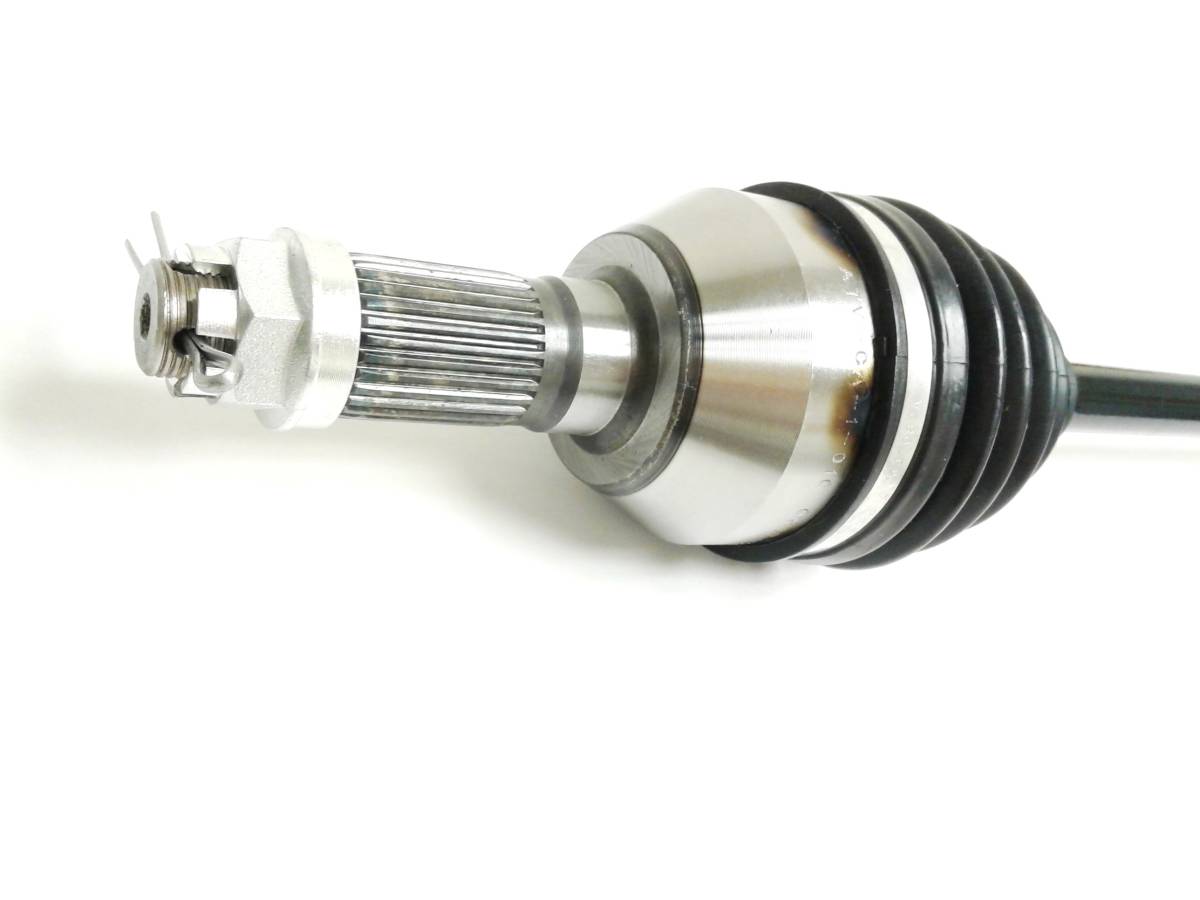

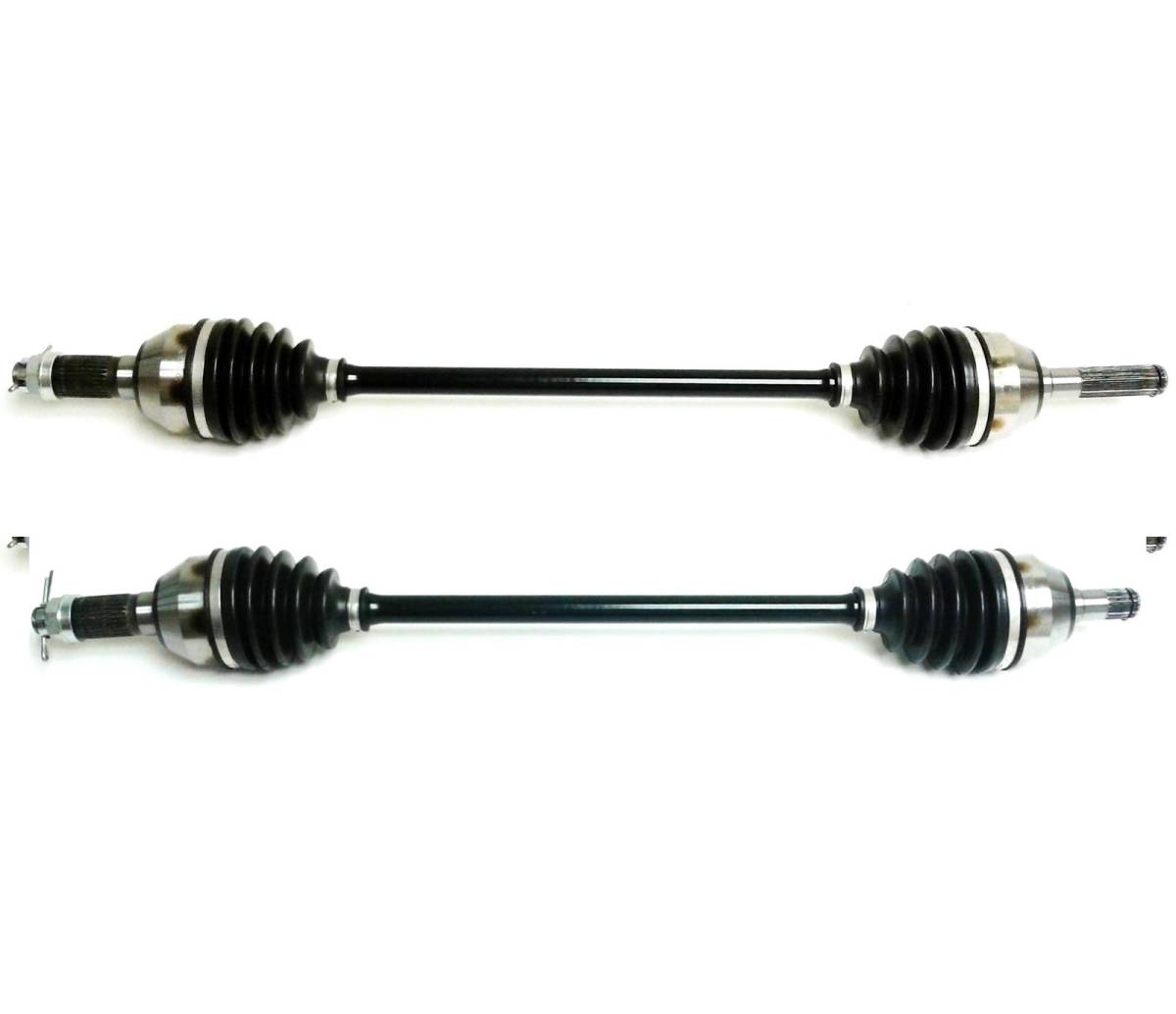

This is a pair of new, fully-assembled, cv axles for a 64" Can-Am Maverick X3.

They fit FRONT, LEFT & RIGHT on the following models:

2017 X3 STD, XDS-DPS

2017 X3 MAX STD, MAX XDS-DPS

2018 X3 STD, 900 HO, Turbo R STD, XDS-DPS

2018 X3 MAX Turbo STD

2019 X3 Turbo, Turbo R STD

2019 X3 MAX Turbo R

2020 X3 Turbo STD, Turbo R STD

2020 X3 MAX Turbo STD, MAX Turbo R STD

2021 X3 Turbo - DS, Turbo R - DS

2021 X3 MAX Turbo, MAX Turbo R - DS

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Replaces OEM # (left) 705401686, 705402097, (right) 705401687, 705402098
  • Compressed overall axle length: Left - 778 mm, Right - 735 mm
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 29 (both)
Limited Supply: only 2 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am Maverick 64" models: 2017 X3 STD, XDS-DPS, X3 MAX STD, MAX XDS-DPS, 2018 X3 STD, 900 HO, Turbo R STD, XDS-DPS, MAX Turbo STD.
  • 2019 X3 Turbo, Turbo R STD, MAX Turbo R, 2020 X3 Turbo STD, Turbo R STD, MAX Turbo STD, MAX Turbo R STD, 2021 X3 Turbo - DS, Turbo R - DS, MAX Turbo, MAX Turbo R - DS. Please note these will not fit 72" models.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces OEM # (left) 705401686, 705402097, (right) 705401687, 705402098. Inboard Splines: 21 (both), Outboard splines: 29 (both), Compressed axle length: Left - 778 mm, Right - 735 mm
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2021Can-AmMaverick X34x4 DS Turbo DPS
    2020Can-AmMaverick X34x4 Turbo DPS
    2019Can-AmMaverick X34x4 Turbo DPS
    2018Can-AmMaverick X34x4 Turbo DPS
    2017Can-AmMaverick X34x4 Turbo DPS
    2018Can-AmMaverick X3 900 HO4x4 DPS
    2021Can-AmMaverick X3 Max4x4 DS Turbo DPS
    2020Can-AmMaverick X3 Max4x4 Turbo DPS
    2018Can-AmMaverick X3 Max4x4 Turbo DPS
    2021Can-AmMaverick X3 Max R4x4 DS Turbo DPS
    2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
    2019Can-AmMaverick X3 Max R4x4 Turbo DPS
    2018Can-AmMaverick X3 Max R4x4 Turbo DPS
    2018Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
    2021Can-AmMaverick X3 R4x4 DS Turbo DPS
    2020Can-AmMaverick X3 R4x4 DS Turbo DPS
    2019Can-AmMaverick X3 R4x4 Turbo DPS
    2018Can-AmMaverick X3 R4x4 Turbo DPS
    2018Can-AmMaverick X3 R4x4 XDS Turbo DPS
    2017Can-AmMaverick X3 R4x4 Turbo DPS
    2017Can-AmMaverick X3 R4x4 XDS Turbo DPS

    Details

    • CA-126/CA-226
    • CA-126/CA-226
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 30.0 lbs.
    • W5.0000” x H10.0000” x L35.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
