CV Axle Set for Polaris Sportsman 400 500 570 800, 1332931 1332935

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
PO-321/PO-321/PO-329/PO-329

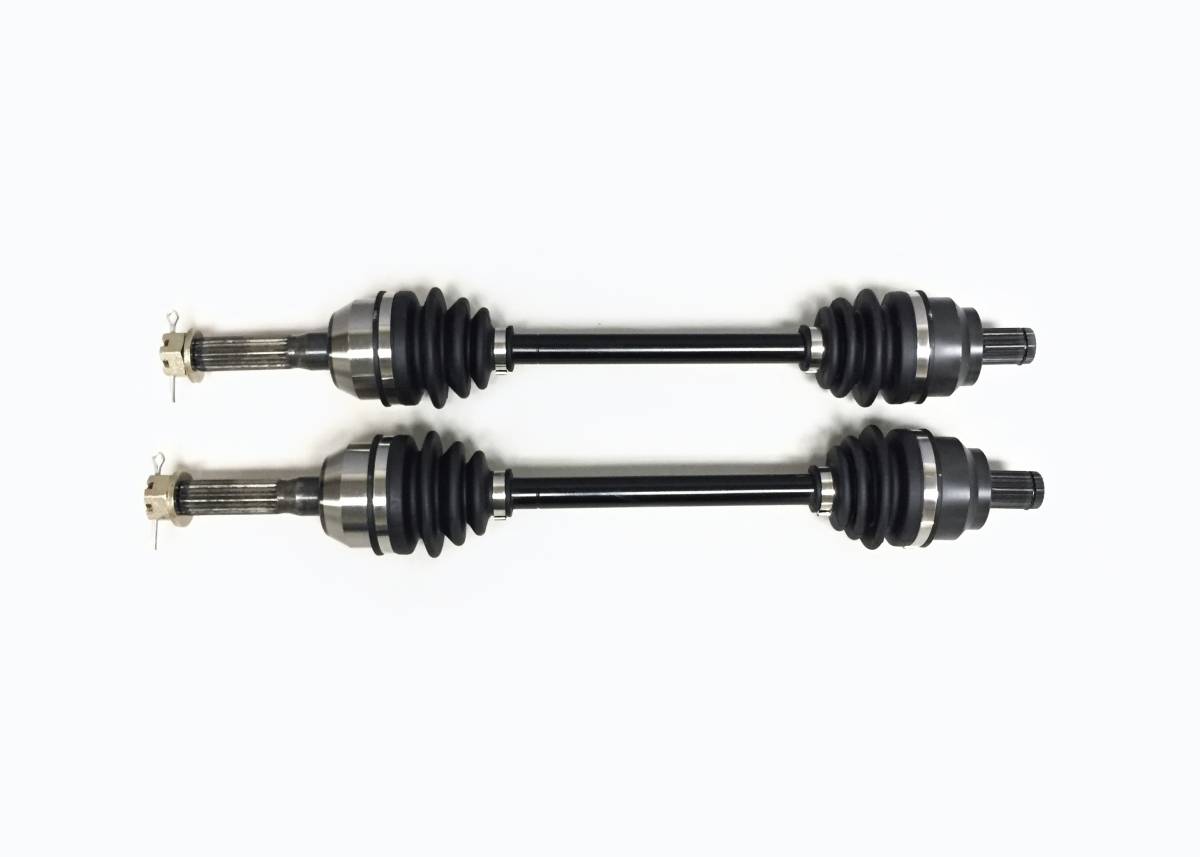

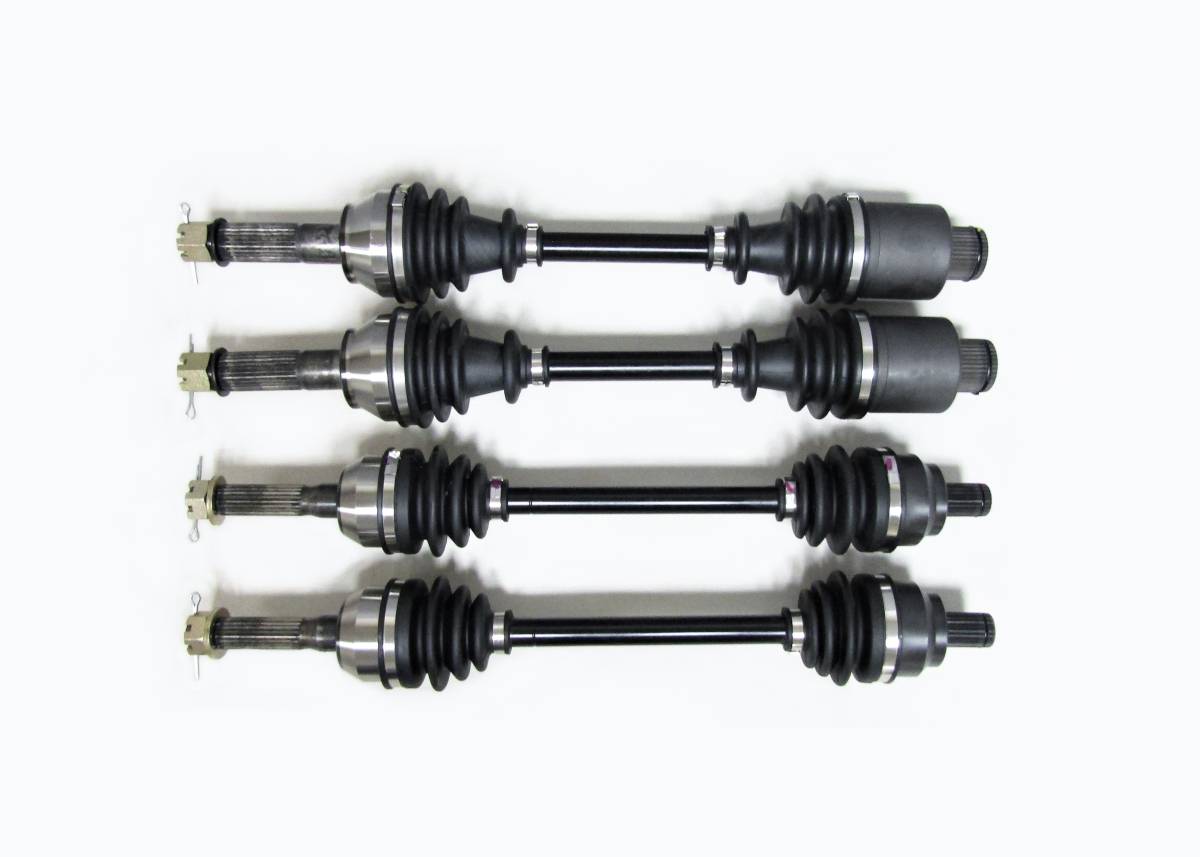

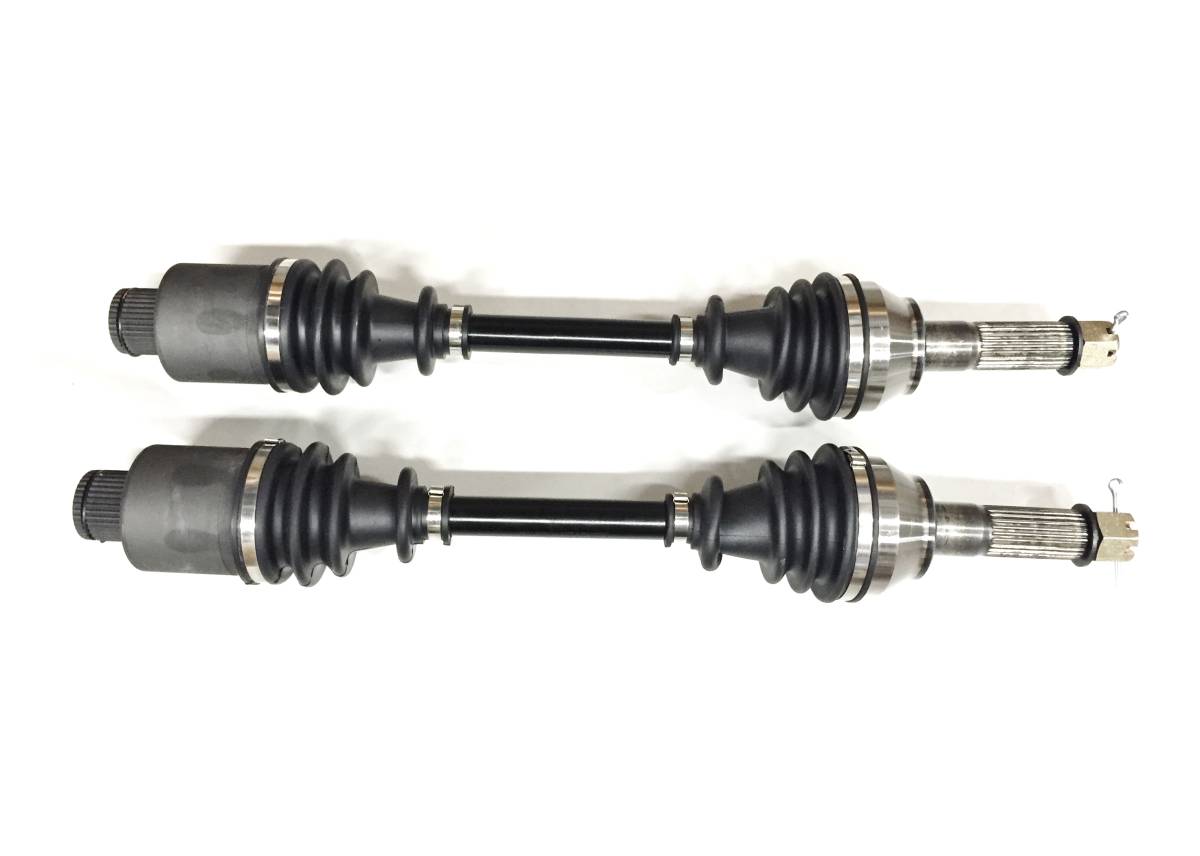

This is for a set of 4 new CV axles for a Polaris ATV.

They fit the following 4x4 models:

2013-2014 Sportsman 400, 2013-2014 Sportsman 500 (excludes Touring models), 2014 Sportsman 570, 2013-2014 Sportsman 800

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • FL/FR Inboard CV joint spline count: 22
  • FL/FR Outboard CV joint spline count: 20
  • RL/RR Inboard CV joint spline count: 36
  • RL/RR Outboard CV joint spline count: 26
  • Compressed overall axle length: FL/FR :543 mm/ RL/RR 558.5 mm
Limited Supply: only 5 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $269.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014PolarisSportsman 400--
2014PolarisSportsman 400HO
2014PolarisSportsman 400South Edition HO
2013PolarisSportsman 4004x4 HO
2013PolarisSportsman 4004x4 South Edition HO
2013PolarisSportsman 5004x4 HO
2013PolarisSportsman 500Forest
2013PolarisSportsman 500Forest Tractor
2013PolarisSportsman 500Pursuit HO
2013PolarisSportsman 500Touring HO
2014PolarisSportsman 570EFI
2014PolarisSportsman 570EFI EPS
2014PolarisSportsman 570Forest
2014PolarisSportsman 570Pursuit EFI
2014PolarisSportsman 570Pursuit EFI EPS
2014PolarisSportsman 570Touring
2014PolarisSportsman 570Touring EFI EPS
2014PolarisSportsman 8006x6 EFI
2014PolarisSportsman 8006x6 Forest
2014PolarisSportsman 800EFI
2014PolarisSportsman 800Forest
2013PolarisSportsman 8006x6 EFI
2013PolarisSportsman 8006x6 Forest
2013PolarisSportsman 800EFI
2013PolarisSportsman 800Forest

Product Notes

  • Fits the following Polaris ATV models: 2013-2014 Sportsman 400, 2013-2014 Sportsman 500 (excludes Touring models), 2014 Sportsman 570, & 2013-2014 Sportsman 800.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # (front) 1332931, (rear) 1332935, 1332421, 1332511, 1332654. Compressed length: fronts - 543 mm, rears - 558.5 mm, Inboard spline count: fronts - 22, rears - 36, Outboard spline count: fronts - 20, rears - 26.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-321/PO-321/PO-329/PO-329
    • PO-321/PO-321/PO-329/PO-329
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 37.0 lbs.
    • W10.0000” x H10.0000” x L25.0000”
