CV Axle Set for Polaris Sportsman 400 500 600 700 1380197 1380218

Location on vehicle: Front,Rear,Left,Right

PO-301/PO-301/PO-310/PO-310

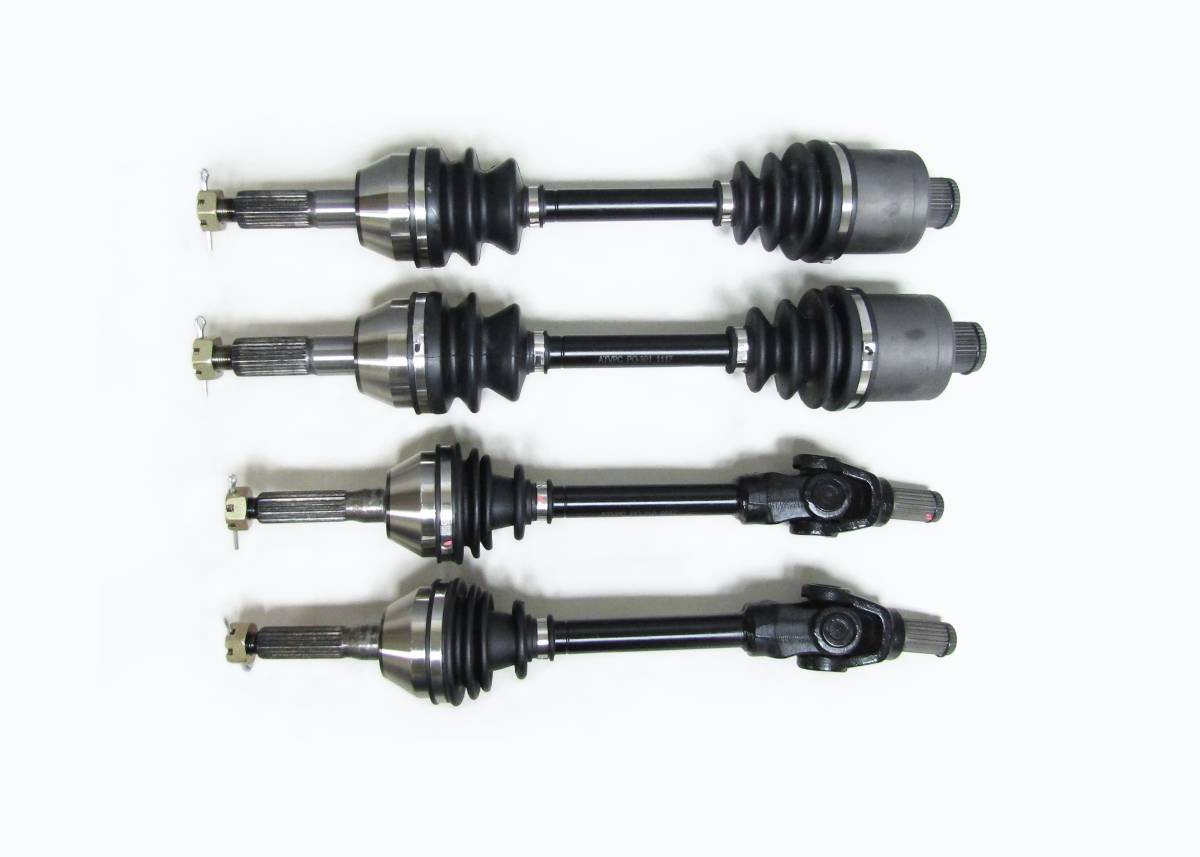

This is a set of new Front & Rear CV axles for a Polaris ATV.

They fit the following 4x4 models:

2004 ... Sportsman 400

(models with male type spline on the inboard yoke)

2004 ... Sportsman 500

(models with male type spline on the inboard yoke)

2003-2004 ... Sportsman 600

(built after October 3rd, 2002)

2003-2004 ... Sportsman 700

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts- 22, Rears- 36
  • Outboard CV joint spline count: Fronts- 20, Rears- 26
  • Compressed overall axle length: Fronts- 511 mm, Rears- 549 mm
  • Replaces Polaris OE # 1380218, 1380197, 1380240
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $284.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2004 Sportsman 400 (with male spline inboard yoke), 2004 Sportsman 500 4x4 (with male spline inboard yoke), 2003-2004 Sportsman 600 4x4 (built after Oct 3rd, 2002), & 2003-2004 Sportsman 700.
  • Axles feature stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: Fronts- 511 mm, Rears- 549 mm, Inboard Spline Count: Fronts- 22, Rears- 36, Outboard Spline Count: Fronts 20, Rears- 26.
  • Replaces OE # 1380218, 1380197, 1380240.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2004PolarisSportsman 4004X4models with male type splines on inner yoke
    2004PolarisSportsman 5004x4 HOmodels with male type splines on inner yoke
    2004PolarisSportsman 600Twin
    2003PolarisSportsman 600Twinmodels built after October 3, 2002
    2004PolarisSportsman 700Twin
    2004PolarisSportsman 700Twin EFI
    2003PolarisSportsman 700Twin

    Details

    • PO-301/PO-301/PO-310/PO-310
    • PO-301/PO-301/PO-310/PO-310
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 47.0 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
