Front Right Axle for Can-Am Maverick X3 Turbo STD & XDS 64" 2017-2021, 705402098

Location on vehicle: Front,Right

(0) Reviews: Write first review

SKU: CA-226

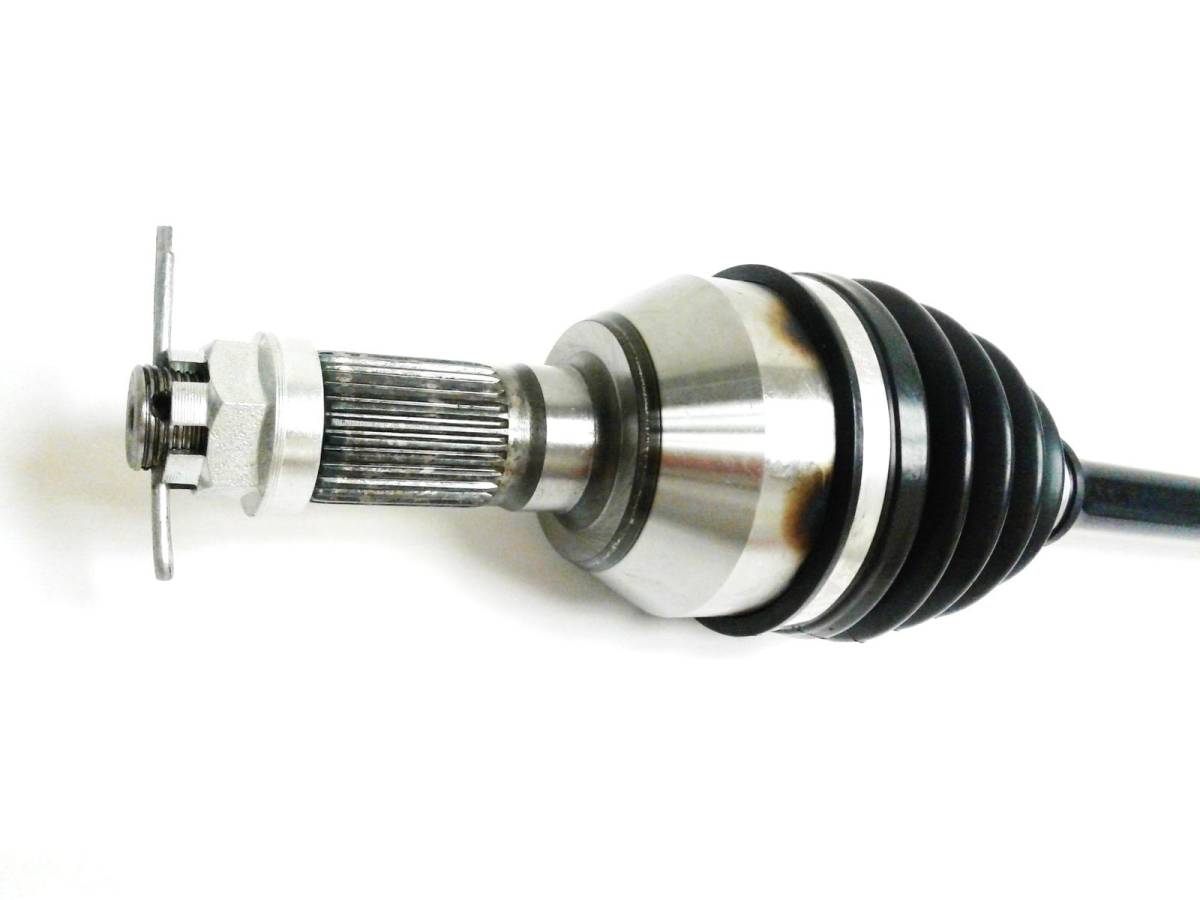

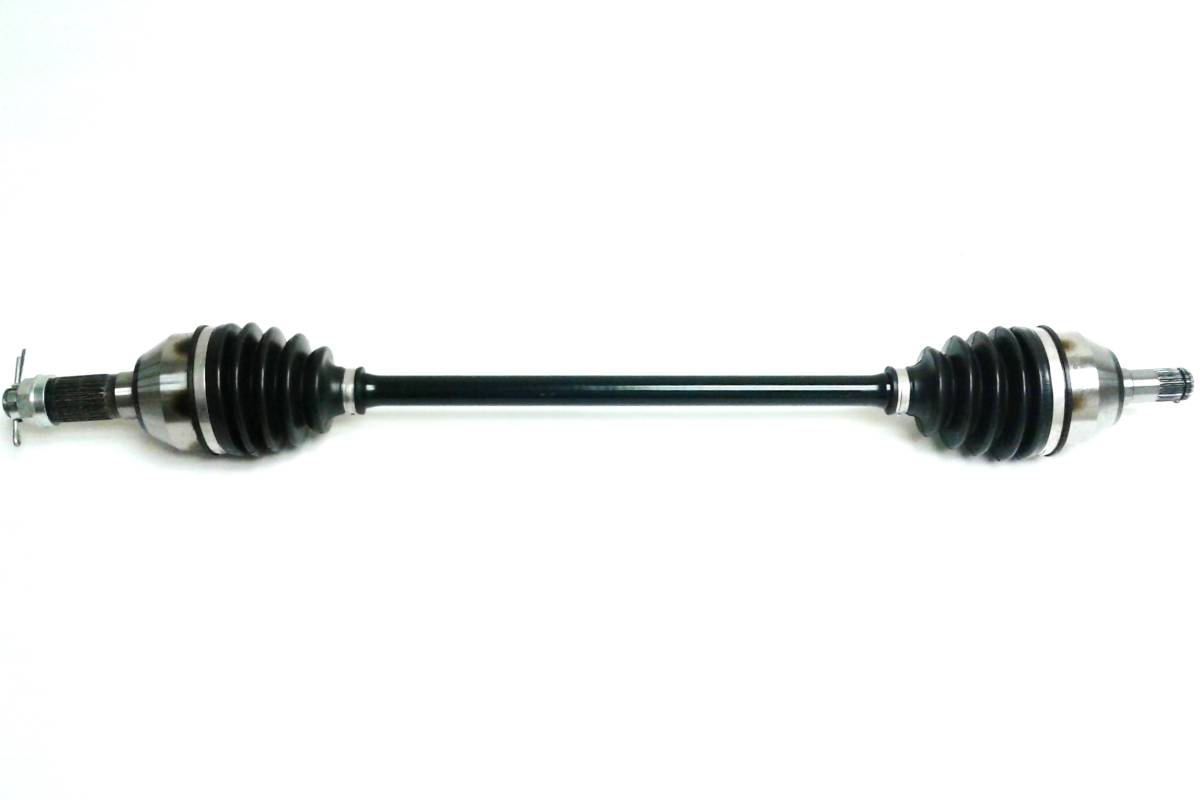

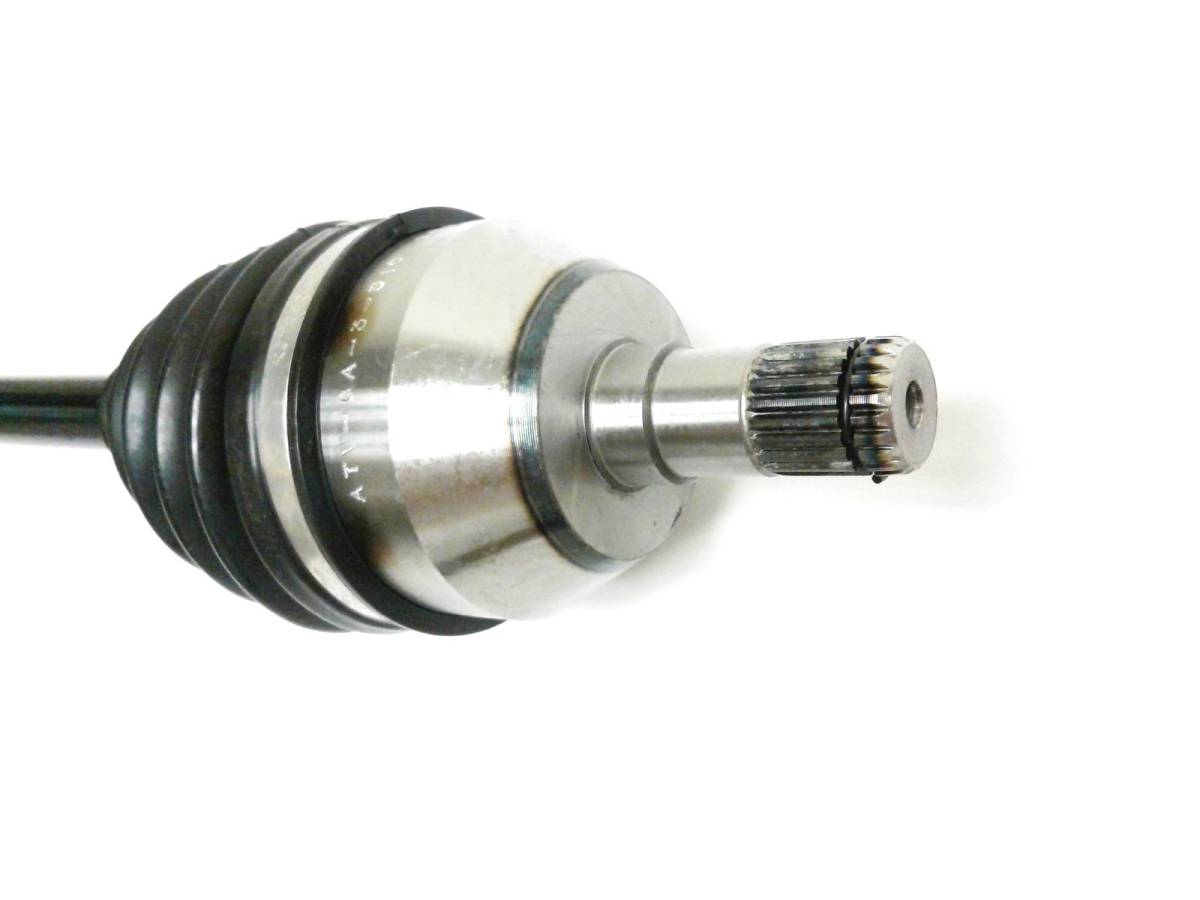

This is a new, fully-assembled, cv axle for a 64" Can-Am Maverick X3.

It fits FRONT, RIGHT (passenger side) on the following models:

2017 X3 STD, XDS-DPS

2017 X3 MAX STD, MAX XDS-DPS

2018 X3 STD, 900 HO, Turbo R STD, XDS-DPS

2018 X3 MAX Turbo STD

2019 X3 Turbo, Turbo R STD

2019 X3 MAX Turbo R

2020 X3 Turbo STD, Turbo R STD

2020 X3 MAX Turbo STD, MAX Turbo R STD

2021 X3 Turbo - DS, Turbo R - DS

2021 X3 MAX Turbo, MAX Turbo R - DS

*Axle made as OE replacement, and is not intended for lifted/ modified vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
Replaces OEM # 705401687, 705402098
Compressed overall axle length: 735 mm
Inboard CV joint spline count: 21
Outboard CV joint spline count: 29

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $84.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2021	Can-Am	Maverick X3	4x4 DS Turbo DPS
2020	Can-Am	Maverick X3	4x4 Turbo DPS
2019	Can-Am	Maverick X3	4x4 Turbo DPS
2018	Can-Am	Maverick X3	4x4 Turbo DPS
2017	Can-Am	Maverick X3	4x4 Turbo DPS
2018	Can-Am	Maverick X3 900 HO	4x4 DPS
2021	Can-Am	Maverick X3 Max	4x4 DS Turbo DPS
2020	Can-Am	Maverick X3 Max	4x4 Turbo DPS
2018	Can-Am	Maverick X3 Max	4x4 Turbo DPS
2021	Can-Am	Maverick X3 Max R	4x4 DS Turbo DPS
2020	Can-Am	Maverick X3 Max R	4x4 DS Turbo DPS
2019	Can-Am	Maverick X3 Max R	4x4 Turbo DPS
2018	Can-Am	Maverick X3 Max R	4x4 Turbo DPS
2018	Can-Am	Maverick X3 Max R	4x4 XDS Turbo DPS
2021	Can-Am	Maverick X3 R	4x4 DS Turbo DPS
2020	Can-Am	Maverick X3 R	4x4 DS Turbo DPS
2019	Can-Am	Maverick X3 R	4x4 Turbo DPS
2018	Can-Am	Maverick X3 R	4x4 Turbo DPS
2018	Can-Am	Maverick X3 R	4x4 XDS Turbo DPS
2017	Can-Am	Maverick X3 R	4x4 Turbo DPS
2017	Can-Am	Maverick X3 R	4x4 XDS Turbo DPS

Product Notes

Fits FRONT, RIGHT on the following Can-Am Maverick 64" models: 2017 X3 STD, XDS-DPS, X3 MAX STD, MAX XDS-DPS, 2018 X3 STD, 900 HO, Turbo R STD, XDS-DPS, MAX Turbo STD, 2019 X3 Turbo, Turbo R STD, MAX Turbo R.

2020 X3 Turbo STD, Turbo R STD, MAX Turbo STD, MAX Turbo R STD, 2021 X3 Turbo - DS, Turbo R - DS, MAX Turbo, MAX Turbo R - DS. Please note this will not fit 72" models.

Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

Replaces Can-Am OEM # 705401687, 705402098. Inboard Splines: 21, Outboard splines: 29, Compressed axle length: 735 mm.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
