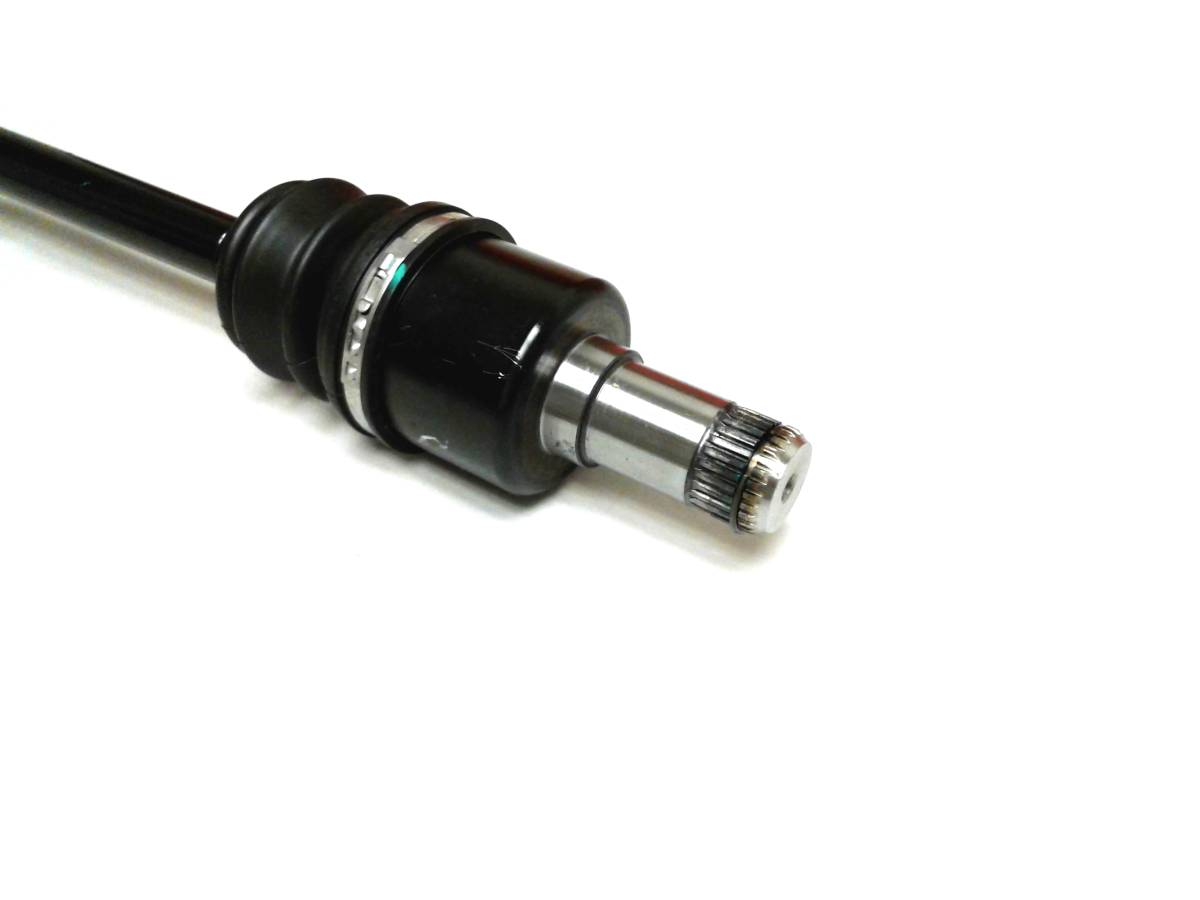

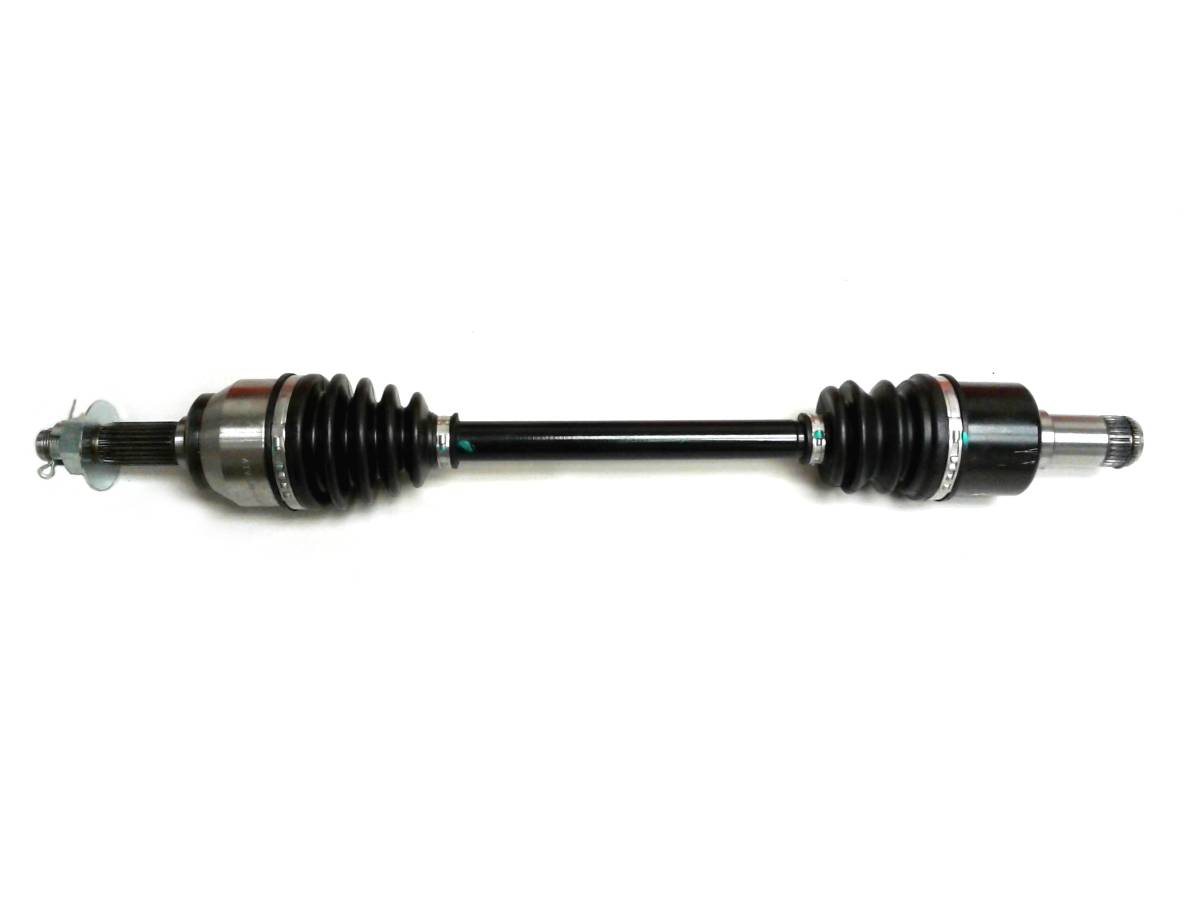

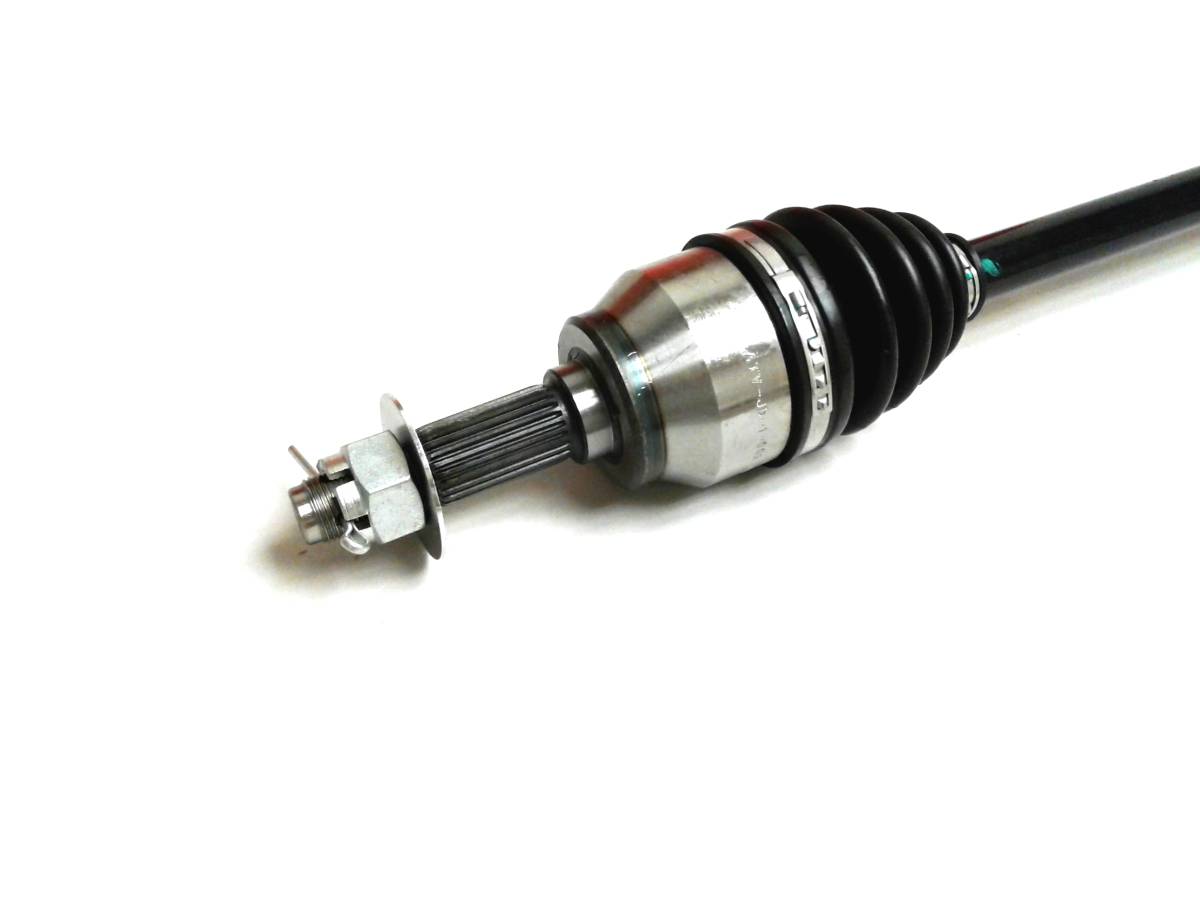

Precision Rear Left CV Axle for John Deere AM145188 Quality Tested Heat-Treated 4140 Chromoly Steel Exact Fit ATVPC

Location on vehicle: Rear,Left

(0) Reviews: Write first review
JD-397
This is a new OE type CV axle.

Precision machined and made as a direct replacement, no modifications necessary.

Quality tested for smooth articulation and reliable performance.

Ships fully-assembled and ready to install.

*made as an OE replacement, and not guaranteed to work with lifted vehicles or modifications of any kind

Product details:

  • Fits rear, left (driver side) on the following John Deere XUV models: 2012-2016 Gator 550/550 S4, 2016-2020 Gator 560/560 S4, 2016-2020 Gator 590/590 S4.
  • Features a 4140 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # 145188. Inboard CV joint spline count: 28, Outboard CV joint spline count: 24, Compressed overall axle length: 610 mm.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2016John DeereGator XUV 5504X4
2016John DeereGator XUV 5504x4 S4 4 Passenger
2015John DeereGator XUV 5504X4
2015John DeereGator XUV 5504x4 S4 4 Passenger
2014John DeereGator XUV 5504X4
2014John DeereGator XUV 5504x4 S4 4 Passenger
2013John DeereGator XUV 5504X4
2013John DeereGator XUV 5504x4 S4 4 Passenger
2012John DeereGator XUV 5504X4
2012John DeereGator XUV 5504x4 4 Passenger
2018John DeereGator XUV 5604x4 S4 4 Passenger
2017John DeereGator XUV 5604X4
2017John DeereGator XUV 5604x4 S4 4 Passenger
2016John DeereGator XUV 5604X4
2016John DeereGator XUV 5604x4 S4 4 Passenger
2020John DeereGator XUV 560E4X4
2020John DeereGator XUV 560E4x4 S4 4 Passenger
2019John DeereGator XUV 560E4X4
2019John DeereGator XUV 560E4x4 S4 4 Passenger
2018John DeereGator XUV 560E4X4
2018John DeereGator XUV 560E4x4 S4 4 Passenger
2020John DeereGator XUV 590E4X4
2020John DeereGator XUV 590E4x4 S4 4 Passenger
2019John DeereGator XUV 590E4X4
2019John DeereGator XUV 590E4x4 S4 4 Passenger
2018John DeereGator XUV 590E4X4
2018John DeereGator XUV 590E4x4 S4 4 Passenger
2020John DeereGator XUV 590M4x4 EPS
2020John DeereGator XUV 590M4x4 EPS S4 4 Passenger
2019John DeereGator XUV 590M4x4 EPS
2019John DeereGator XUV 590M4x4 EPS S4 4 Passenger
2019John DeereGator XUV 590MSpecial Edition
2018John DeereGator XUV 590M4x4 EPS
2018John DeereGator XUV 590M4x4 EPS S4 4 Passenger
2017John DeereGator XUV 590i4X4
2017John DeereGator XUV 590i4x4 EPS
2017John DeereGator XUV 590i4x4 EPS S4 4 Passenger
2017John DeereGator XUV 590i4x4 S4 4 Passenger
2016John DeereGator XUV 590i4X4
2016John DeereGator XUV 590i4x4 EPS
2016John DeereGator XUV 590i4x4 EPS S4 4 Passenger
2016John DeereGator XUV 590i4x4 S4 4 Passenger

Product Notes

  • Fits rear, left (driver side) on the following John Deere XUV models: 2012-2016 Gator 550/550 S4, 2016-2020 Gator 560/560 S4, 2016-2020 Gator 590/590 S4.
  • Features a 4140 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # 145188. Inboard CV joint spline count: 28, Outboard CV joint spline count: 24, Compressed overall axle length: 610 mm.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Warranty

    Limited 2 year, one-time warranty

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.2 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
