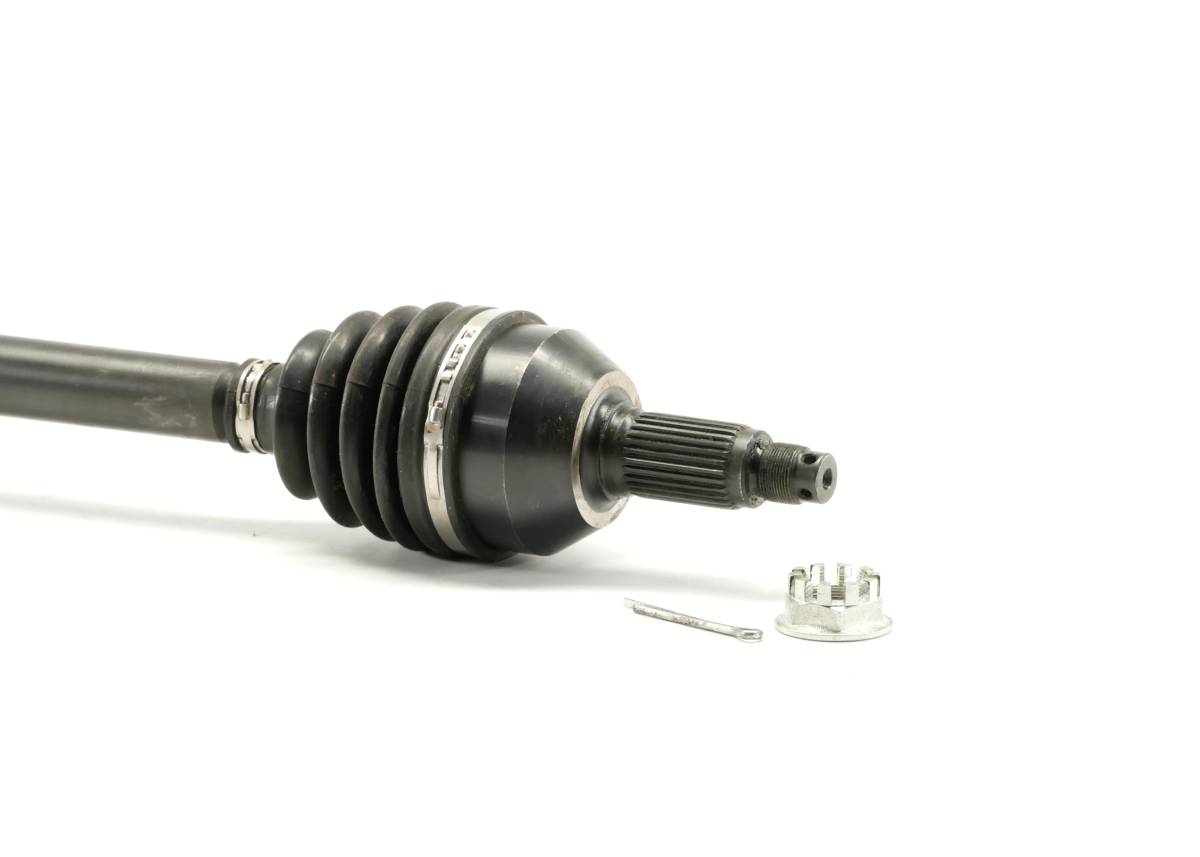

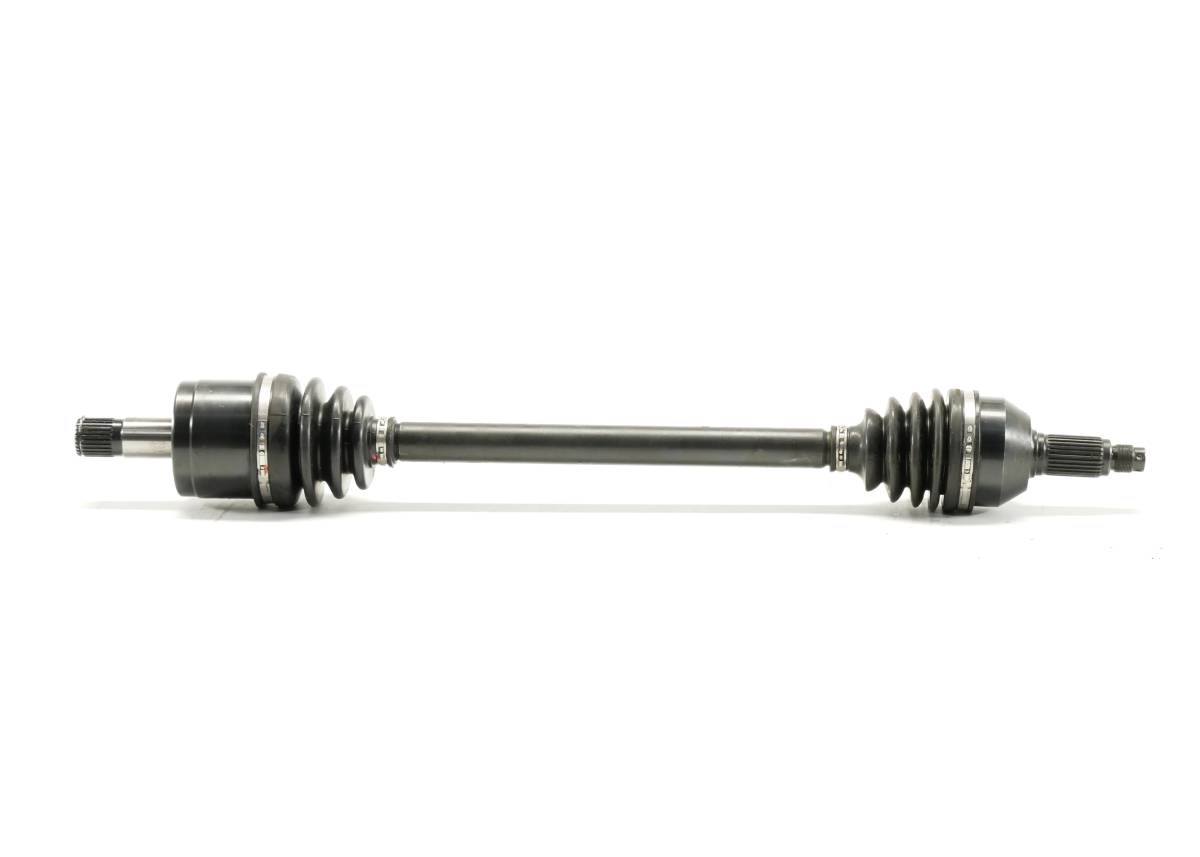

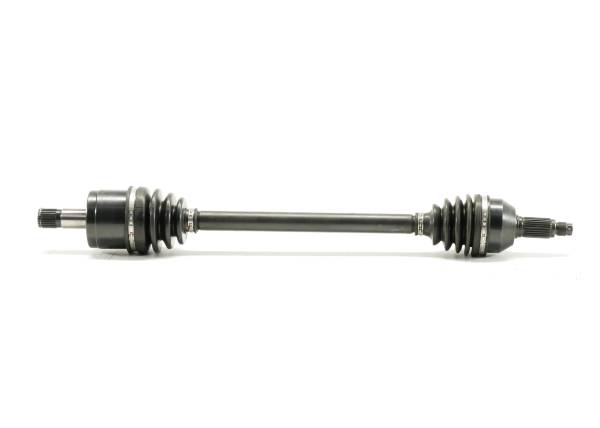

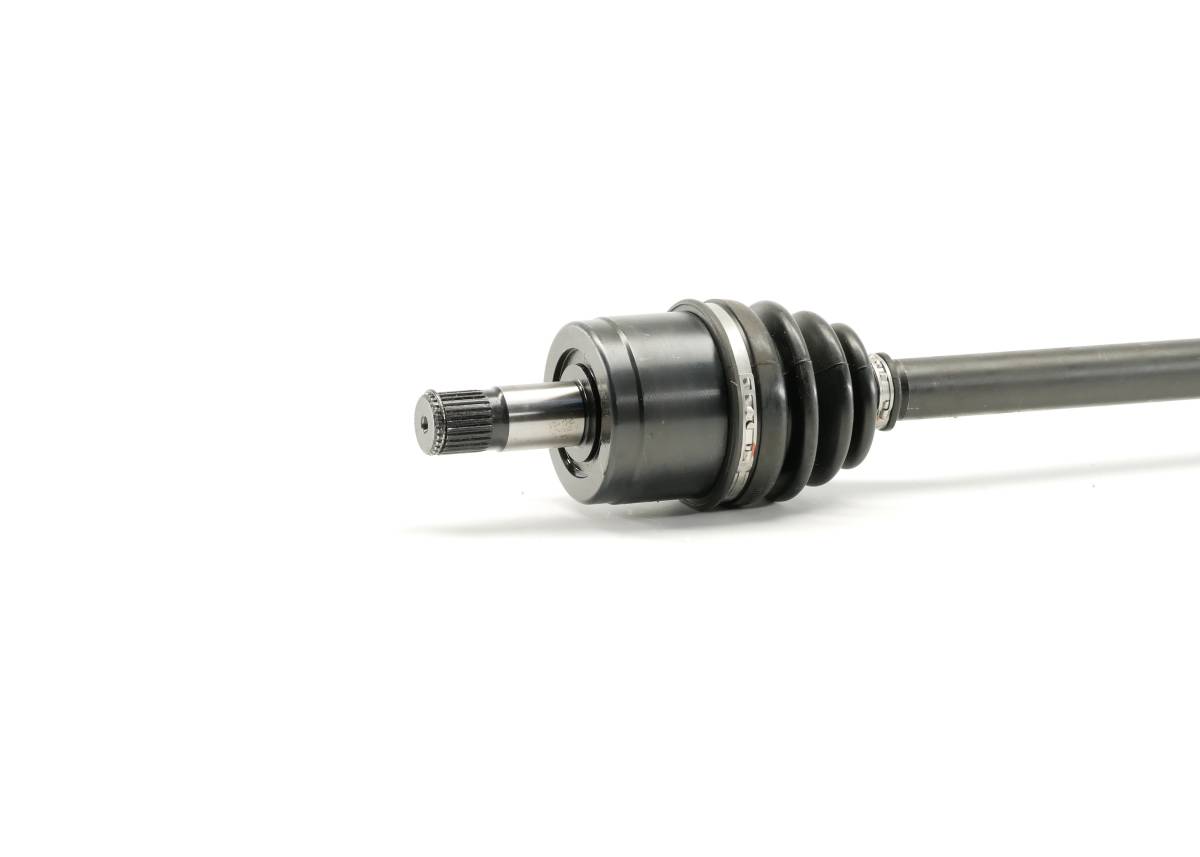

Rear Left CV Axle for Honda Pioneer 1000 & 1000-5 4x4 2016-2021

Location on vehicle: Rear,Left

HO-328
This is a new Rear, Left CV axle for a Honda UTV.

It will fit the following 4x4 applications:

2016-2021 ... Pioneer 1000

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 27
  • Outboard CV joint spline count: 28
  • Compressed overall axle length: 720 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits rear left (driver side) on Pioneer 1000/100-5 models from 2016-2021.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Overall compressed axle length 720 mm. Inboard Spline count: 27, Outboard: 28.
  • Replaces Honda OEM # 42350-HL4-A01, 42320-HL4-A01.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2018HondaPioneer 1000SXS1000M3SXS1000M3
    2018HondaPioneer 1000SXS1000M3 EPSSXS1000M3
    2018HondaPioneer 1000SXS1000M3 LESXS1000M3
    2018HondaPioneer 1000SXS10M3LE LESXS1000M3
    2018HondaPioneer 1000SXS10M3P EPSSXS1000M3
    2017HondaPioneer 1000SXS1000M3SXS1000M3
    2017HondaPioneer 1000SXS1000M3 EPSSXS1000M3
    2017HondaPioneer 1000SXS1000M3 LESXS1000M3
    2016HondaPioneer 1000SXS1000M3SXS1000M3
    2016HondaPioneer 1000SXS1000M3 EPSSXS1000M3
    2019HondaPioneer 1000-5SXS1000M5SXS1000M5
    2019HondaPioneer 1000-5SXS1000M5 DeluxeSXS1000M5
    2019HondaPioneer 1000-5SXS1000M5 LESXS1000M5
    2018HondaPioneer 1000-5SXS1000M5SXS1000M5
    2018HondaPioneer 1000-5SXS1000M5 DeluxeSXS1000M5
    2018HondaPioneer 1000-5SXS1000M5 LESXS1000M5
    2018HondaPioneer 1000-5SXS10M5D DeluxeSXS1000M5
    2018HondaPioneer 1000-5SXS10M5LE LESXS1000M5
    2017HondaPioneer 1000-5SXS1000M5SXS1000M5
    2017HondaPioneer 1000-5SXS1000M5 DeluxeSXS1000M5
    2017HondaPioneer 1000-5SXS1000M5 LESXS1000M5
    2016HondaPioneer 1000-5SXS1000M5SXS1000M5
    2016HondaPioneer 1000-5SXS1000M5 DeluxeSXS1000M5
    2019HondaPioneer 1000SXS1000M3SXS1000M3
    2019HondaPioneer 1000SXS1000M3 EPSSXS1000M3
    2019HondaPioneer 1000SXS1000M3 LESXS1000M3

    Details

    Shipping Information

    • Item Requires Shipping
    • 13.6 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
