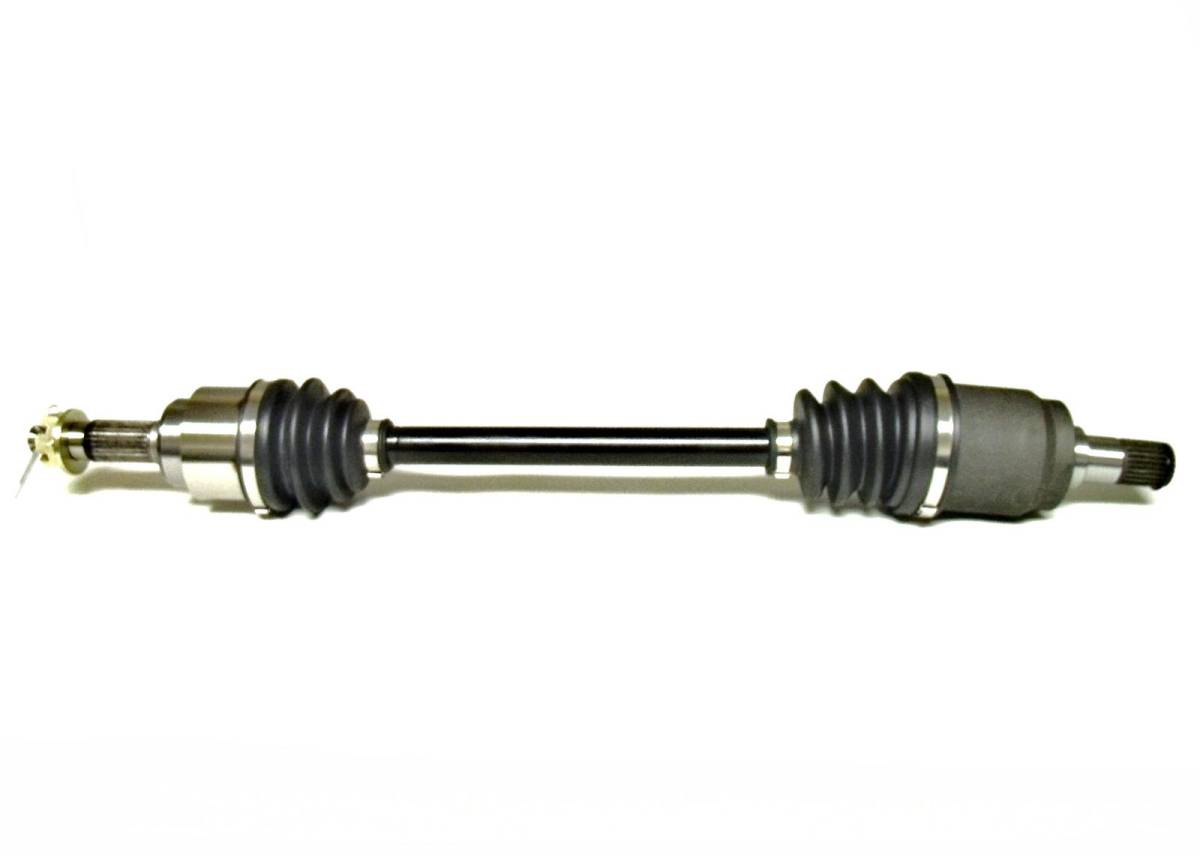

Rear Left CV Axle for Honda Big Red 700 4x4 2009-2013

Location on vehicle: Rear,Left

This is a new Rear, Left CV axle for a Honda UTV.

It will fit the following 4x4 applications:

2009-2013 ... Big Red 700

(MUV700 - all models)

Rear, Left / Driver Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

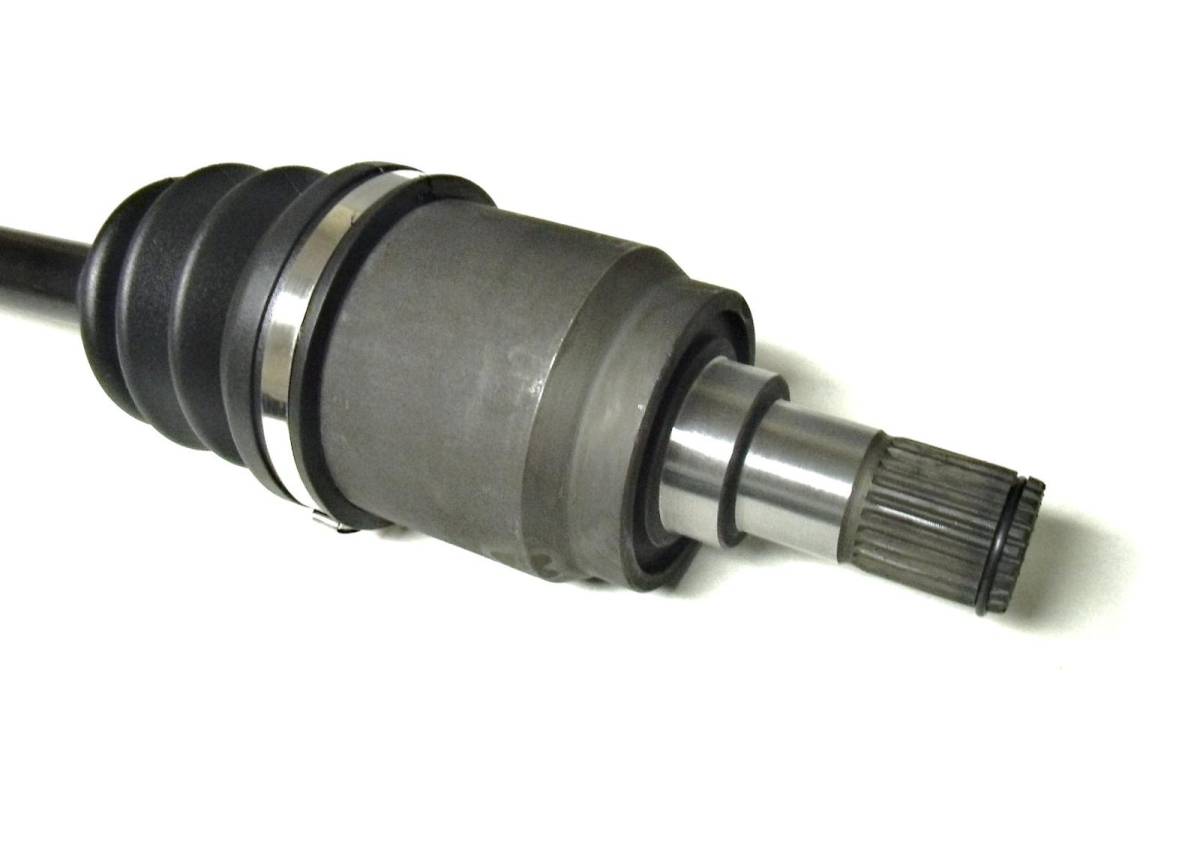

  • Inboard CV joint spline count: 25

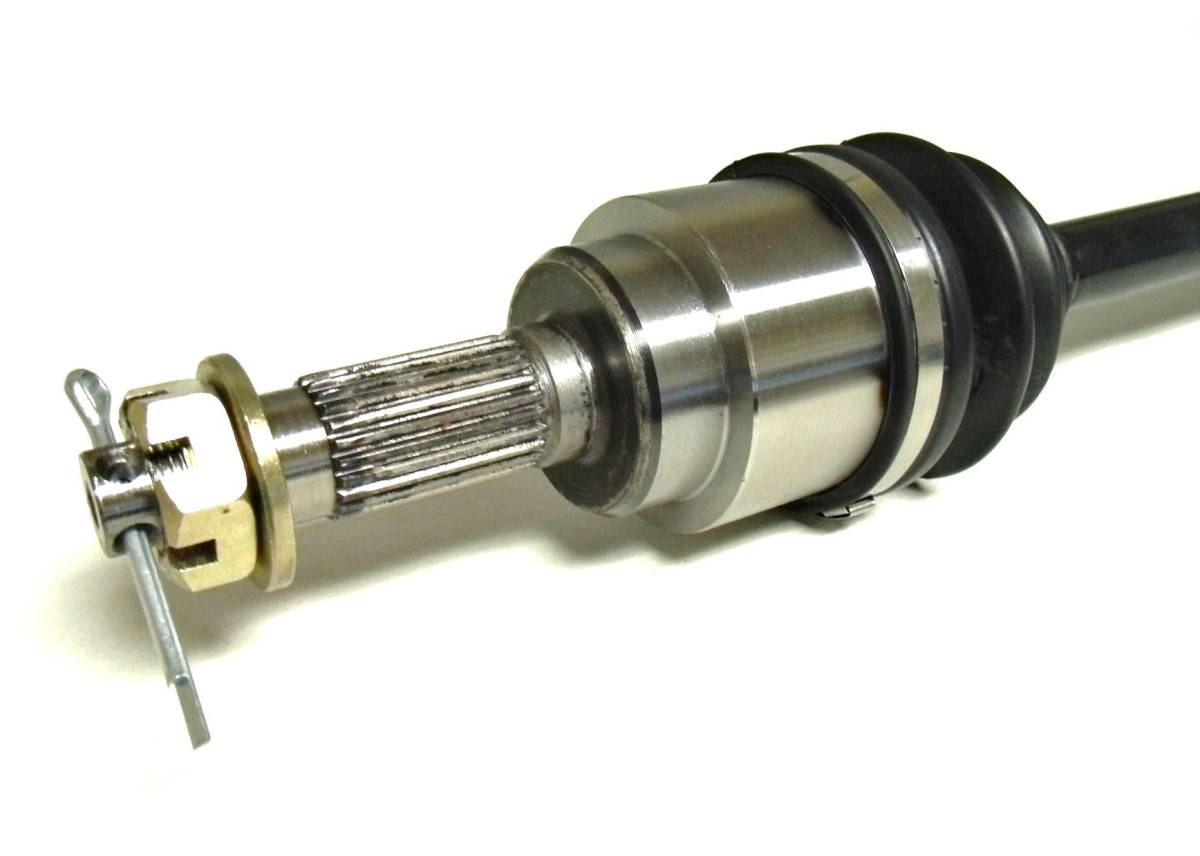

  • Outboard CV joint spline count: 24
  • Compressed overall axle length: 617 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Free Ground Shipping


1 year factory defect limited warranty

Product Notes

  • Fits rear left (driver's side) on all Big Red 700 - MUV700 models from 2009-2013.
  • Axle features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces OE # 42350-HL1-A01, 42230-HL1-A01.
  • Compressed Length- 617 mm, Inboard Spline Count- 25, Outboard Spline Count- 24.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    2013HondaBig Red 700MUV700
    2012HondaBig Red 700MUV700
    2011HondaBig Red 700MUV700
    2010HondaBig Red 700MUV700
    2009HondaBig Red 700MUV700


    Shipping Information

    • Item Requires Shipping
    • 11.6 lbs.
    • W5.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
