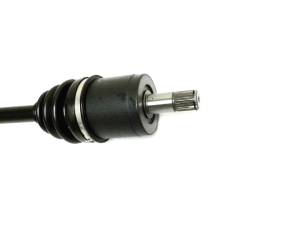

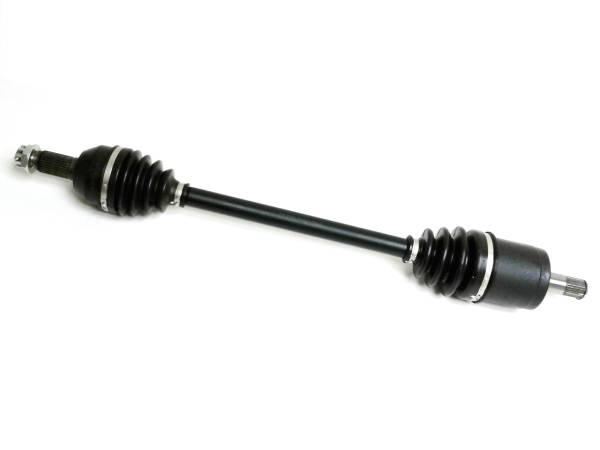

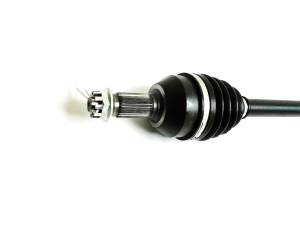

Front CV Axle for Honda Pioneer 1000 & 1000-5 4x4 2016-2021

Location on vehicle: Front,Left,Right

HO-125
This is a new, complete CV axle for a Honda UTV.

It will fit the following models:

2016-2021 ... Pioneer 1000 (excluding LE)

2016-2021 ... Pioneer 1000-5 (excluding LE)

*please note this will not fit any Limited Edition models

*axle made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 25
  • Outboard CV joint spline count: 28
  • Compressed overall axle length: 711 mm
  • Replaces OEM # 44350-HL4-A01, 44250-HL4-F01, 44220-HL4-A01
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following Honda UTV models (excluding Limited Edition): 2016-2021 Pioneer 1000, 2016-2021 Pioneer 1000-5. Will fit Base, Premium, & Deluxe, just not any LE editions.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 44350-HL4-A01, 44250-HL4-F01, 44220-HL4-A01. Overall axle length 711 mm. Inboard spline count: 25, Outboard spline count: 28.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2021HondaPioneer 1000SXS1000M3
    2021HondaPioneer 1000SXS1000M3 Deluxe
    2020HondaPioneer 1000SXS1000M3
    2020HondaPioneer 1000SXS1000M3 Deluxe
    2019HondaPioneer 1000SXS1000M3
    2019HondaPioneer 1000SXS1000M3 EPS
    2018HondaPioneer 1000SXS10M3P EPS
    2018HondaPioneer 1000SXS1000M3
    2018HondaPioneer 1000SXS1000M3 EPS
    2017HondaPioneer 1000SXS1000M3
    2017HondaPioneer 1000SXS1000M3 EPS
    2016HondaPioneer 1000SXS1000M3
    2016HondaPioneer 1000SXS1000M3 EPS
    2021HondaPioneer 1000-5SXS1000M5
    2021HondaPioneer 1000-5SXS1000M5 Deluxe
    2020HondaPioneer 1000-5SXS1000M5
    2020HondaPioneer 1000-5SXS1000M5 Deluxe
    2019HondaPioneer 1000-5SXS1000M5
    2019HondaPioneer 1000-5SXS1000M5 Deluxe
    2018HondaPioneer 1000-5SXS10M5D Deluxe
    2018HondaPioneer 1000-5SXS1000M5
    2018HondaPioneer 1000-5SXS1000M5 Deluxe
    2017HondaPioneer 1000-5SXS1000M5
    2017HondaPioneer 1000-5SXS1000M5 Deluxe
    2016HondaPioneer 1000-5SXS1000M5
    2016HondaPioneer 1000-5SXS1000M5 Deluxe

    Details

    Shipping Information

    • Item Requires Shipping
    • 10.0 lbs.
    • W5.0000” x H5.0000” x L27.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
