Full Axle Set for Kubota K7561-15310, K7711-12330, K7711-12334, Front & Rear, RTV900 RTV1100, Quality Tested, Heat-Treated, Exact Fit, ATVPC

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
KU-301/KU-301/KU-603/KU-603

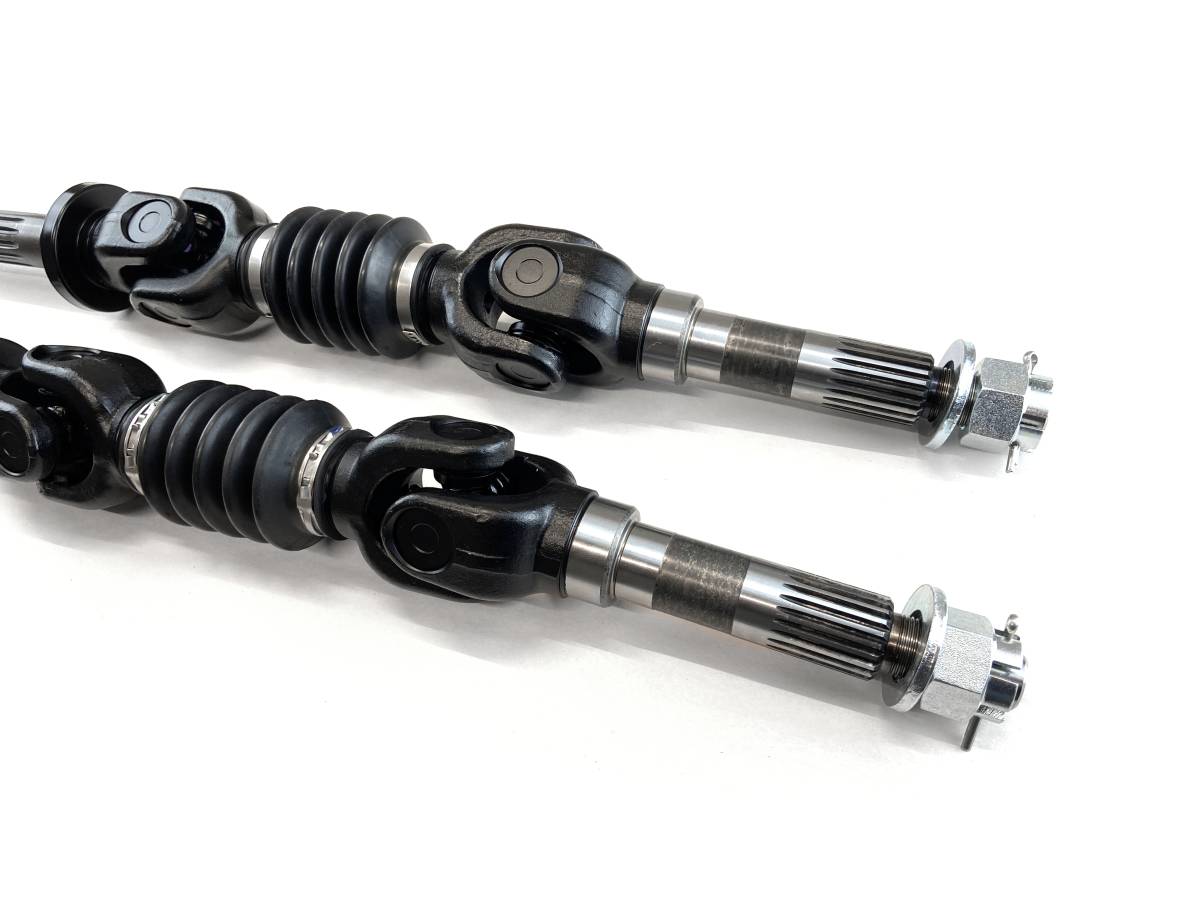

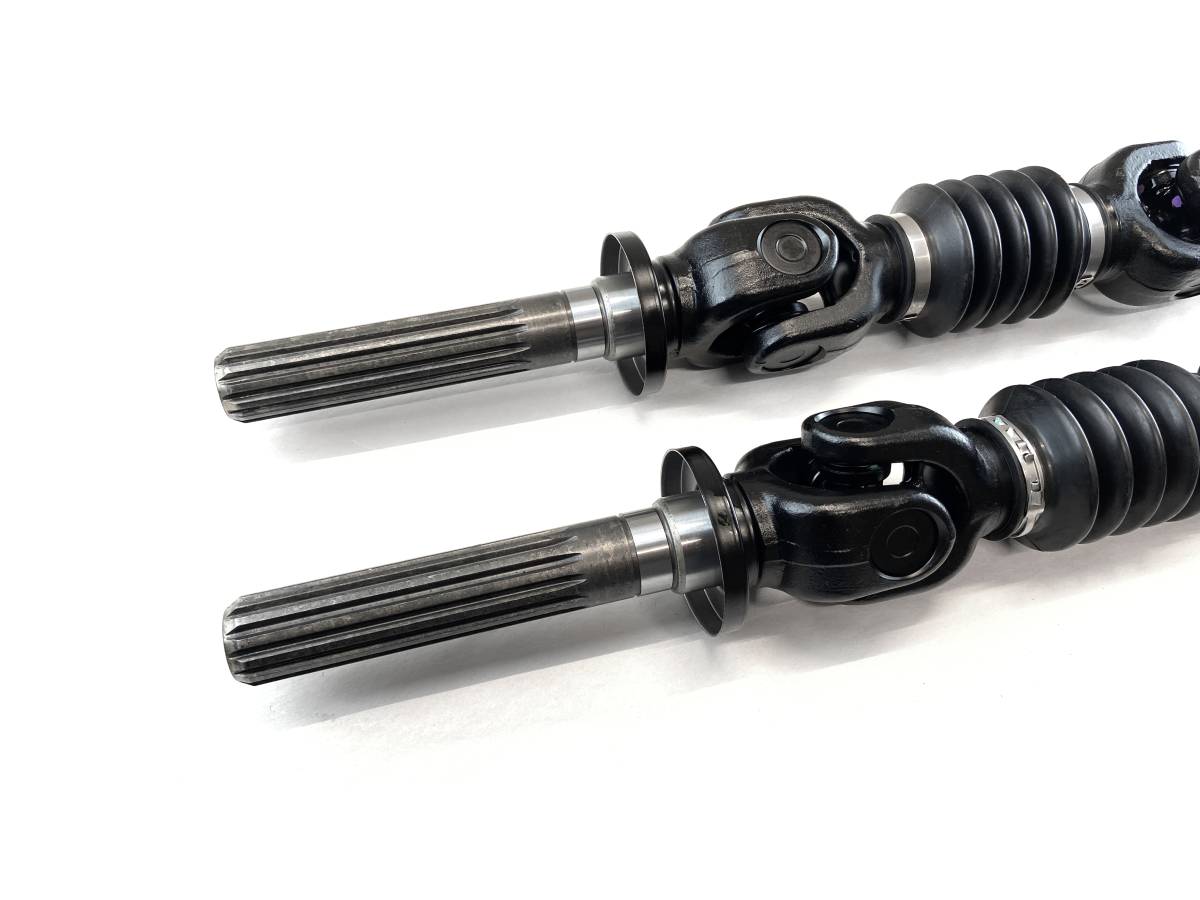

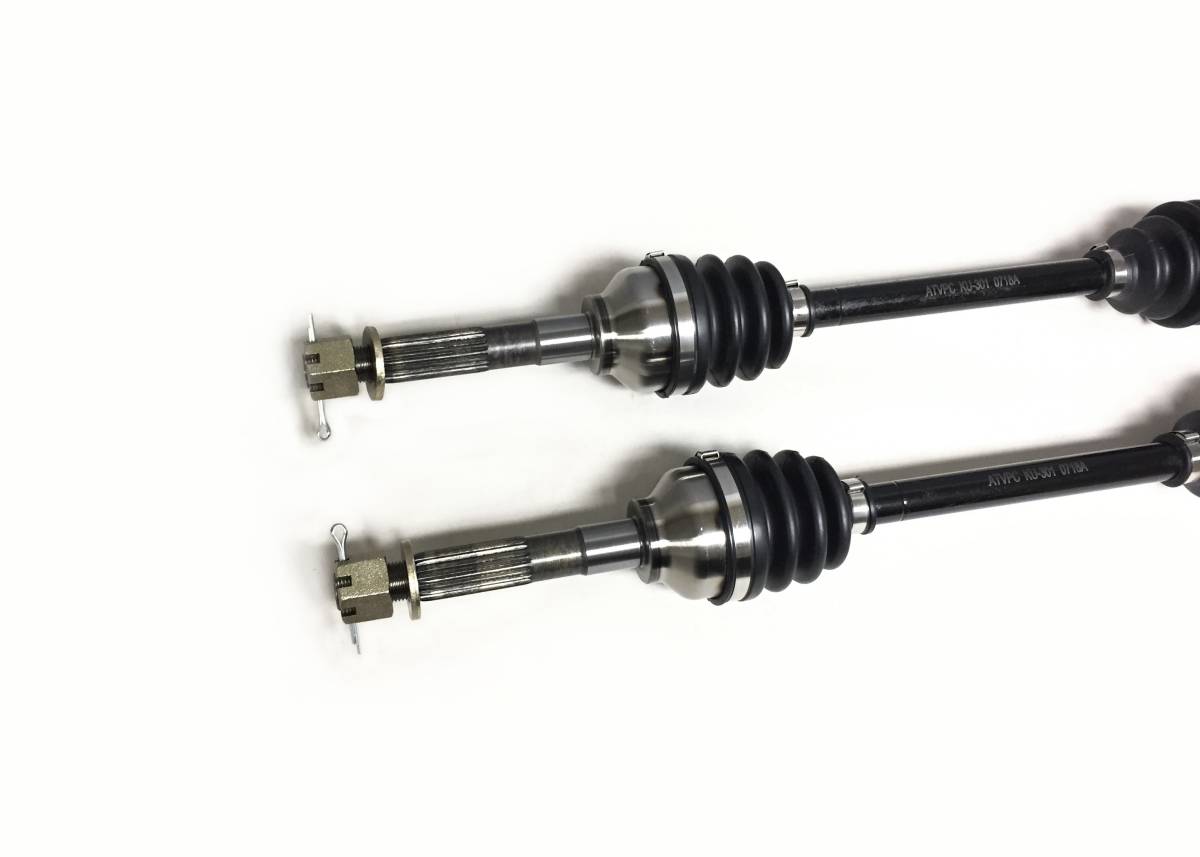

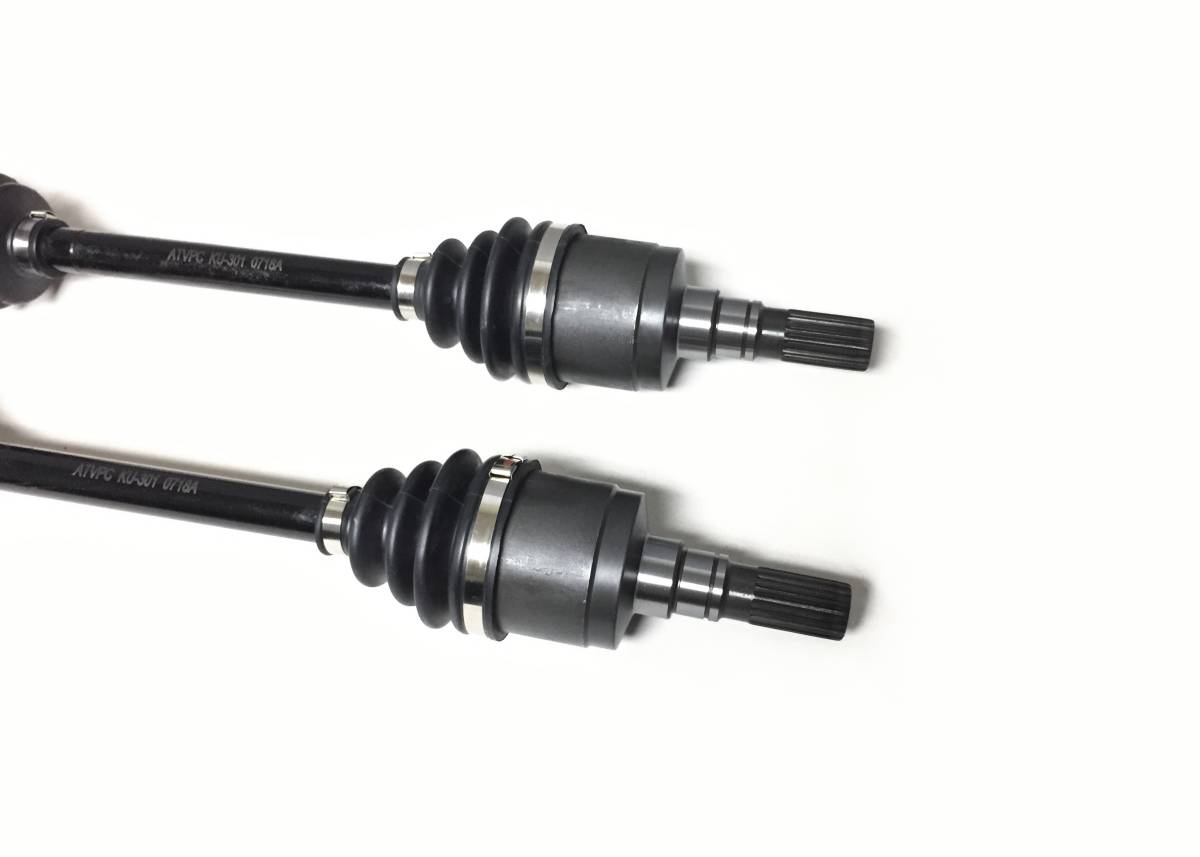

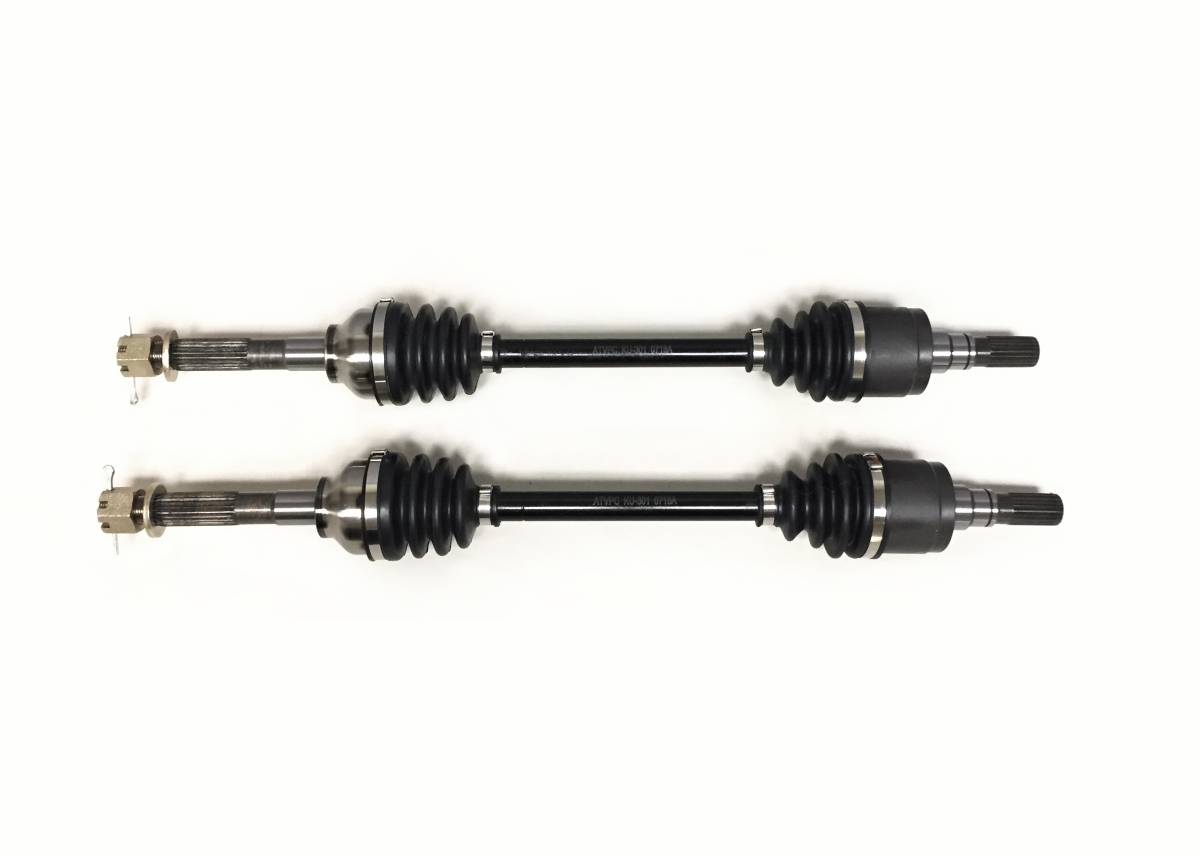

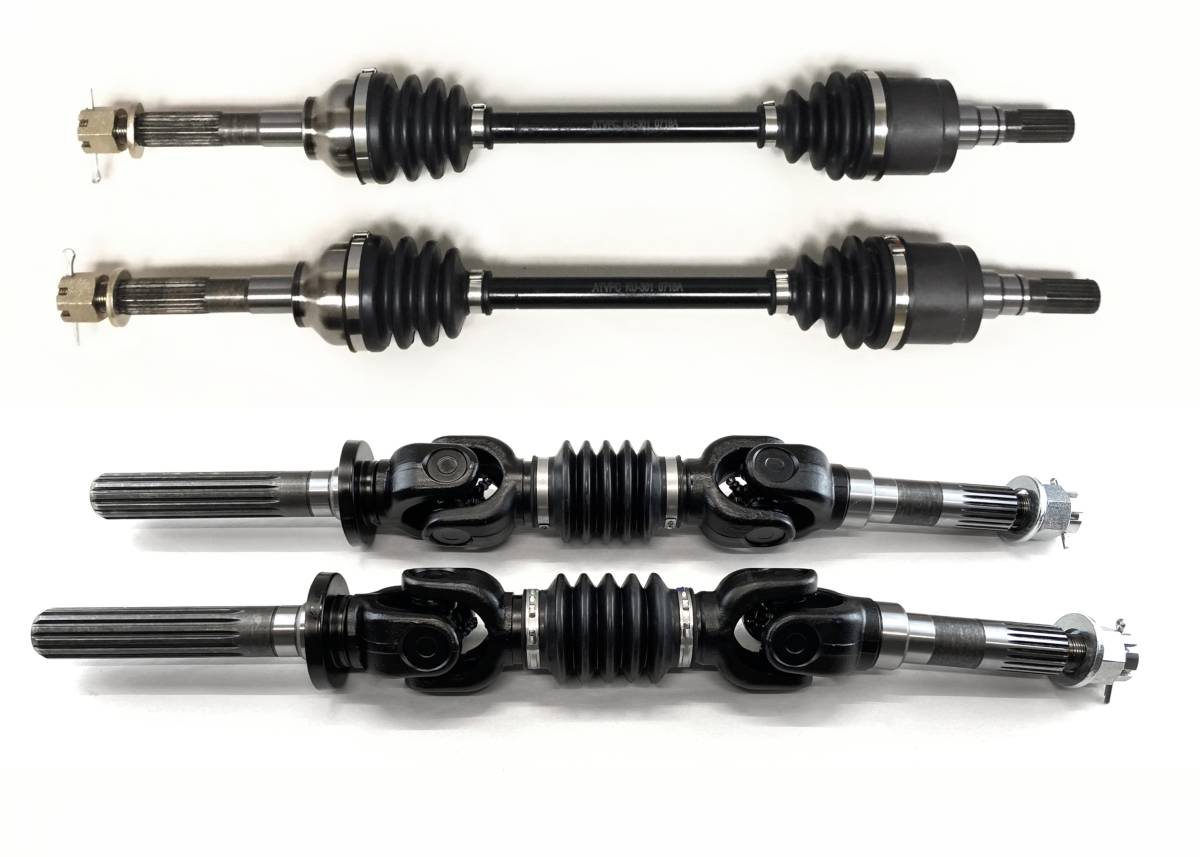

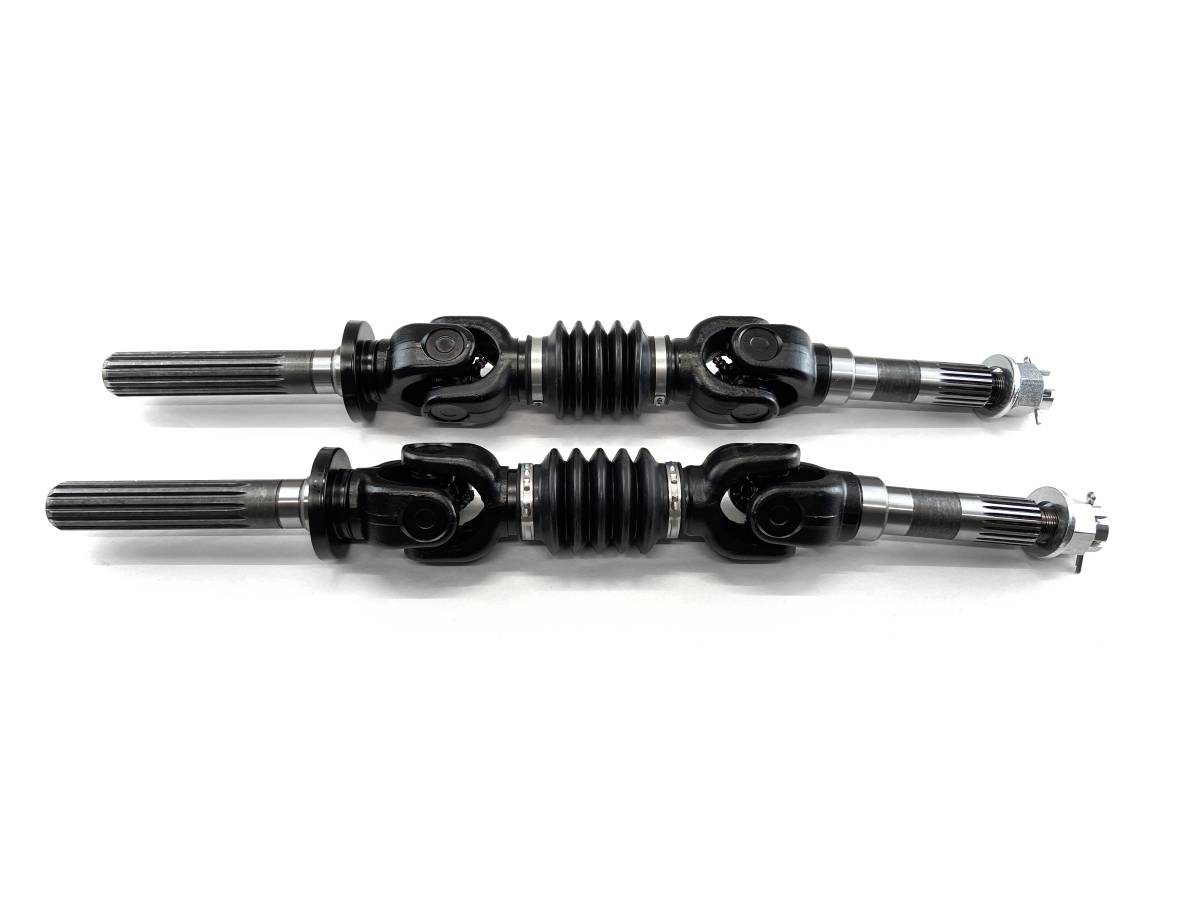

This is full set of axles for a Kubota UTV.

They fit the following models:

2004-2011 ... RTV900 (early model with rounded front inner CV joints)

2007-2015 ... RTV1100 (early model with rounded front round inner CV joints)

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Fronts feature 4140 Chromoly bars for a higher tensile strenth and more durability.
  • Rears feature 5140 Chromium Alloy for superior wear resistance
  • Moly grease to provide consistent joint lubrication
  • Neoprene CV boots for added resistance to hot/cold temperatures
  • Compressed overall axle length: fronts - 595 mm, rears - 619.5 mm
  • Inboard CV joint spline count: fronts - 21, rears - 13
  • Outboard CV joint spline count: fronts - 21, rears - 22
  • Replaces OEM # (fronts) K7561-15310, (rears) K7711-12330, K7711-12334
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $459.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2010KubotaRTV900General Purpose
2010KubotaRTV900Utility
2010KubotaRTV900Worksite
2009KubotaRTV900General Purpose
2009KubotaRTV900Utility
2009KubotaRTV900Worksite
2008KubotaRTV900General Purpose
2008KubotaRTV900Recreational
2008KubotaRTV900Special Edition
2008KubotaRTV900Turf Utility
2008KubotaRTV900Work Site Utility
2008KubotaRTV900Worksite
2007KubotaRTV900General Purpose
2007KubotaRTV900Recreational
2007KubotaRTV900Special Edition
2007KubotaRTV900Turf Utility
2007KubotaRTV900Work Site Utility
2007KubotaRTV900Worksite
2006KubotaRTV900General Purpose
2006KubotaRTV900Recreational
2006KubotaRTV900Turf
2006KubotaRTV900Worksite
2005KubotaRTV900General Purpose
2005KubotaRTV900Recreational
2005KubotaRTV900Turf
2005KubotaRTV900Worksite
2004KubotaRTV900--
2013KubotaRTV1100--
2012KubotaRTV1100--
2011KubotaRTV1100--
2010KubotaRTV1100--
2009KubotaRTV1100--
2008KubotaRTV1100--
2007KubotaRTV1100Recreational
2007KubotaRTV1100Worksite

Product Notes

  • Fits the following Kubota UTV models: 2004-2011 RTV900 (early model with round front inner joints) & 2007-2015 RTV1100 (early model with front round inner joints). Please note these will not fit 'X' type RTV-X900 or X1100 editions.
  • Fronts features 4140 Chromoly for higher tensile strenth and more durability. Rears feature with 5140 Chromium Alloy for superior wear resistance. Ships as a complete set, fully assembled and ready to install.
  • Fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # (fronts) K7561-15310, (rears) K7711-12330, K7711-12334. Overall axle length: fronts - 595 mm, rears - 619.5 mm. Inboard spline count: fronts - 21, rears - 13 Outboard spline count: fronts - 21, rears - 22
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • KU-301/KU-301/KU-603/KU-603
    • KU-301/KU-301/KU-603/KU-603
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 47.0 lbs.
    • W11.0000” x H11.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
