Full Axle Set for Kubota K7581-15310, K7711-12330, K7711-12334, Front & Rear, RTV900 1100 1140, Quality Tested, Heat-Treated, Exact Fit, ATVPC

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
KU-302/KU-302/KU-603/KU-603

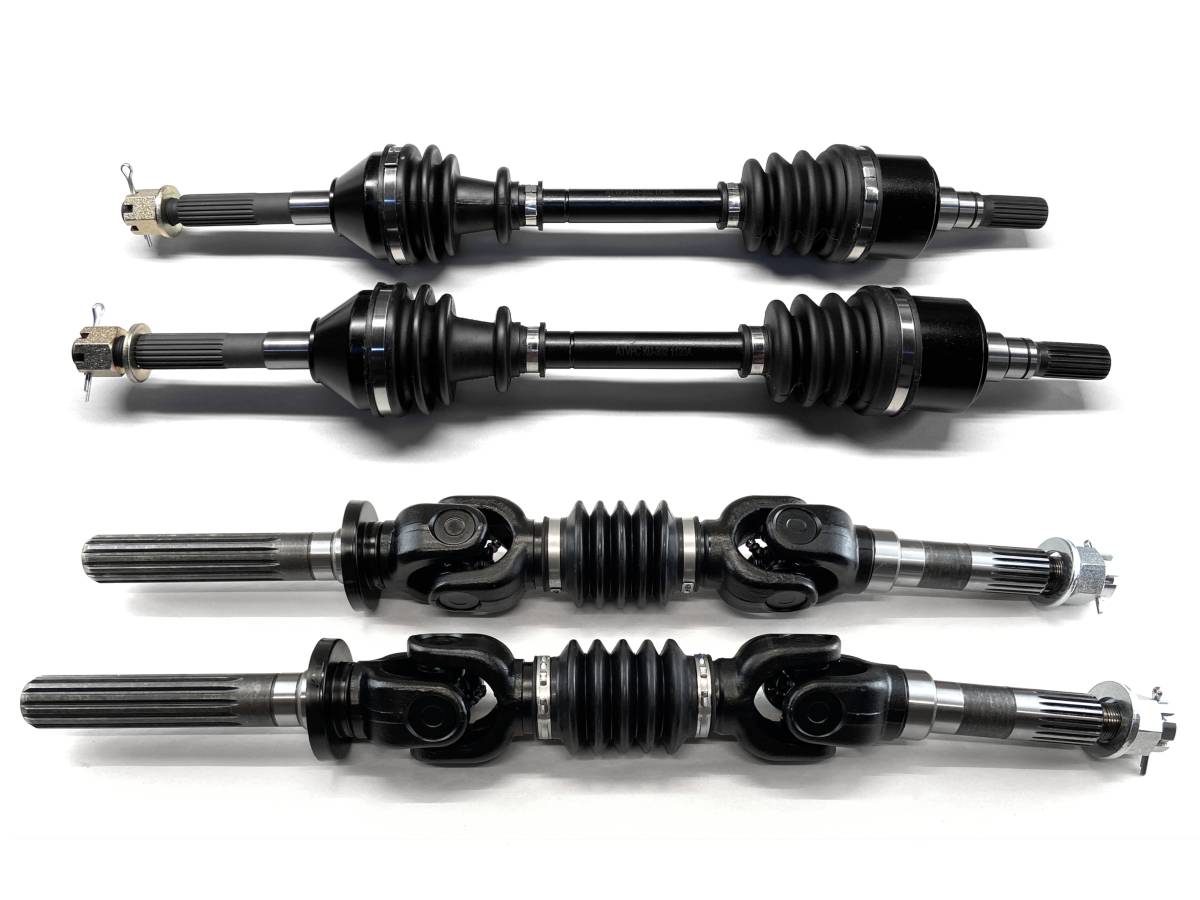

This is full set of axles for a Kubota UTV.

They fit the following models:

2009-2011 ... RTV900 (late models)

2009-2015 ... RTV1100 (late models)

2009-2015 ... RTV1140 (late models)

*please note these will not fit any 'X' type RTV X900/X1100/X1140 platforms

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

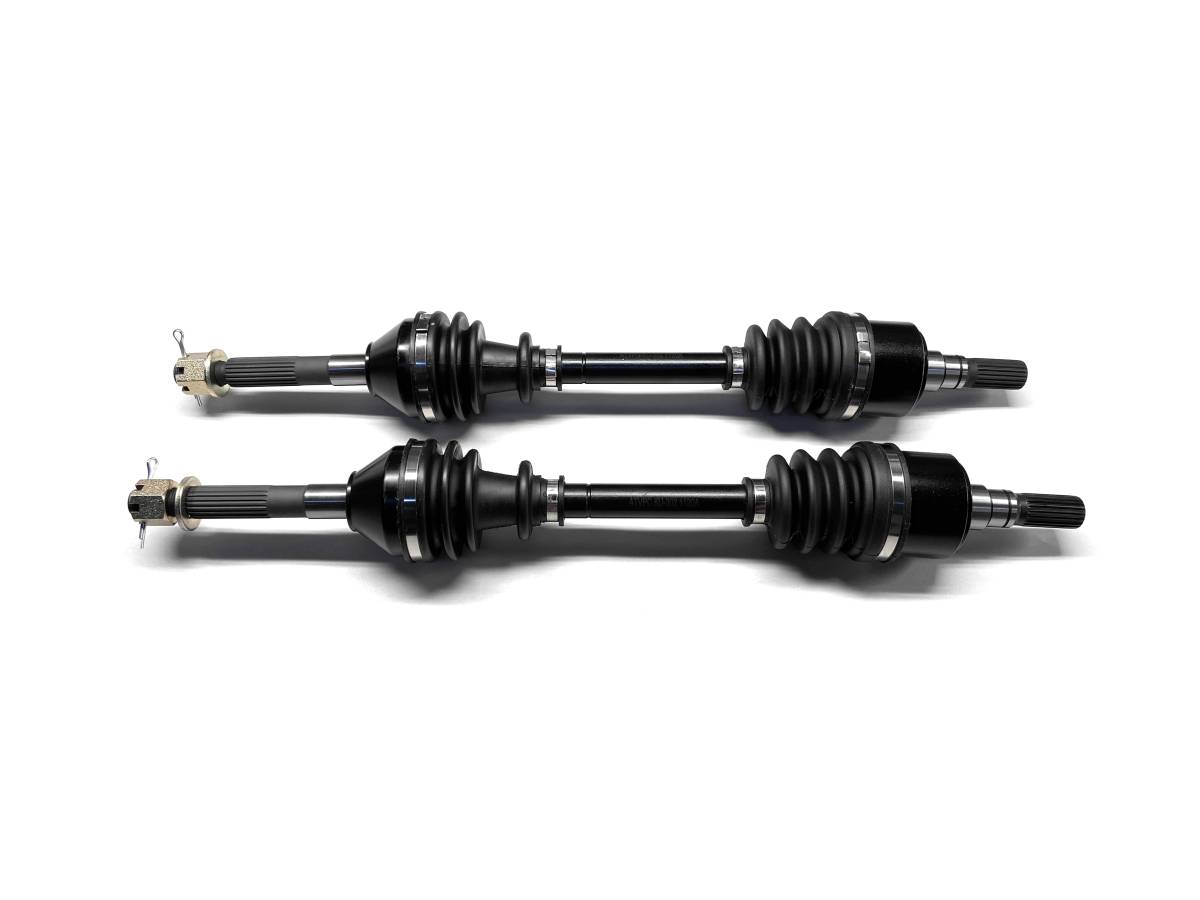

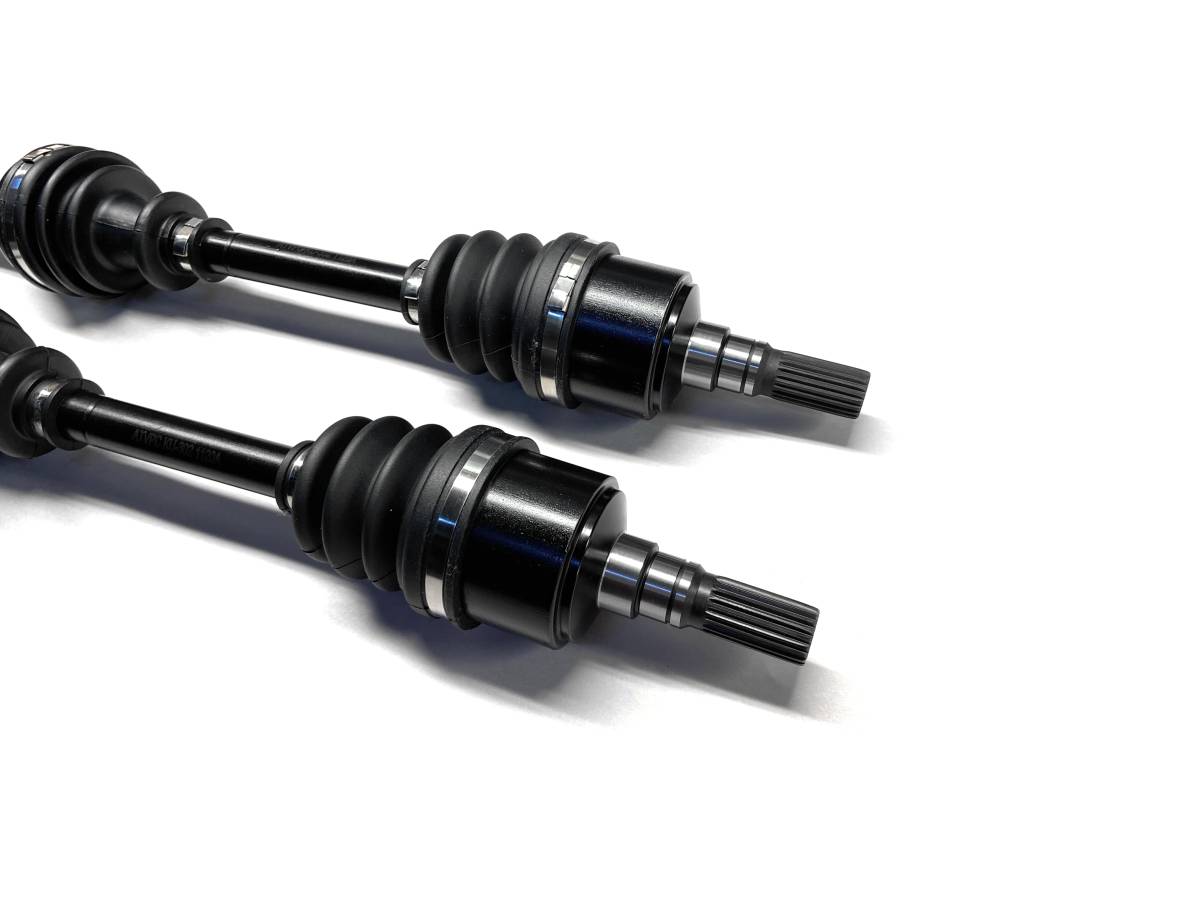

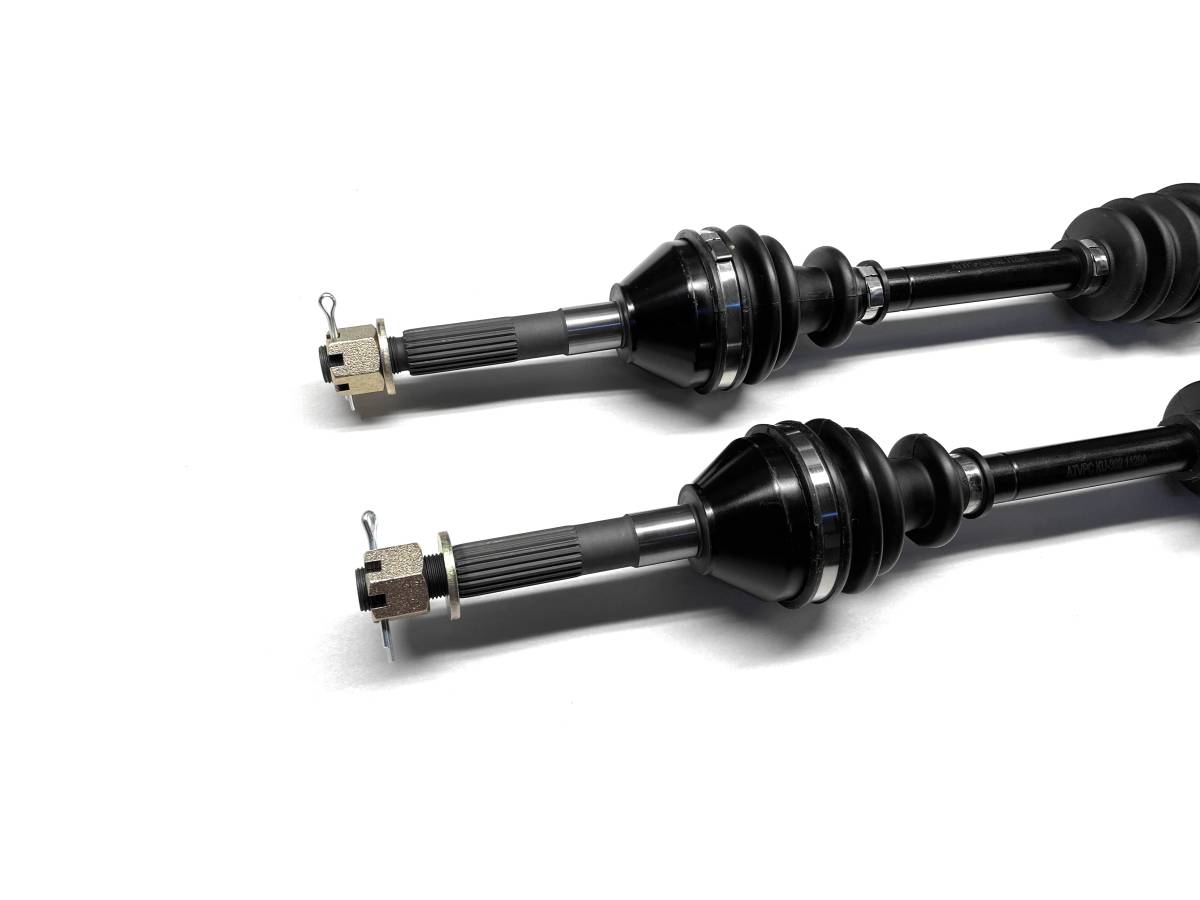

  • Fronts feature 4140 Chromoly bars for a higher tensile strenth and more durability.

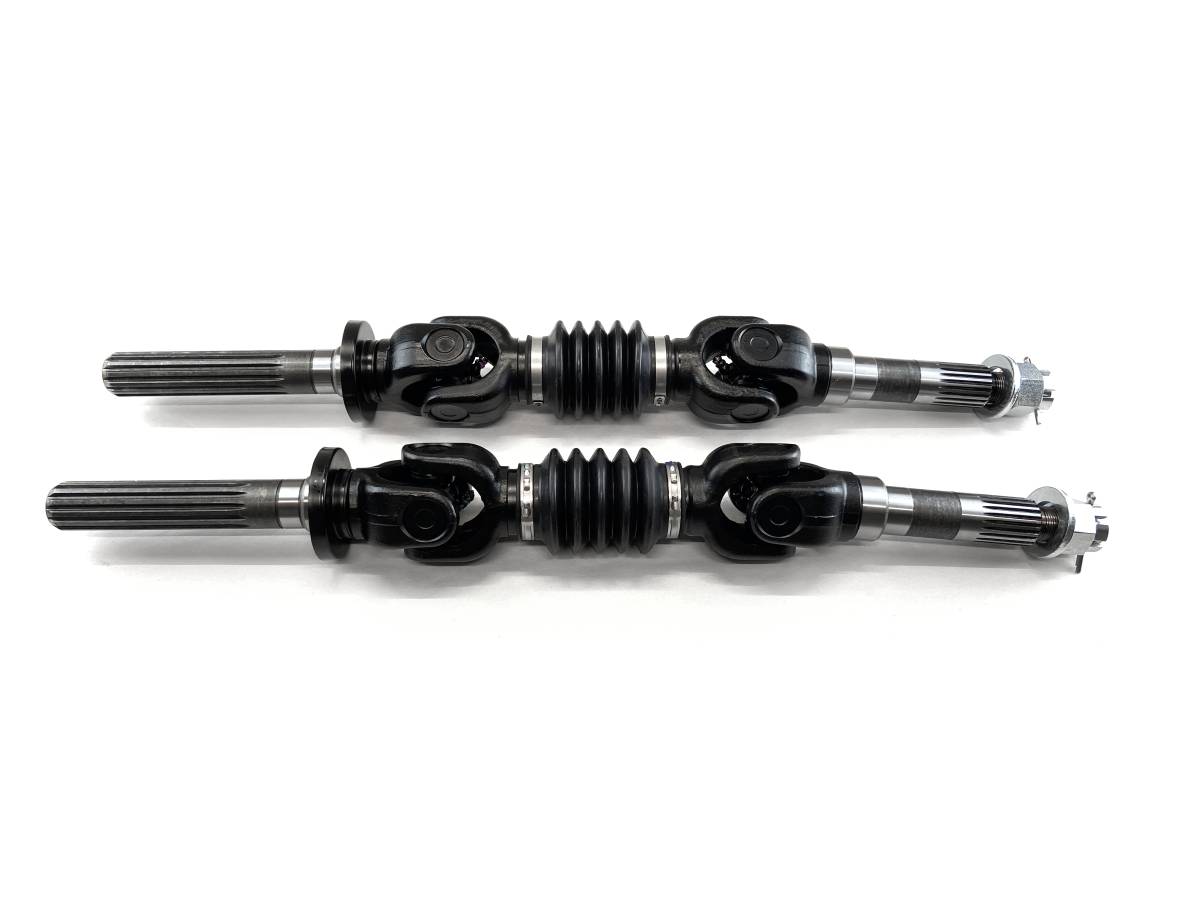

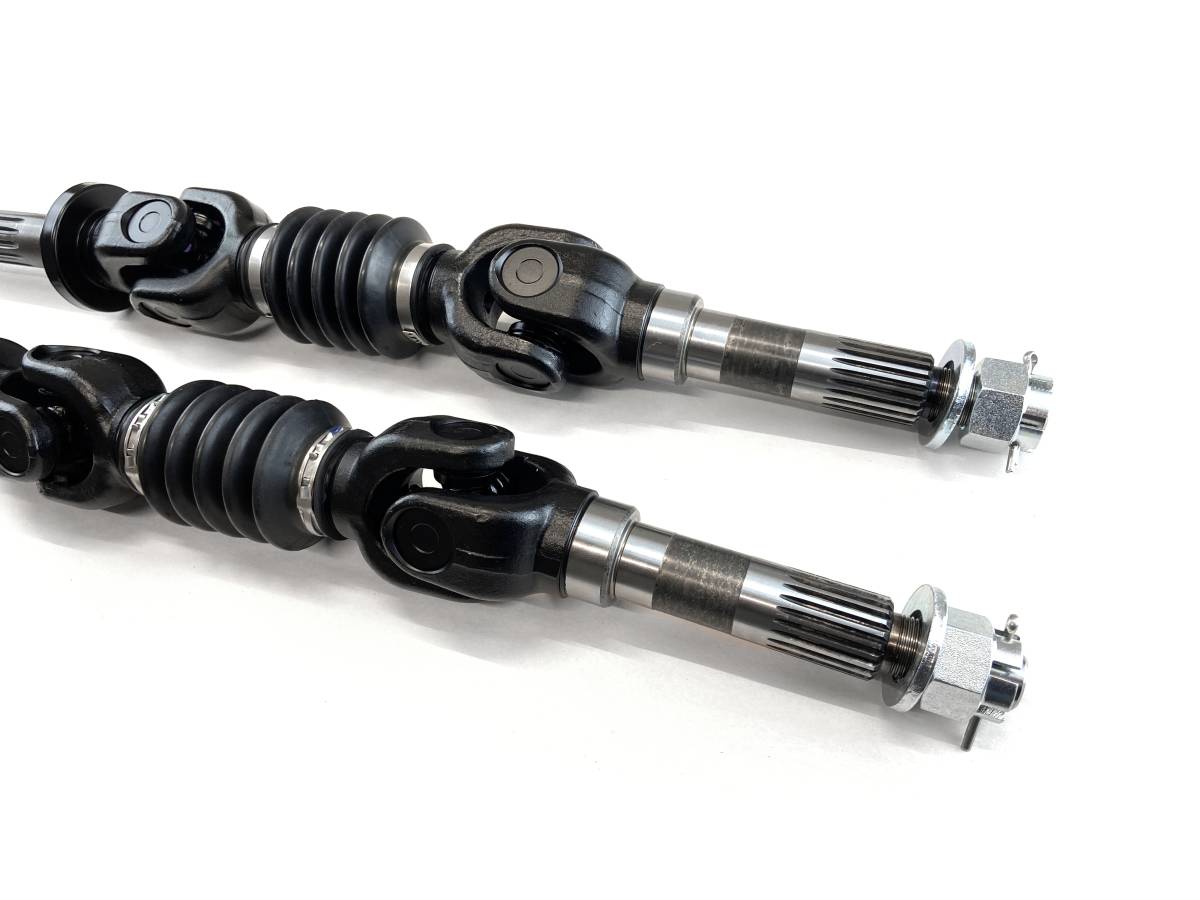

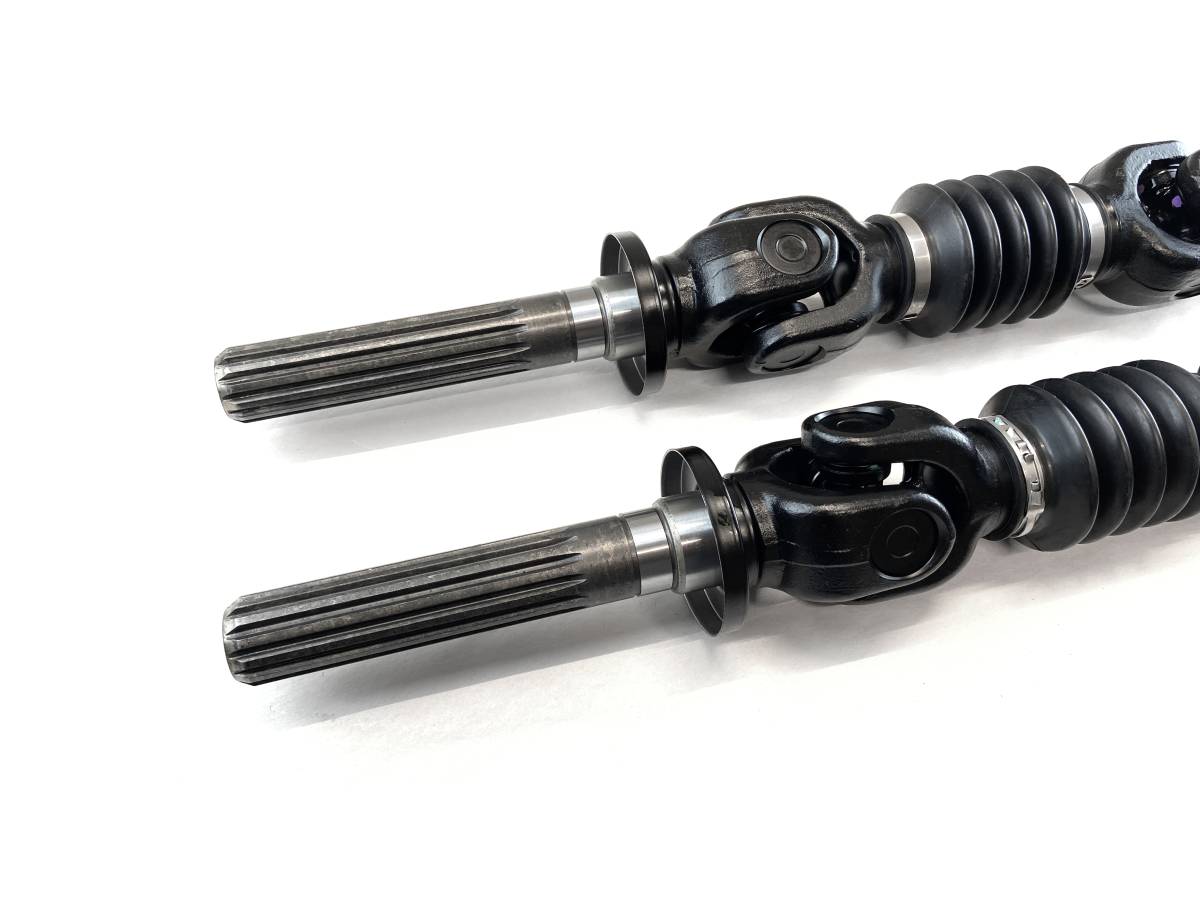

  • Rears feature 5140 Chromium Alloy for superior wear resistance
  • Engineered as a direct replacement, fully-assembled, and ready to install
  • Moly grease to provide consistent joint lubrication
  • Fitted with Neoprene CV boots for added wear and puncture resistance
  • Compressed overall axle length: Fronts - 591.5 mm, Rears - 619.5 mm
  • Inboard CV joint spline count: Fronts - 21, Rears - 13
  • Outboard CV joint spline count: Fronts - 21, Rears - 22
  • Replaces OEM # (fronts) K7581-15310, (rears) K7711-12330, K7711-12334
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $489.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2010KubotaRTV900General Purposelate models
2010KubotaRTV900Utilitylate models
2010KubotaRTV900Worksitelate models
2009KubotaRTV900General Purposelate models
2009KubotaRTV900Utilitylate models
2009KubotaRTV900Worksitelate models
2013KubotaRTV1100--late models
2012KubotaRTV1100--late models
2011KubotaRTV1100--late models
2010KubotaRTV1100--late models
2009KubotaRTV1100--late models
2015KubotaRTV1140CPXlate models
2015KubotaRTV1140CPX Orangelate models
2015KubotaRTV1140CPX Realtree Camouflagelate models
2014KubotaRTV1140CPXlate models
2013KubotaRTV1140CPXlate models
2012KubotaRTV1140CPXlate models
2011KubotaRTV1140CPXlate models
2010KubotaRTV1140CPXlate models
2009KubotaRTV1140--late models

Product Notes

  • Fits the following Kubota UTV models: 2009-2011 RTV 900 (late models), 2009-2015 RTV 1100 (late models), 2009-2015 RTV 1140 (late models). Please note these will not fit any 'X' type RTV X900, X1100, or X1140 platforms.
  • Fronts feature 4140 Chromoly for a higher tensile strenth and more durability. Rears feature 5140 Chromium Alloy for superior wear resistance. Ships as a complete set, fully assembled and ready to install.
  • Fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. High-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # (fronts) K7581-15310, (rears) K7711-12330, K7711-12334. Overall axle length: 619.5 mm, Inner spline count: Fronts - 21, Rears - 13, Outer Spline Count: Fronts - 21, Rears - 22.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • KU-302/KU-302/KU-603/KU-603
    • KU-302/KU-302/KU-603/KU-603
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 48.0 lbs.
    • W10.0000” x H9.0000” x L39.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
