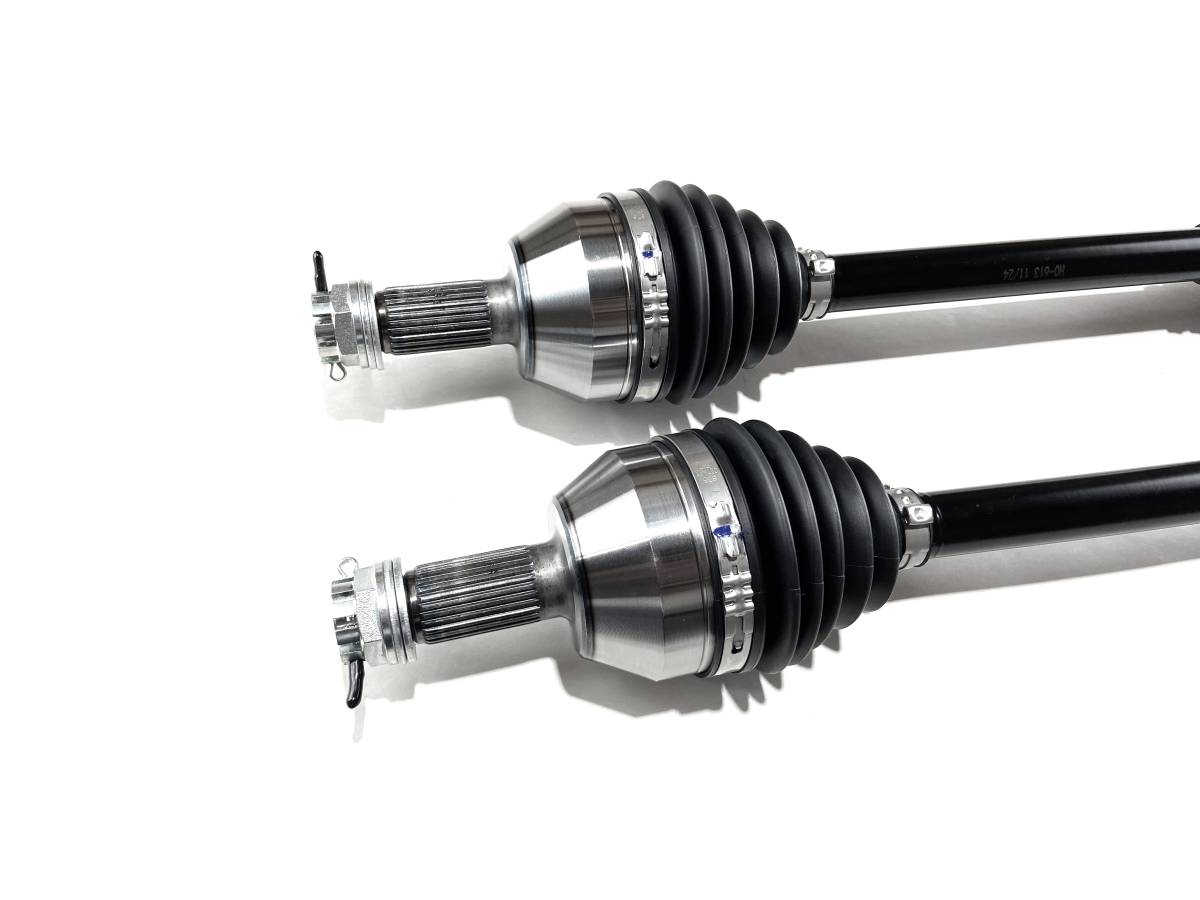

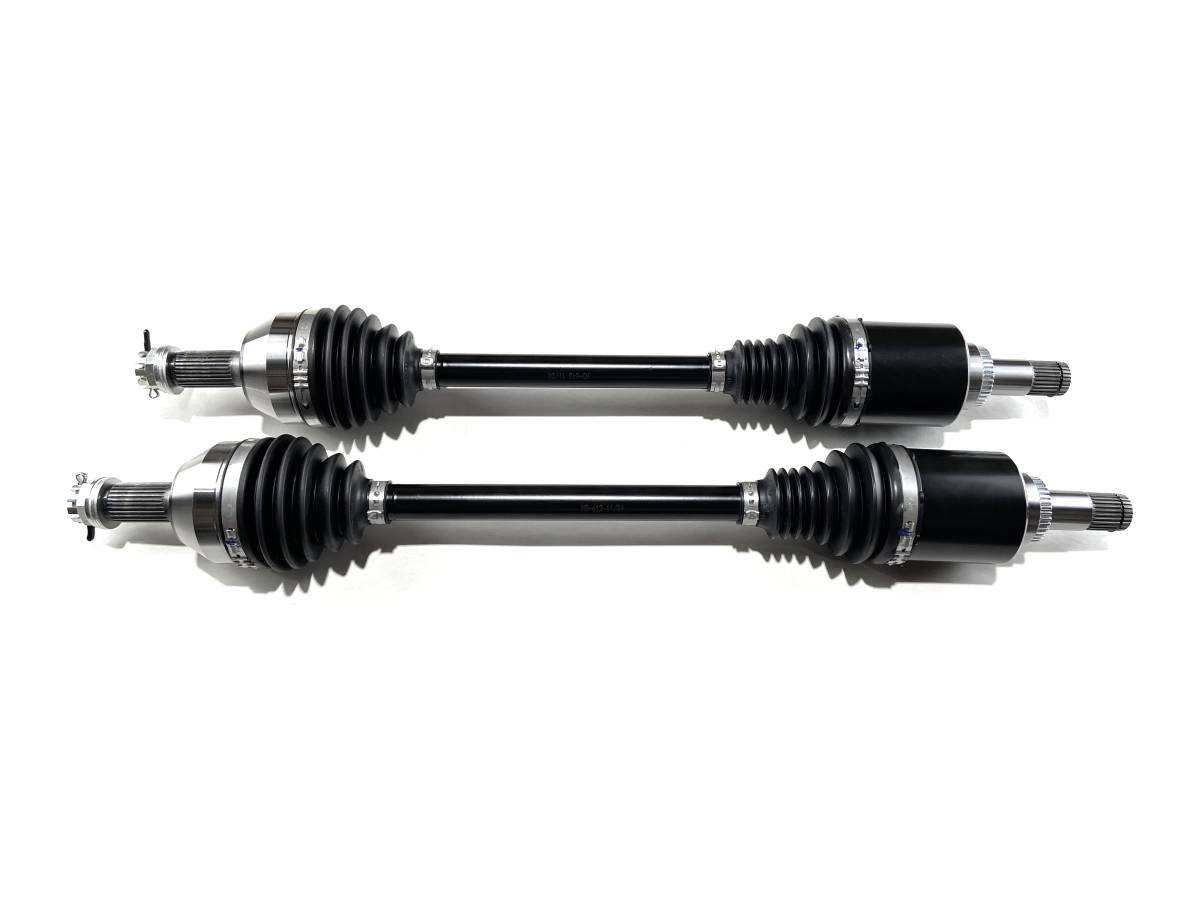

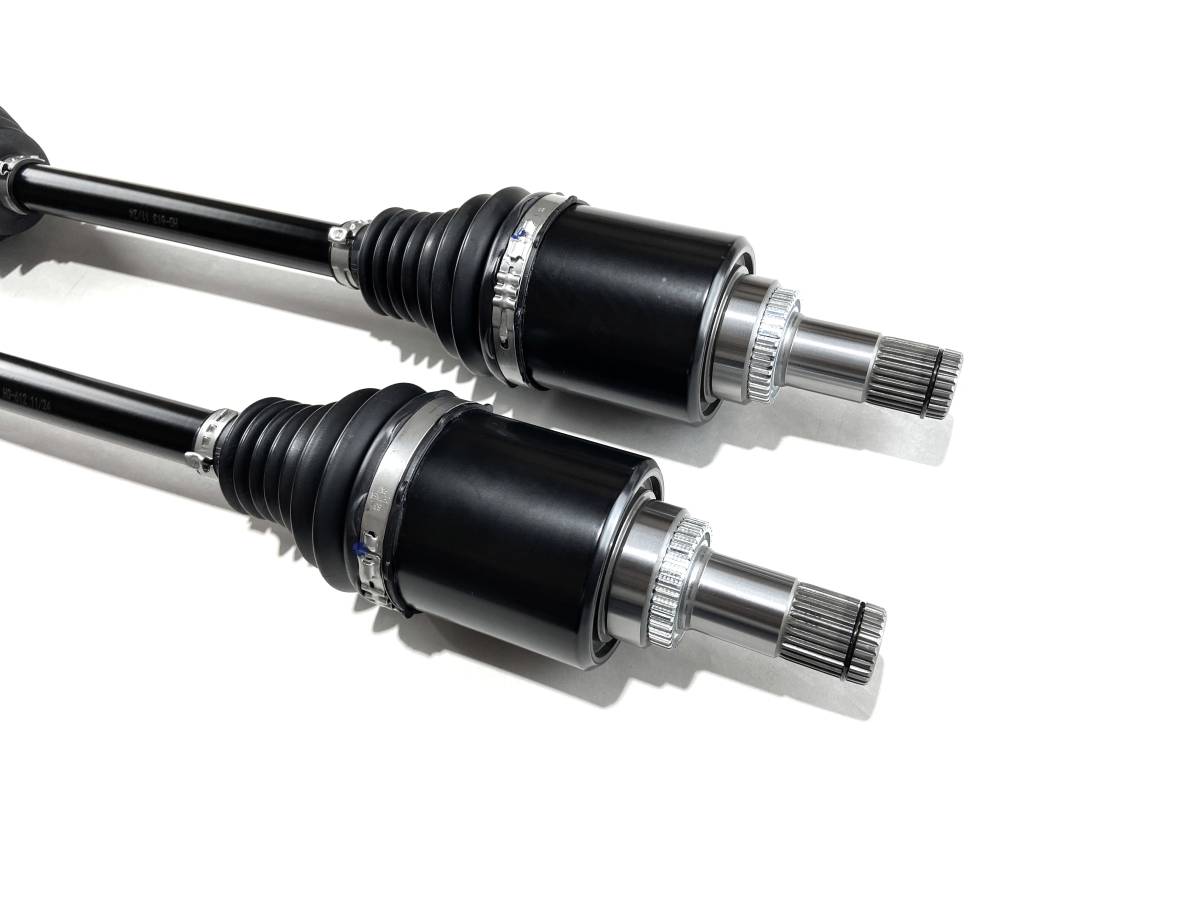

Rear CV Axle for Pair Honda Limited Edition Pioneer 1000 & 1000-5, 2017-2021

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
HO-612/HO-613
This is a pair of new CV axles for a Honda UTV.

They fit rear, left and right on the following 'LE' models:

2017-2021 ... 'Limited Edition' Pioneer 1000 (SXS1000M3L)

2017-2021 ... 'Limited Edition' Pioneer 1000-5 (SXS1000M5L)

*made as an OE replacement, and not intended for lifted/ modified vehicles

*please note these are for 'Limited Edition' models and will not fit Deluxe or Premium editions

Product features:

  • Stronger than OEM, 4340 chromoly steel bars
  • Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • High-performance moly grease for protection against extreme temperatures and to keep vital components lubricated
  • Compressed overall axle length: Left - 718 mm, Right - 676 mm
  • Inboard CV joint spline count: 28 (both)
  • Outboard CV joint spline count: 27/38 (both)
  • Replaces OEM # (left) 42350-HL4-F41, 42220-HL4-F41, (right) 42250-HL4-F41, 42220-HL4-F41
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $199.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021HondaPioneer 1000SXS1000M3 Limited Edition
2020HondaPioneer 1000SXS1000M3only for 'Limited Edition' LE models
2019HondaPioneer 1000SXS1000M3 LE
2018HondaPioneer 1000SXS1000M3 LE
2017HondaPioneer 1000SXS1000M3 LE
2021HondaPioneer 1000-5SXS1000M5 LE
2020HondaPioneer 1000-5SXS1000M5 LE
2019HondaPioneer 1000-5SXS1000M5 LE
2018HondaPioneer 1000-5SXS1000M5 LE
2017HondaPioneer 1000-5SXS1000M5 LE

Product Notes

  • Fits rear, left and right on the following Honda UTV models: 2017-2021 'Limited Edition' Pioneer 1000 (SXS1000M3L) & 1000-5 (SXS1000M5L). Set includes 2 axles (as pictured). Please note these are for 'Limited Edition' models and will not fit Deluxe or Premium editions.
  • Features stronger than OEM, 4340 Chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (left) 42350-HL4-F41, 42220-HL4-F41, (right) 42250-HL4-F41, 42220-HL4-F41. Compressed overall axle length: Left - 718 mm, Right - 676 mm. Inboard spline count: 28 (both), Outboard spline count: 27/38 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • HO-612/HO-613
    • HO-612/HO-613
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 34.0 lbs.
    • W10.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
