Monster Axles Front Pair with Brgs for Honda Pioneer 1000 2016-2021, XP Series

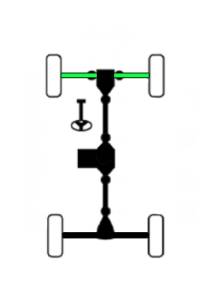

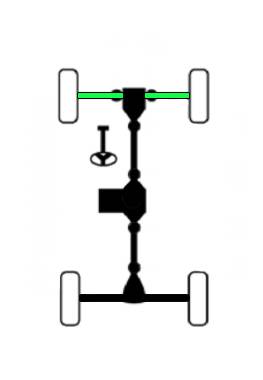

Location on vehicle: Front,Left,Right

HO-125XP/HO-125XP/WB-1728/WB-1728

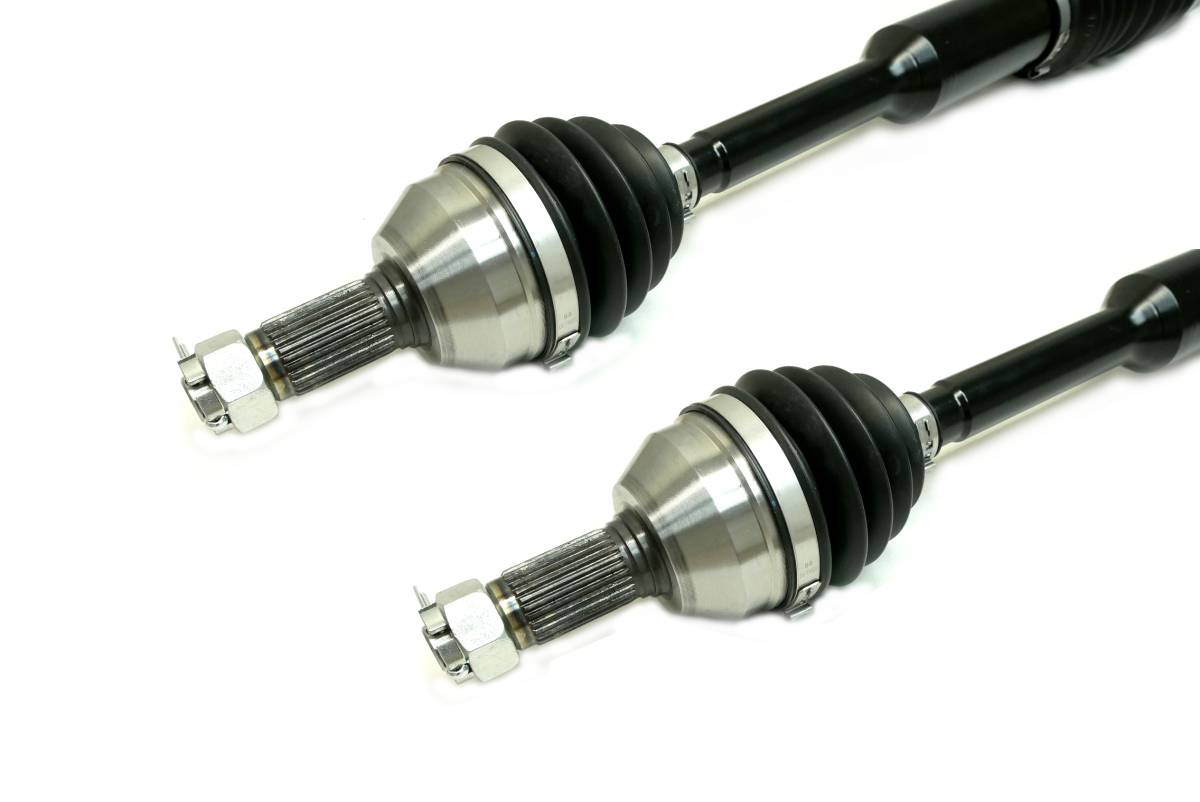

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

Fits FRONT, LEFT & RIGHT on the following Honda UTVs (excluding Limited Edition models): 2016-2021 Pioneer 1000, 2016-2021 Pioneer 1000-5.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

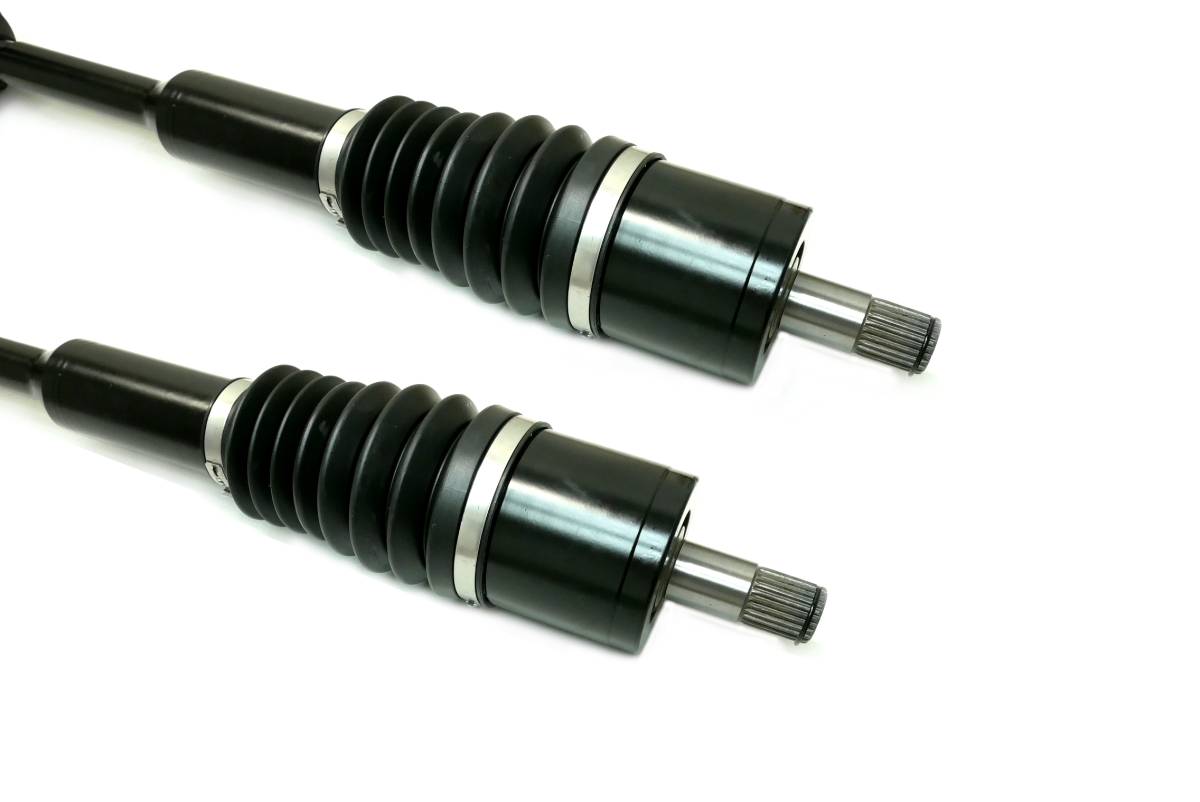

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $359.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021HondaPioneer 1000SXS1000M3
2021HondaPioneer 1000SXS1000M3 Deluxe
2020HondaPioneer 1000SXS1000M3
2020HondaPioneer 1000SXS1000M3 Deluxe
2019HondaPioneer 1000SXS1000M3
2019HondaPioneer 1000SXS1000M3 EPS
2018HondaPioneer 1000SXS10M3P EPS
2018HondaPioneer 1000SXS1000M3
2018HondaPioneer 1000SXS1000M3 EPS
2017HondaPioneer 1000SXS1000M3
2017HondaPioneer 1000SXS1000M3 EPS
2016HondaPioneer 1000SXS1000M3
2016HondaPioneer 1000SXS1000M3 EPS
2021HondaPioneer 1000-5SXS1000M5
2021HondaPioneer 1000-5SXS1000M5 Deluxe
2020HondaPioneer 1000-5SXS1000M5
2020HondaPioneer 1000-5SXS1000M5 Deluxe
2019HondaPioneer 1000-5SXS1000M5
2019HondaPioneer 1000-5SXS1000M5 Deluxe
2018HondaPioneer 1000-5SXS10M5D Deluxe
2018HondaPioneer 1000-5SXS1000M5
2018HondaPioneer 1000-5SXS1000M5 Deluxe
2017HondaPioneer 1000-5SXS1000M5
2017HondaPioneer 1000-5SXS1000M5 Deluxe
2016HondaPioneer 1000-5SXS1000M5
2016HondaPioneer 1000-5SXS1000M5 Deluxe

Product Notes

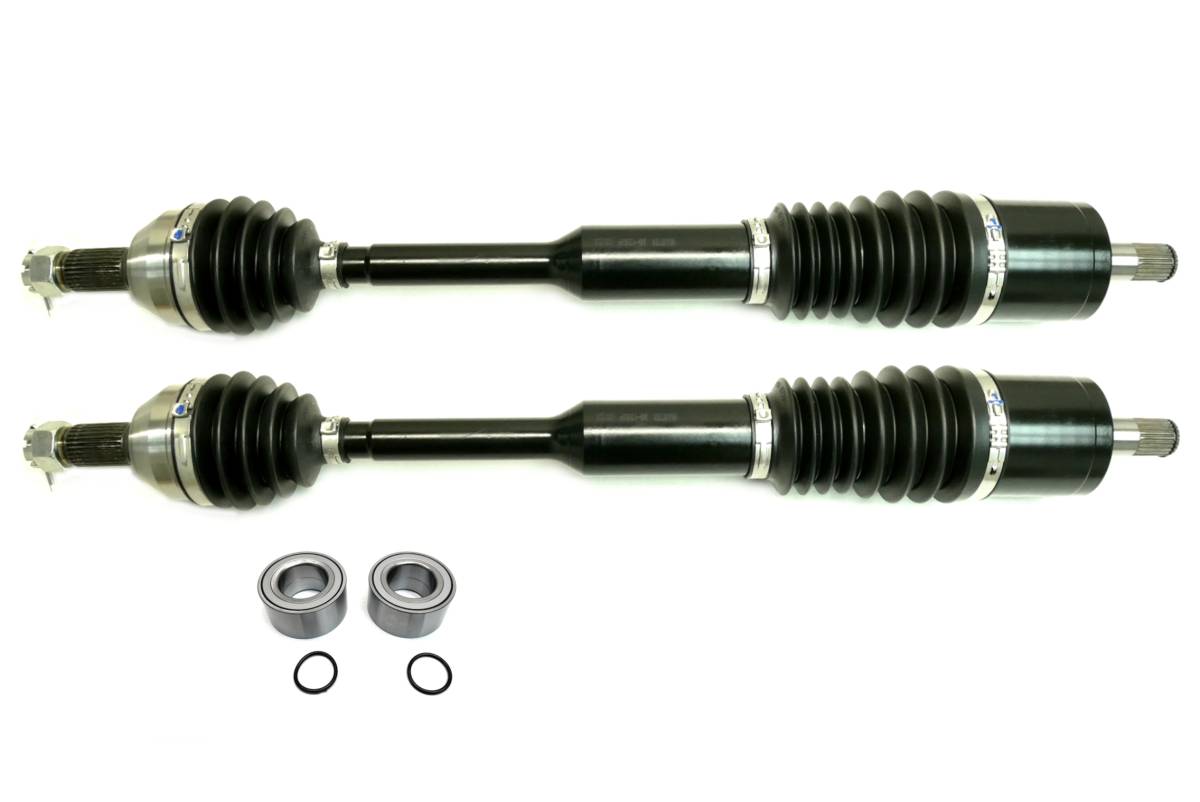

  • Fits FRONT, LEFT & RIGHT on the following Honda UTVs (excluding LE models): 2016-2021 Pioneer 1000, 2016-2021 Pioneer 1000-5. This will fit Base, Deluxe, & Premium models, just not any 'Limited Edition' models. Set includes 2 axles & 2 wheel bearings (as pictured).
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (axles) 44350-HL4-A01, (bearings) 91054-HL3-A41. Compressed axle length: 711 mm. Inboard spline count: 25, Outboard spline count: 28. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

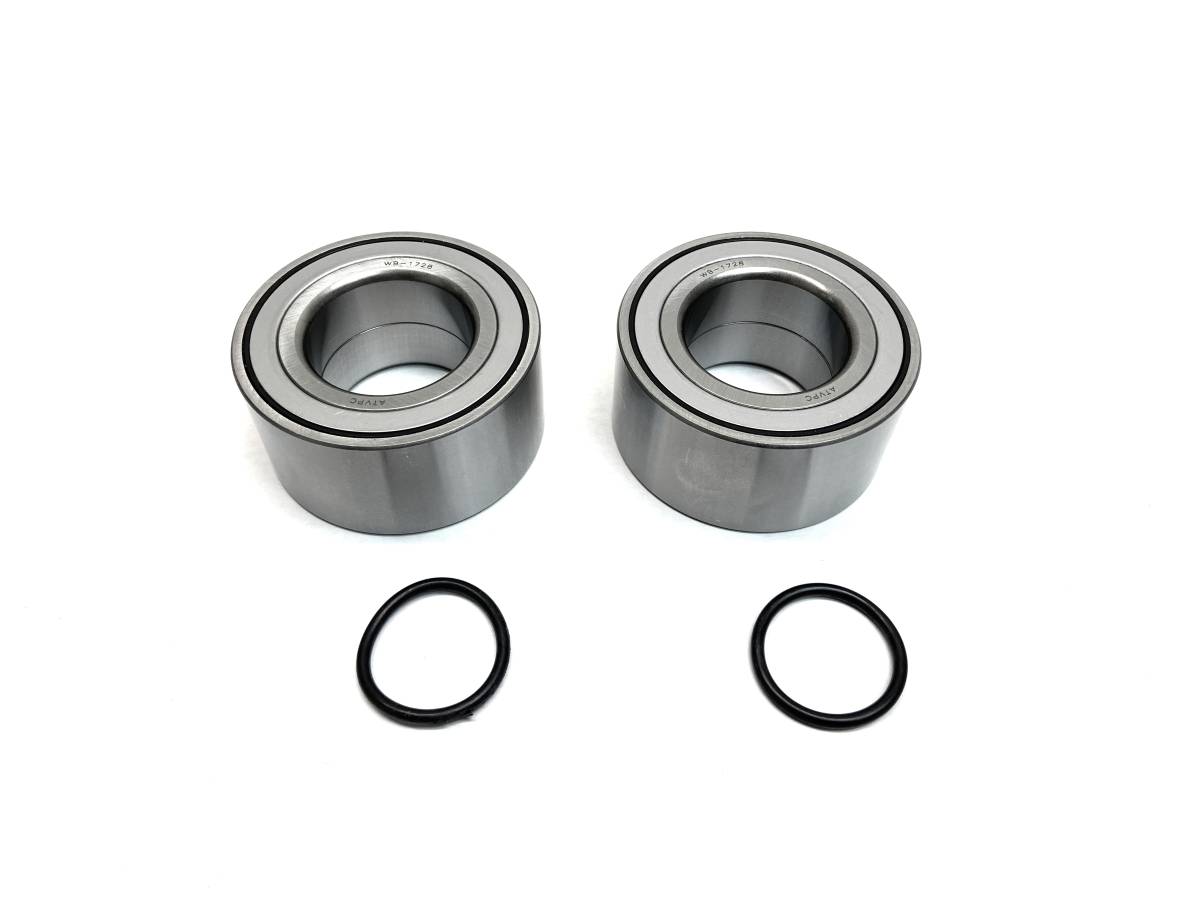

  • 2 axles, 2 wheel bearings
  • Product Videos

    Warranty

    Comes with a 2 year limited warranty (excluding torn boots)

    Details

    • HO-125XP/HO-125XP/WB-1728/WB-1728
    • HO-125XP/HO-125XP/WB-1728/WB-1728
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 40.0 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
