Full CV Axle Set for Polaris 55" Sportsman 1000 & Scrambler 1000 2020-2023

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
PO-433/PO-433/PO-642/PO-642

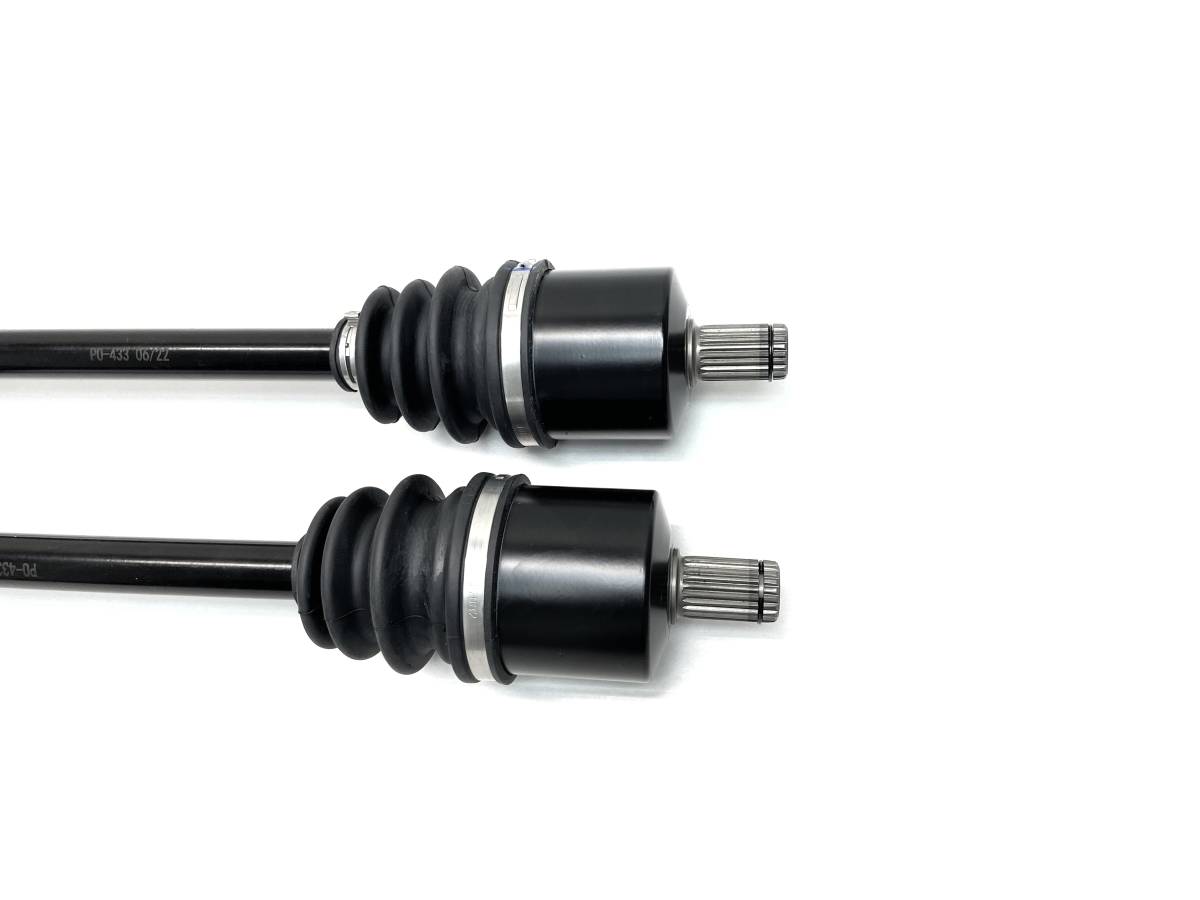

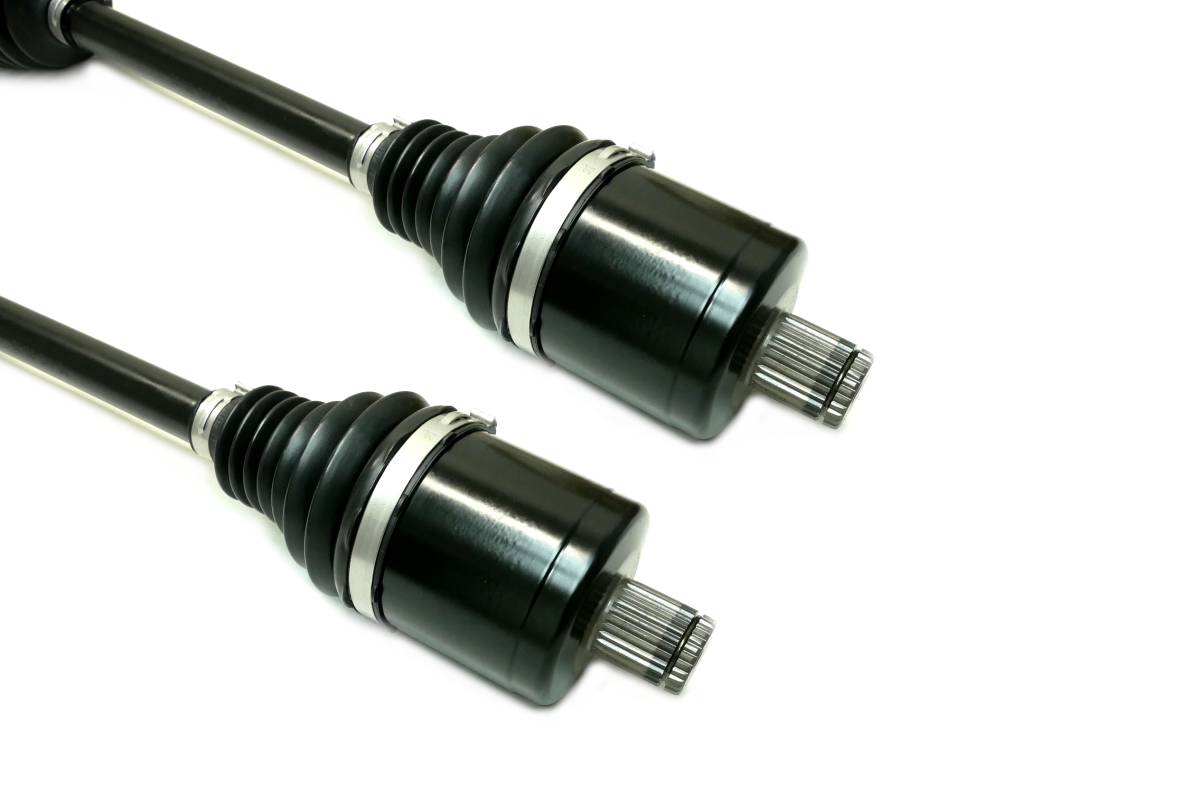

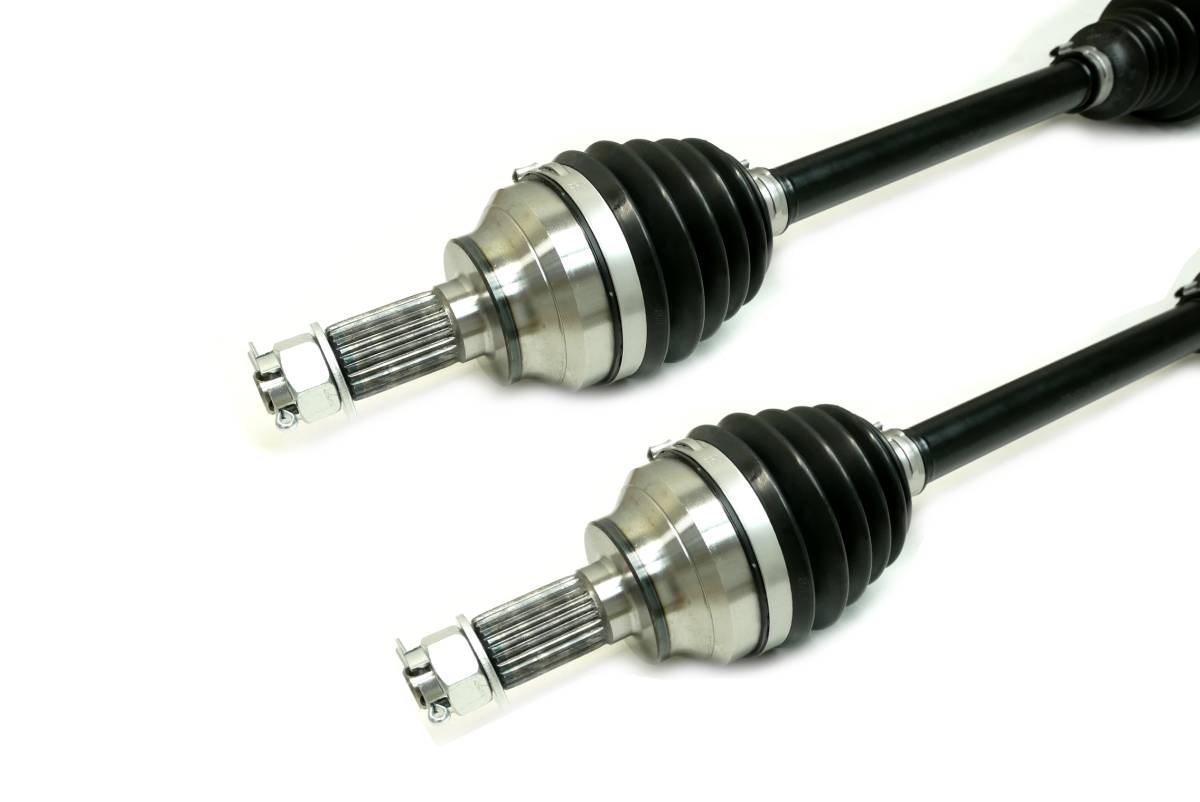

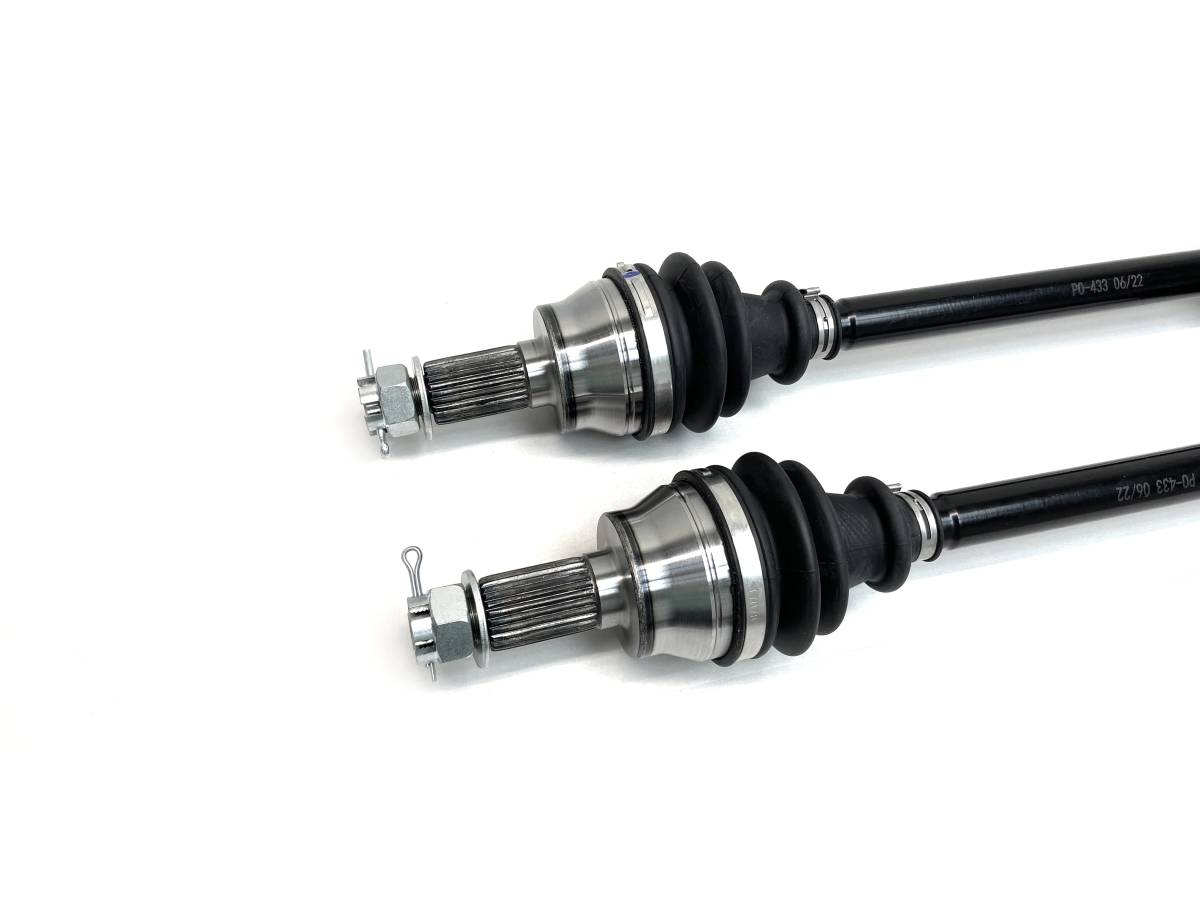

This is a full set of new CV axles for a Polaris ATV.

They will fit the following 55" models:

2020-2023 ... Sportsman XP 1000 55"

2020-2023 ... Scrambler XP 1000 55" (excluding EU models)

made as an OE replacement, and not intended for lifted/ modified vehicles

*please note these are only for 55" models and will not fit any 48" variants

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Fronts - 22, Rears - 28
  • Outboard CV joint spline count: Fronts - 26 , Rears - 26
  • Compressed overall axle length: Fronts - 624 mm, Rears - 610 mm
  • Replaces OEM # Fronts - 1334202, Rears - 1334203
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $324.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2024PolarisScrambler XP 1000S
2023PolarisScrambler XP 1000S
2022PolarisScrambler XP 1000S
2022PolarisScrambler XP 1000S Limited Edition
2021PolarisScrambler XP 1000S
2020PolarisScrambler XP 1000S
2024PolarisSportsman XP 1000S55 inch models
2023PolarisSportsman XP 1000S55 inch models
2022PolarisSportsman XP 1000S55 inch models
2021PolarisSportsman XP 1000S55 inch models
2020PolarisSportsman XP 1000S55 inch models

Product Notes

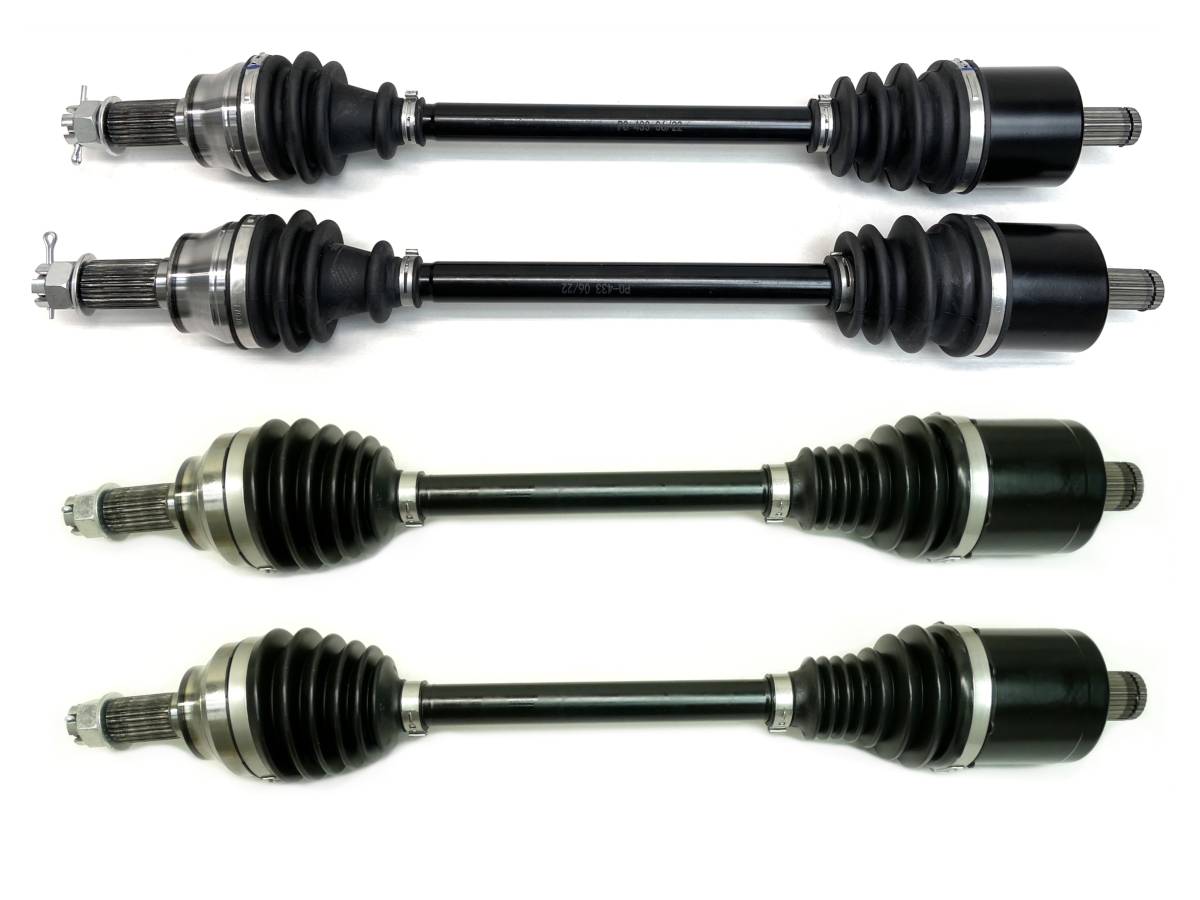

  • Fits the following Polaris 55" ATV models: 2020-2022 Sportsman XP 1000 55", 2020-2023 Scrambler XP 1000 55". Please note these will not fit any 48" models. Set contains 4 axles (as pictured).
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # Fronts - 1334202, Rears - 1334203. Inboard spline count: Fronts - 22, Rears - 28, Outboard spline count: Fronts - 26 , Rears - 26, Compressed axle length: Fronts - 624 mm, Rears - 610 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-433/PO-433/PO-642/PO-642
    • PO-433/PO-433/PO-642/PO-642
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 55.5 lbs.
    • W12.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
