Front Axles & Bearings for Can-Am Maverick X3 Turbo XDS 64", 705402097 705402098

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-126/CA-226/WB-1751/WB-1751
This is a set of new cv axles with wheel bearings for a 64" Can-Am Maverick X3.

They fit FRONT, LEFT & RIGHT on the following models:

2017 ... X3 STD, XDS-DPS

2017 ... X3 MAX STD, MAX XDS-DPS

2018 ... X3 STD, 900 HO, Turbo R STD, XDS-DPS

2018 ... X3 MAX Turbo STD

2019 ... X3 Turbo, Turbo R STD

2019 ... X3 MAX Turbo R

2020 ... X3 Turbo STD, Turbo R STD

2020 ... X3 MAX Turbo STD, MAX Turbo R STD

2021 ... X3 Turbo - DS, Turbo R - DS

2021 ... X3 MAX Turbo, MAX Turbo R - DS

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Replaces OEM # (left) 705401686, 705402097, (right) 705401687, 705402098, (bearings) 293350129, 293350151
  • Compressed overall axle length: Left - 778 mm, Right - 735 mm
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 29 (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021Can-AmMaverick X34x4 DS Turbo DPS
2020Can-AmMaverick X34x4 Turbo DPS
2019Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X34x4 Turbo DPS
2017Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X3 900 HO4x4 DPS
2021Can-AmMaverick X3 Max4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max4x4 Turbo DPS
2018Can-AmMaverick X3 Max4x4 Turbo DPS
2021Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2019Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2021Can-AmMaverick X3 R4x4 DS Turbo DPS
2020Can-AmMaverick X3 R4x4 DS Turbo DPS
2019Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 XDS Turbo DPS
2017Can-AmMaverick X3 R4x4 Turbo DPS
2017Can-AmMaverick X3 R4x4 XDS Turbo DPS

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am Maverick 64" models: 2017 X3 STD, XDS-DPS, X3 MAX STD, MAX XDS-DPS, 2018 X3 STD, 900 HO, Turbo R STD, XDS-DPS, MAX Turbo STD.
  • 2019 X3 Turbo, Turbo R STD, MAX Turbo R, 2020 X3 Turbo STD, Turbo R STD, MAX Turbo STD, MAX Turbo R STD, 2021 X3 Turbo - DS, Turbo R - DS, MAX Turbo, MAX Turbo R - DS. Please note these will not fit 72" models.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance. High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces OEM # (left) 705401686, 705402097, (right) 705401687, 705402098, (bearings) 293350129, 293350151. Inboard splines: 21 (both), Outboard splines: 29 (both), Compressed axle length: Left - 778 mm, Right - 735 mm
  • Set includes 2 axles & 2 wheel bearings. Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

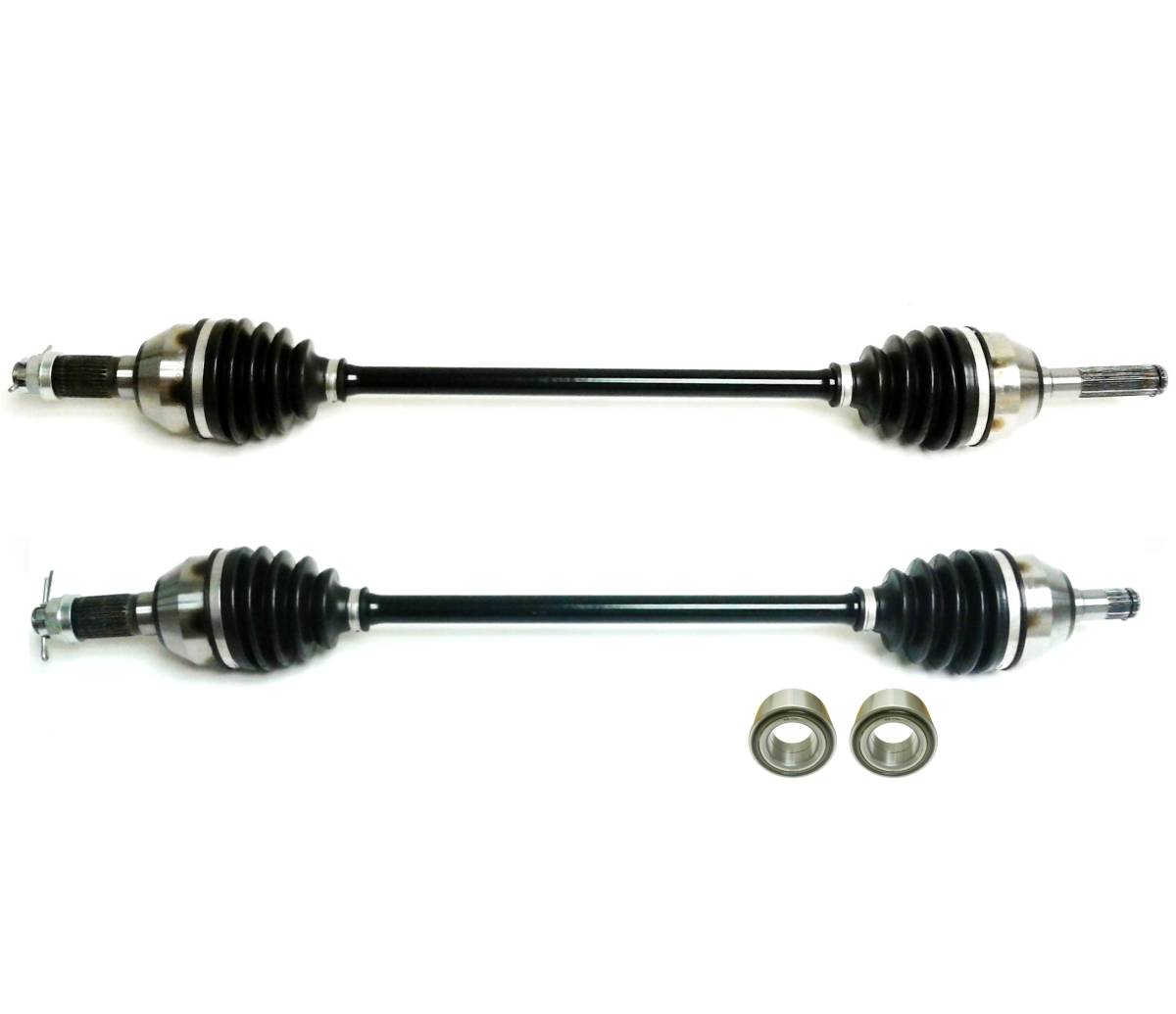

  • 2 axles, 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-126/CA-226/WB-1751/WB-1751
    • CA-126/CA-226/WB-1751/WB-1751
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 32.0 lbs.
    • W5.0000” x H10.0000” x L35.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
