Rear CV Axle Pair with Wheel Bearings for Honda Pioneer 1000 & 1000-5 2016-2021

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
HO-328/HO-329/WB-1728/WB-1728
This is a pair of new CV axles for a Honda UTV.

They fit REAR, LEFT & RIGHT on the following models:

2016-2021 ... Pioneer 1000 (excluding LE)

2016-2021 ... Pioneer 1000-5 (excluding LE)

*please note these will not fit any Limited Edition models

*axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 27 (both)
  • Outboard CV joint spline count: 28 (both)
  • Compressed overall axle length: Left - 720 mm, Right - 768 mm
  • Replaces OEM # (left) 42350-HL4-A01, 42320-HL4-A01, 42350-HL4-F01, (right) 42250-HL4-A01, 42250-HL4-F01, 42220-HL4-A01
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $189.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021HondaPioneer 1000SXS1000M3
2021HondaPioneer 1000SXS1000M3 Deluxe
2020HondaPioneer 1000SXS1000M3
2020HondaPioneer 1000SXS1000M3 Deluxe
2019HondaPioneer 1000SXS1000M3
2019HondaPioneer 1000SXS1000M3 EPS
2018HondaPioneer 1000SXS10M3P EPS
2018HondaPioneer 1000SXS1000M3
2018HondaPioneer 1000SXS1000M3 EPS
2017HondaPioneer 1000SXS1000M3
2017HondaPioneer 1000SXS1000M3 EPS
2016HondaPioneer 1000SXS1000M3
2016HondaPioneer 1000SXS1000M3 EPS
2021HondaPioneer 1000-5SXS1000M5
2021HondaPioneer 1000-5SXS1000M5 Deluxe
2020HondaPioneer 1000-5SXS1000M5
2020HondaPioneer 1000-5SXS1000M5 Deluxe
2019HondaPioneer 1000-5SXS1000M5
2019HondaPioneer 1000-5SXS1000M5 Deluxe
2018HondaPioneer 1000-5SXS10M5D Deluxe
2018HondaPioneer 1000-5SXS1000M5
2018HondaPioneer 1000-5SXS1000M5 Deluxe
2017HondaPioneer 1000-5SXS1000M5
2017HondaPioneer 1000-5SXS1000M5 Deluxe
2016HondaPioneer 1000-5SXS1000M5
2016HondaPioneer 1000-5SXS1000M5 Deluxe

Product Notes

  • Fits rear, left & right on the following Honda UTV models (excluding LE): 2016-2021 Pioneer 1000, 2016-2021 Pioneer 1000-5. Will fit Base, Premium, & Deluxe, just not any LE editions.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 42350-HL4-F01, 42250-HL4-F01. Compressed axle length left: 720mm, right: 768mm. Inboard spline count: 27 (both), Outboard: 28 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

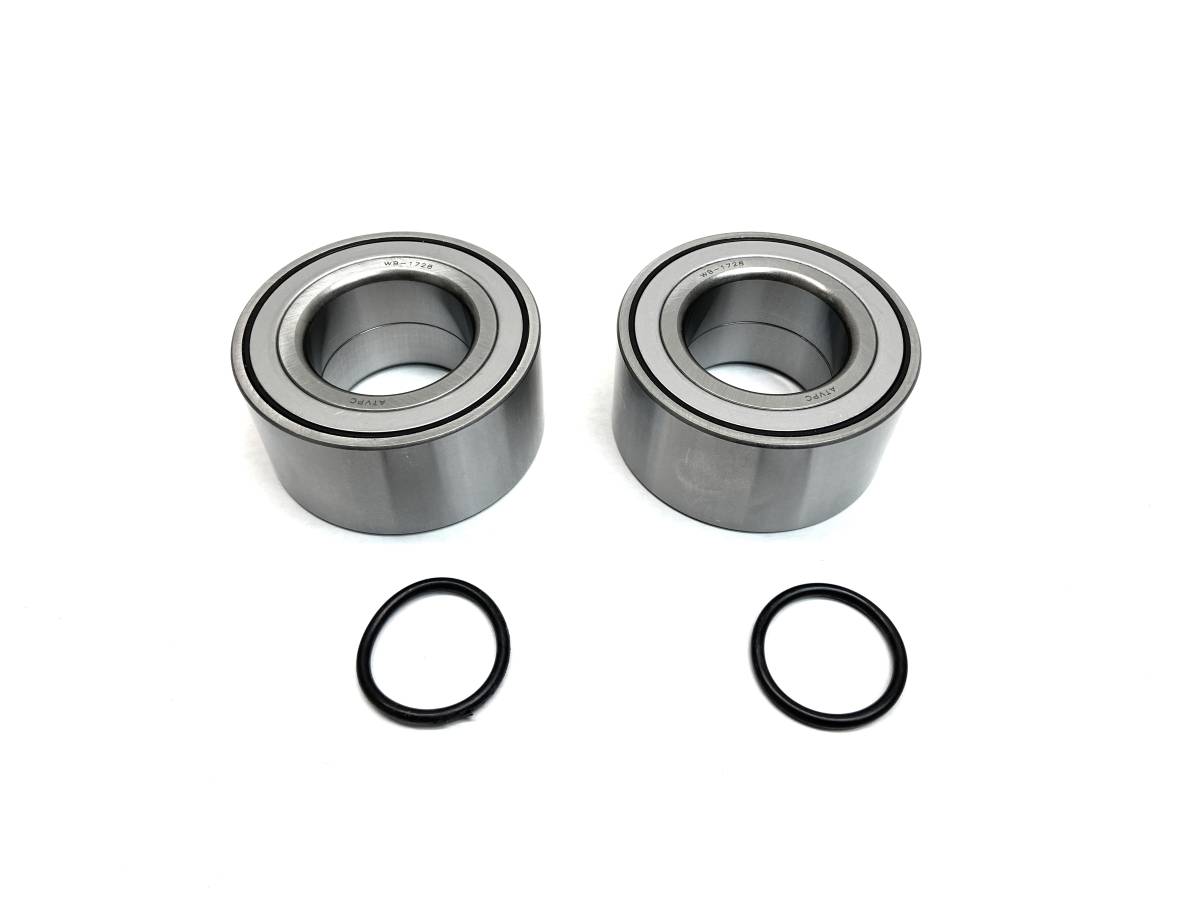

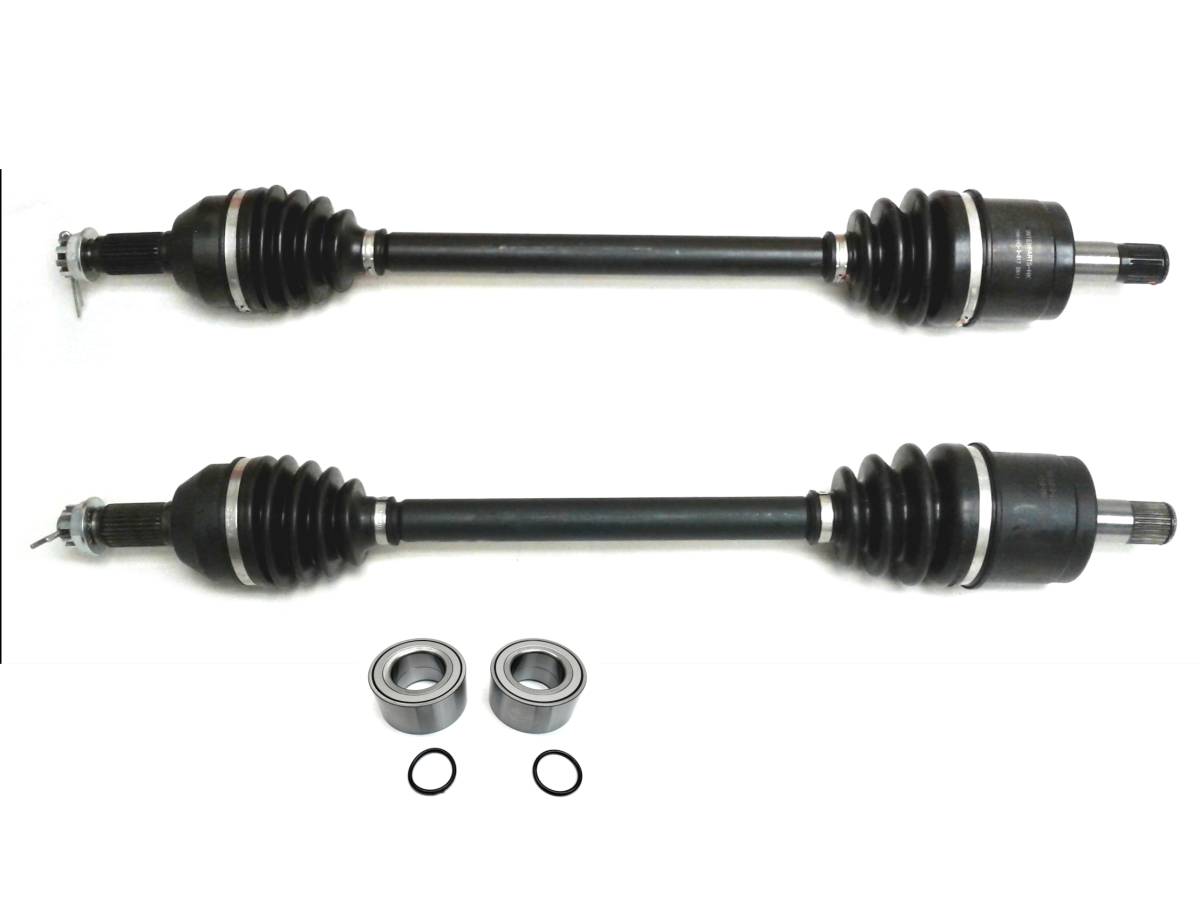

  • 2 axles, 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • HO-328/HO-329/WB-1728/WB-1728
    • HO-328/HO-329/WB-1728/WB-1728
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 20.0 lbs.
    • W10.0000” x H5.0000” x L27.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
