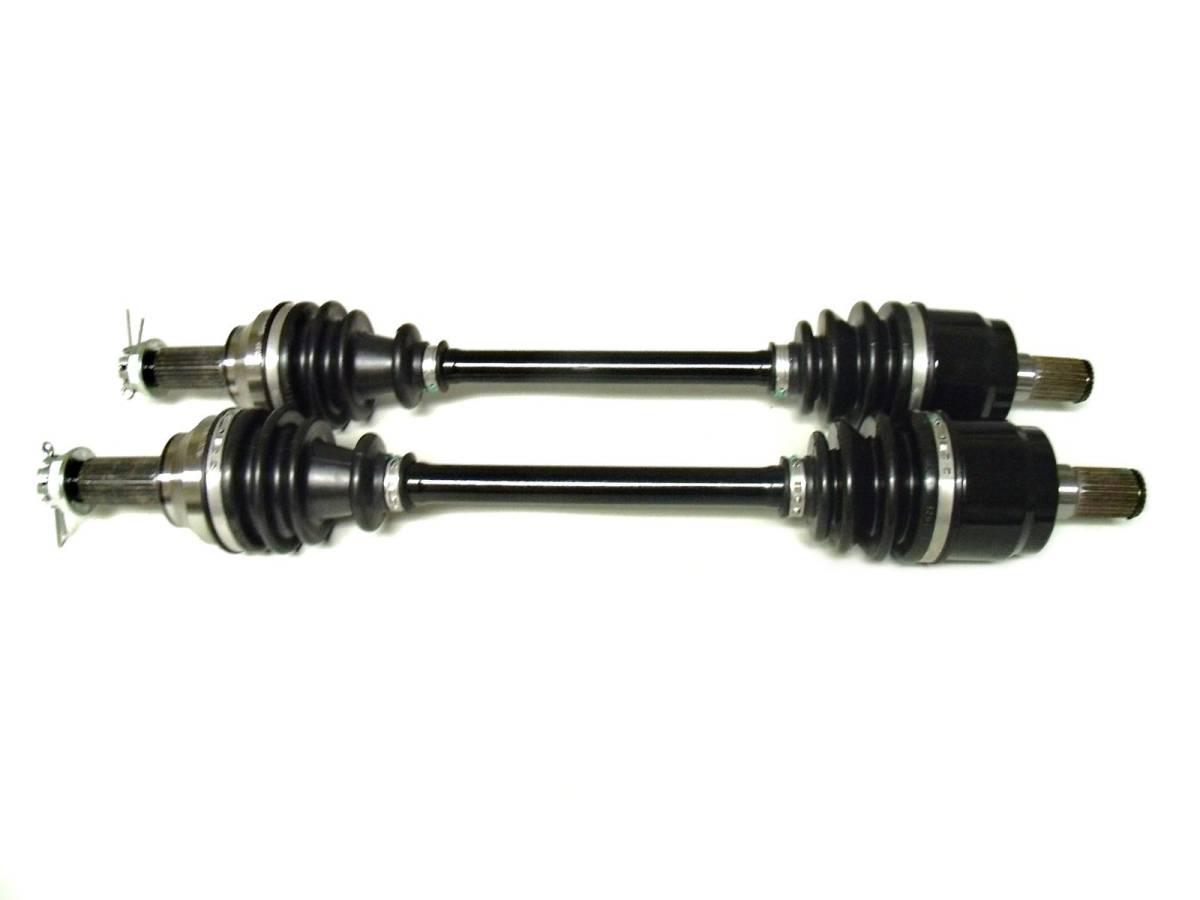

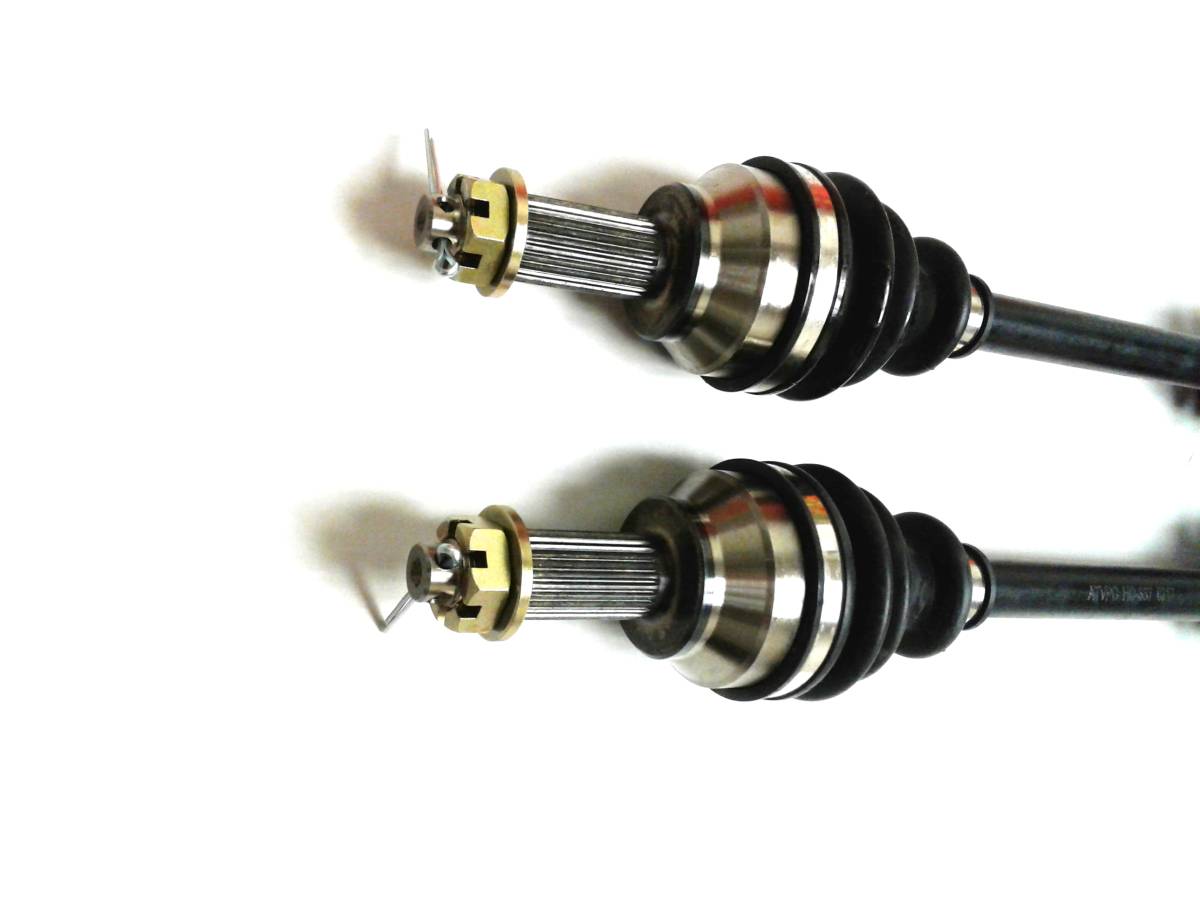

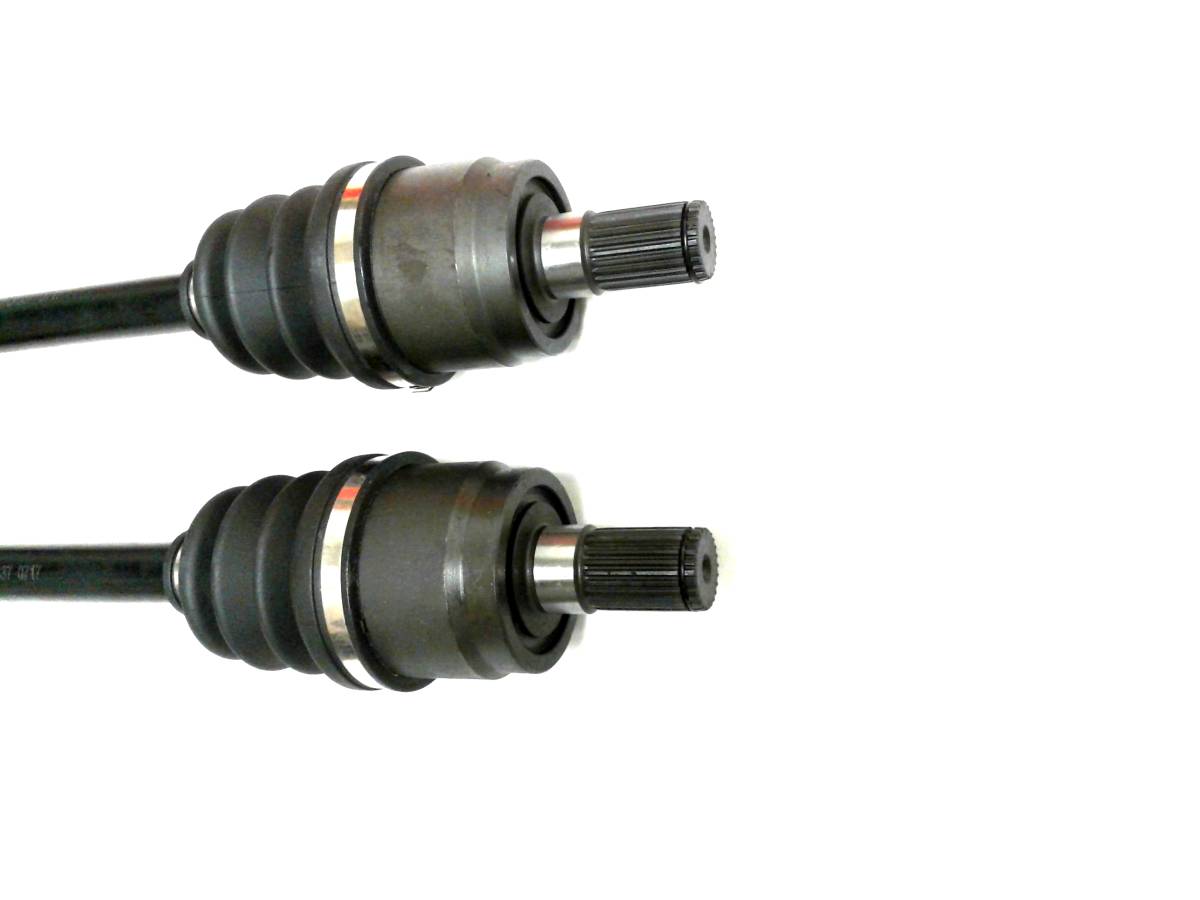

Rear CV Axle Pair with Wheel Bearings for Honda Pioneer 500 4x4 2015-2016

Location on vehicle: Rear,Left,Right

HO-337/HO-337/WB-1701/WB-1701
This is a set of new rear CV axles & wheel bearings for a Honda UTV.

They fit the following 4x4 models:

2015-2016 ... Pioneer 500

rear, left & right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 25 (both)
  • outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 562 mm (both)
  • Replaces Honda OEM # (axles) 42250-HL5-A01, 42350-HL5-A01, 42220-HL3-A01, (bearings) 91056-HL3-A01
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2016HondaPioneer 500SXS500M2
2015HondaPioneer 500SXS500M2

Product Notes

  • Fits rear, left and right on the following Honda UTV models: 2015-2016 Pioneer 500 4x4 -SXS500.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 42250-HL5-A01, 42350-HL5-A01, 42220-HL3-A01, (bearings) 91056-HL3-A01. Compressed length: 562 mm (both), Inboard spline count: 25 (both), Outboard spline count: 26 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

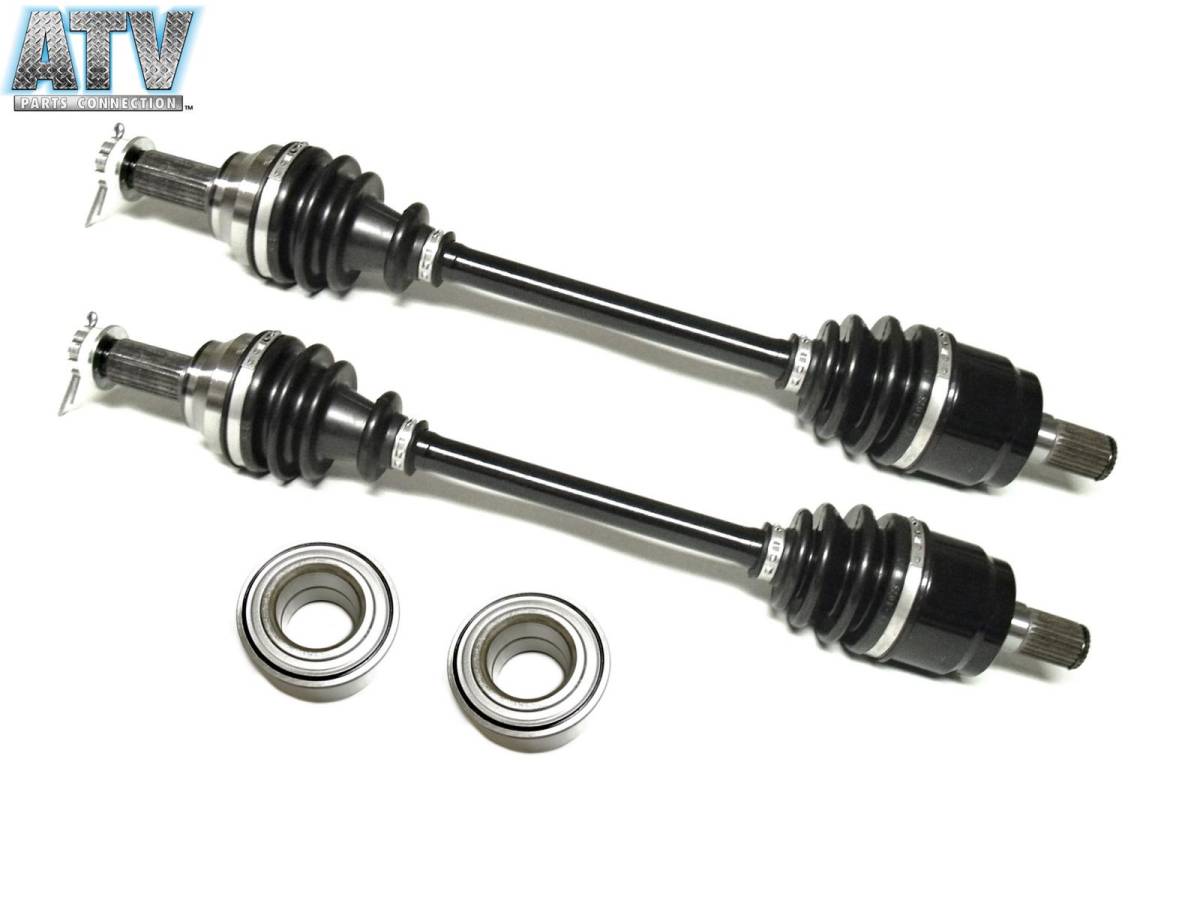

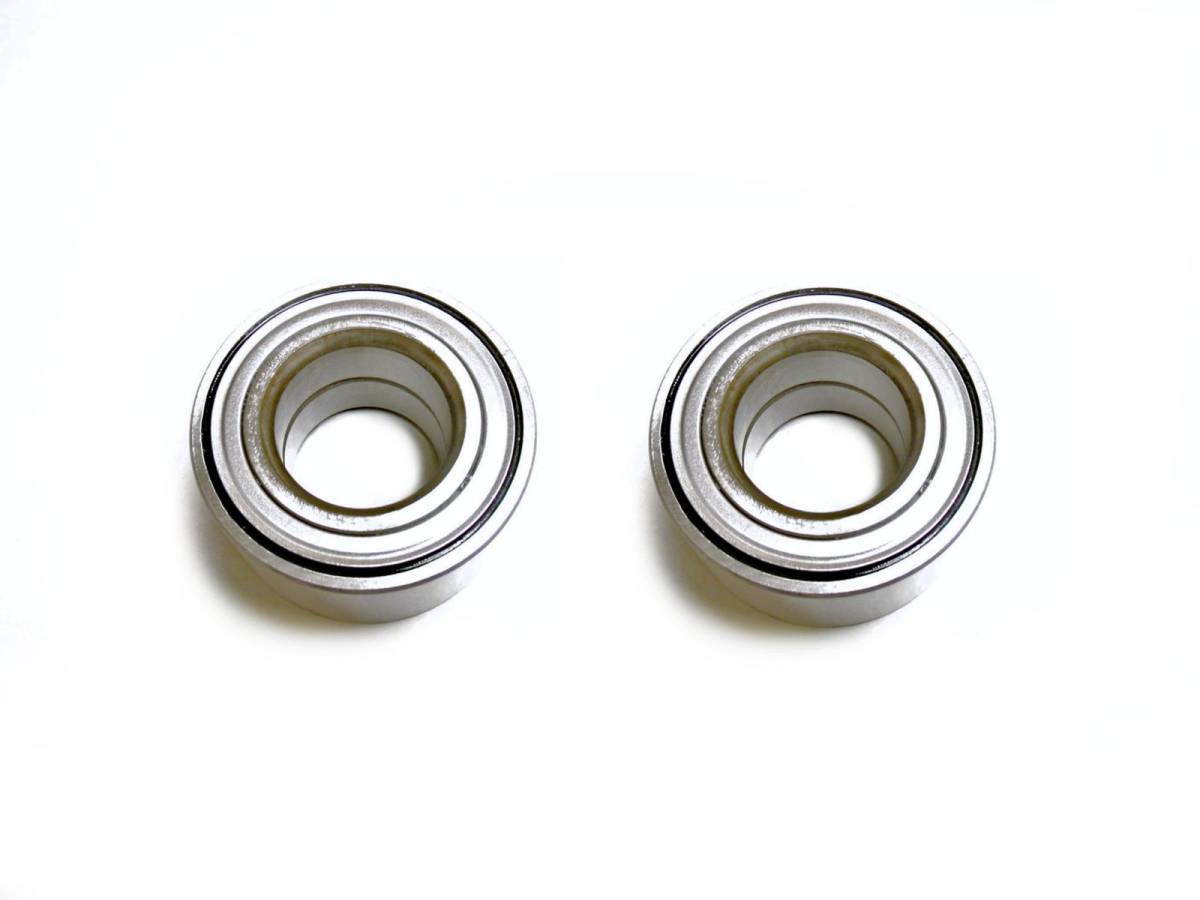

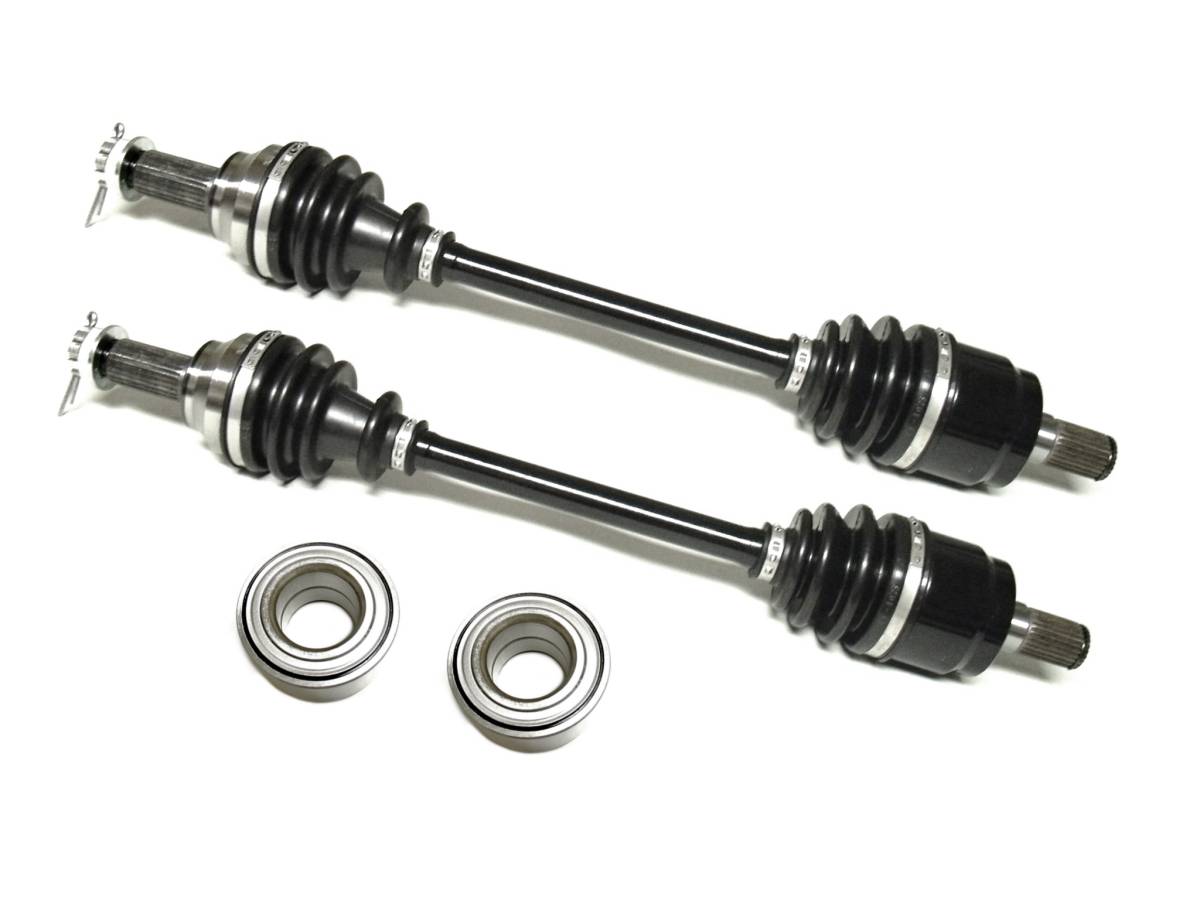

  • 2 CV axles, 2 wheel bearings
  • Warranty

    1 year factory defect limited warranty

    Details

    • HO-337/HO-337/WB-1701/WB-1701
    • HO-337/HO-337/WB-1701/WB-1701
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 22.2 lbs.
    • W5.0000” x H9.0000” x L23.0000”
