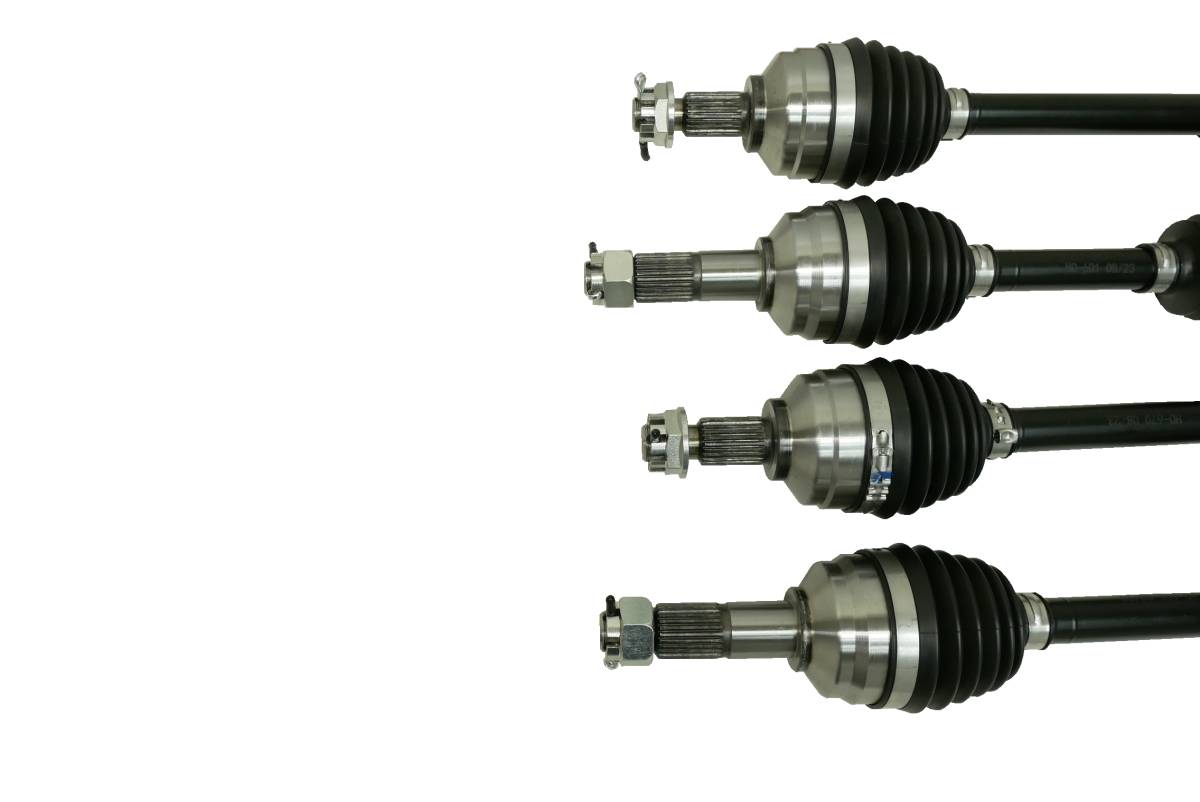

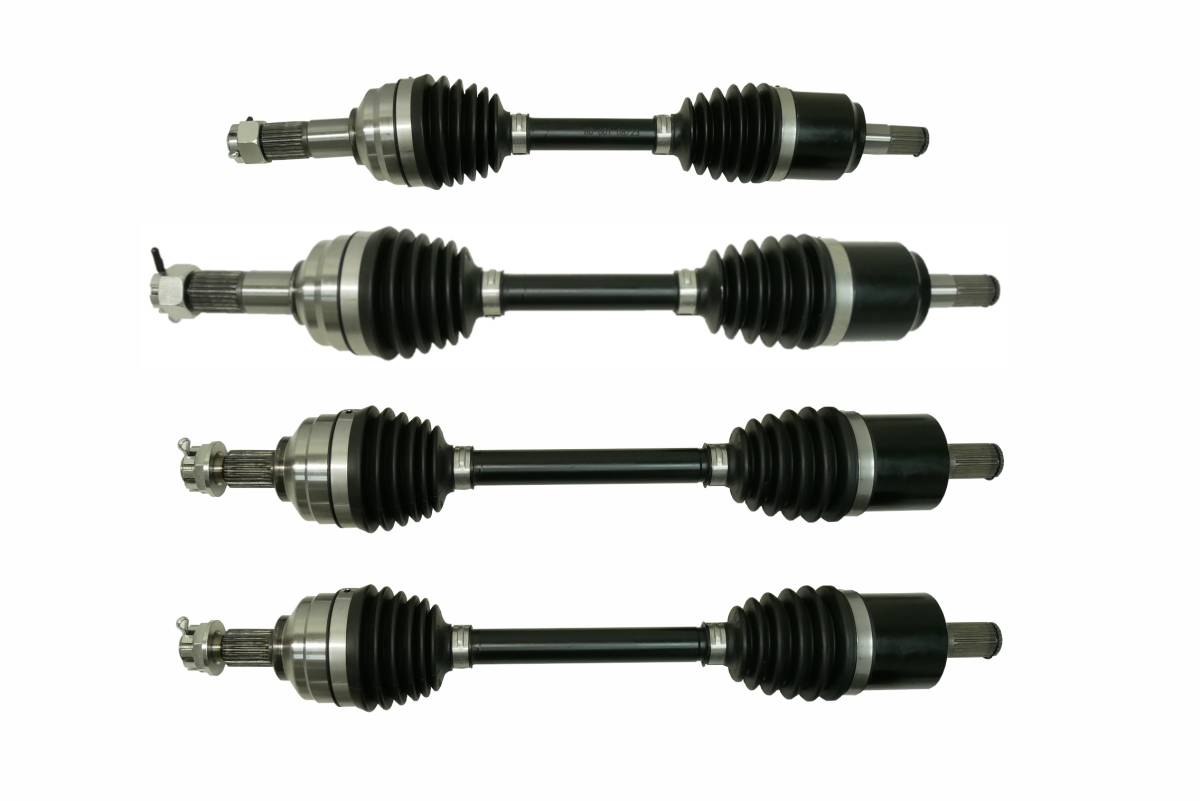

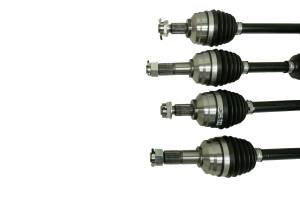

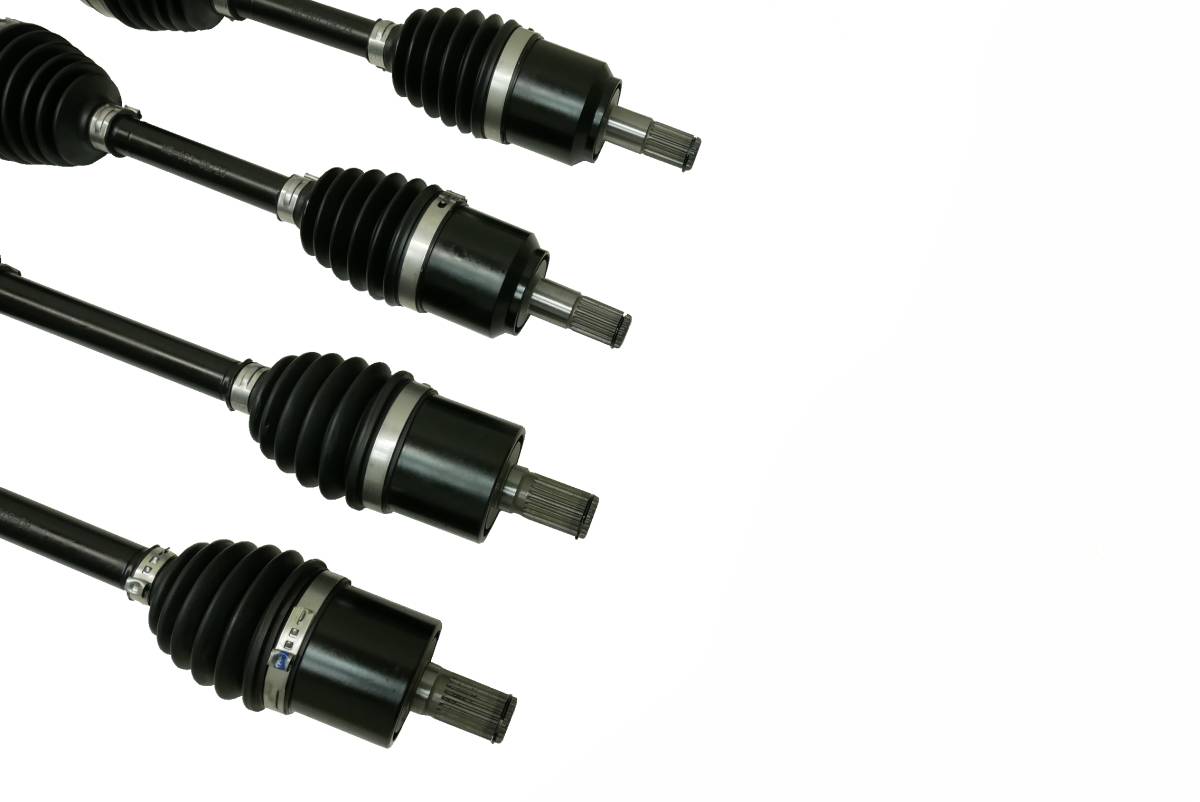

CV Axle Set for Honda Rubicon 520 2020-2024 ATV, TRX520 FA5 FA6 FA7 FM6

Location on vehicle: Front,Rear,Left,Right

HO-601/HO-605/HO-670/HO-670
This is a new CV axle for a Honda ATV.

They will fit the following Rubicon 520 models:

2020-2024 ... TRX520FA5 Auto DCT

2020-2024 ... TRX520FA6 Auto DCT EPS

2020-2024 ... TRX520FA7 Auto DCT EPS DLX

2020-2024 ... TRX520FM6 EPS

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Compressed axle length (mm): FL - 493, FR - 507, RL - 519, RR - 519
  • Inboard CV joint spline count: Fronts - 20, Rears - 23
  • Outboard CV joint spline count: Fronts - 26, Rears - 24
  • Replaces OEM # FL - 44350-HR6-B01, 44350-HR6-MF1, FR - 44250-HR6-MF1, BR- 42250-HR6-B01, 42250-HR6-MF1
Limited Supply: only 5 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $329.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the 2020-2024 Honda Rubicon 520 (including FA5, FA6, FA7, FM6). Set includes 4 axles.
  • Features a stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # FL - 44350-HR6-B01, 44350-HR6-MF1, FR - 44250-HR6-MF1, BR- 42250-HR6-B01, 42250-HR6-MF1. Compressed axle length (mm): FL - 493, FR - 507, RL - 519, RR - 519. Inboard spline count: Fronts - 20, Rears - 23, Outboard spline count: Fronts - 26, Rears - 24.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2024HondaForeman Rubicon 500TRX520FA5 4x4 Auto DCT
    2024HondaForeman Rubicon 500TRX520FA6 4x4 Auto DCT EPS
    2024HondaForeman Rubicon 500TRX520FA7 4x4 Auto DCT EPS DLX
    2024HondaForeman Rubicon 500TRX520FM6 4x4 EPS
    2023HondaForeman Rubicon 500TRX520FA5 4x4 Auto DCT
    2023HondaForeman Rubicon 500TRX520FA6 4x4 Auto DCT EPS
    2023HondaForeman Rubicon 500TRX520FA7 4x4 Auto DCT EPS DLX
    2023HondaForeman Rubicon 500TRX520FM6 4x4 EPS
    2022HondaForeman Rubicon 500TRX520FA5 4x4 Auto DCT
    2022HondaForeman Rubicon 500TRX520FA6 4x4 Auto DCT EPS
    2022HondaForeman Rubicon 500TRX520FA7 4x4 Auto DCT EPS DLX
    2022HondaForeman Rubicon 500TRX520FM6 4x4 EPS
    2021HondaForeman Rubicon 500TRX520FA5 4x4 Auto DCT
    2021HondaForeman Rubicon 500TRX520FA6 4x4 Auto DCT EPS
    2021HondaForeman Rubicon 500TRX520FA7 4x4 Auto DCT EPS DLX
    2021HondaForeman Rubicon 500TRX520FM6 4x4 EPS
    2020HondaForeman Rubicon 500TRX520FA5 4x4 Auto DCT
    2020HondaForeman Rubicon 500TRX520FA6 4x4 Auto DCT EPS
    2020HondaForeman Rubicon 500TRX520FA7 4x4 Auto DCT EPS DLX

    Details

    • HO-601/HO-605/HO-670/HO-670
    • HO-601/HO-605/HO-670/HO-670
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 42.0 lbs.
    • W8.0000” x H8.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
