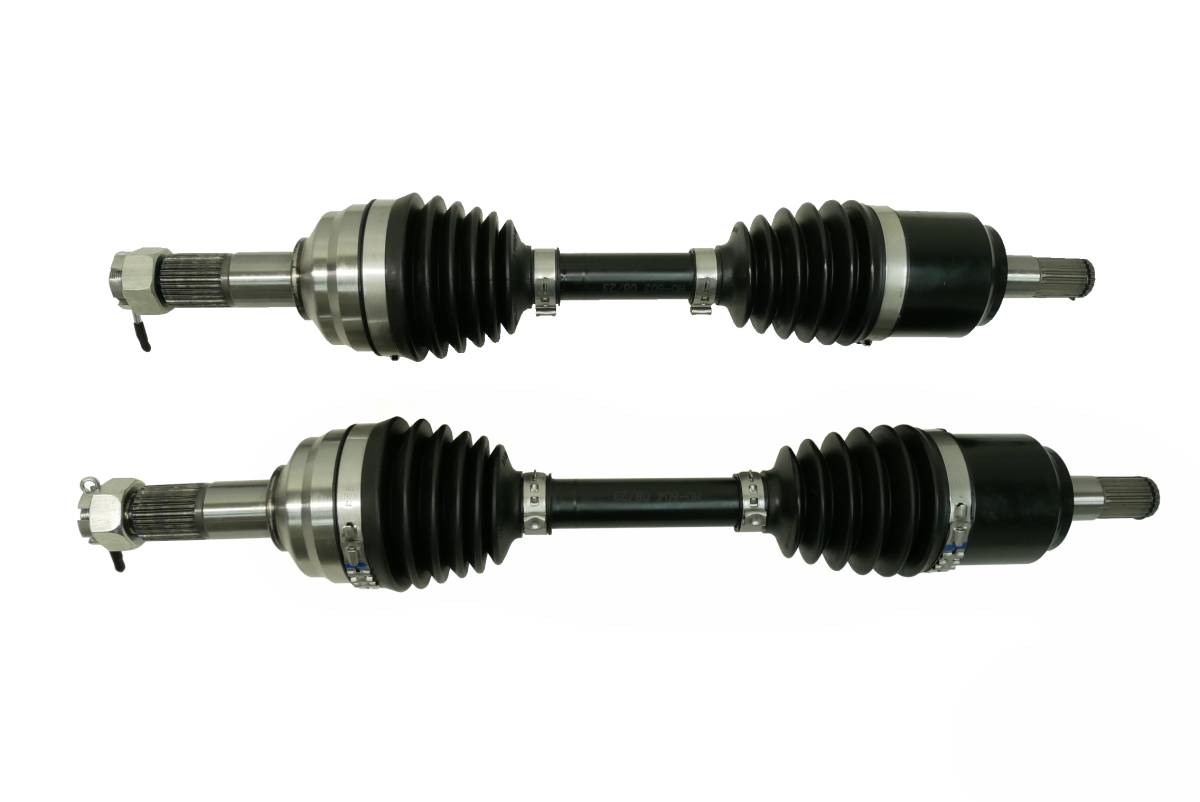

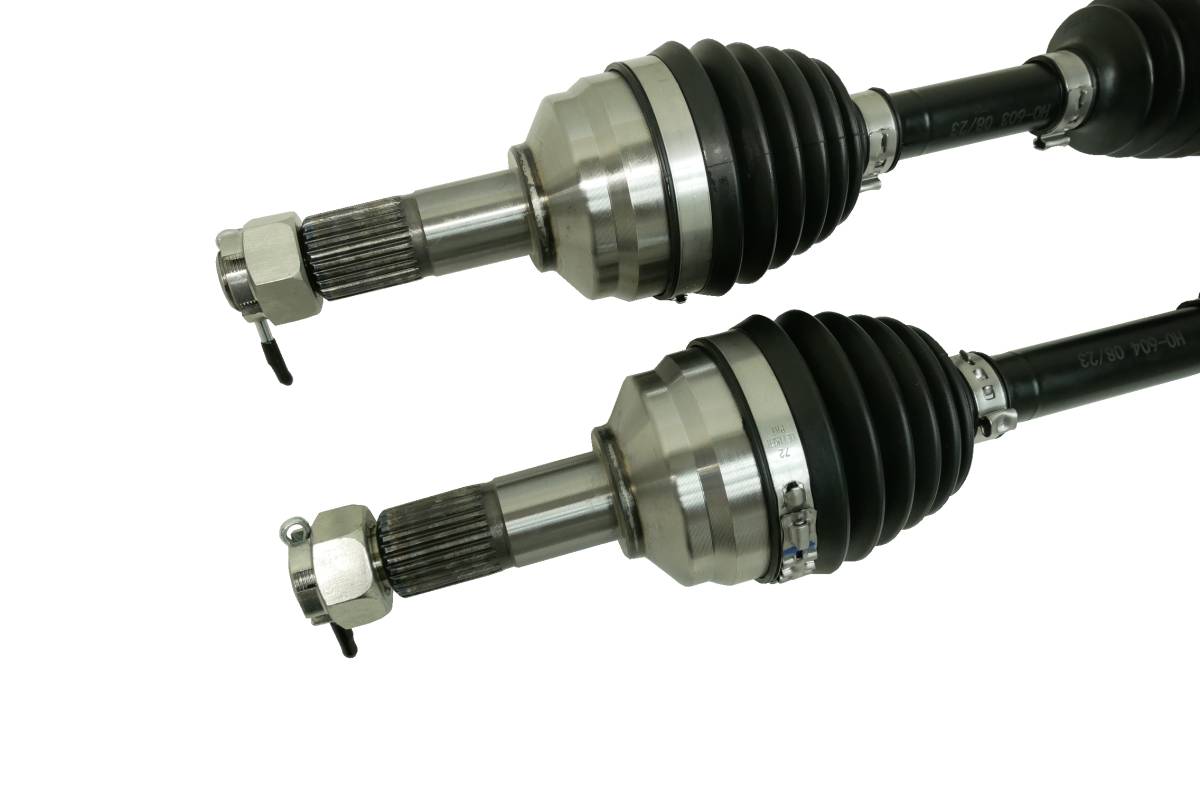

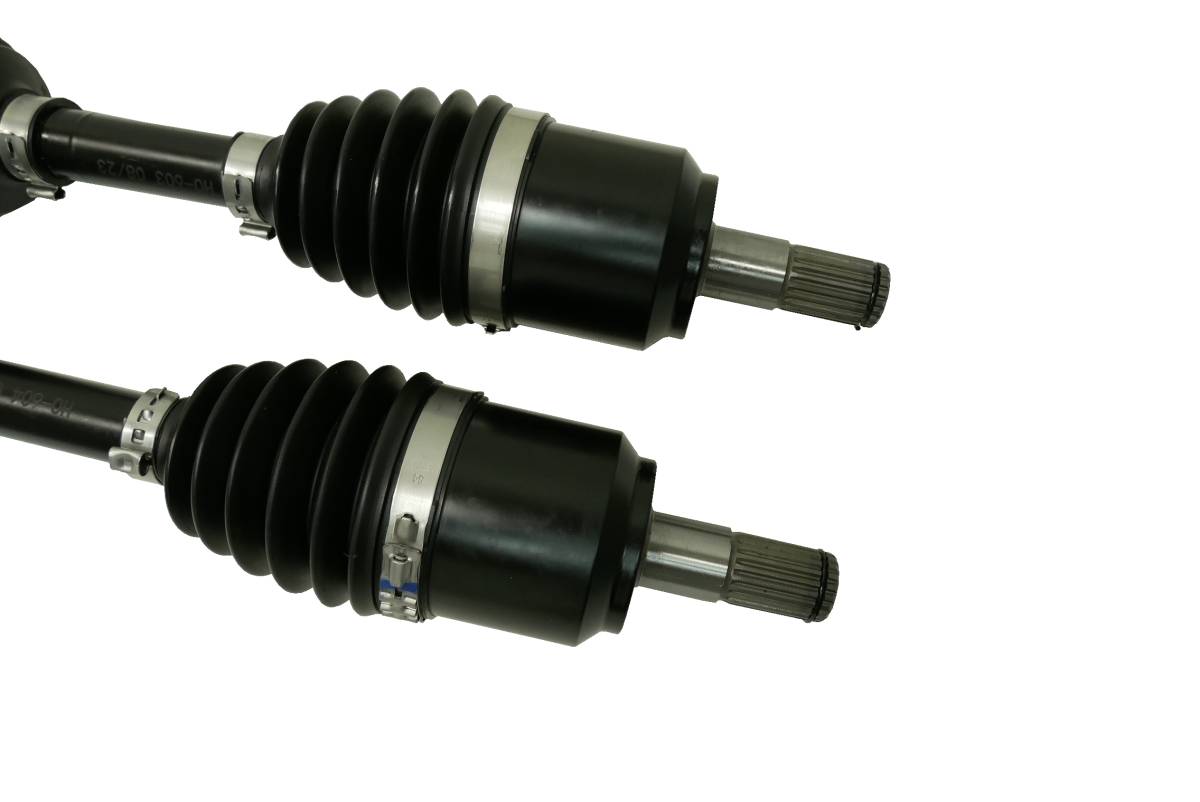

Front CV Axle Pair for Honda Rancher 420 2020-2024, 44350-HR3-HC1, 44250-HR3-HC1

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
HO-603/HO-604
This is a pair of new CV axles for a Honda ATV.

They fit FRONT, LEFT & RIGHT on the following models:

2020-2024 ... Rancher TRX420FM1

2020-2024 ... Rancher TRX420FM2 EPS

2020-2024 ... Rancher TRX420FE1 ES

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Compressed axle length: Left - 468 mm, Right - 489 mm
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 26 (both)
  • Replaces OEM # (left) 44350-HR3-HC1, 44350-HR3-WB1, (right) 44250-HR3-HC1, 44250-HR3-WB1
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.99

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Honda ATV models: 2020-2024 Rancher TRX420FM1, 2020-2024 Rancher TRX420FM2 EPS, 2020-2024 Rancher TRX420FE1 ES. Set includes 2 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (left) 44350-HR3-HC1, 44350-HR3-WB1, (right) 44250-HR3-HC1, 44250-HR3-WB1. Compressed axle length: Left - 468 mm, Right - 489 mm, Inboard CV joint spline count: 20 (both), Outboard CV joint spline count: 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2024HondaRancher 420TRX420FE1 4x4 ES
    2024HondaRancher 420TRX420FM1 4x4
    2024HondaRancher 420TRX420FM2 4x4 EPS
    2023HondaRancher 420TRX420FE1 4x4 ES
    2023HondaRancher 420TRX420FM1 4x4
    2023HondaRancher 420TRX420FM2 4x4 EPS
    2022HondaRancher 420TRX420FE1 4x4 ES
    2022HondaRancher 420TRX420FM1 4x4
    2022HondaRancher 420TRX420FM2 4x4 EPS
    2021HondaRancher 420TRX420FE1 4x4 ES
    2021HondaRancher 420TRX420FM1 4x4
    2021HondaRancher 420TRX420FM2 4x4 EPS
    2020HondaRancher 420TRX420FE1 4x4 ES
    2020HondaRancher 420TRX420FM1 4x4
    2020HondaRancher 420TRX420FM2 4x4 EPS

    Details

    • HO-603/HO-604
    • HO-603/HO-604
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 21.0 lbs.
    • W8.0000” x H4.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
