Front CV Axles with Bearings or Polaris Magnum 500 & Sportsman 700 2002, 1380153

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: PO-142/PO-142/WB-1424/WB-1424

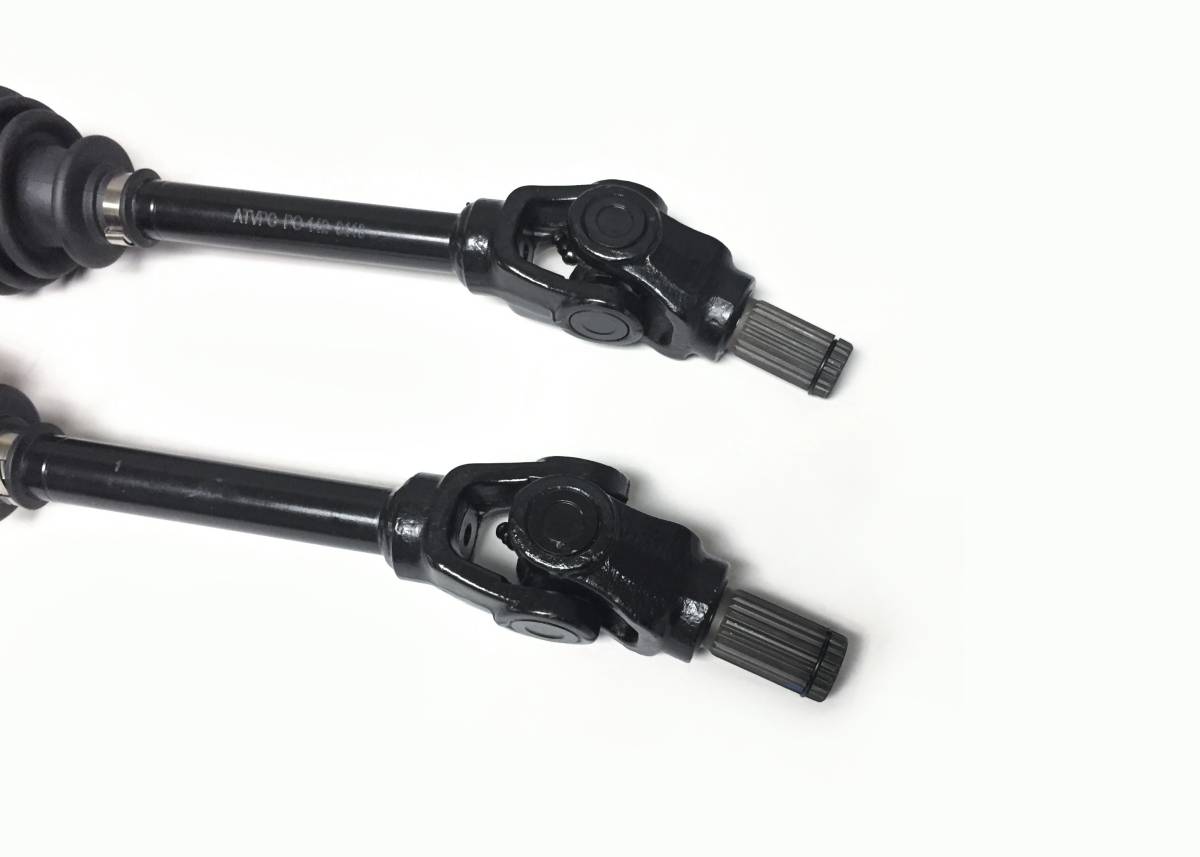

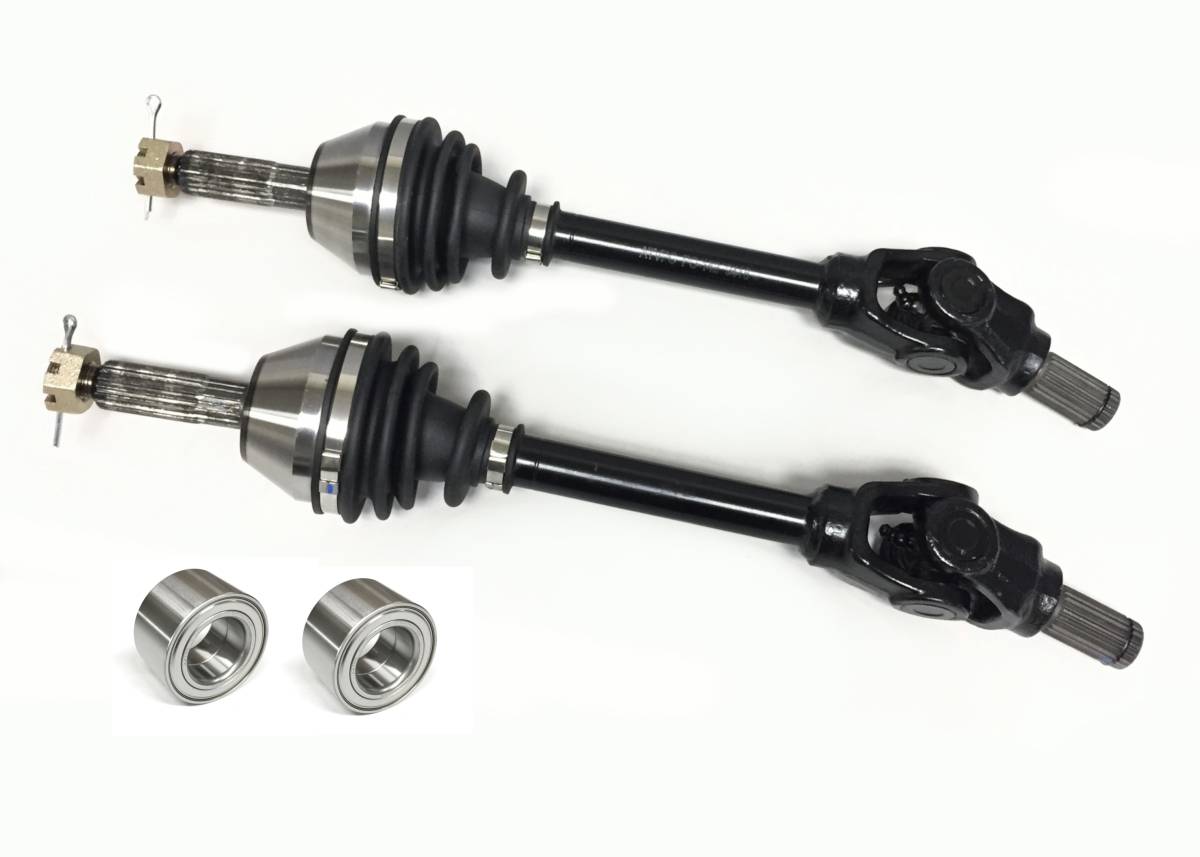

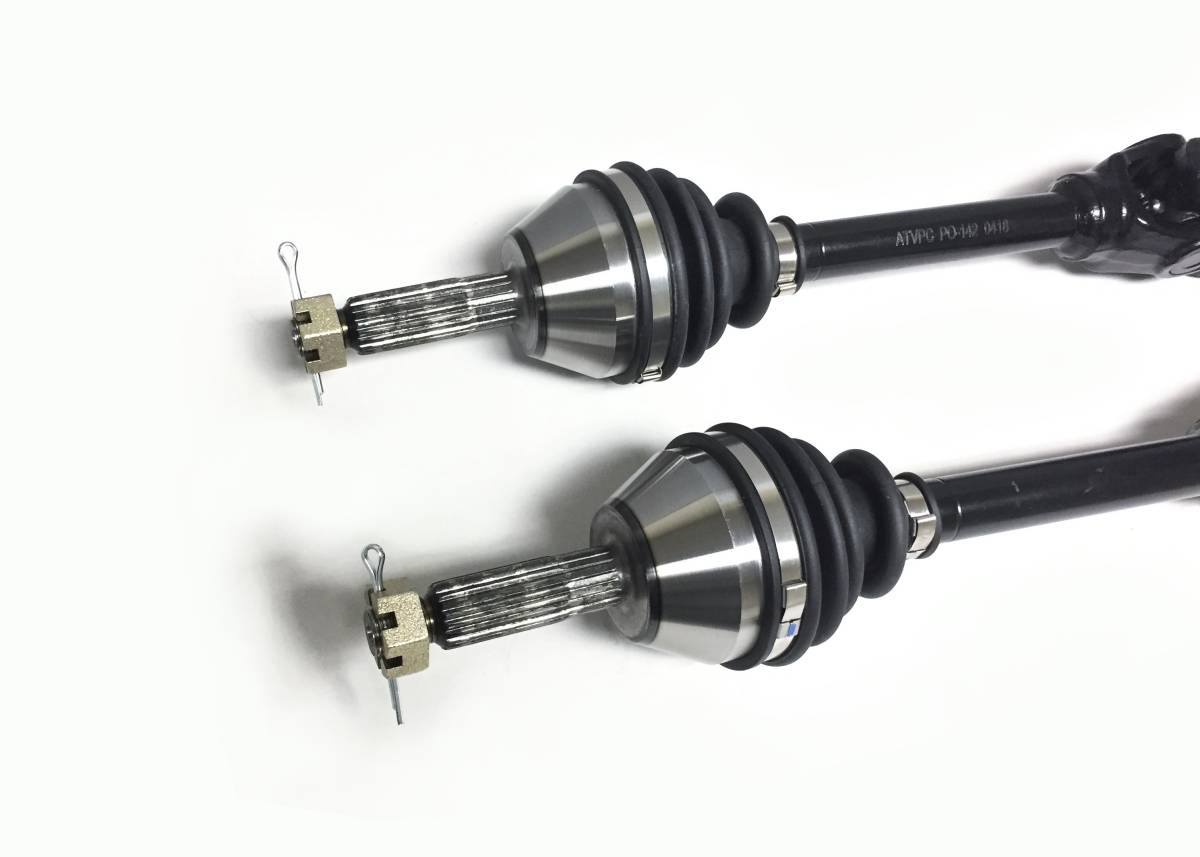

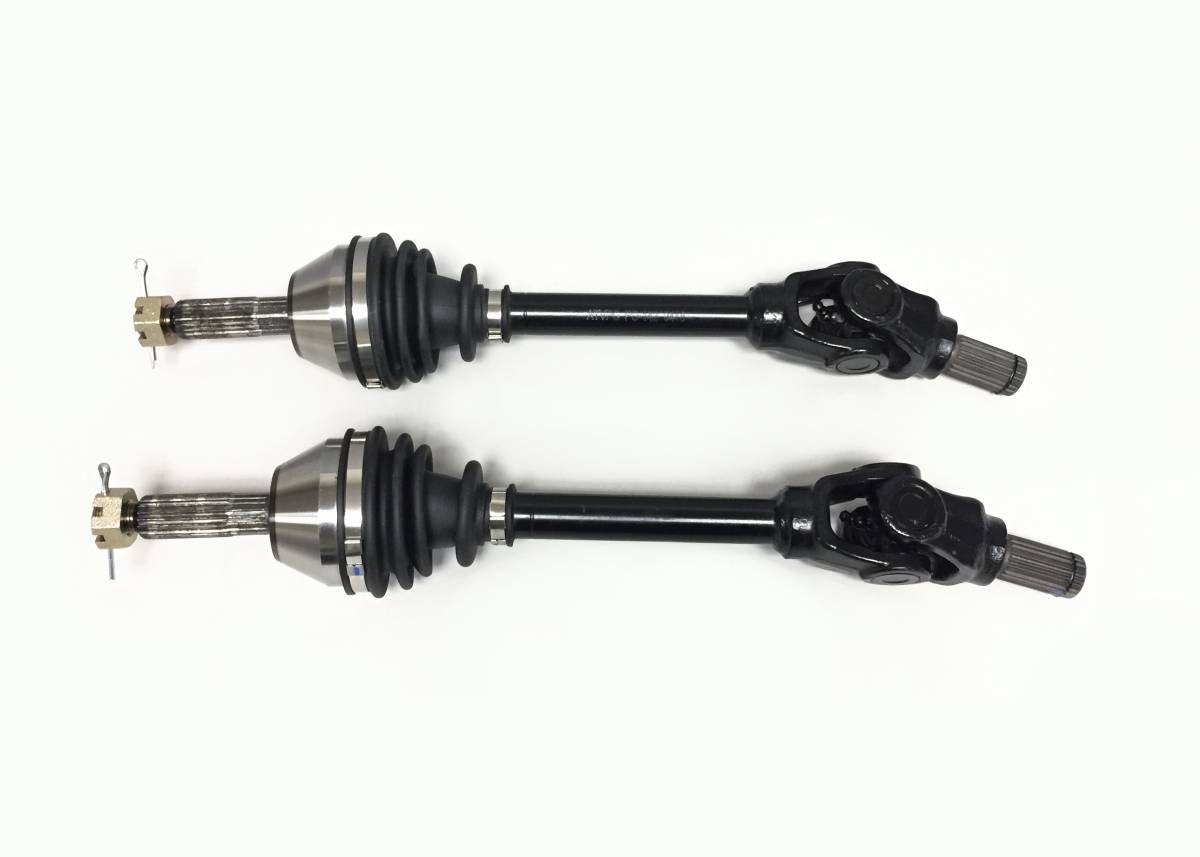

This is a pair of CV axles with wheel bearings for a Polaris ATV.

They fit front, left & right on the following models:

2002 ... Sportsman 700 -only models built before 05/01/2002

2002 ... Magnum 500 4x4 A02CD50AA -without HDS Visco-Lok

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

Stronger than OEM, 4340 chromoly steel axle bars
Uses high-performance moly grease to keep vital components lubricated
Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures

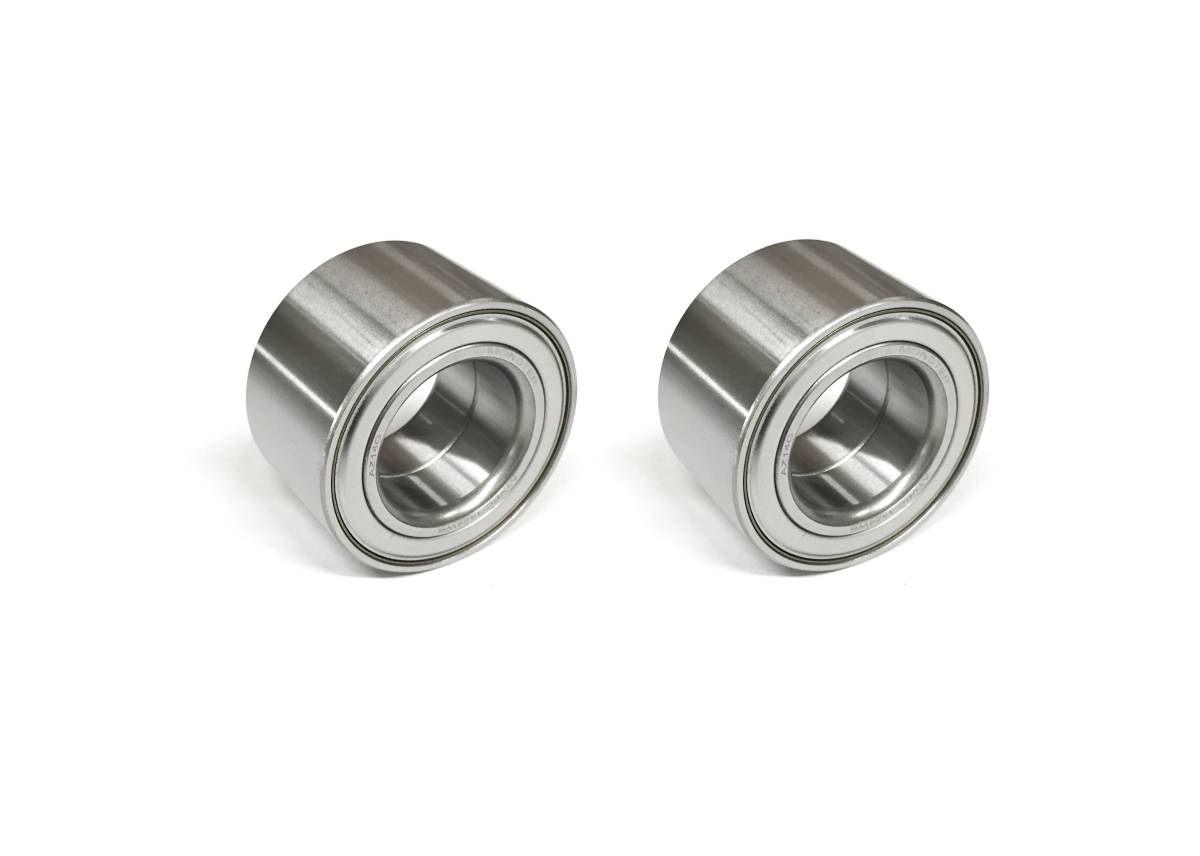

High speed bearings manufactured for long life
Double lip seals made to keep grease in and dirt out
inobard CV joint spline count: 22 (both)
outboard CV joint spline count: 20 (both)
Compressed overall axle length: 494 mm (both)
Replaces OEM # (axles) 1380153, (bearings) 3514342, 3514634

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $144.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel	Notes
2002	Polaris	Magnum 500	4X4	without Visco Lok
2002	Polaris	Magnum RMK 500	--	without Visco Lok
2002	Polaris	Sportsman 700	Twin	built before 05/01/2001

Product Notes

Fits front, left & right on the following Polaris ATV models: 2002 Sportsman 700 (if built before 05/01/2002) & 2002 Magnum 500 4x4 (without HDS Visco-Lok).

Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.

Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.

Replaces OEM # (axles) 1380153, (bearings) 3514342, 3514634. Inner splines: 22 (both), Outer splines: 20 (both), Compressed axle length: 494 mm (both).

Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.
