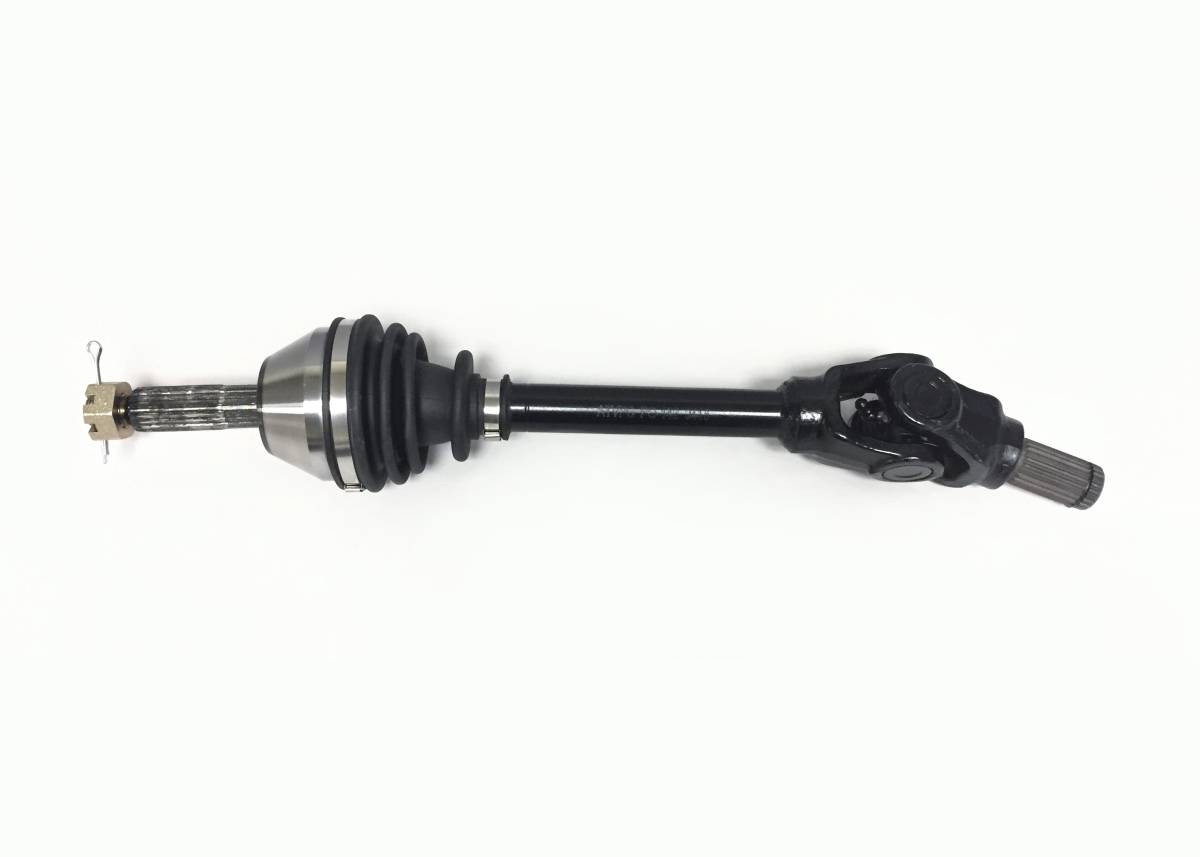

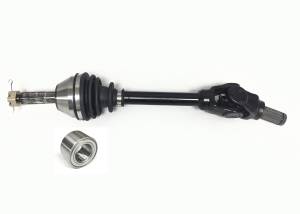

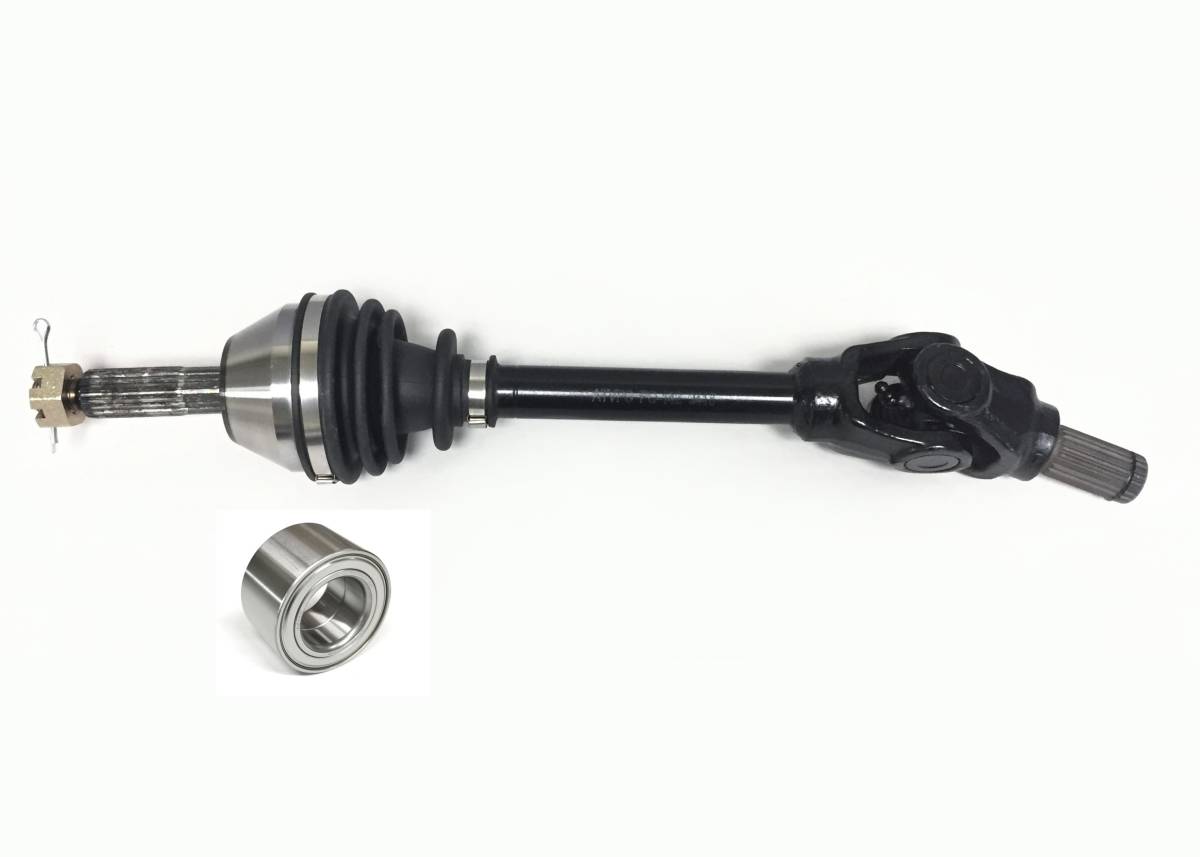

Front CV Axle with Bearing for Polaris Magnum 500 & Sportsman 700 2002, 1380153

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-142/WB-1424
This is a CV axle with Wheel Bearing for a Polaris ATV.

They fit FRONT, LEFT or RIGHT on the following models:

2002 ... Sportsman 700 -only models built before 05/01/2002

2002 ... Magnum 500 4x4 A02CD50AA -without HDS Visco-Lok

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bar
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures

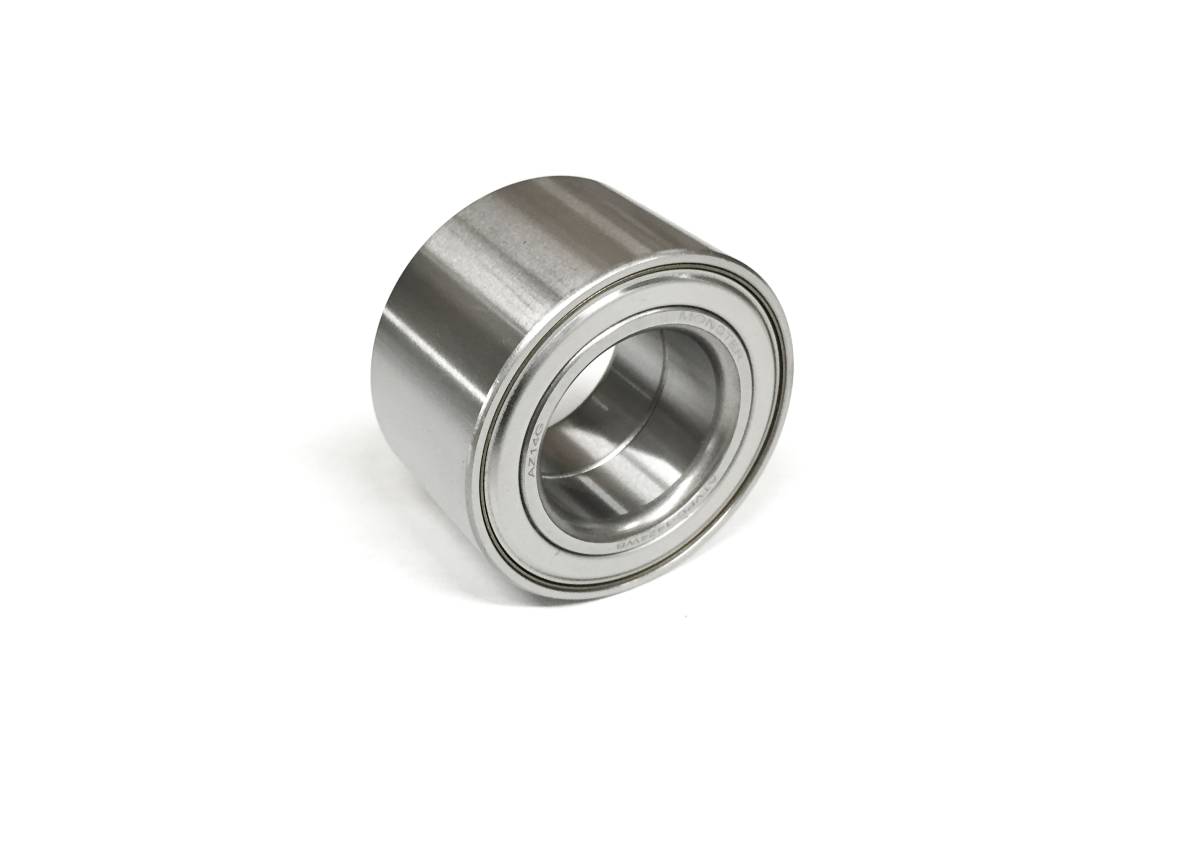

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out

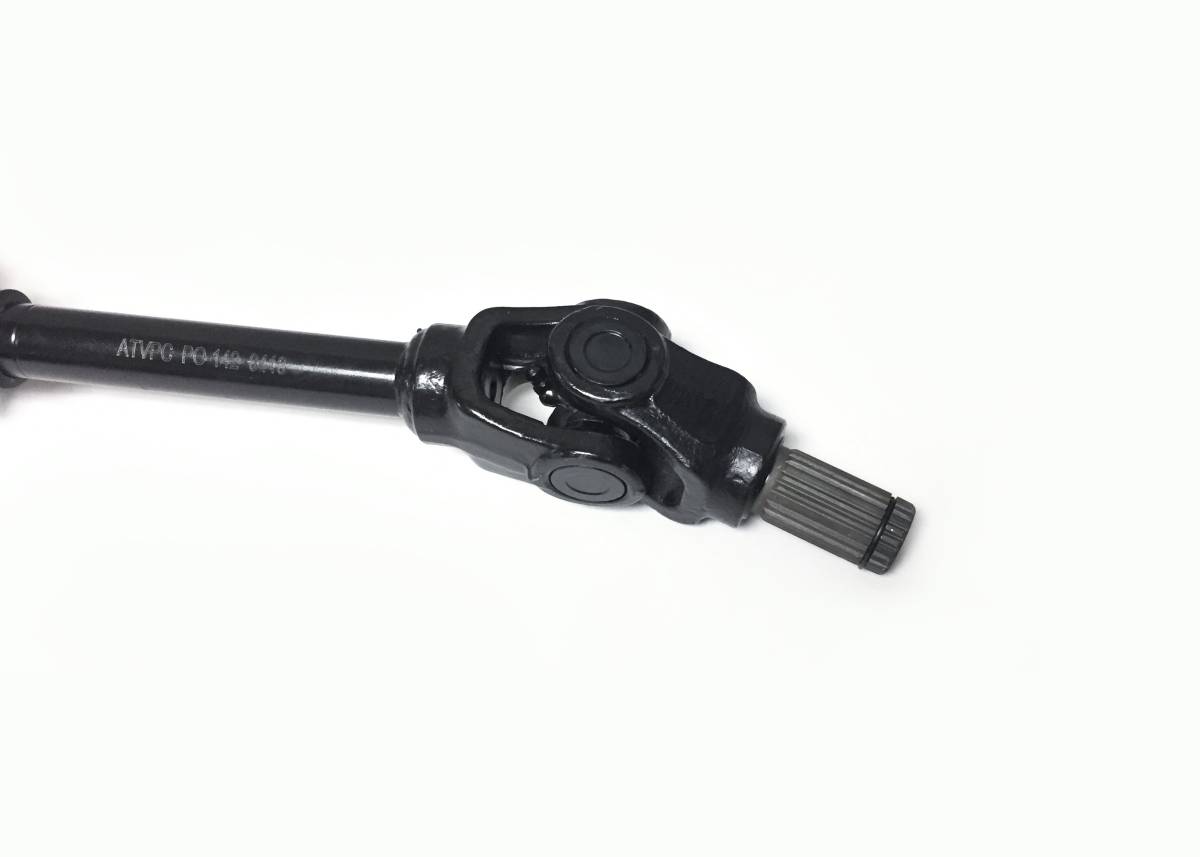

  • Inboard CV joint spline count: 22

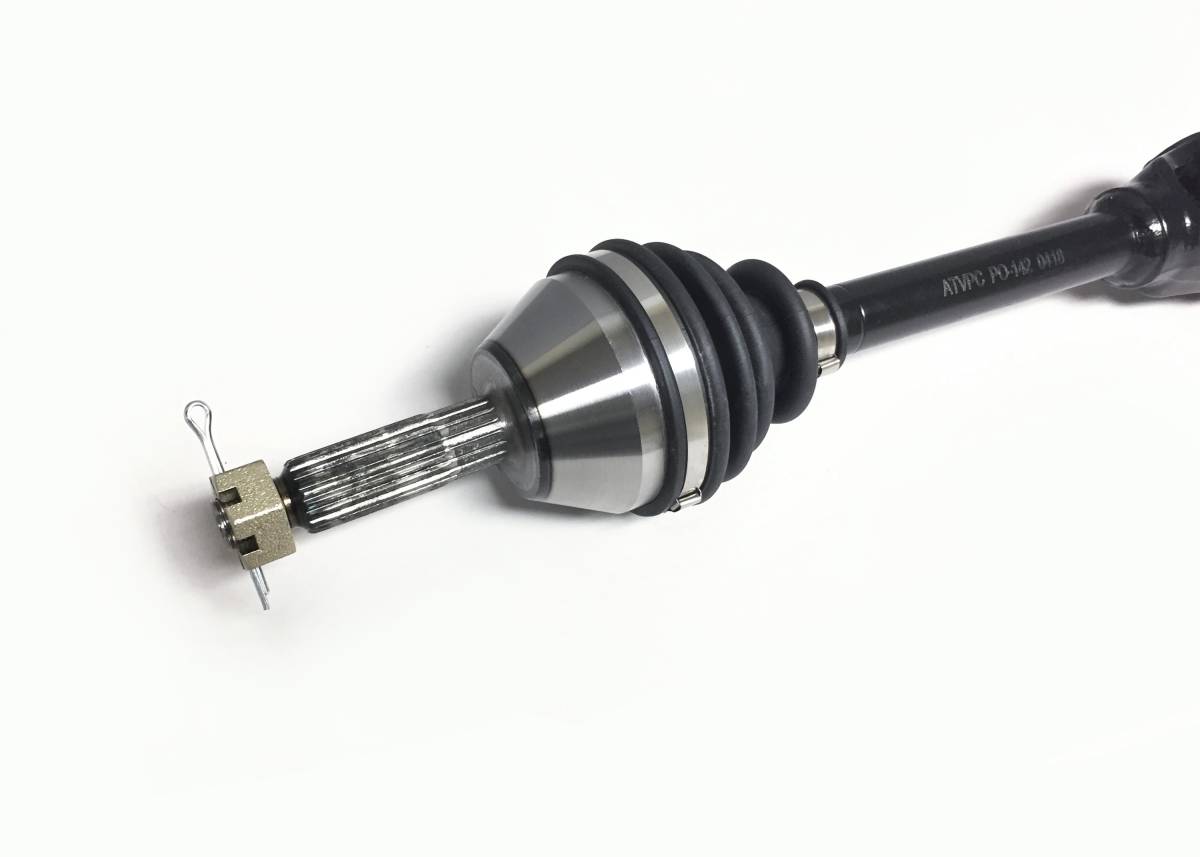

  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 494 mm
  • Replaces OEM # (axle) 1380153, (bearing) 3514342, 3514634
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2002PolarisMagnum 5004X4without Visco Lok
2002PolarisMagnum RMK 500--without Visco Lok
2002PolarisSportsman 700Twinbuilt before 05/01/2001

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following Polaris ATV models: 2002 Sportsman 700 (if built before 05/01/2002) & 2002 Magnum 500 4x4 (without HDS Visco-Lok). Set includes 1 axle & 1 wheel bearing.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures. Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out
  • Replaces OEM # (axle) 1380153, (bearing) 3514342, 3514634. Inner splines: 22, Outer splines: 20, Compressed axle length: 494 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-142/WB-1424
    • PO-142/WB-1424
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.0 lbs.
    • W5.0000” x H5.0000” x L26.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
