Rear CV Axle Pair for Yamaha Wolverine X2 & X4 2020-2024, BAR-2531H-00-00

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
YA-326/YA-326

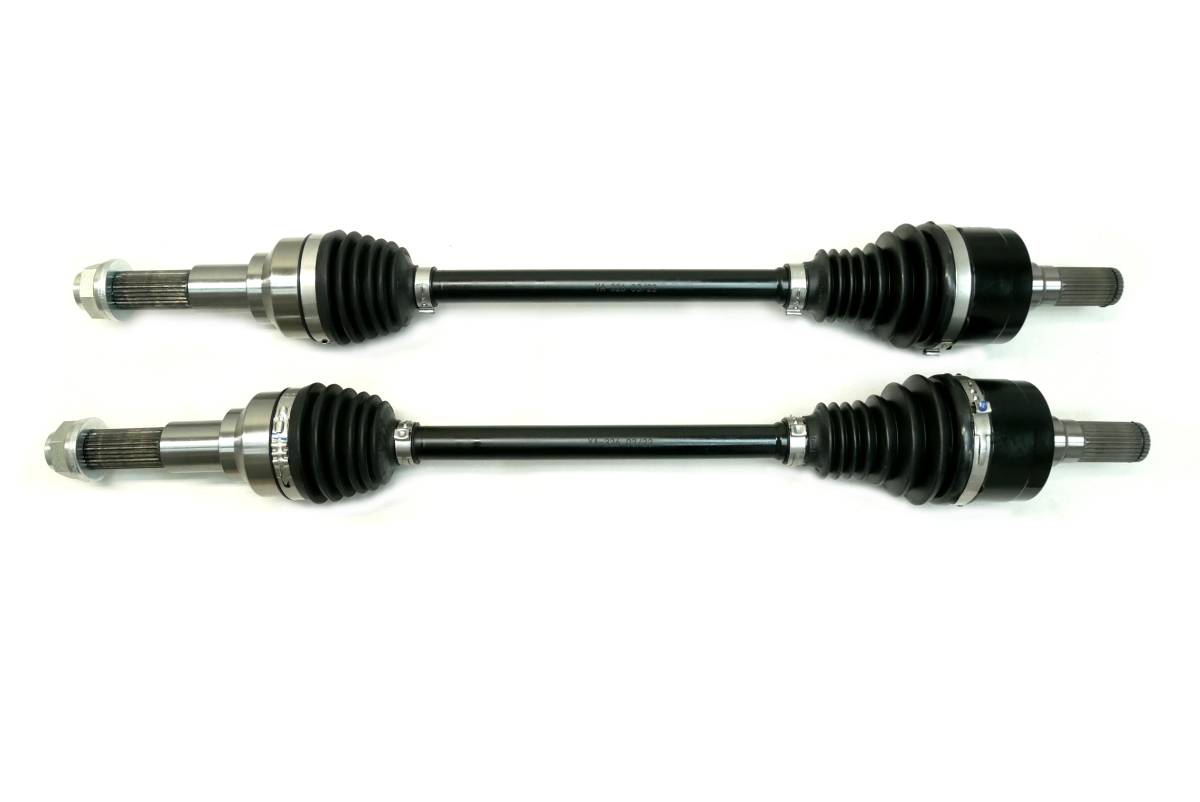

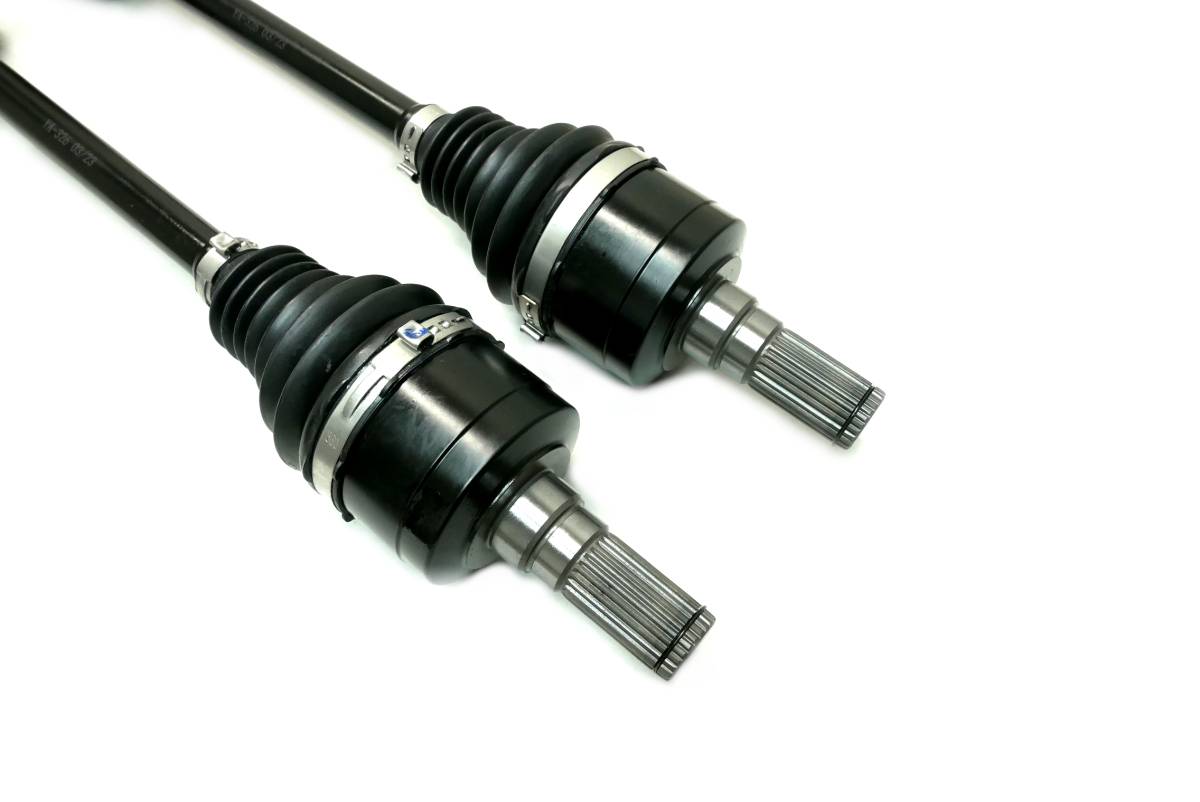

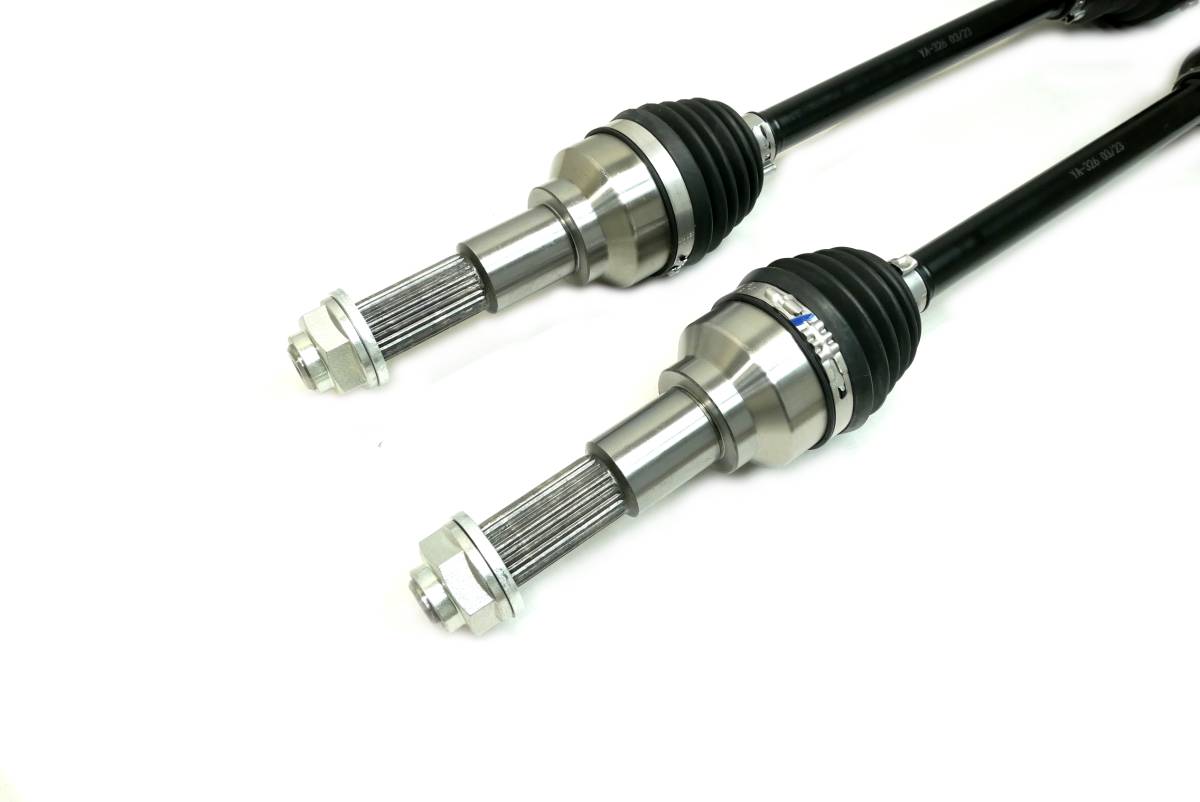

This is a pair of new CV axles for a Yamaha Side x Side.

They fit REAR, LEFT & RIGHT on the following models:

2020-2024 Wolverine X2 & X2 R-Spec (YXE85)

2020-2024 Wolverine X4 (YXF85)

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 27 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 717 mm (both)
  • Replaces OEM # BAR-2531H-00-00, BAR-2531H-01-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $169.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect warranty

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Yamaha SXS models: 2020-2024 Wolverine X2/X2 850/R-Spec, 2020-2024 Wolverine X4/X4 850. Set includes 2 axles
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # BAR-2531H-00-00, BAR-2531H-01-00. Inboard spline count: 27 (both), Outboard spline count 27 (both), Compressed axle length 717 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2020YamahaWolverine X2YXE85 4x4
    2023YamahaWolverine X2 850YXE85 4x4 R-Spec
    2023YamahaWolverine X2 850YXE85 4x4 XT-R
    2022YamahaWolverine X2 850YXE85 4x4 R-Spec
    2022YamahaWolverine X2 850YXE85 4x4 XT-R
    2021YamahaWolverine X2 850YXE85 4x4 R-Spec
    2021YamahaWolverine X2 850YXE85 4x4 XT-R
    2020YamahaWolverine X44x4 XT-R
    2020YamahaWolverine X4YXF85 4x4
    2023YamahaWolverine X4 850YXF85 4x4 R-Spec
    2023YamahaWolverine X4 850YXF85 4x4 XT-R
    2022YamahaWolverine X4 850YXF85 4x4 R-Spec
    2022YamahaWolverine X4 850YXF85 4x4 XT-R
    2021YamahaWolverine X4 850YXF85 4x4 R-Spec
    2021YamahaWolverine X4 850YXF85 4x4 XT-R
    2024YamahaWolverine X4 850YXF85 4x4 R-Spec
    2024YamahaWolverine X4 850YXF85 4x4 XT-R
    2024YamahaWolverine X2 850YXE85 4x4 R-Spec
    2024YamahaWolverine X2 850YXE85 4x4 XT-R

    Details

    • YA-326/YA-326
    • YA-326/YA-326
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 30.0 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
