Front CV Axle Pair with Bearing Kits for Honda Pioneer 700 & 700-4 2014-2022

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
HO-124/HO-224/WB-1699/WB-1699

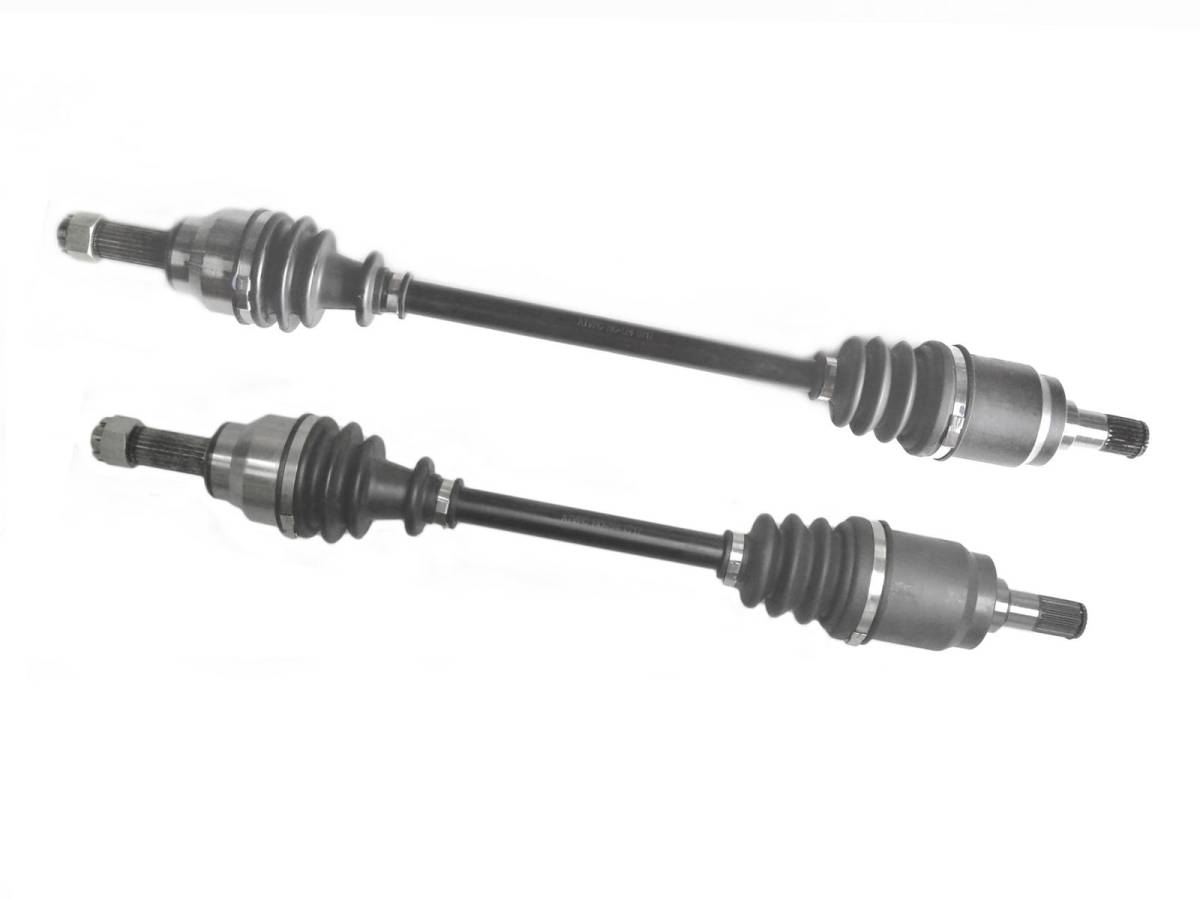

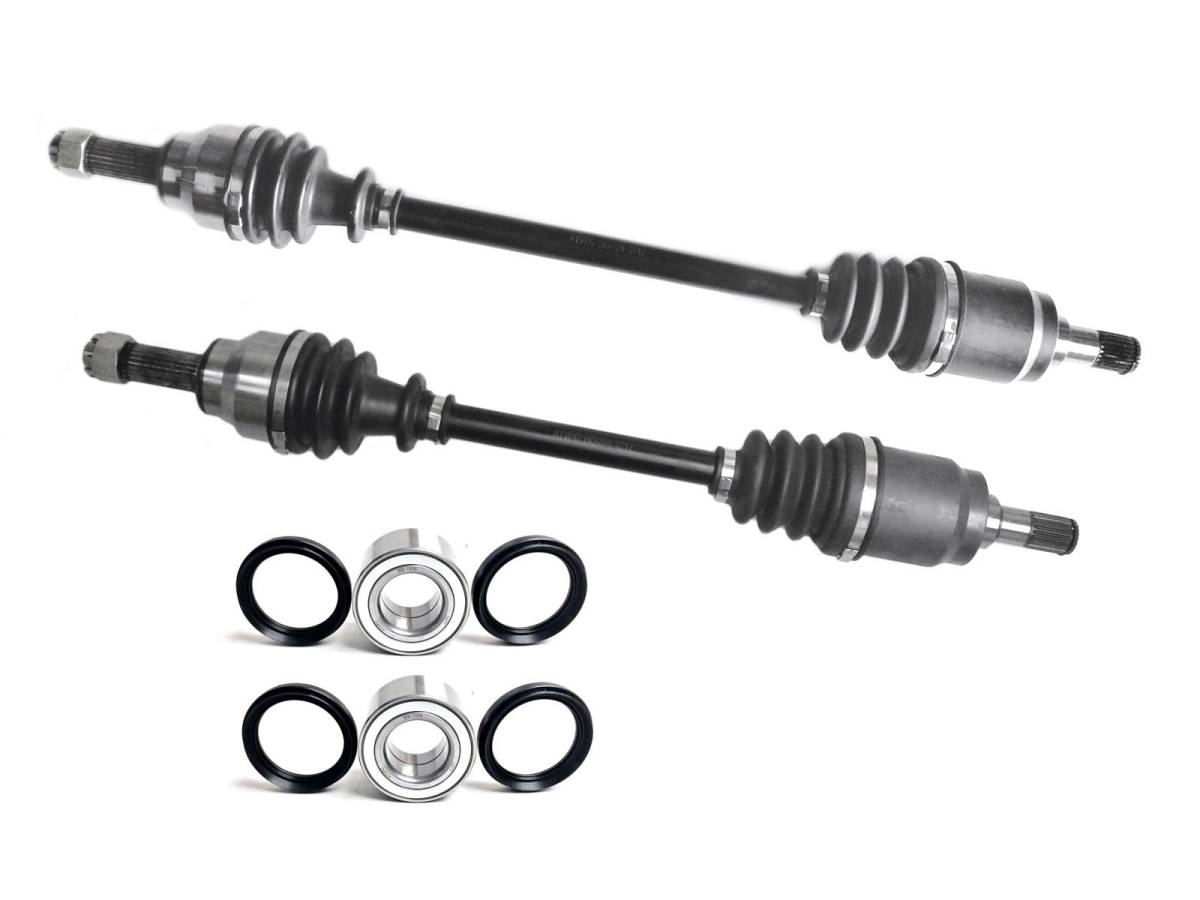

This is a set of new CV axles with bearing kits for a Honda UTV.

They fit FRONT, LEFT & RIGHT on the following models:

2014-2022 Pioneer 700

2014-2022 Pioneer 700-4

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 23 (both)
  • Outboard CV joint spline count: 24 (both)
  • Compressed overall axle length: Left - 705.5 mm, Right - 601.5 mm
Limited Supply: only 3 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022HondaPioneer 700SXS700M2
2022HondaPioneer 700SXS700M2D Deluxe
2021HondaPioneer 700SXS700M2
2021HondaPioneer 700SXS700M2D Deluxe
2020HondaPioneer 700SXS700M2
2020HondaPioneer 700SXS700M2D Deluxe
2019HondaPioneer 700SXS700M2
2019HondaPioneer 700SXS700M2D Deluxe
2018HondaPioneer 700SXS700M2
2018HondaPioneer 700SXS700M2D Deluxe
2017HondaPioneer 700SXS700M2
2017HondaPioneer 700SXS700M2D Deluxe
2016HondaPioneer 700SXS700M2
2015HondaPioneer 700SXS700M2
2014HondaPioneer 700SXS700M2
2022HondaPioneer 700-4SXS700M4
2022HondaPioneer 700-4SXS700M4D Deluxe
2021HondaPioneer 700-4SXS700M4
2021HondaPioneer 700-4SXS700M4D Deluxe
2020HondaPioneer 700-4SXS700M4
2020HondaPioneer 700-4SXS700M4D Deluxe
2019HondaPioneer 700-4SXS700M4
2019HondaPioneer 700-4SXS700M4D Deluxe
2018HondaPioneer 700-4SXS700M4
2018HondaPioneer 700-4SXS700M4D Deluxe
2017HondaPioneer 700-4SXS700M4
2017HondaPioneer 700-4SXS700M4D Deluxe
2016HondaPioneer 700-4SXS700M4
2015HondaPioneer 700-4SXS700M4
2014HondaPioneer 700-4SXS700M4

Product Notes

  • Fits FRONT, LEFT & RIGHT on the Honda 2014-2022 Honda Pioneer 700 4x4 UTV. Set includes 2 axles, 2 wheel bearings, & 4 seals.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed Length: Left - 705.5 mm, Right - 601.5 mm, Inboard Spline Count - 23 (both), Outboard Spline Count - 24 (both).
  • Replaces OEM # (left) 44350-HL3-A02, 44320-HL3-A01, (right) 44220-HL3-A01, 44250-HL3-A02, (bearing) 44300-SB2-038, (seals) 91255-HL1-A01, 91254-HL1-A01. Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles).

    • What's In The Box

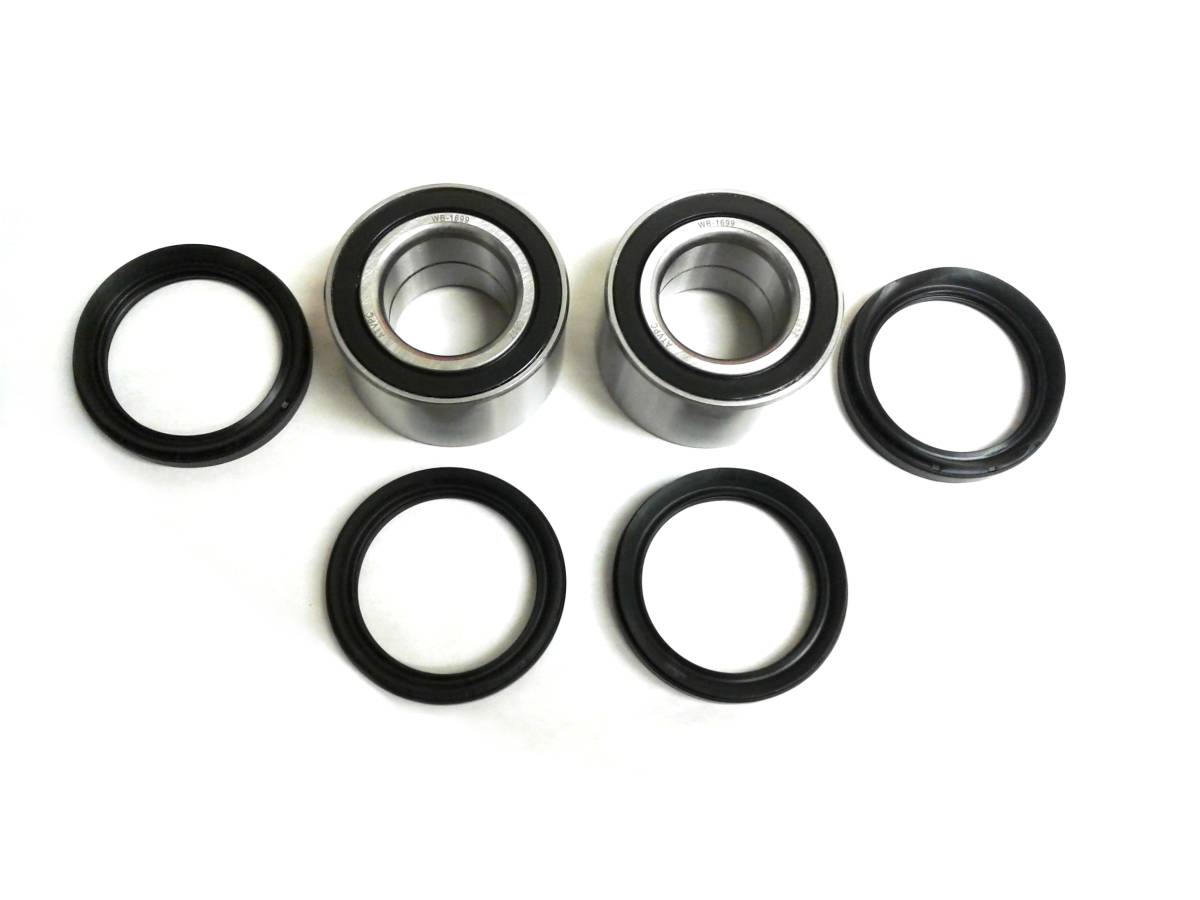

  • 2 axles, 2 wheel bearings, 4 seals

    • Warranty

    1 year factory defect warranty

    Details

    • HO-124/HO-224/WB-1699/WB-1699
    • HO-124/HO-224/WB-1699/WB-1699
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 27.0 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
