Monster Axles Set for Can-Am Maverick X3 64", 705401634, 705502154, XP Series

Location on vehicle: Front,Rear,Left,Right

CA-227XP/CA-227XP/CA-329XP/CA-329XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $639.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022Can-AmMaverick X34x4 DS Turbo DPS
2021Can-AmMaverick X34x4 XMR Turbo DPS
2021Can-AmMaverick X34x4 XRC Turbo DPS
2020Can-AmMaverick X34x4 XMR Turbo DPS
2020Can-AmMaverick X34x4 XRC Turbo DPS
2019Can-AmMaverick X34x4 XMR Turbo DPS
2019Can-AmMaverick X34x4 XRC Turbo DPS
2018Can-AmMaverick X34x4 XMR Turbo DPS
2018Can-AmMaverick X34x4 XRC Turbo DPS
2019Can-AmMaverick X3 Max4x4 Turbo DPS
2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2019Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2022Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2021Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 R4x4 DS Turbo DPS
2019Can-AmMaverick X3 R4x4 XDS Turbo DPS
2022Can-AmMaverick X3 RR4x4 DS Turbo DPS
2022Can-AmMaverick X3 RR4x4 XDS Turbo DPS
2021Can-AmMaverick X3 RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 RR4x4 XDS Turbo DPS

Product Notes

  • Fits the following Can-Am Maverick X3 64" models: 2018-2021 Turbo XMR/XRC, 2022 Turbo/Turbo RR - DS, 2019-2020 Turbo R/MAX Turbo R XDS, 2020-2022 Turbo RR/MAX Turbo RR XDS, 2019 MAX Turbo. Set includes 4 axles.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (fronts) 705401634, (rears) 705502154. Compressed axle length: Fronts - 745.5, Rears - 741 mm, Inboard splines: Fronts - 24, Rears - 30, Outboard splines: Fronts - 29, Rears - 29. Comes with a 1 year warranty (excluding torn boots). Please note these will not fit 72" models.

  • What's In The Box

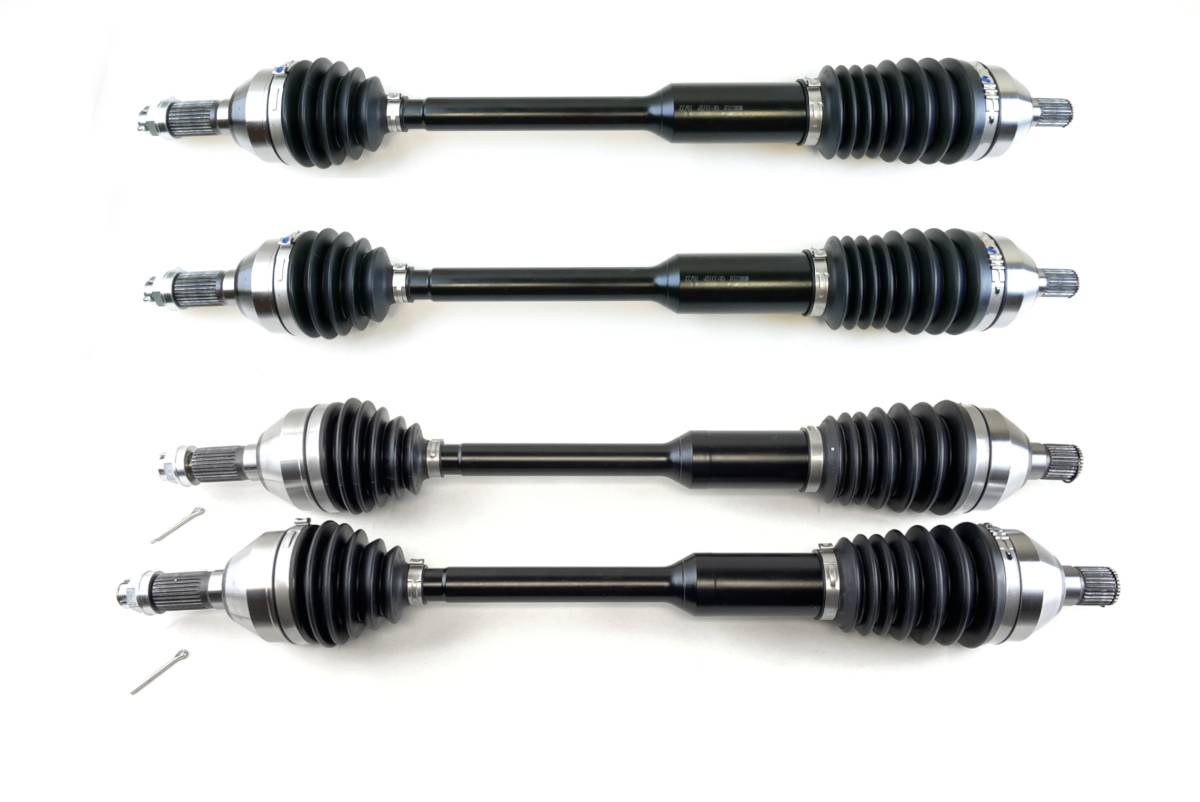

  • 4 axles
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • CA-227XP/CA-227XP/CA-329XP/CA-329XP
    • CA-227XP/CA-227XP/CA-329XP/CA-329XP
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 75.0 lbs.
    • W12.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
