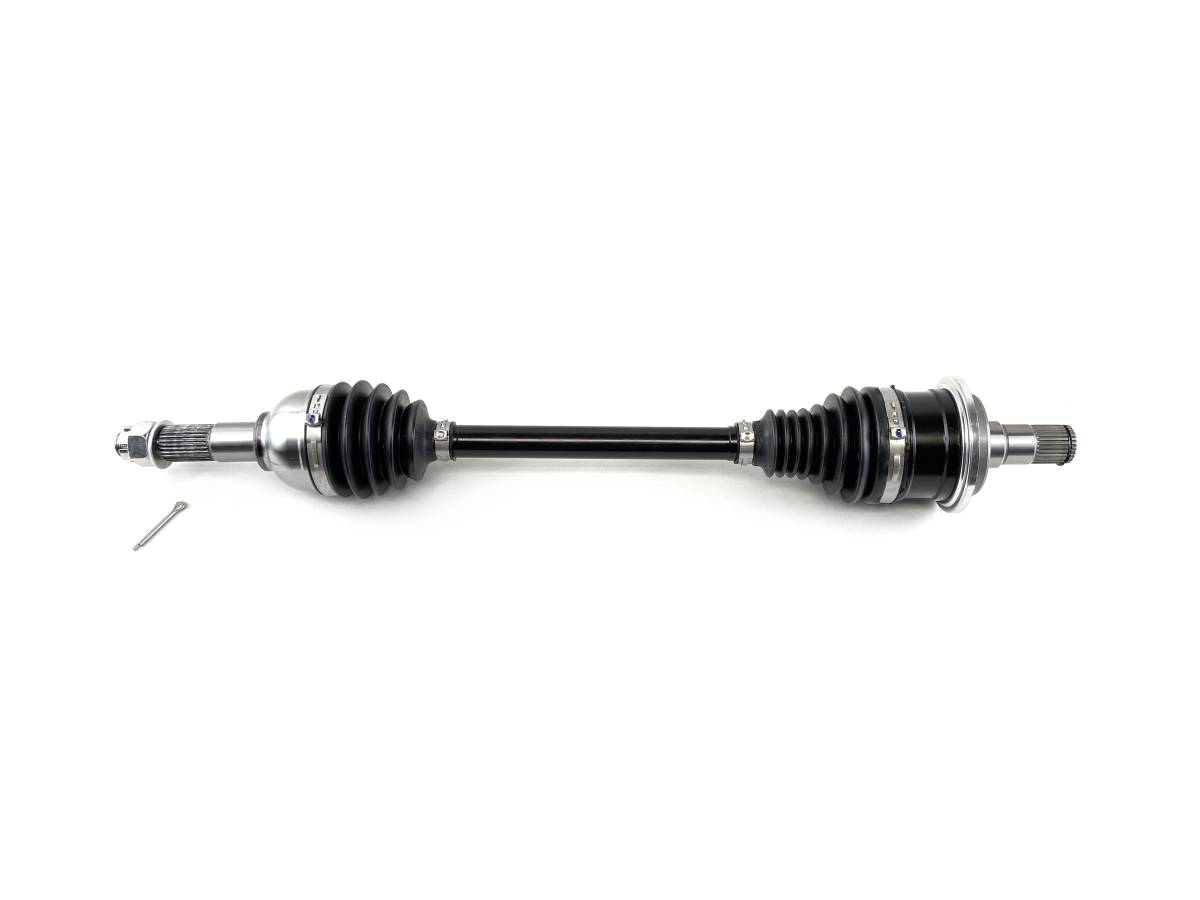

Rear CV Axle for CF-Moto UFORCE 1000 & 1000 XL, 5HY0-280300-20000

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CF-808
This is a new CV axle for a CF-Moto UTV.

It fits rear, left or right on the following models:

2020-2025 ... UFORCE 1000 & 1000 XL

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Replaces OEM # 5HY0-280300-20000
  • Compressed overall axle length: 671
  • Inboard CV joint spline count: 28
  • Outboard CV joint spline count: 27
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $99.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2025CF-MotoUFORCE 1000--
2025CF-MotoUFORCE 1000XL
2024CF-MotoUFORCE 1000--
2024CF-MotoUFORCE 1000XL
2023CF-MotoUFORCE 1000--
2023CF-MotoUFORCE 1000XL
2022CF-MotoUFORCE 1000--
2022CF-MotoUFORCE 1000XL
2021CF-MotoUFORCE 1000--
2020CF-MotoUFORCE 1000--

Product Notes

  • Fits rear, left or right on the CF Moto UTV models: 2020-2025 UFORCE 1000 (CF1000UU) & 1000 XL CF1000UZ-2.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed axle length: 671 mm, Inner spline count: 28, Outer spline count: 27.
  • Replaces OEM # 5HY0-280300-20000.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • CF-808
    • CF-808
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.6 lbs.
    • W6.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
