Axle Set for Yamaha Bruin 350 04-06 & Grizzly 350 07-11 (models without IRS)

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
YA-309/YA-309/YA-815
This is a set of new axles for a Yamaha ATV.

They fit the following models:

2004-2006 Bruin 350

2007-2011 Grizzly 350 (models without IRS)

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Joints greased with a moly based grease to provide superior joint lubrication

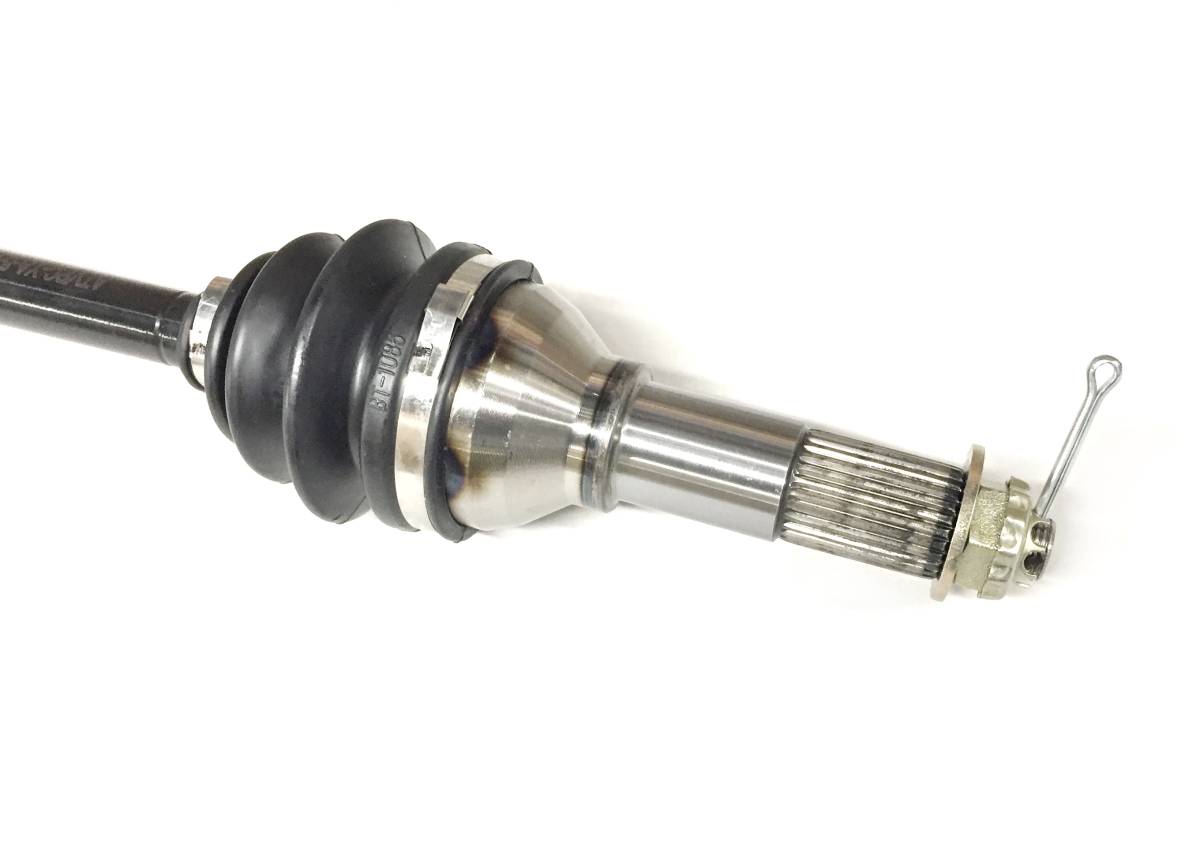

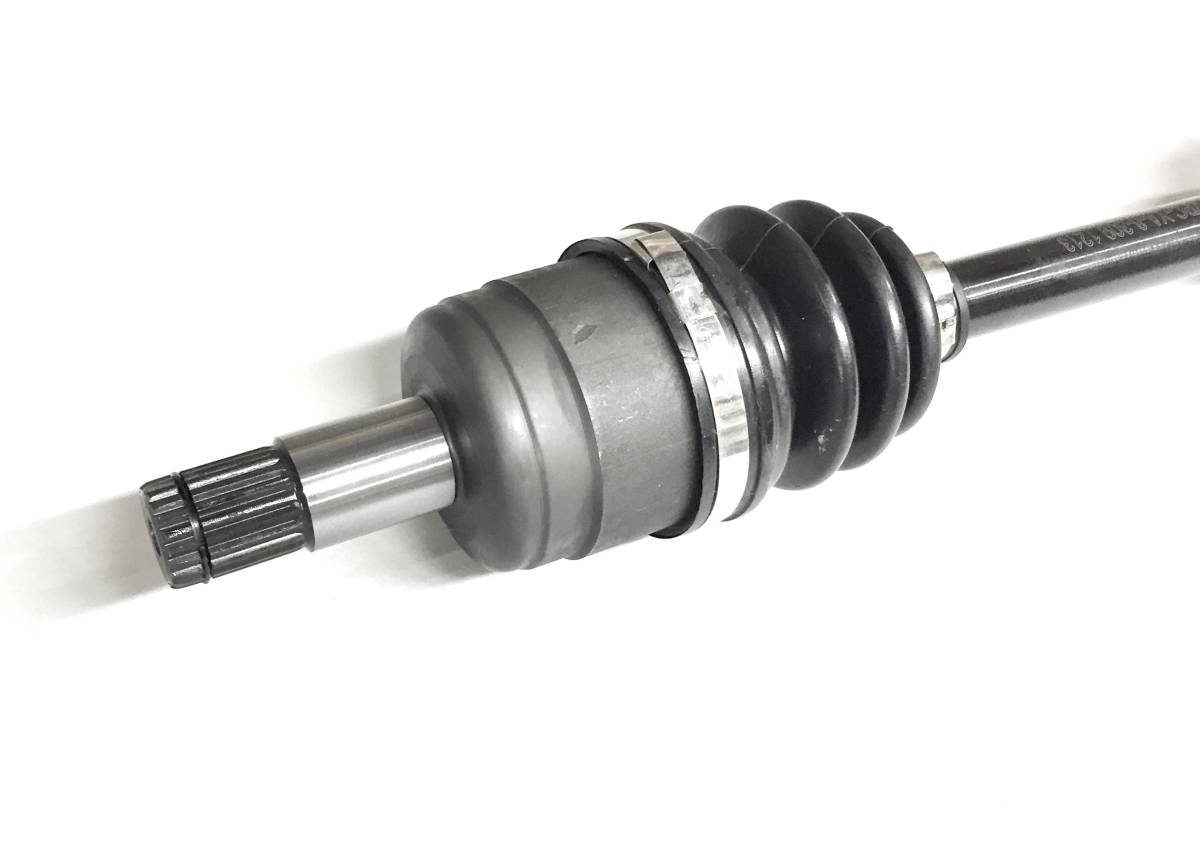

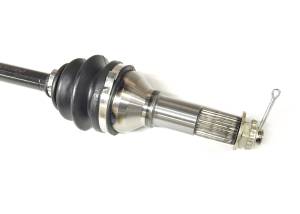

  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard spline count: Fronts - 21
  • Middle spline count: 39
  • Outboard spline count: Fronts - 27, Rear - 27
  • Replaces OEM # 5UH-2510F-00-00, 5UH-2510J-00-00, 5TE-F5381-01-00, 5TE-F5381-01-00, 5TE-F5381-20-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

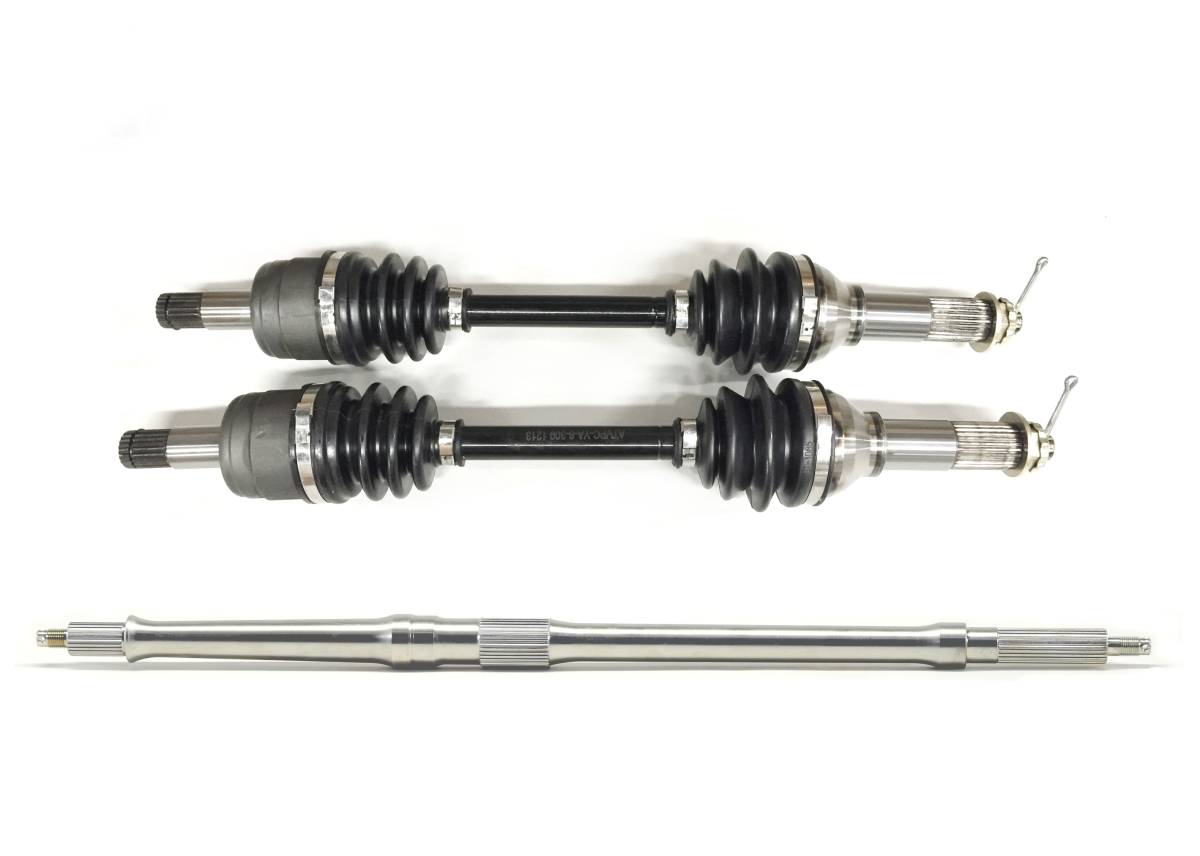

  • Fits the Yamaha Bruin 350 2004-2006 & Grizzly 350 2007-2011 (models without IRS). Set includes both front axles and the rear solid axles - as pictured.
  • Features stronger than OEM chromoly forged steel axle bars. Joints greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

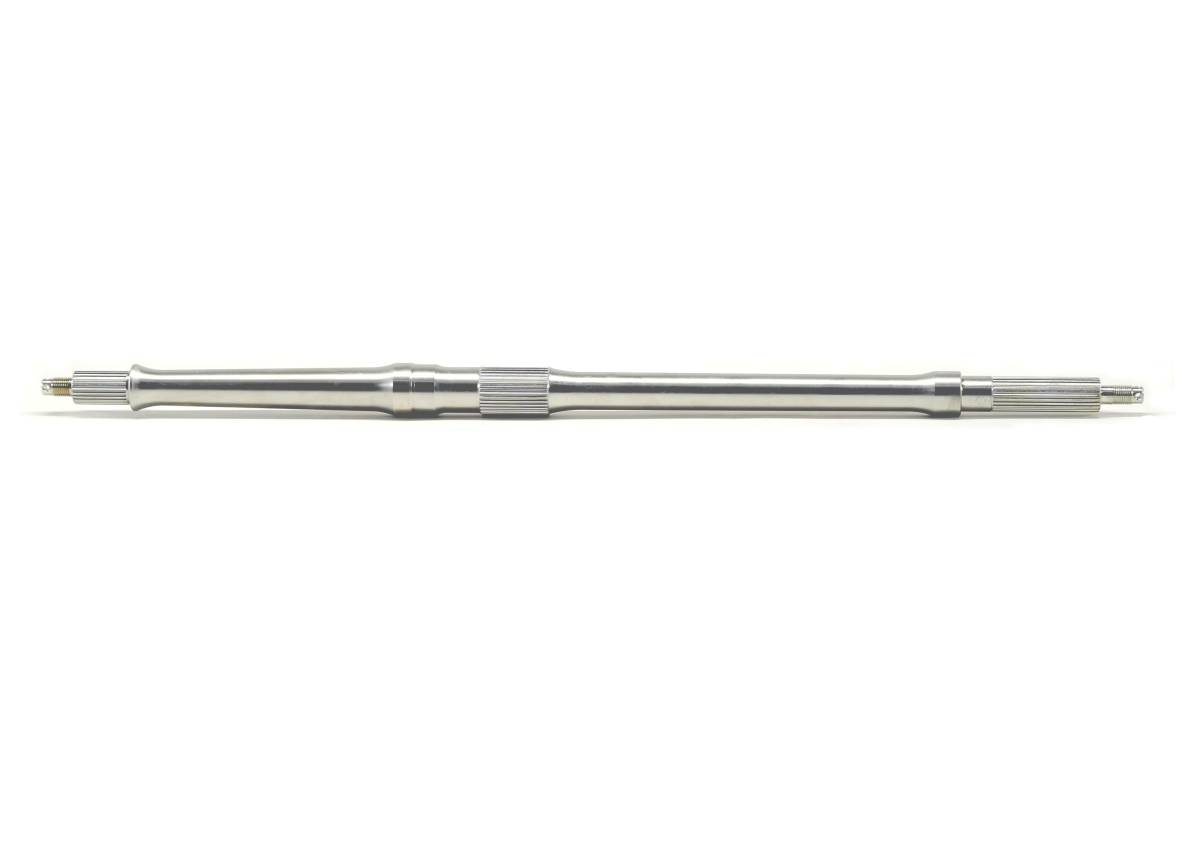

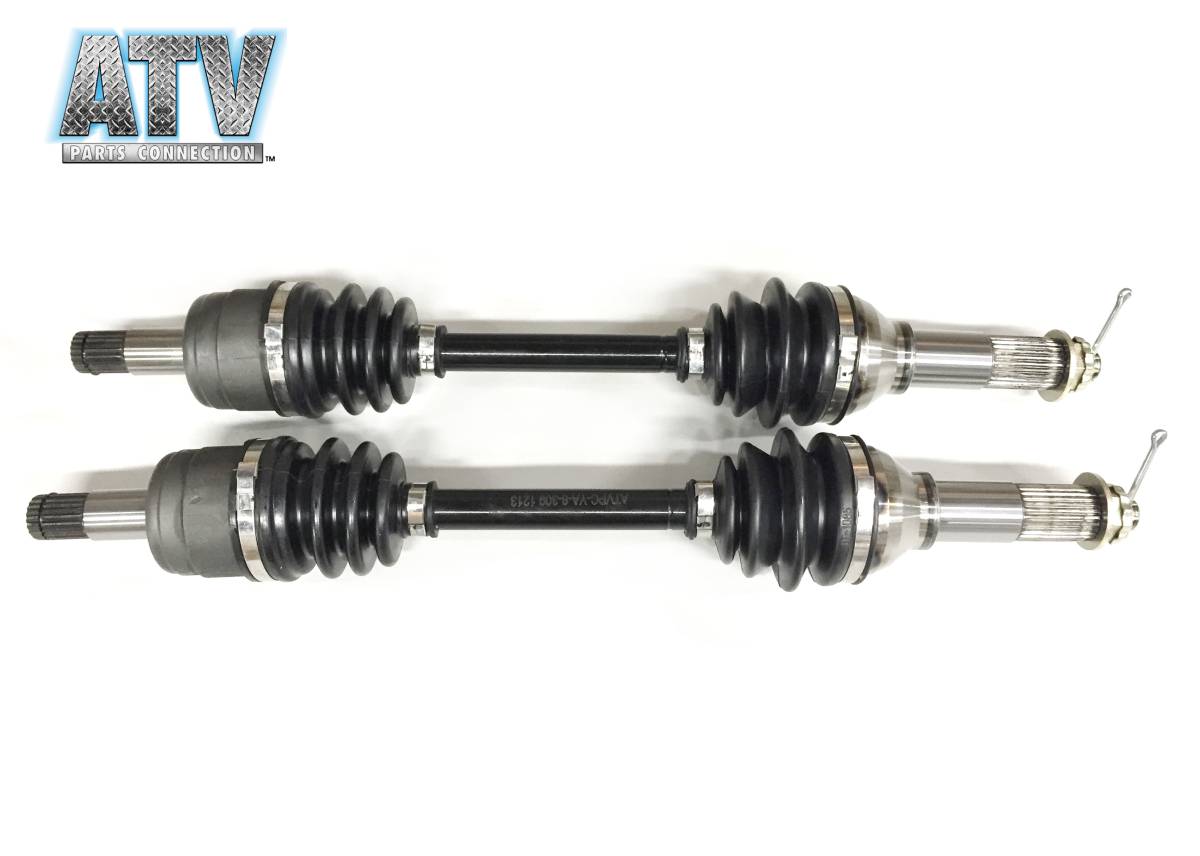

  • (Fronts) Compressed Length - 502mm (both), Inboard Spline Count - 21 (both), Outboard Spline Count - 27 (both) * (Rear) Outer spline count - 27, Middle spline count - 39.
  • Replaces OEM # 5UH-2510F-00-00, 5UH-2510J-00-00, 5TE-F5381-01-00, 5TE-F5381-01-00, 5TE-F5381-20-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 3 axles

    • Application List

    YearMakeModelSubmodelNotes
    2006YamahaBruin 350YFM350BA
    2006YamahaBruin 350YFM350FA 4x4
    2006YamahaBruin 350YFM350FAH 4x4 Hunter Edition
    2005YamahaBruin 350YFM350BA
    2005YamahaBruin 350YFM350FA 4x4
    2005YamahaBruin 350YFM350FAH 4x4 Hunter Edition
    2004YamahaBruin 350YFM350BA
    2004YamahaBruin 350YFM350FA 4x4
    2004YamahaBruin 350YFM350FAH 4x4 Auto Hunter Edition
    2011YamahaGrizzly 350YFM350FG 4x4
    2011YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2011YamahaGrizzly 350YFM350G
    2010YamahaGrizzly 350YFM350FG 4x4
    2010YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2010YamahaGrizzly 350YFM350G
    2009YamahaGrizzly 350YFM350FG 4x4
    2009YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2009YamahaGrizzly 350YFM350G
    2008YamahaGrizzly 350YFM350FG 4x4
    2008YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2008YamahaGrizzly 350YFM350G
    2007YamahaGrizzly 350YFM350FG 4x4
    2007YamahaGrizzly 350YFM350G

    Details

    • YA-309/YA-309/YA-815
    • YA-309/YA-309/YA-815
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 29.0 lbs.
    • W5.0000” x H10.0000” x L40.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
