CV Axle Set for Yamaha Kodiak 400 2005-2006 & Grizzly 350 400 2007-2011

Location on vehicle: Rear,Front,Left,Right

YA-309/YA-309/YA-313/YA-313

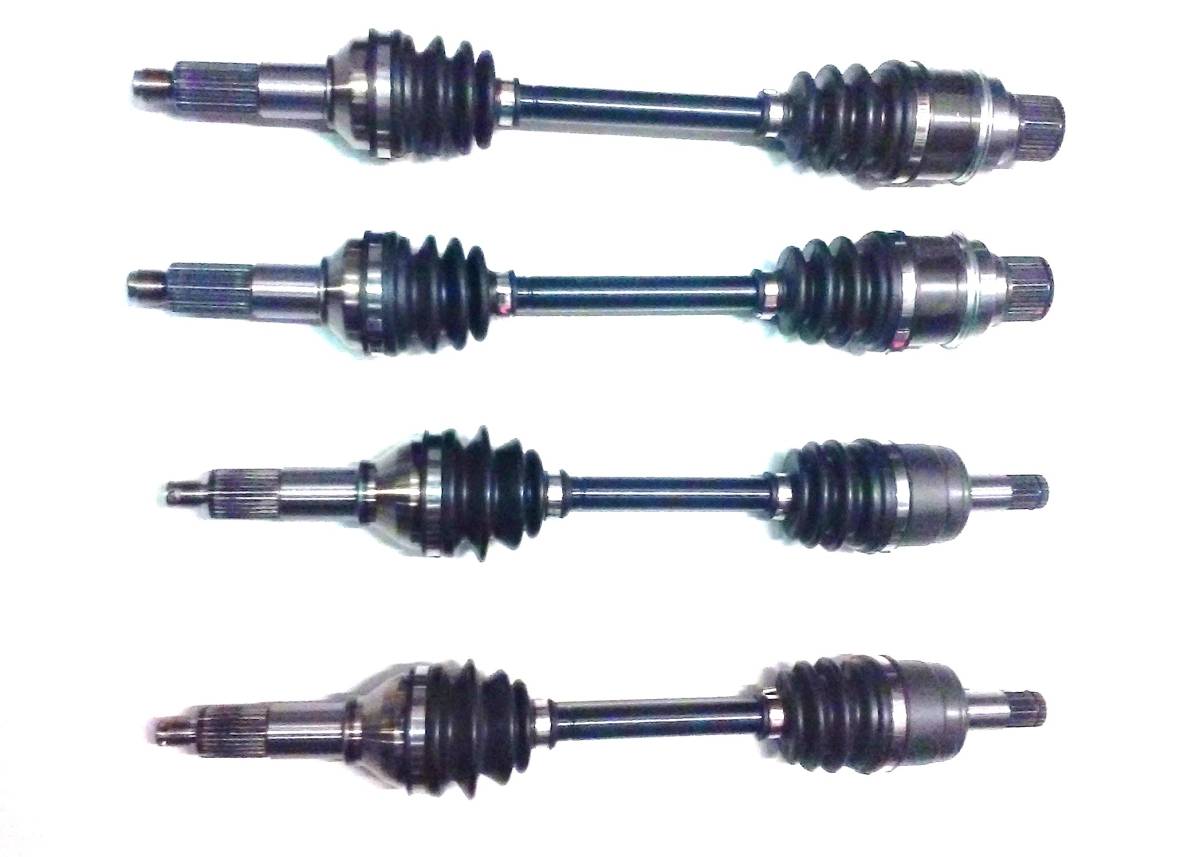

This is a set of new Front & Rear CV axles for a Yamaha ATV.

They fit the following 4x4 models:

2007-2011 ... Grizzly 350 (without IRS)

2007-2008 ... Grizzly 400

2005-2006 ... Kodiak 400

*Not intended for use in lifted vehicles

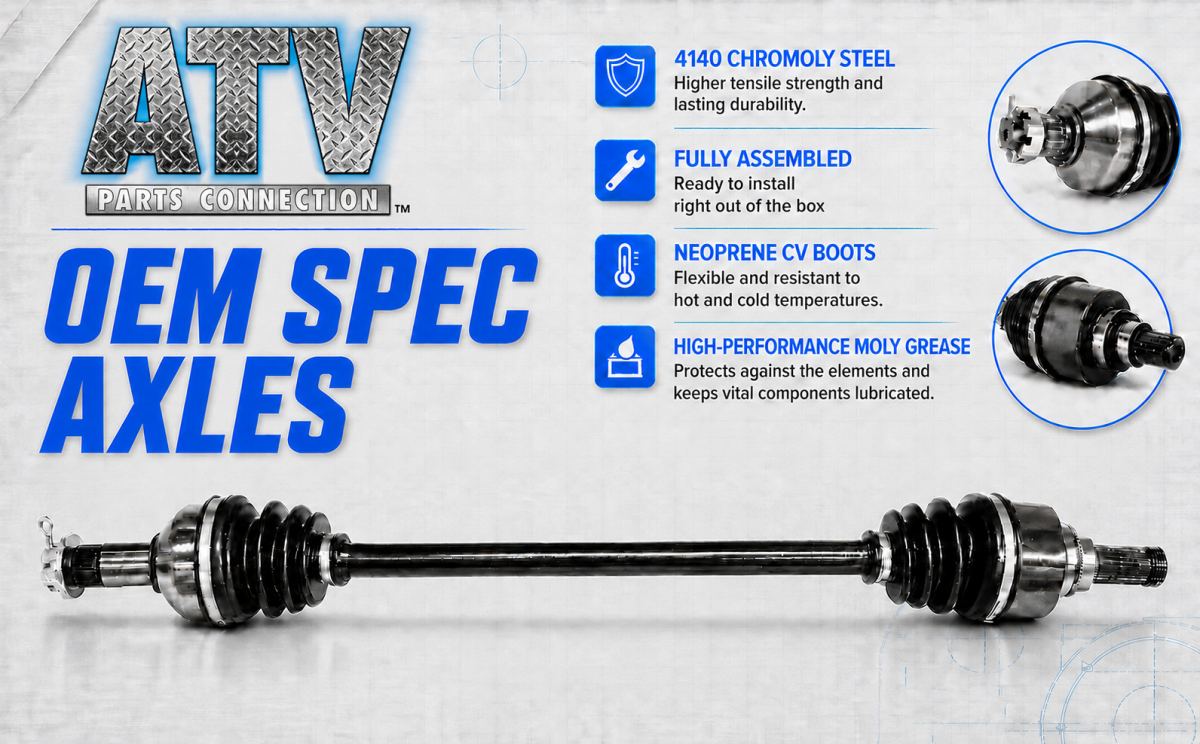

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

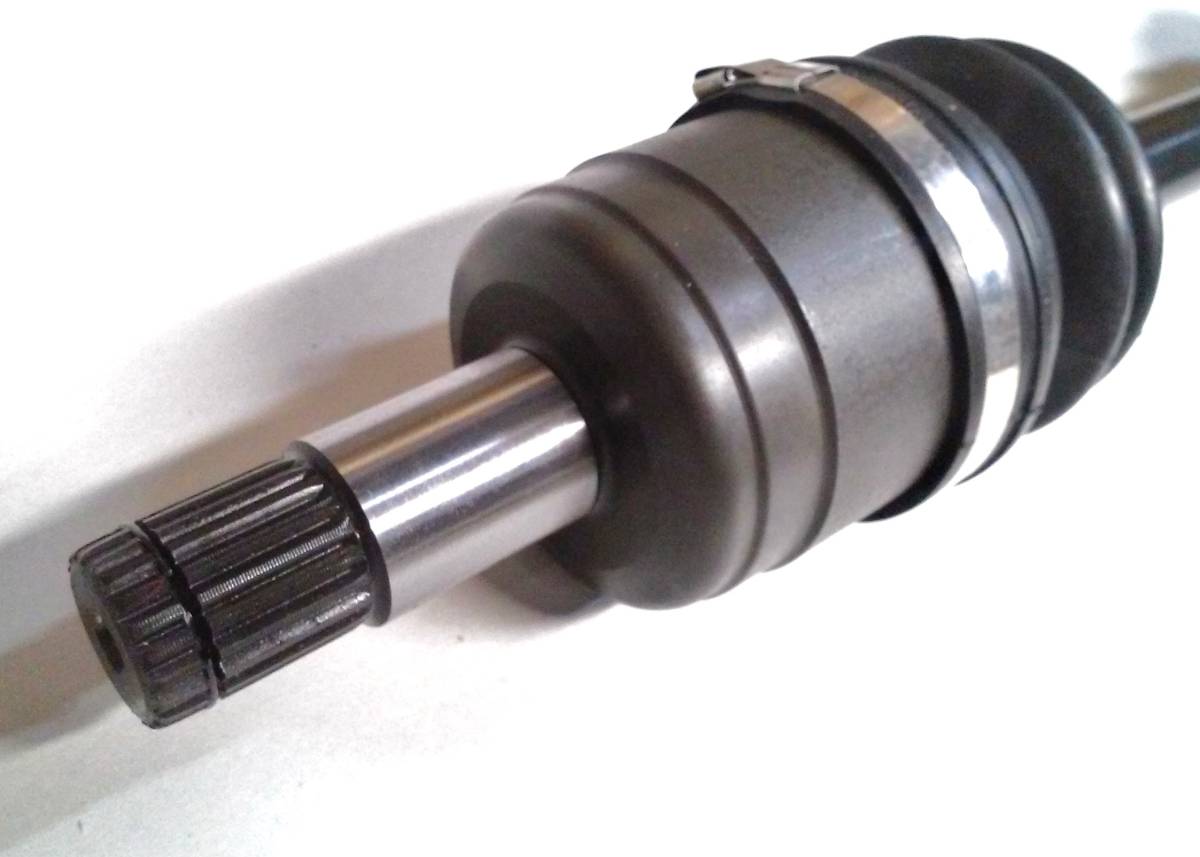

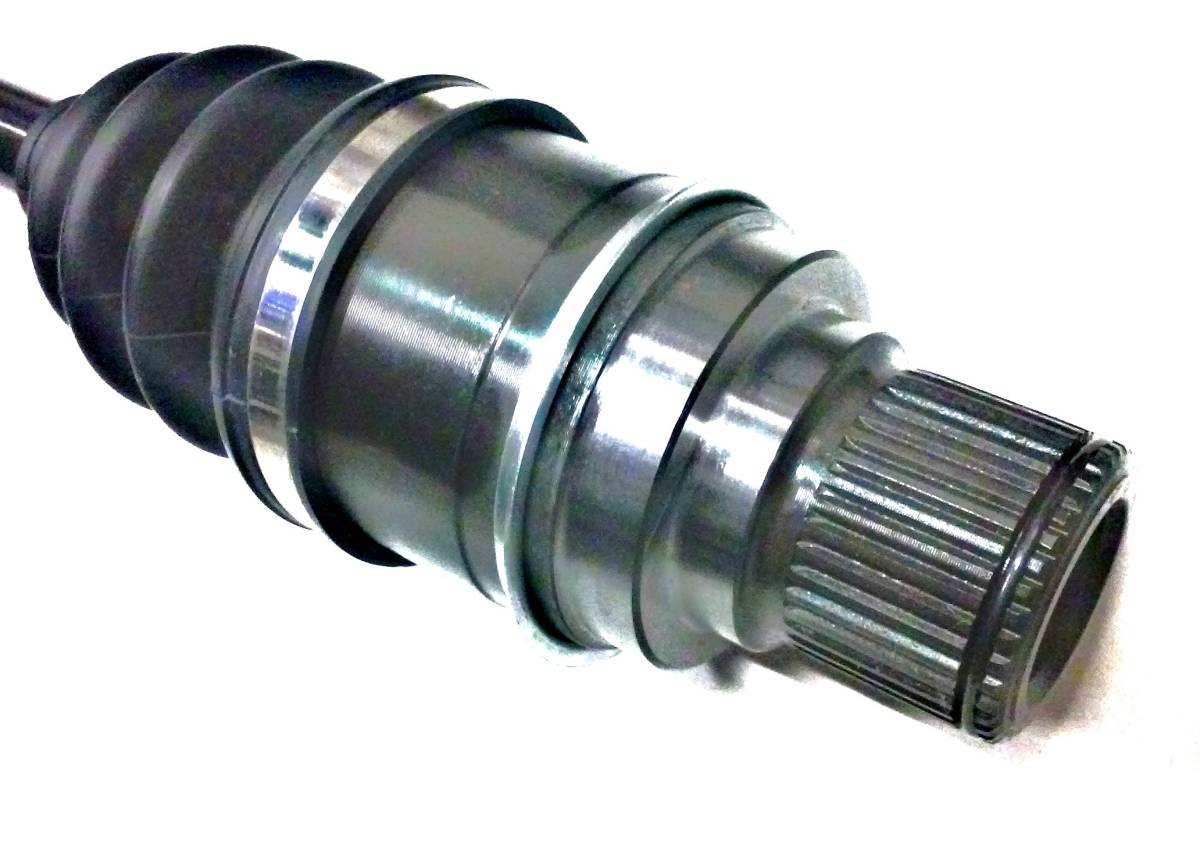

  • Inboard CV joint spline count: Fronts - 21, Rears - 39

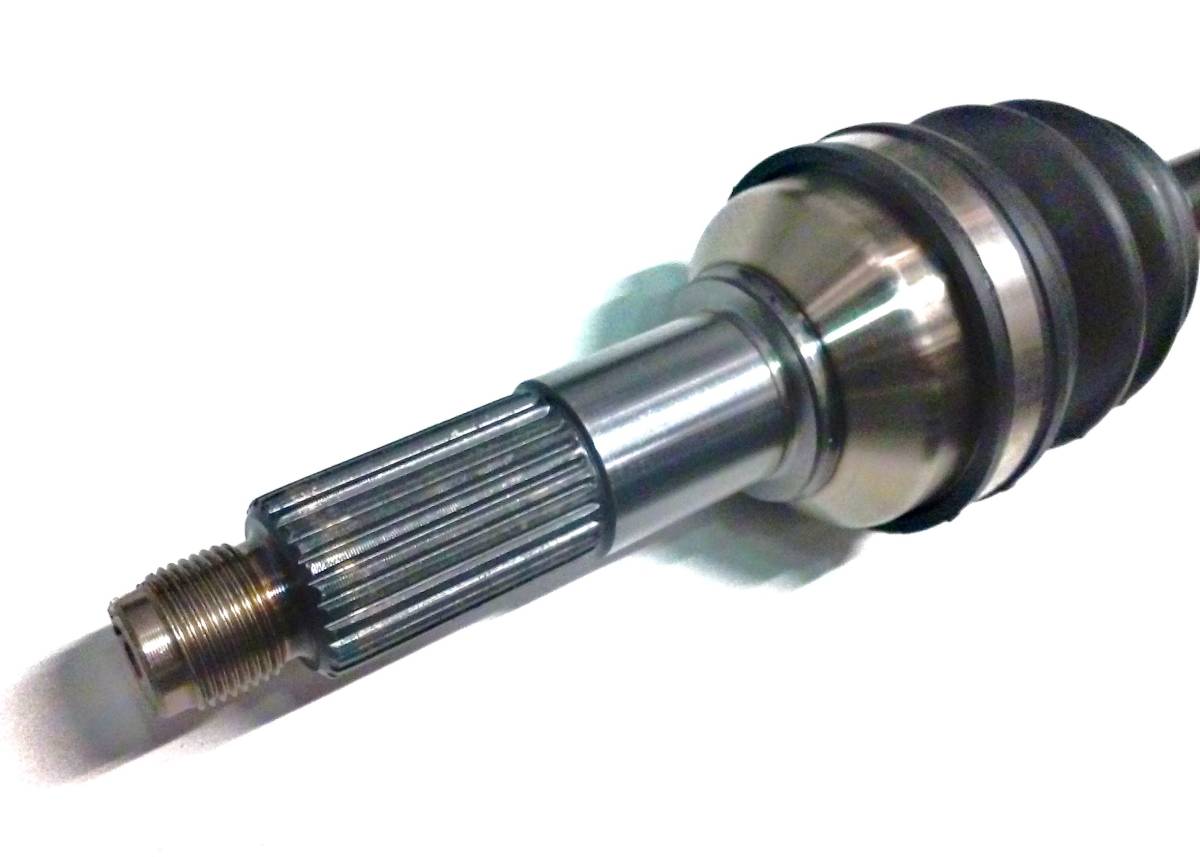

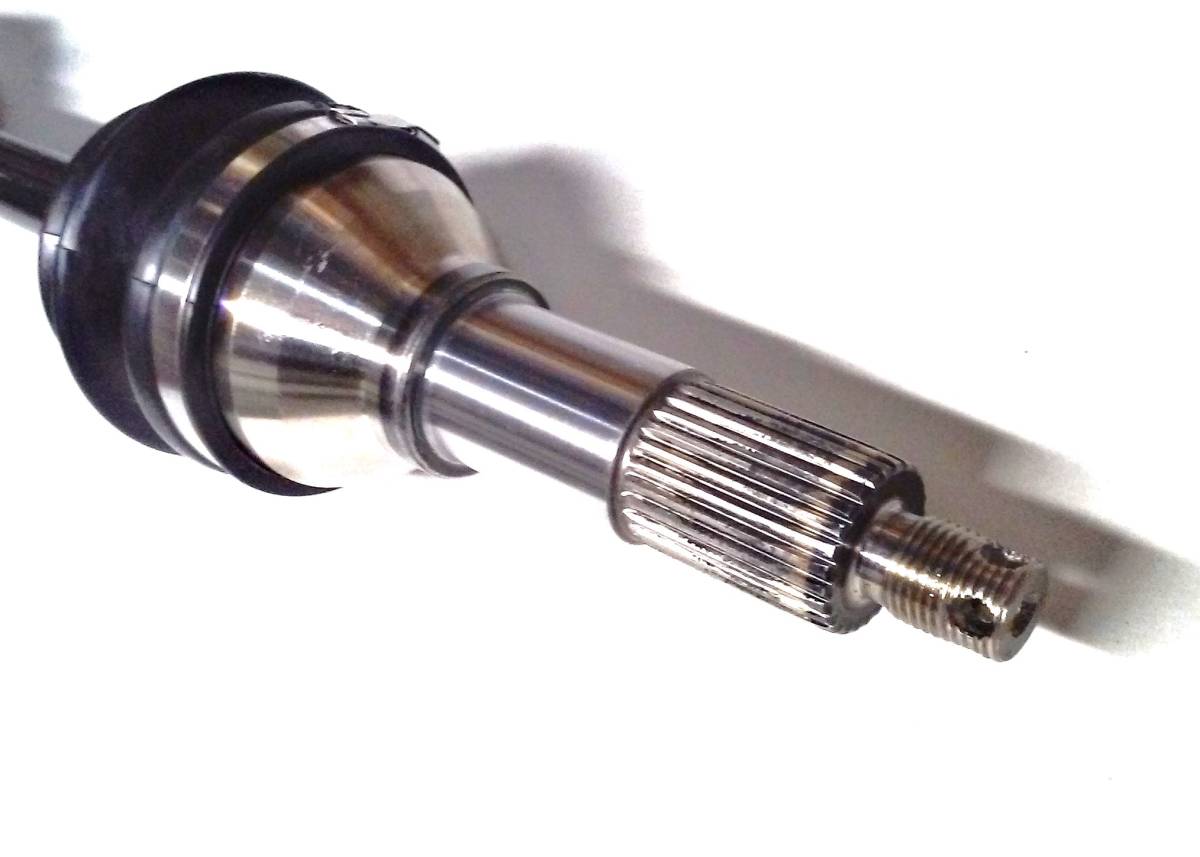

  • Outboard CV joint spline count: Fronts - 27, Rears - 27
  • Compressed overall axle length: Fronts - 502 mm, Rears - 508 mm
  • Replaces Yamaha OEM # (fronts) 5TE-F510F-00-00 5GH-2510J-00-00, (rears) 4S2-2530U-00-00, 4S1-2530V-00-00

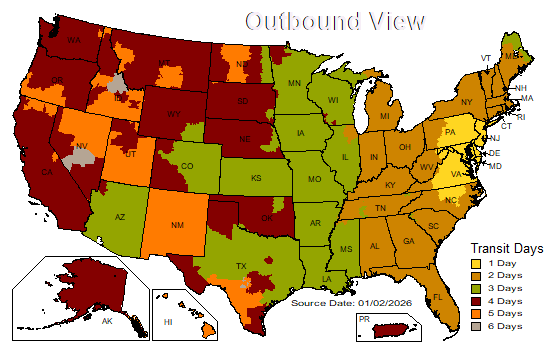

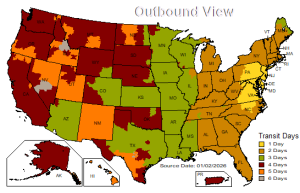

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $224.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2007-2011 Grizzly 350 (without IRS), 2007-2008 Grizzly 400, & 2005-2006 Kodiak 400 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: Fronts - 502 mm, Rears - 508 mm, Inboard Spline Count: Fronts - 21, Rears - 39, Outboard Spline Count: Fronts - 27, Rears - 27.
  • Replaces Yamaha OEM # (fronts) 5TE-F510F-00-00 5GH-2510J-00-00, (rears) 4S2-2530U-00-00, 4S1-2530V-00-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2011YamahaGrizzly 350YFM350FG 4x4
    2011YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2011YamahaGrizzly 350YFM350G
    2010YamahaGrizzly 350YFM350FG 4x4
    2010YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2010YamahaGrizzly 350YFM350G
    2009YamahaGrizzly 350YFM350FG 4x4
    2009YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2009YamahaGrizzly 350YFM350G
    2008YamahaGrizzly 350YFM350FG 4x4
    2008YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2008YamahaGrizzly 350YFM350G
    2007YamahaGrizzly 350YFM350FG 4x4
    2007YamahaGrizzly 350YFM350G
    2008YamahaGrizzly 400YFM400FG 4x4
    2008YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
    2007YamahaGrizzly 400YFM400FG 4x4
    2007YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
    2006YamahaKodiak 400YFM400FA 4x4
    2006YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2005YamahaKodiak 400YFM400FA 4x4
    2005YamahaKodiak 400YFM400FAH 4x4 Hunter Edition

    Details

    • YA-309/YA-309/YA-313/YA-313
    • YA-309/YA-309/YA-313/YA-313
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 34.5 lbs.
    • W10.0000” x H10.0000” x L26.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
