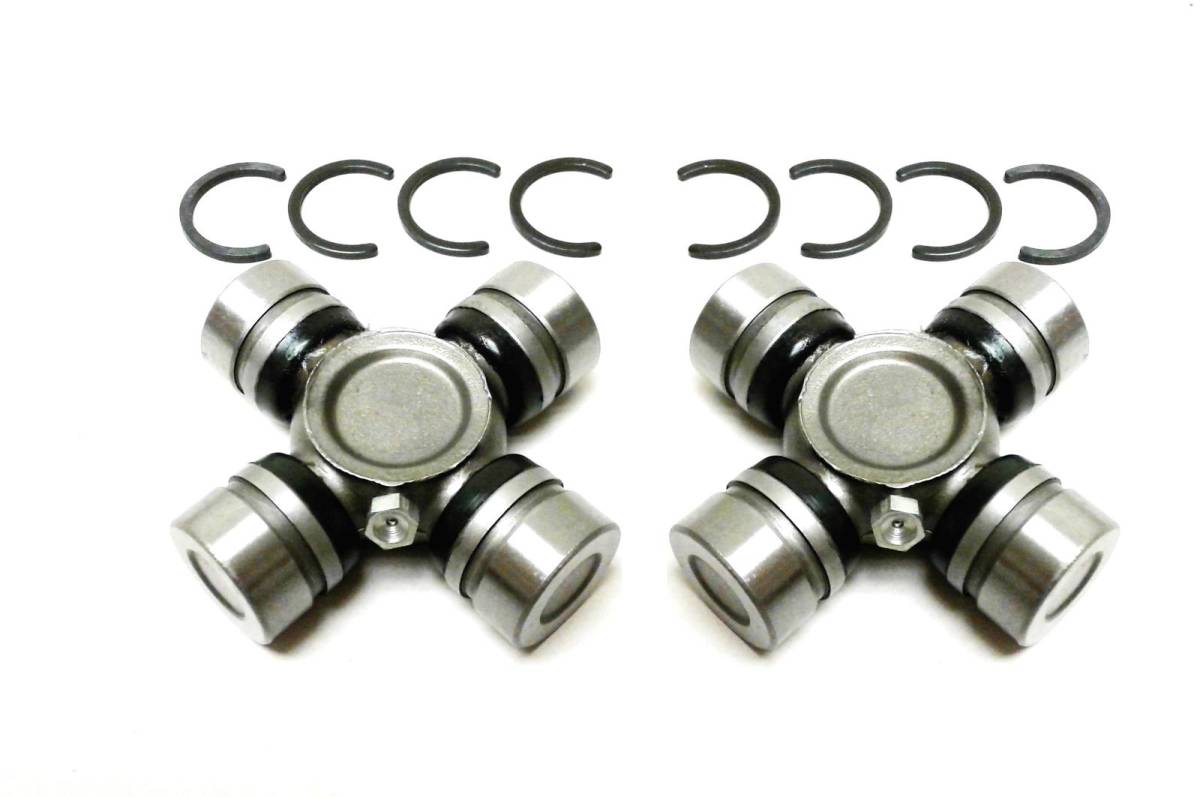

Rear Axle Inboard Universal Joints for Polaris ATV, 1590256, Set of 2

Location on vehicle: Rear

(0) Reviews: Write first review
ATV503/ATV503
This is a pair of new universal joints for a Polaris UTV.

They fit the INBOARD positions on the REAR axles on the following models:

1999 ... Diesel 455

1999-2000 ... Sportsman 335

1996-1998 ... Sportsman 500

1999 ... Worker 335

1997 ... Xplorer 500

Product features:

  • Precision engineered to ensure a solid fit and proper balance
  • Designed to help to reduce vibration provide a smooth operation
  • OE replacement with a zirk fitting - lubrication point for maintenance/ longevity
  • Bearing Diameter: 1.00 in., Stack-Up Dimension: 2.34 in.
  • Snap Ring Thickness: 0.09 in., Cross Span: 2.87 in.
  • Style of Snap Rings: Inside Snap Rings - for inward force & better axial positioning
  • Replaces OEM # 1590256
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $25.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
1999PolarisDiesel 4554X4
2000PolarisSportsman 3354X4
1999PolarisSportsman 335--
1999PolarisSportsman 3354X4
1998PolarisSportsman 5004X4
1997PolarisSportsman 5004X4
1996PolarisSportsman 5004X4
1999PolarisWorker 335--
1997PolarisXplorer 5004X4

Product Notes

  • Fits the INBOARD positons of the REAR axles (as pictured) on the following Polaris ATV models: 1999 Diesel 455, 1999-2000 Sportsman 335, 1996-1998 Sportsman 500, 1999 Worker 335, 1997 Xplorer 500.
  • Precision engineered to ensure a solid fit and proper balance. OE replacement with a zirk fitting - providing a lubrication point for maintenance and increased longevity.
  • Designed to help to reduce vibration and provide smooth operation. Replaces OEM # 1590256. Kit includes 1 universal joint and 4 clips.
  • Bearing Diameter: 1.00 in, Stack-Up Dimension: 2.34 in, Cross Span: 2.87 in, Snap Ring Thickness: 0.09 in, Style of Snap Rings: Inside Snap Rings - for inward force & better axial positioning.
  • Comes with a 1 year warranty. Please note parts are designed as an OEM replacement and use on lifted/modified vehicles will void warranty.

    • What's In The Box

  • 2 universal joints

    • Warranty

    1 year factory defect warranty
