Front CV Axle with Bearing for Polaris Scrambler & Sportsman 850 1000 2016-2021

Location on vehicle: Front,Left,Right

PO-333/WB-1628
This is a new Front CV axle & wheel bearing for a Polaris ATV.

They fit the following 4x4 applications:

2016-2021 ... Scrambler 850

2016-2021 ... Scrambler 1000/XP 1000

2016-2021 ... Sportsman 850

2017-2021 ... Sportsman 1000

Front, Left or Right

For 2016 - only models built after 2/16/2016

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene boots for added wear & puncture resistance

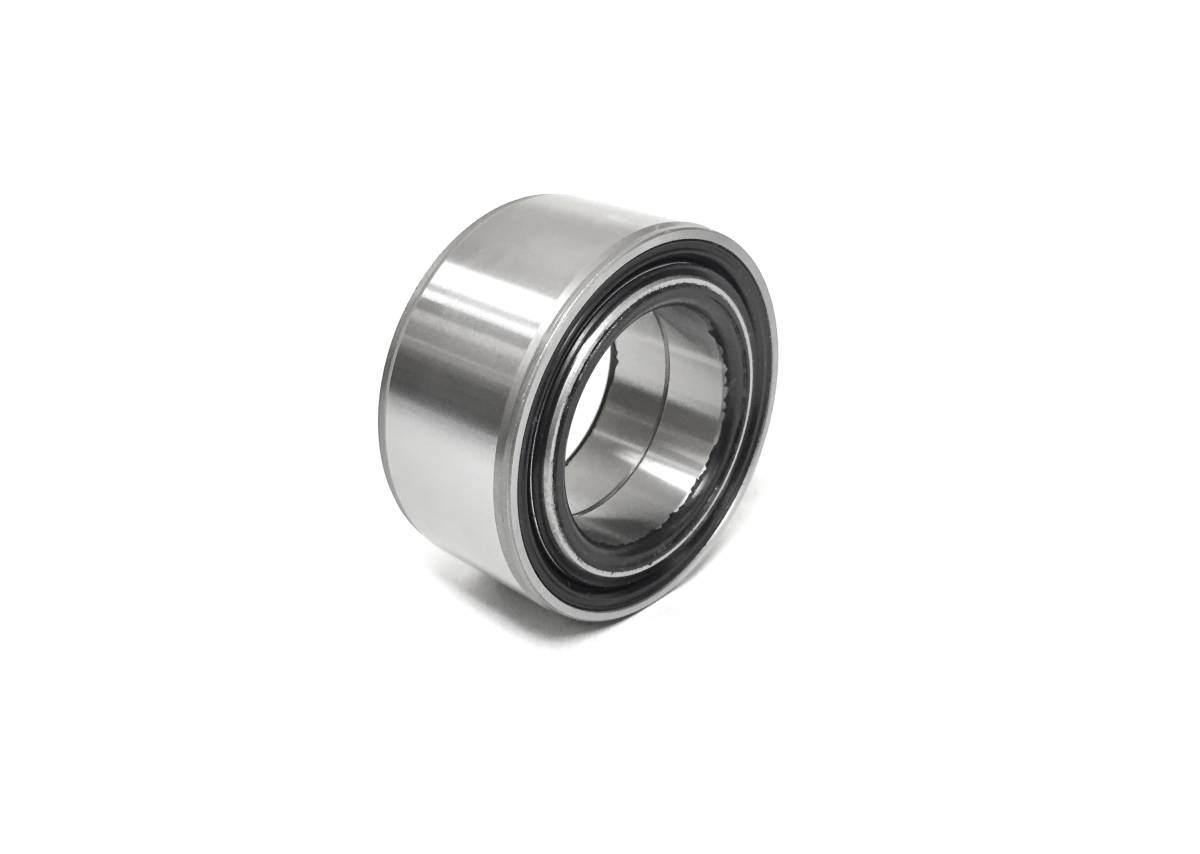

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out

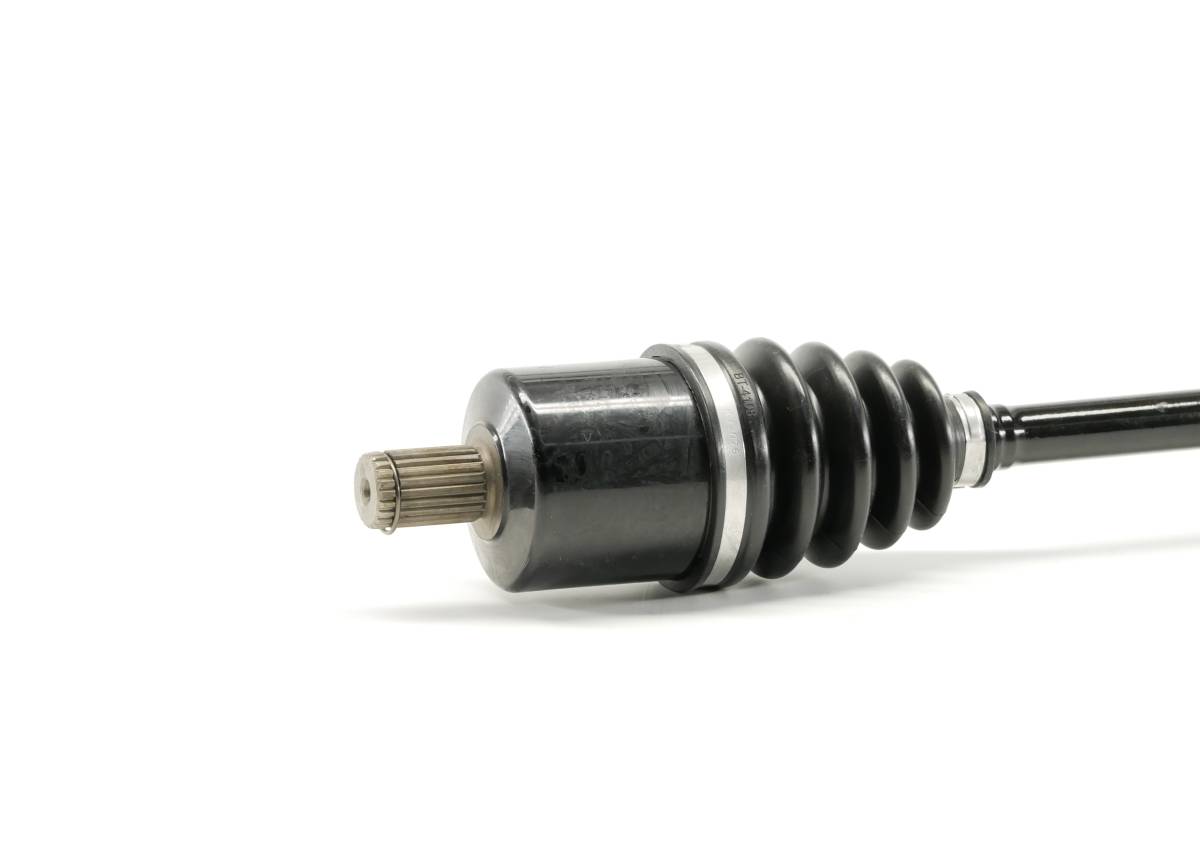

  • Inboard CV joint spline count: 22

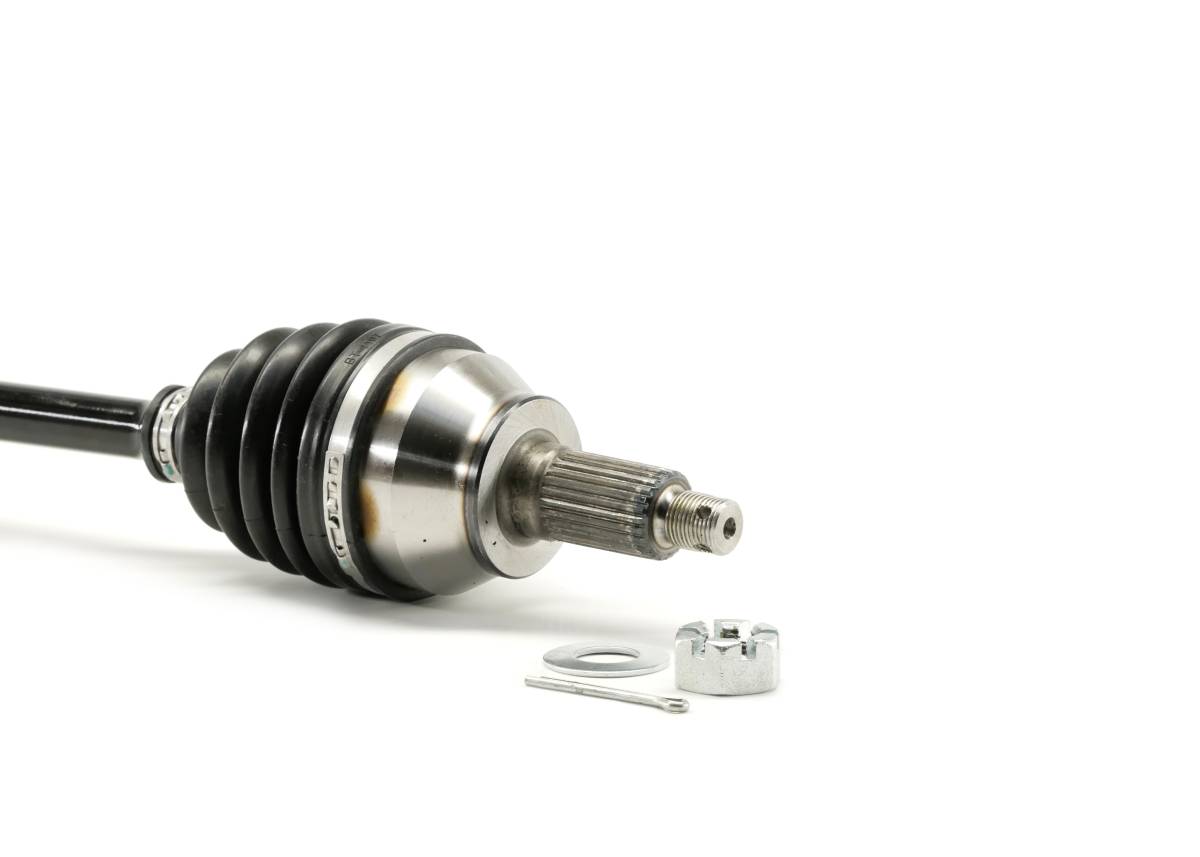

  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 558.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $98.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2016-2021 Scrambler 850, 2016-2021 Scrambler 1000/XP 1000, 2016-2021 Sportsman 850, 2017-2021 Sportsman 1000 (excluding XP S 1000 55").
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Inner splines: 22, Outer splines: 26, Compressed overall axle length: 558.5 mm * Replaces Polaris OEM # 1333431, 1333802, 3514627, 3514699.
  • Comes 1 year warranty (excluding torn boots & use on lifted vehicles).

  • What's In The Box

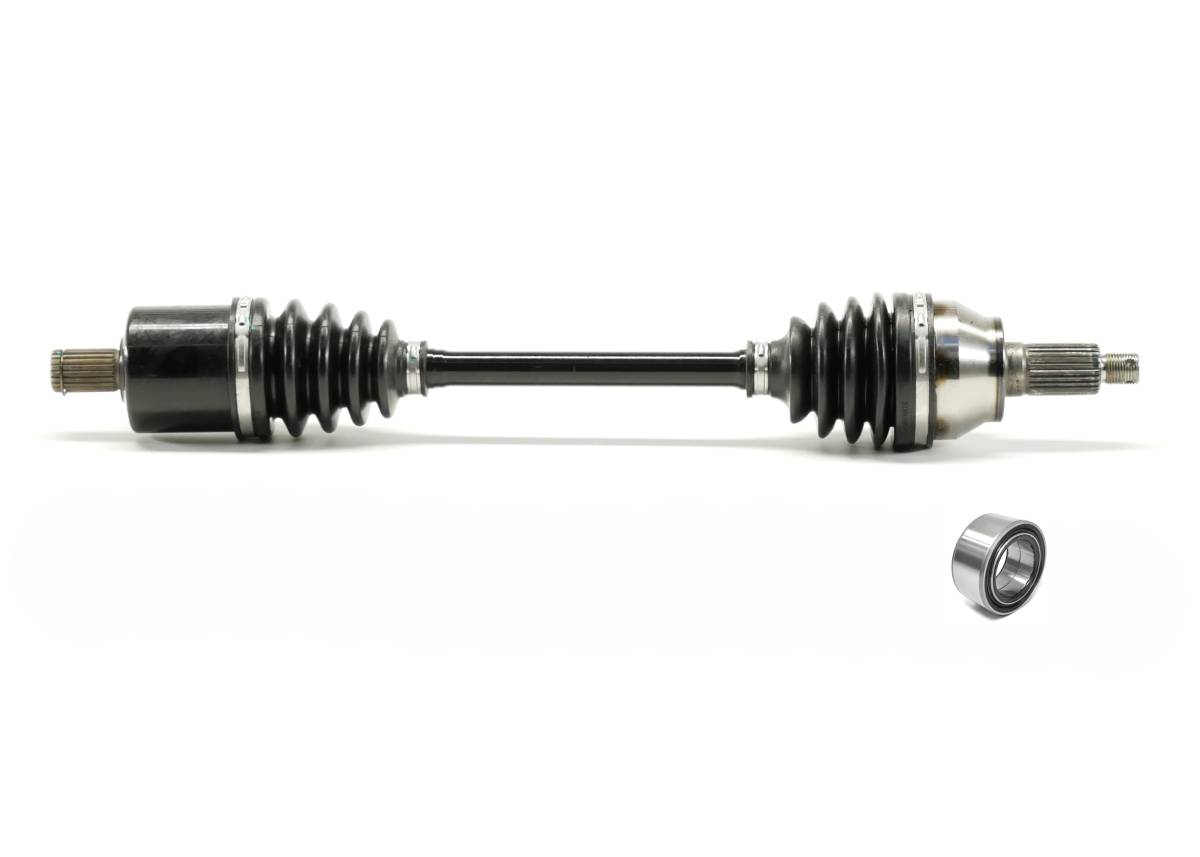

  • 1 axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2021PolarisScrambler 850--
    2020PolarisScrambler 850--
    2019PolarisScrambler 850--
    2018PolarisScrambler 850--
    2017PolarisScrambler 850--
    2016PolarisScrambler 850--
    2021PolarisScrambler XP 1000S
    2020PolarisScrambler XP 1000S
    2019PolarisScrambler XP 1000EPS
    2018PolarisScrambler XP 1000EPS
    2017PolarisScrambler XP 1000EPS
    2016PolarisScrambler XP 1000EPS
    2021PolarisSportsman 850--
    2021PolarisSportsman 850High Lifter Edition
    2021PolarisSportsman 850Premium
    2021PolarisSportsman 850Touring
    2021PolarisSportsman 850Trail
    2021PolarisSportsman 850Ultimate Trail Edition
    2020PolarisSportsman 850--
    2020PolarisSportsman 850High Lifter Edition
    2020PolarisSportsman 850Premium
    2020PolarisSportsman 850Premium LE
    2020PolarisSportsman 850Touring
    2019PolarisSportsman 850--
    2019PolarisSportsman 850High Lifter Edition
    2018PolarisSportsman 850--
    2018PolarisSportsman 850High Lifter Edition
    2017PolarisSportsman 850--
    2017PolarisSportsman 850High Lifter Edition
    2016PolarisSportsman 850--
    2016PolarisSportsman 850High Lifter Edition
    2016PolarisSportsman 850Pursuit Camo
    2016PolarisSportsman 850SP
    2019PolarisSportsman SP 850--
    2019PolarisSportsman SP 850Touring
    2018PolarisSportsman SP 850--
    2018PolarisSportsman SP 850Touring
    2017PolarisSportsman SP 850--
    2017PolarisSportsman SP 850Pursuit Camo
    2017PolarisSportsman SP 850Touring
    2016PolarisSportsman SP 850--
    2016PolarisSportsman SP 850Touring
    2021PolarisSportsman Touring 850--
    2020PolarisSportsman Touring 850--
    2021PolarisSportsman XP 1000--
    2021PolarisSportsman XP 1000High Lifter Edition
    2021PolarisSportsman XP 1000Hunter Edition
    2021PolarisSportsman XP 1000Touring
    2021PolarisSportsman XP 1000Trail
    2020PolarisSportsman XP 1000--
    2020PolarisSportsman XP 1000High Lifter Edition
    2020PolarisSportsman XP 1000Hunter Edition
    2020PolarisSportsman XP 1000Premium
    2020PolarisSportsman XP 1000S
    2020PolarisSportsman XP 1000Touring
    2020PolarisSportsman XP 1000Trail
    2019PolarisSportsman XP 1000--
    2019PolarisSportsman XP 1000High Lifter Edition
    2019PolarisSportsman XP 1000Hunter Edition
    2019PolarisSportsman XP 1000LE
    2019PolarisSportsman XP 1000Touring
    2018PolarisSportsman XP 1000--
    2018PolarisSportsman XP 1000High Lifter Edition
    2018PolarisSportsman XP 1000Hunter Edition
    2018PolarisSportsman XP 1000LE
    2018PolarisSportsman XP 1000Touring
    2017PolarisSportsman XP 1000--
    2017PolarisSportsman XP 1000High Lifter Edition
    2017PolarisSportsman XP 1000Hunter Edition
    2017PolarisSportsman XP 1000Matte Copper LE
    2017PolarisSportsman XP 1000Touring

    Details

    • PO-333/WB-1628
    • PO-333/WB-1628
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 11.5 lbs.
    • W4.0000” x H4.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
