Upgraded Front CV Axle Pair with Bearing Kits for Polaris ATV 1380063, 1380066

Location on vehicle: Front,Left,Right

PO-104/PO-104/WB-1008/WB-1008

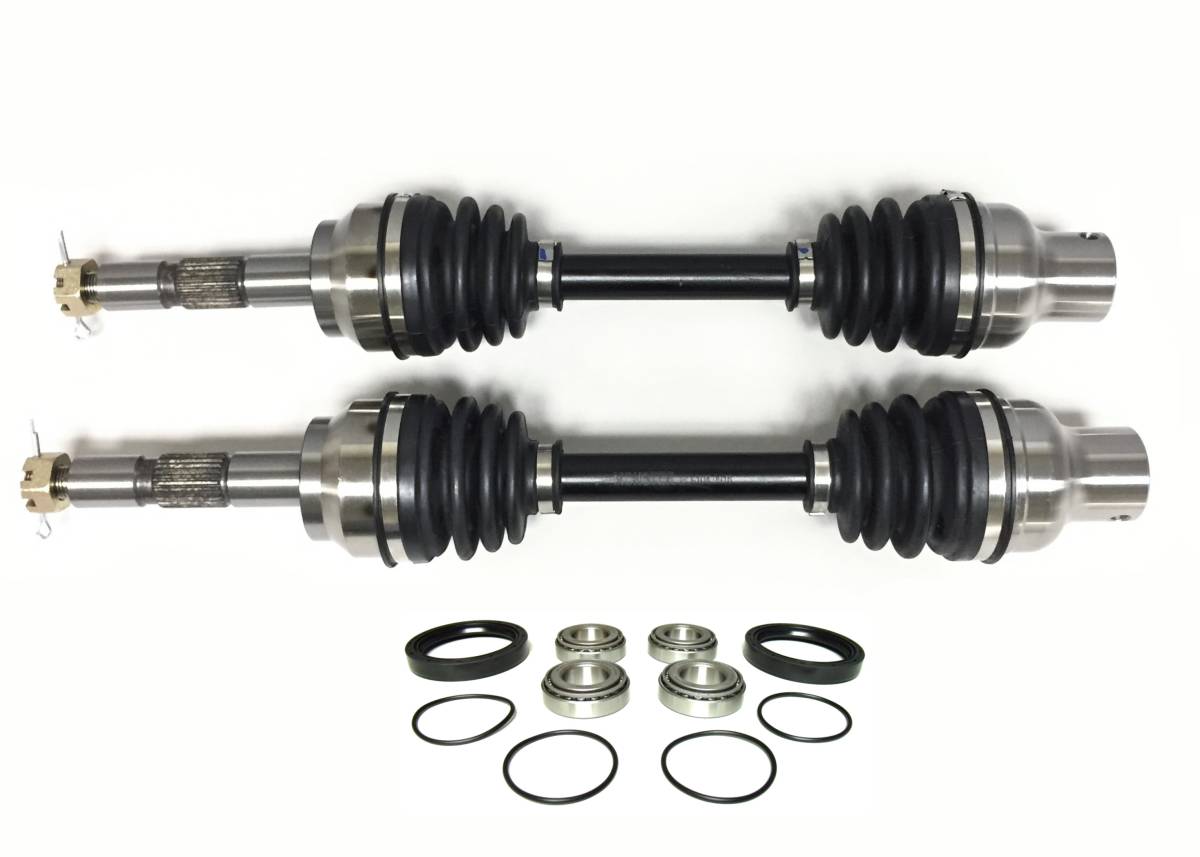

This is a pair of new Front conversion CV axles with wheel bearing kits for a Polaris ATV.

***The inner U-joints have been replaced with CV joints for better durability and perfromance***

They fit the following models:

1998-2002 ... Big Boss 500

1999-2002 ... Diesel 455

2000-2002 ... Magnum 325 (without Visco Lok)

1995-1998 ... Magnum 425

1995-2002 ... Scrambler 400

1997-2009 ... Scrambler 500

1999-2000 ... Sportsman 335

1995-2003 ... Sportsman 400

1996-2004 ... Sportsman 500 4x4 and 6x6

1999 ... Worker 335 and 500

2000-2002 ... Xpedition 325 & 425

2000-2002 ... Xplorer 250

1996-1999 ... Xplorer 300

1995-2002 ... Xplorer 400

1997 ... Xplorer 500

Front, Left or Right

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out

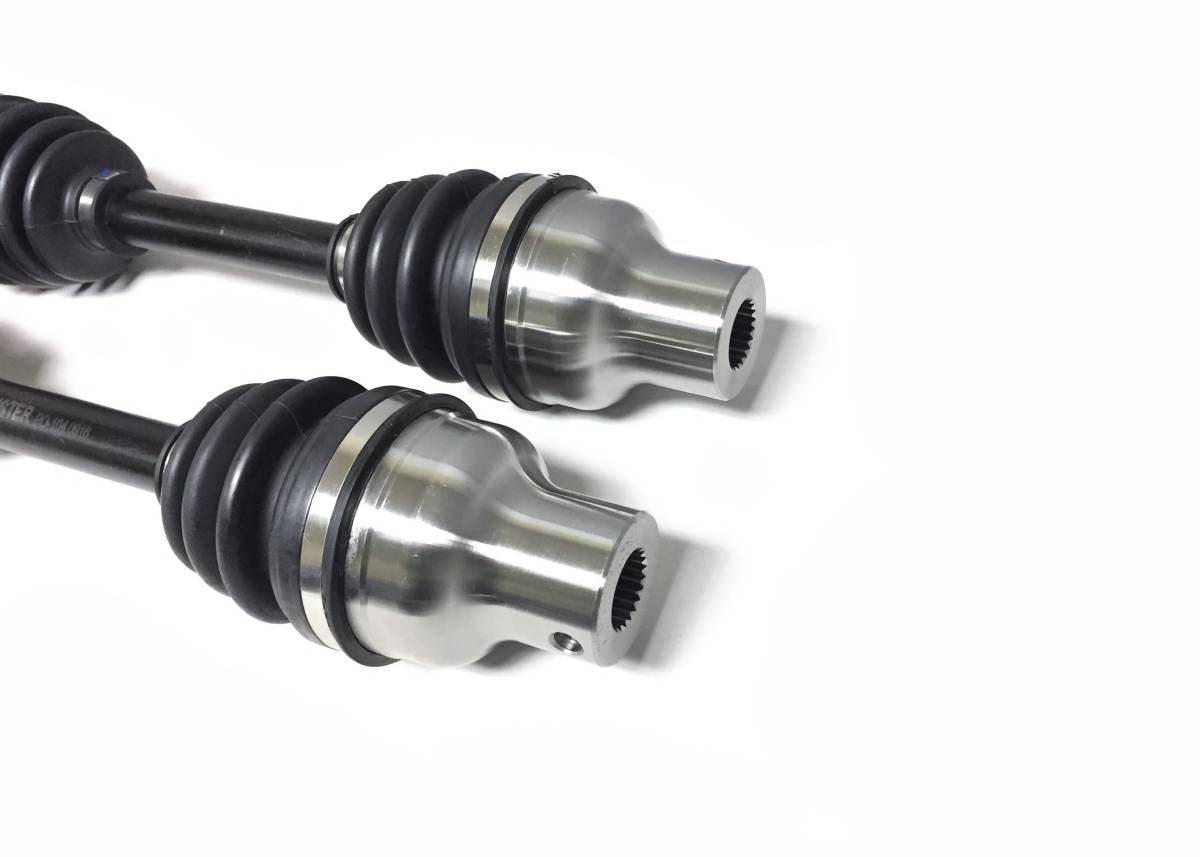

  • Inboard CV joint spline count: 22 -female type (both)

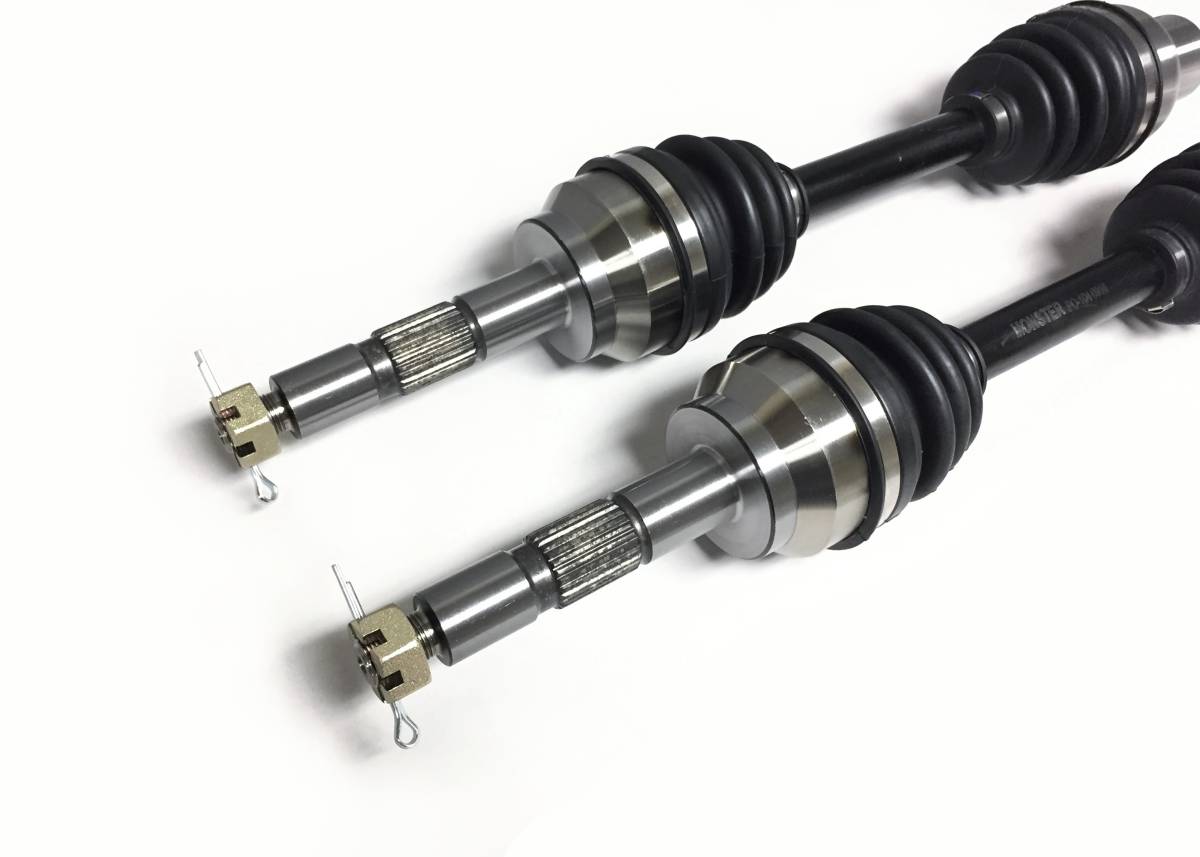

  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 668.5 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $199.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 1998-2002 Big Boss 500, 1999-2002 Diesel 455, 2000-2002 Magnum 325 (without Visco-Lok), 1995-1998 Magnum 425, 1996-1997 6x6 Magnum 425, 1995-2002 Scrambler 400, 1997-2009 Scrambler 500, 1999-2000 Sportsman 335, 1995-2003 Sportsman 400, 1996-2004 Sportsman 4x4 500, 2000-2008 Sportsman 6x6 500, 1999 Worker 335/500, 2000-2002 Xpedition 325/425, 2000-2002 Xplorer 250, 1996-1999 Xplorer 300, 1995-2002 Xplorer 400, 1997 Xplorer 500.
  • Works as a double plunging axle that supports lift kits up to 2 inches. Features CV joints replacing the original U-joints for better performance and durability. Stronger than OEM chromoly forged steel axle bars.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Polaris OEM # 2200960, 1380063, 1380066, 1380114, 3610019, 3554506, 3554507, 5410470. Compressed Length - 668.5 mm(both), Inboard Spline Count - 22(both), Outboard Spline Count - 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles).

  • What's In The Box

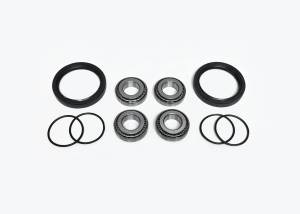

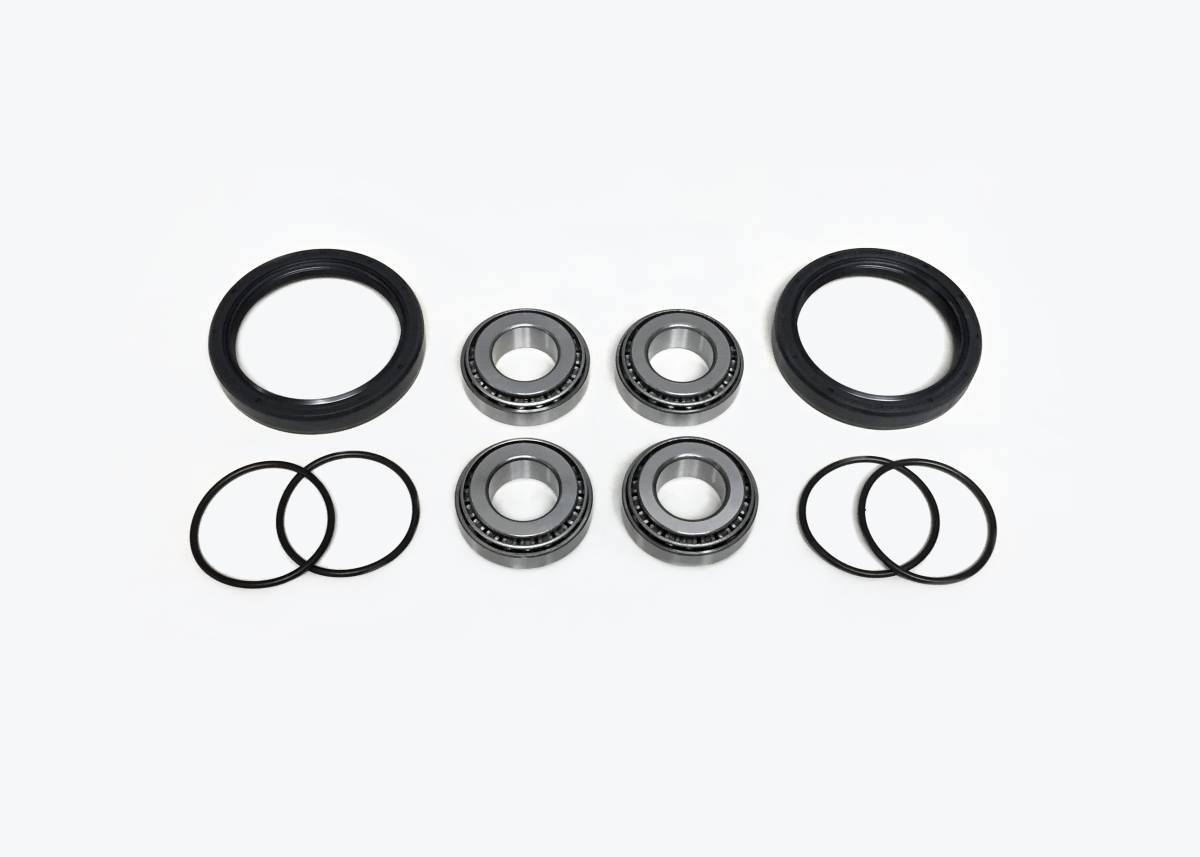

  • 2 axles & 2 wheel bearing kits
  • Application List

    YearMakeModelSubmodelNotes
    1999PolarisBig Boss 5006x6
    1998PolarisBig Boss 5006x6
    2002PolarisDiesel 4554X4
    2001PolarisDiesel 4554X4
    2000PolarisDiesel 4554X4
    1999PolarisDiesel 4554X4
    2002PolarisMagnum 3254X4models without Visco Lok HDS
    2001PolarisMagnum 3254X4models without Visco Lok HDS
    2000PolarisMagnum 3254X4models without Visco Lok HDS
    1998PolarisMagnum 4254X4
    1997PolarisMagnum 4254X4
    1997PolarisMagnum 4256x6
    1996PolarisMagnum 4254X4
    1996PolarisMagnum 4256x6
    1995PolarisMagnum 4254X4
    2002PolarisScrambler 4002x4
    2002PolarisScrambler 4004X4
    2001PolarisScrambler 4002x4
    2001PolarisScrambler 4004X4
    2000PolarisScrambler 4002x4
    2000PolarisScrambler 4004X4
    1999PolarisScrambler 4004X4
    1998PolarisScrambler 4004X4
    1997PolarisScrambler 4004X4
    1996PolarisScrambler 4004X4
    1995PolarisScrambler 4004X4
    2009PolarisScrambler 5004X4
    2008PolarisScrambler 5004X4
    2007PolarisScrambler 5004X4
    2006PolarisScrambler 5004X4
    2005PolarisScrambler 5004X4
    2004PolarisScrambler 5004X4
    2003PolarisScrambler 5004X4
    2002PolarisScrambler 5004X4
    2001PolarisScrambler 5004X4
    2000PolarisScrambler 5004X4
    1999PolarisScrambler 5004X4
    1998PolarisScrambler 5004X4
    1997PolarisScrambler 5004X4
    2000PolarisSportsman 3354X4
    1999PolarisSportsman 335--
    1999PolarisSportsman 3354X4
    2003PolarisSportsman 4004X4
    2002PolarisSportsman 4004X4
    2001PolarisSportsman 4004X4
    1996PolarisSportsman 4004X4
    1995PolarisSportsman 4004X4
    1997PolarisSportsman 400L4X4
    2008PolarisSportsman 5006x6
    2007PolarisSportsman 5006x6
    2006PolarisSportsman 5006x6
    2005PolarisSportsman 5006x6
    2004PolarisSportsman 5004x4 HO
    2004PolarisSportsman 5006x6
    2003PolarisSportsman 5004x4 HO
    2003PolarisSportsman 5006x6
    2002PolarisSportsman 5004X4
    2002PolarisSportsman 5004x4 DUSE
    2002PolarisSportsman 5004x4 HO
    2002PolarisSportsman 5004x4 RSE
    2002PolarisSportsman 5004x4 Richard Petty Edition
    2002PolarisSportsman 5006x6
    2001PolarisSportsman 5004x4 DUSE
    2001PolarisSportsman 5004x4 HO
    2001PolarisSportsman 5004x4 RSE HO
    2001PolarisSportsman 5006x6
    2000PolarisSportsman 5004X4
    2000PolarisSportsman 5004x4 RSE
    2000PolarisSportsman 5006x6
    1999PolarisSportsman 5004X4
    1999PolarisSportsman 5004x4 Remington Special Edition
    1998PolarisSportsman 5004X4
    1997PolarisSportsman 5004X4
    1996PolarisSportsman 5004X4
    1999PolarisWorker 335--
    1999PolarisWorker 500--
    2002PolarisXpedition 3254X4
    2001PolarisXpedition 3254X4
    2000PolarisXpedition 3254X4
    2002PolarisXpedition 4254X4
    2001PolarisXpedition 4254X4
    2000PolarisXpedition 4254X4
    2002PolarisXplorer 2504X4
    2001PolarisXplorer 2504X4
    2000PolarisXplorer 2504X4
    1999PolarisXplorer 3004X4
    1998PolarisXplorer 3004X4
    1997PolarisXplorer 3004X4
    1996PolarisXplorer 3004X4
    2002PolarisXplorer 4004X4
    2001PolarisXplorer 4004X4
    2000PolarisXplorer 4004X4
    1999PolarisXplorer 4004X4
    1995PolarisXplorer 4004X4
    1998PolarisXplorer 400L--
    1997PolarisXplorer 400L--
    1996PolarisXplorer 400L--
    1997PolarisXplorer 5004X4

    Details

    • PO-104/PO-104/WB-1008/WB-1008
    • PO-104/PO-104/WB-1008/WB-1008
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 23.0 lbs.
    • W10.0000” x H5.0000” x L28.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
