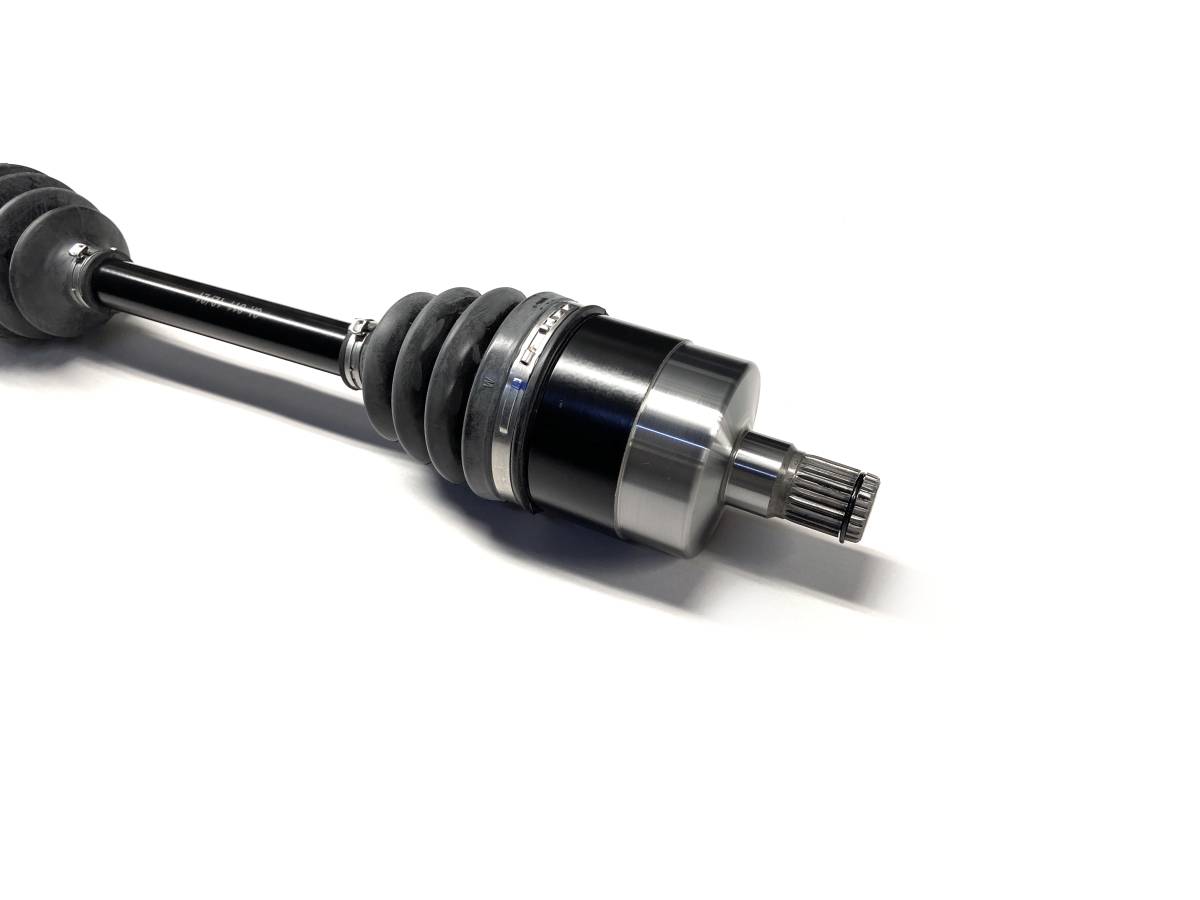

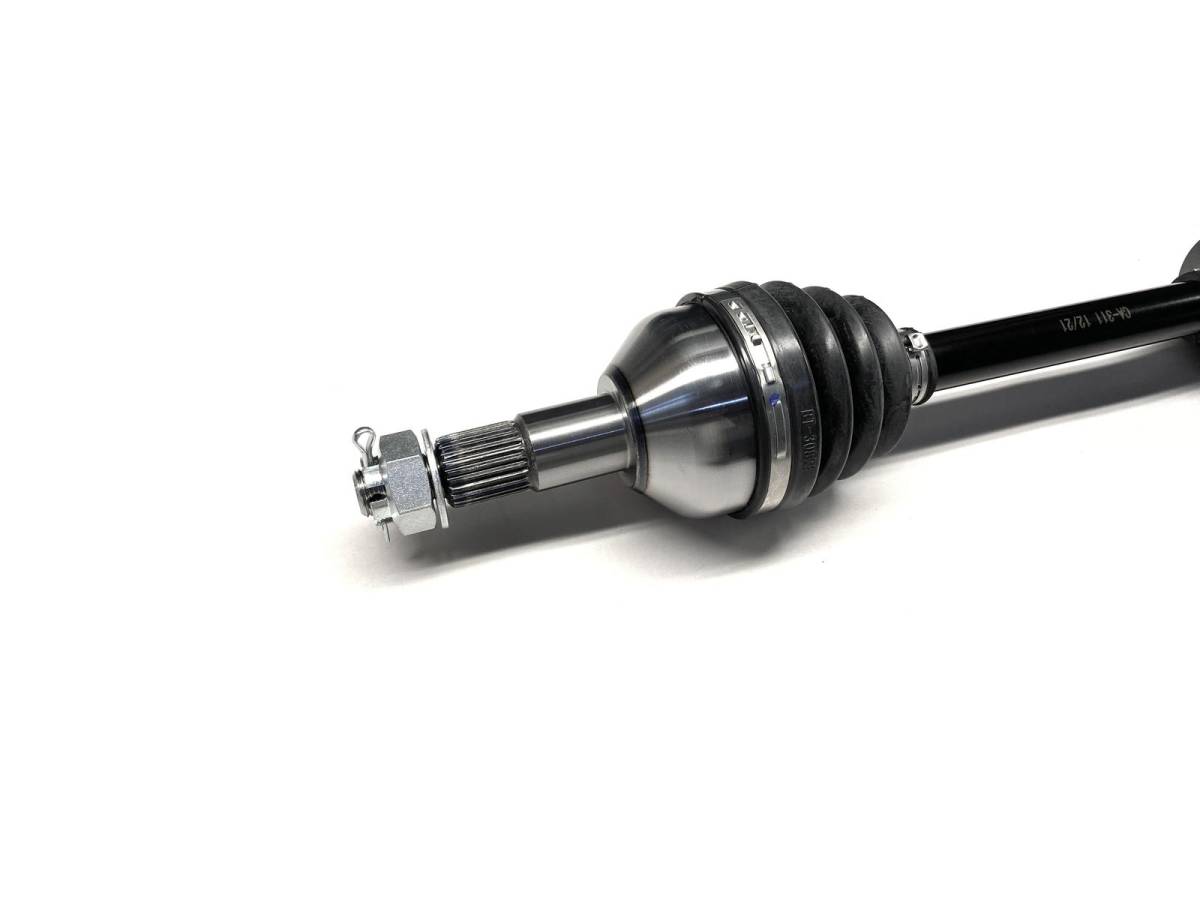

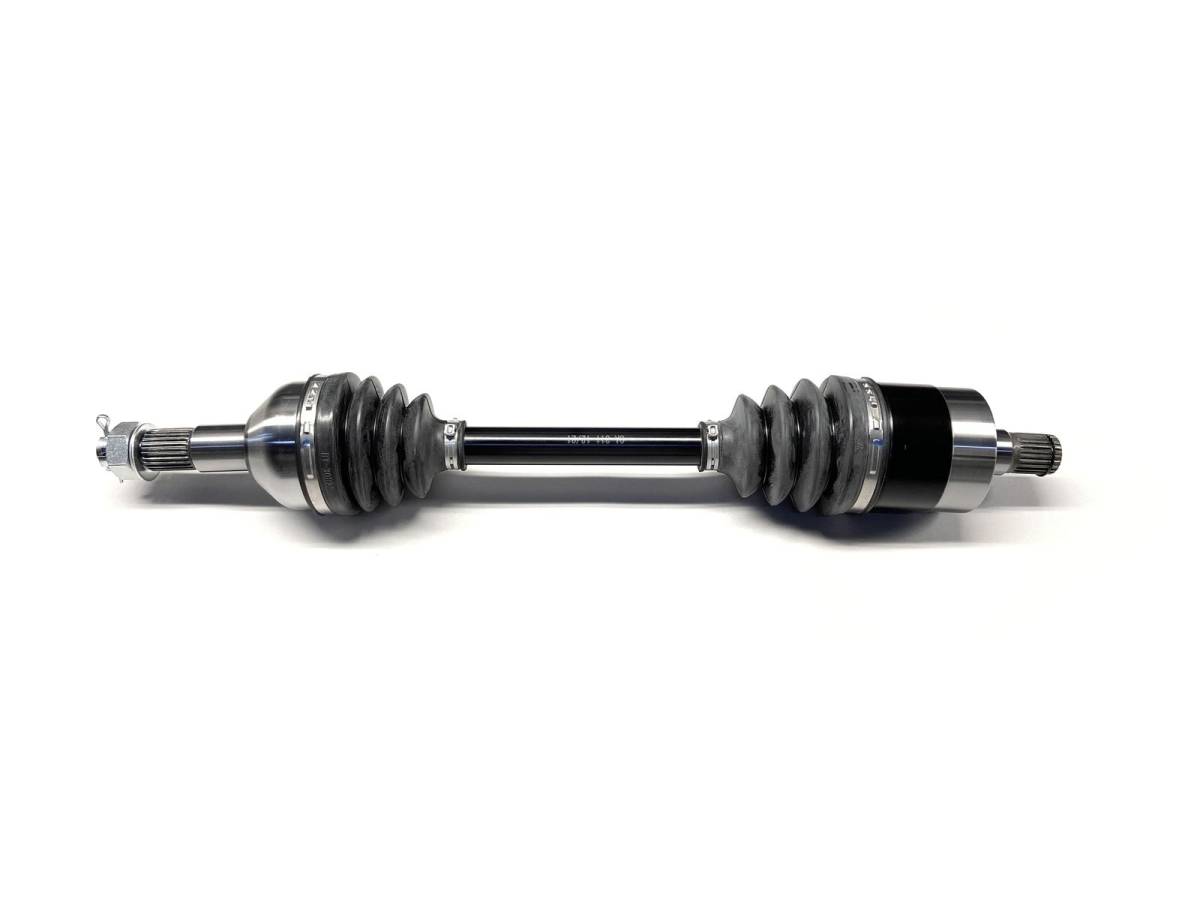

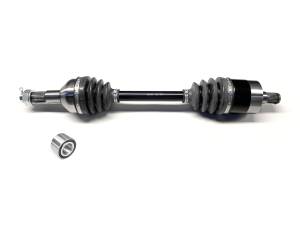

Rear Left CV Axle for Can-Am Outlander & Renegade 650 850 & 1000, 705502710

Location on vehicle: Rear,Left

(0) Reviews: Write first review
CA-311
This is a new, fully assembled, CV axle for a Can-Am ATV (excluding XMR).

It fits REAR, LEFT (driver side) on the following models:

2019-2023 Outlander 650/MAX 4x4

2019-2023 Outlander 850/MAX

2019-2023 Outlander 1000/MAX 4x4

2019-2022 Renegade 570

2019-2022 Renegade 850

2019-2023 Renegade 1000

(please note this will not fit XMR models)

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 575 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $69.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022Can-AmOutlander 6504X4
2022Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
2022Can-AmOutlander 6504x4 DPS
2022Can-AmOutlander 6504x4 XT DPS
2021Can-AmOutlander 6504X4
2021Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
2021Can-AmOutlander 6504x4 DPS
2021Can-AmOutlander 6504x4 XT DPS
2020Can-AmOutlander 6504X4
2020Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
2020Can-AmOutlander 6504x4 DPS
2020Can-AmOutlander 6504x4 XT DPS
2019Can-AmOutlander 6504X4
2019Can-AmOutlander 6504x4 DPS
2019Can-AmOutlander 6504x4 North Edition DPS
2019Can-AmOutlander 6504x4 XT DPS
2023Can-AmOutlander 8504X4
2023Can-AmOutlander 8504x4 DPS
2023Can-AmOutlander 8504x4 Hunting Edition DPS
2023Can-AmOutlander 8504x4 XT DPS
2023Can-AmOutlander 8504x4 XTP DPS
2022Can-AmOutlander 8504X4
2022Can-AmOutlander 8504x4 DPS
2022Can-AmOutlander 8504x4 XT DPS
2022Can-AmOutlander 8504x4 XTP DPS
2021Can-AmOutlander 8504X4
2021Can-AmOutlander 8504x4 DPS
2021Can-AmOutlander 8504x4 North Edition DPS
2021Can-AmOutlander 8504x4 XT DPS
2021Can-AmOutlander 8504x4 XTP DPS
2020Can-AmOutlander 8504X4
2020Can-AmOutlander 8504x4 DPS
2020Can-AmOutlander 8504x4 North Edition DPS
2020Can-AmOutlander 8504x4 XT DPS
2020Can-AmOutlander 8504x4 XTP DPS
2019Can-AmOutlander 8504X4
2019Can-AmOutlander 8504x4 DPS
2019Can-AmOutlander 8504x4 North Edition DPS
2019Can-AmOutlander 8504x4 XT-P DPS
2019Can-AmOutlander 8504x4 XT DPS
2023Can-AmOutlander 1000R4x4 XT-P DPS
2023Can-AmOutlander 1000R4x4 XT DPS
2023Can-AmOutlander 1000R4x4 XXC DPS
2022Can-AmOutlander 1000R4x4 XT-P DPS
2022Can-AmOutlander 1000R4x4 XT DPS
2022Can-AmOutlander 1000R4x4 XXC DPS
2021Can-AmOutlander 1000R4x4 XT-P DPS
2021Can-AmOutlander 1000R4x4 XT DPS
2020Can-AmOutlander 1000R4x4 XT-P DPS
2020Can-AmOutlander 1000R4x4 XT DPS
2019Can-AmOutlander 1000R4x4 DPS
2019Can-AmOutlander 1000R4x4 Mossy Oak Hunting Edition DPS
2019Can-AmOutlander 1000R4x4 XT-P DPS
2019Can-AmOutlander 1000R4x4 XT DPS
2023Can-AmOutlander Max 6506x6 DPS
2022Can-AmOutlander Max 6504x4 DPS
2022Can-AmOutlander Max 6504x4 XT DPS
2022Can-AmOutlander Max 6506x6 DPS
2021Can-AmOutlander Max 6504x4 DPS
2021Can-AmOutlander Max 6504x4 XT DPS
2021Can-AmOutlander Max 6506x6 DPS
2020Can-AmOutlander Max 6504x4 DPS
2020Can-AmOutlander Max 6504x4 XT DPS
2020Can-AmOutlander Max 6506x6 DPS
2019Can-AmOutlander Max 6504x4 DPS
2019Can-AmOutlander Max 6504x4 North Edition DPS
2019Can-AmOutlander Max 6504x4 XT DPS
2019Can-AmOutlander Max 6506x6 DPS
2023Can-AmOutlander Max 8504x4 DPS
2023Can-AmOutlander Max 8504x4 XT DPS
2023Can-AmOutlander Max 8504x4 XTP DPS
2022Can-AmOutlander Max 8504x4 XT DPS
2022Can-AmOutlander Max 8504x4 XTP DPS
2021Can-AmOutlander Max 8504x4 North Edition DPS
2021Can-AmOutlander Max 8504x4 XT DPS
2021Can-AmOutlander Max 8504x4 XTP DPS
2020Can-AmOutlander Max 8504x4 North Edition DPS
2020Can-AmOutlander Max 8504x4 XT DPS
2020Can-AmOutlander Max 8504x4 XTP DPS
2019Can-AmOutlander Max 8504x4 North Edition DPS
2019Can-AmOutlander Max 8504x4 XT DPS
2019Can-AmOutlander Max 8504x4 XTP DPS
2023Can-AmOutlander Max 1000R4x4 LTD DPS
2023Can-AmOutlander Max 1000R4x4 XT DPS
2023Can-AmOutlander Max 1000R4x4 XTP DPS
2022Can-AmOutlander Max 1000R4x4 LTD DPS
2022Can-AmOutlander Max 1000R4x4 XT DPS
2022Can-AmOutlander Max 1000R4x4 XTP DPS
2021Can-AmOutlander Max 1000R4x4 LTD DPS
2021Can-AmOutlander Max 1000R4x4 XT DPS
2021Can-AmOutlander Max 1000R4x4 XTP DPS
2020Can-AmOutlander Max 1000R4x4 LTD DPS
2020Can-AmOutlander Max 1000R4x4 XT DPS
2020Can-AmOutlander Max 1000R4x4 XTP DPS
2019Can-AmOutlander Max 1000R4x4 LTD DPS
2019Can-AmOutlander Max 1000R4x4 XT DPS
2019Can-AmOutlander Max 1000R4x4 XTP DPS
2022Can-AmRenegade 5704X4
2021Can-AmRenegade 5704X4
2020Can-AmRenegade 5704X4
2019Can-AmRenegade 5704X4
2022Can-AmRenegade 8504X4
2022Can-AmRenegade 8504x4 XXC DPS
2021Can-AmRenegade 8504X4
2021Can-AmRenegade 8504x4 XXC DPS
2020Can-AmRenegade 8504X4
2020Can-AmRenegade 8504x4 XXC DPS
2019Can-AmRenegade 8504X4
2019Can-AmRenegade 8504x4 XXC DPS
2023Can-AmRenegade 1000R4x4 XXC DPS
2022Can-AmRenegade 1000R4x4 XXC DPS
2021Can-AmRenegade 1000R4x4 XXC DPS
2020Can-AmRenegade 1000R4x4 XXC DPS
2019Can-AmRenegade 1000R4X4
2019Can-AmRenegade 1000R4x4 XXC DPS

Product Notes

  • Fits REAR, LEFT (driver side) on the following Can-Am ATVs (excluding any XMR models): 2019-2023 Outlander 650/850/1000 4x4 -including MAX models, 2019-2022 Renegade 570/850, & 2019-2023 Renegade 1000.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inboard CV joint spline count: 24, Outboard CV joint spline count: 26, Compressed overall axle length: 575 mm.
  • Replaces OEM # 705502710.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-311
    • CA-311
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.0 lbs.
    • W5.0000” x H5.0000” x L25.0000”
