Monster Axles Rear Axle with Bearings for Polaris Ranger 400 500 800, XP Series

Location on vehicle: Rear,Left,Right

PO-343XP/WB-1150
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

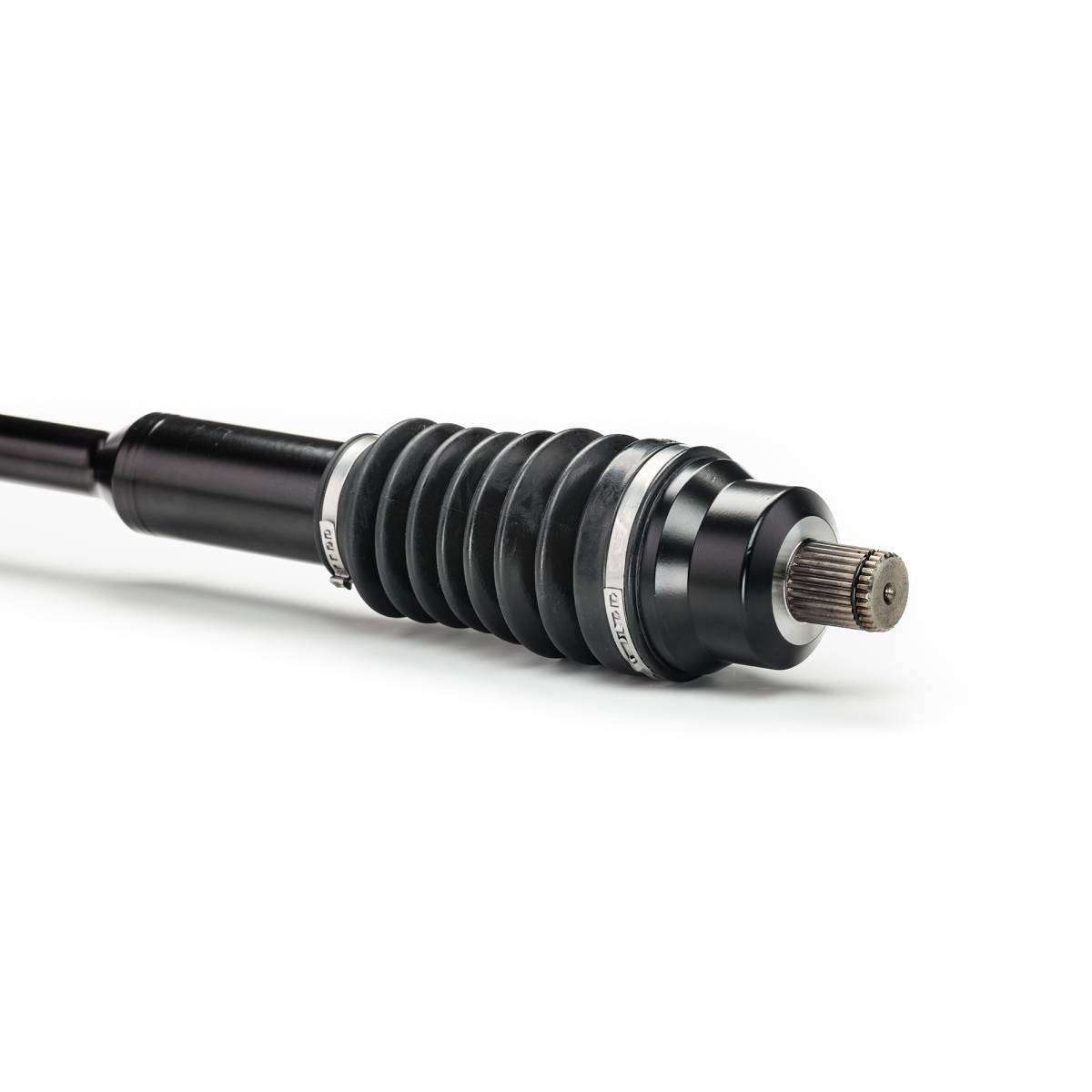

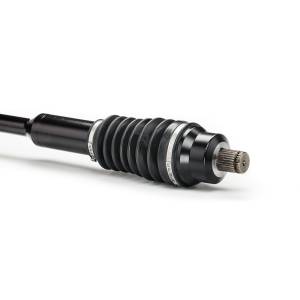

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

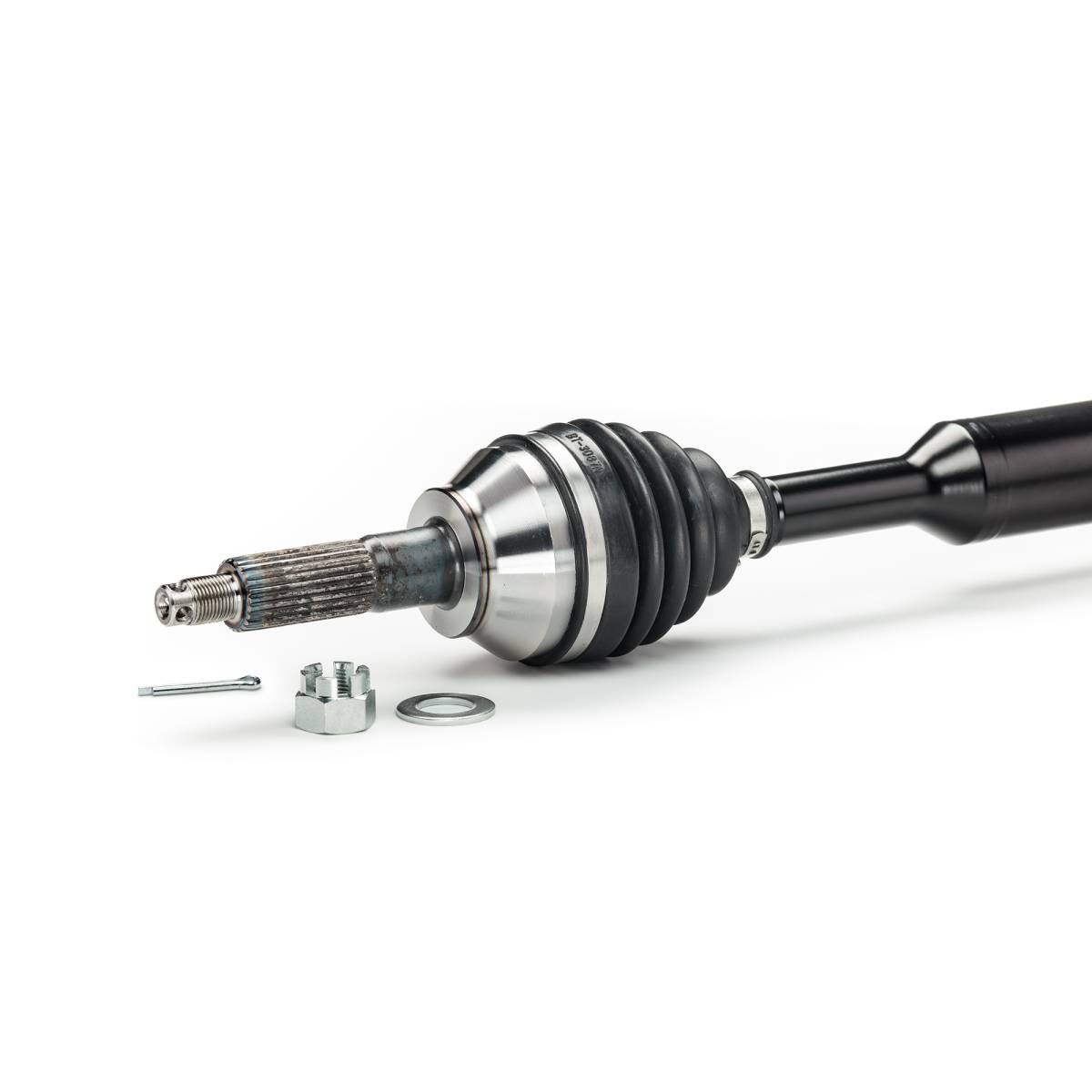

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014PolarisRanger 4004X4
2013PolarisRanger 400Midsize
2012PolarisRanger 4004X4
2012PolarisRanger 4004x4 Pursuit
2011PolarisRanger 4004X4
2011PolarisRanger 400Pursuit HO
2010PolarisRanger 4004X4
2013PolarisRanger 500LE Midsize EFI
2013PolarisRanger 500Midsize EFI
2012PolarisRanger 5004x4 EFI
2012PolarisRanger 5004x4 LE EFI
2011PolarisRanger 5004x4 EFI
2014PolarisRanger 800Midsize EFI
2014PolarisRanger 800Midsize LE EFI EPS
2014PolarisRanger 800Midsize Pursuit EFI
2013PolarisRanger 800LE Midsize EFI
2013PolarisRanger 800Midsize EFI
2013PolarisRanger Crew 500LE Midsize
2013PolarisRanger Crew 500Midsize
2013PolarisRanger Crew 500Pursuit
2012PolarisRanger Crew 5004X4
2012PolarisRanger Crew 5004x4 LE
2011PolarisRanger Crew 5004X4
2011PolarisRanger Crew 5004x4 Pursuit
2022PolarisRanger EV--
2021PolarisRanger EV--
2020PolarisRanger EV--
2019PolarisRanger EV--
2018PolarisRanger EV--
2018PolarisRanger EVLi-Ion
2017PolarisRanger EV--
2017PolarisRanger EVLi-Ion Pursuit Camo
2017PolarisRanger EVLimited Edition
2017PolarisRanger EVPursuit Camo
2016PolarisRanger EV--
2016PolarisRanger EVLi-Ion
2016PolarisRanger EVPursuit Camo
2015PolarisRanger EV--
2014PolarisRanger EVMidsize Electric
2014PolarisRanger EVMidsize Pursuit Electric
2013PolarisRanger EV48V Midsize Electric
2013PolarisRanger EV48V Midsize Pursuit Electric
2012PolarisRanger EVElectric
2012PolarisRanger EVLSV Electric
2012PolarisRanger EVPursuit Electric
2011PolarisRanger EVElectric
2011PolarisRanger EVLSV Electric
2011PolarisRanger EVPursuit Electric
2010PolarisRanger EVElectric

Product Notes

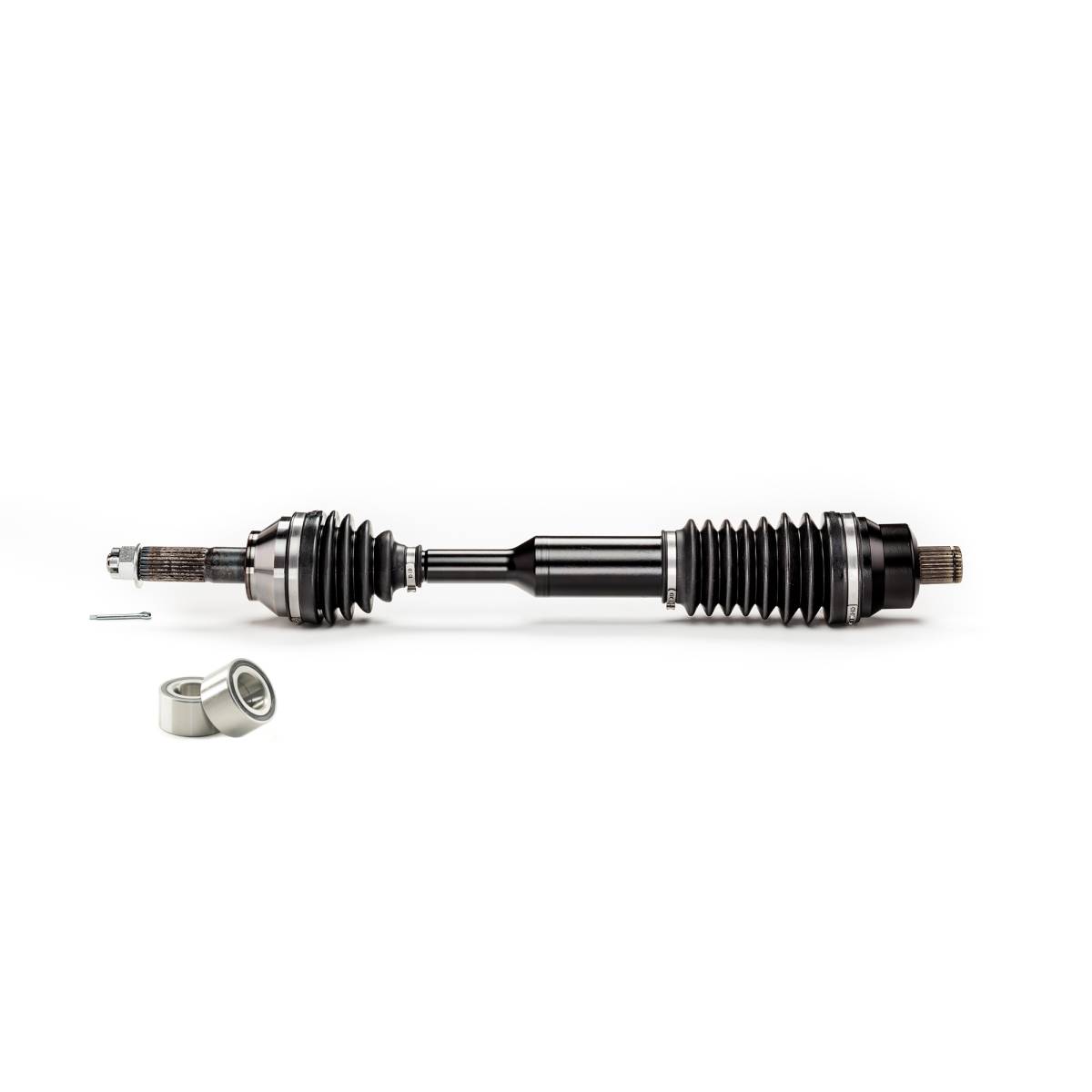

  • Fits REAR, LEFT or RIGHT on the following Polaris UTV models: 2010-2014 Ranger 400, 2011-2013 Ranger 500/Crew 500, 2013-2014 'Mid-Size' Ranger 800, 2010-2021 Ranger EV/LSV/LEV. Set includes 1 axle & 2 wheel bearings.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (axle) 1332692, (bearings) 3514635, 3585502. Compressed axle length - 670 mm, Inner splines - 28, Outer splines - 26. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

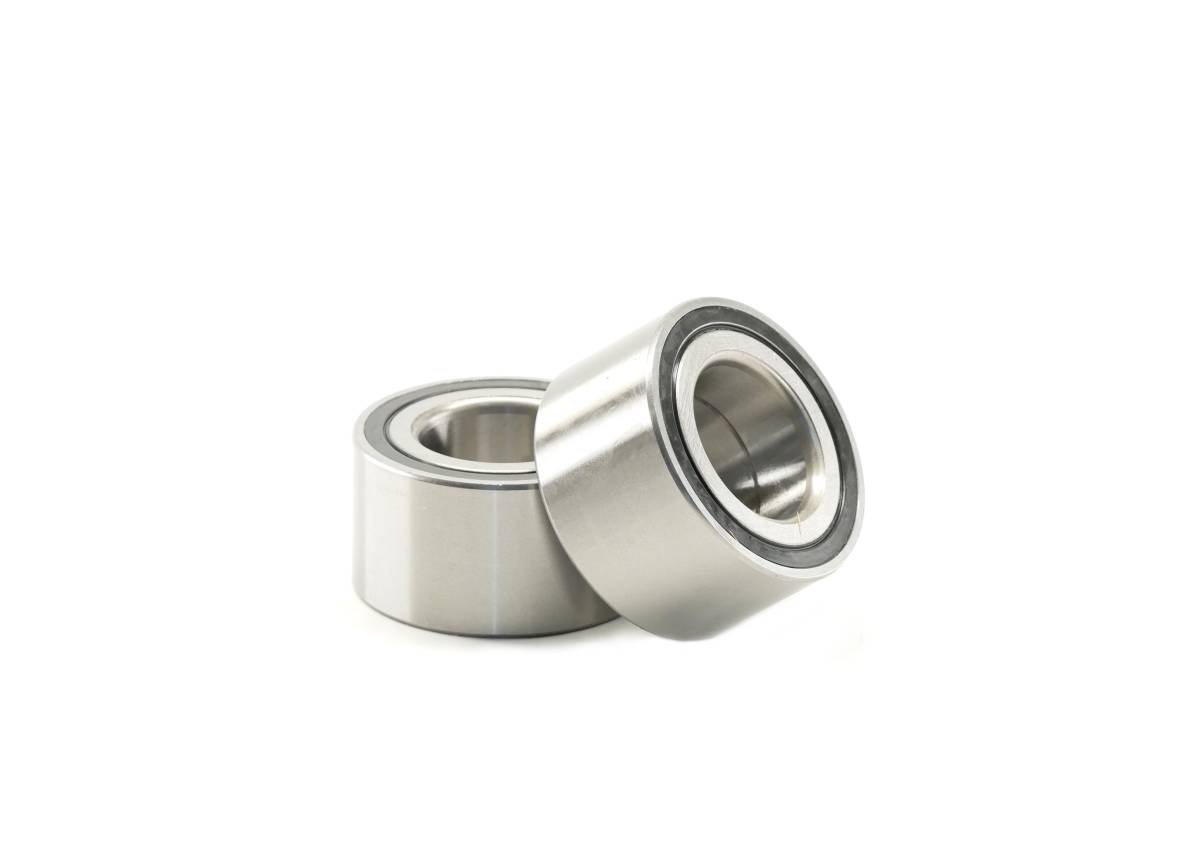

  • 1 axle & 2 wheel bearings
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • PO-343XP/WB-1150
    • PO-343XP/WB-1150
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 21.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
