Additional Images

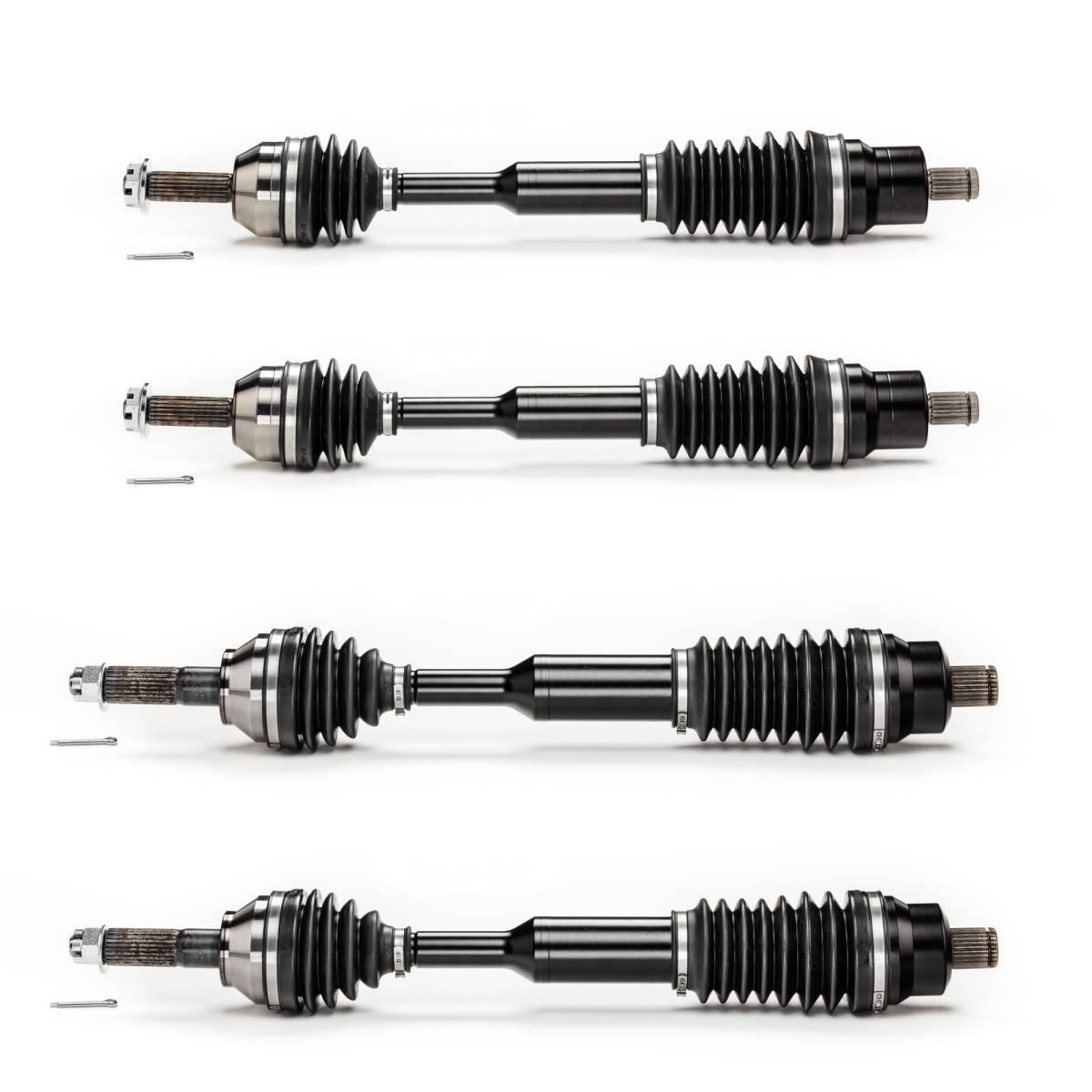

Monster Axles Full Set for Polaris Ranger UTV 1332690, 1332692, XP Series

Location on vehicle: Front,Rear,Left,Right

PO-314XP/PO-314XP/PO-343XP/PO-343XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $469.96
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014PolarisRanger 4004X4
2013PolarisRanger 400Midsize
2012PolarisRanger 4004X4
2012PolarisRanger 4004x4 Pursuit
2011PolarisRanger 4004X4
2011PolarisRanger 400Pursuit HO
2010PolarisRanger 4004X4
2013PolarisRanger 500LE Midsize EFI
2013PolarisRanger 500Midsize EFI
2012PolarisRanger 5004x4 EFI
2012PolarisRanger 5004x4 LE EFI
2011PolarisRanger 5004x4 EFI
2014PolarisRanger 800Midsize EFI
2014PolarisRanger 800Midsize LE EFI EPS
2014PolarisRanger 800Midsize Pursuit EFI
2013PolarisRanger 800LE Midsize EFI
2013PolarisRanger 800Midsize EFI
2013PolarisRanger Crew 500LE Midsize
2013PolarisRanger Crew 500Midsize
2013PolarisRanger Crew 500Pursuit
2012PolarisRanger Crew 5004X4
2012PolarisRanger Crew 5004x4 LE
2011PolarisRanger Crew 5004X4
2011PolarisRanger Crew 5004x4 Pursuit

Product Notes

  • Fits the following Polaris UTV models: 2010-2014 Ranger 400, 2011-2013 Ranger 500/Crew 500, 2013-2014 'Mid-Size' Ranger 800. Set includes 4 axles.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (fronts) 1332690, 1333134, (rears) 1332692. Compressed Length: Fronts - 594 mm, Rears - 670 mm. Inner spline count: Fronts - 22, Rears - 28, Outer spline count: Fronts - 20, Rears - 26. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

  • 4 axles
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • PO-314XP/PO-314XP/PO-343XP/PO-343XP
    • PO-314XP/PO-314XP/PO-343XP/PO-343XP
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 59.4 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
