Front Axles & Wheel Bearing Kits for Honda Foreman, Rincon & Rubicon 500/680 ATV

Location on vehicle: Front,Left,Right

HO-117/HO-217/WB-1572/WB-1572

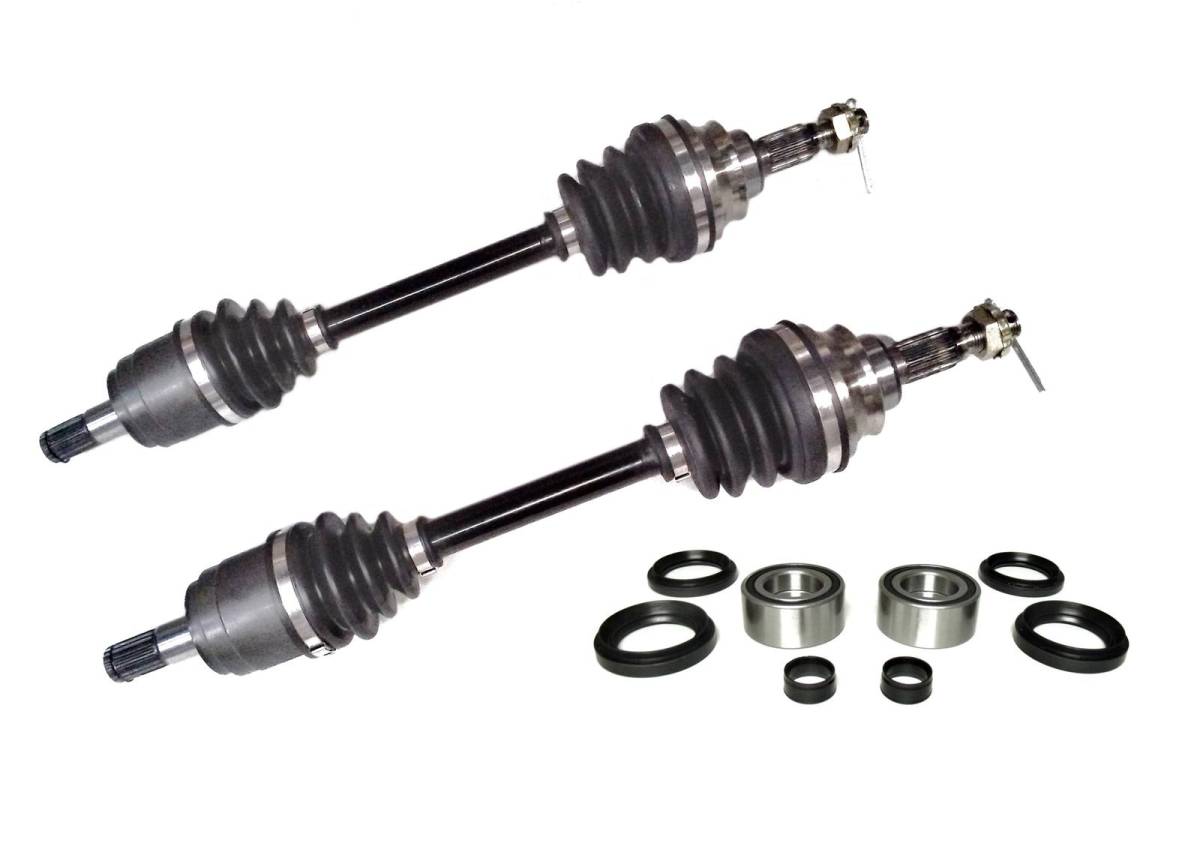

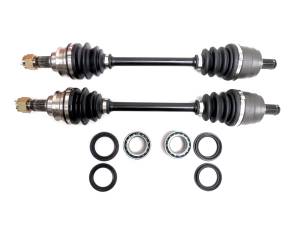

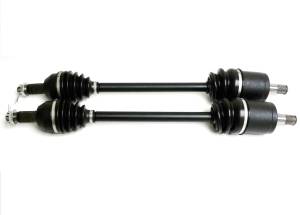

This is a set of new CV axles & wheel bearing/seal kits for a Honda ATV.

They fit FRONT, LEFT & RIGHT on the following 4x4 models:

2005-2006 & 2011-2013 Foreman 500, 2005 Rincon 650, 2006-2007 & 2010-2023 Rincon 680, 2005-2007 & 2011-2014 Rubicon 500

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: Left - 475.5 mm, Right - 494 mm
  • Replaces OEM # (left) 44350-HN8-A41 44220-HN8-A41, (right) 44250-HN8-A41, 44250-HN8-A42, 44250-HN8-A43 (bearings & seals) 91051-HA7-651, 91209-HA7-773, 91256HP0A00
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $169.99

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Honda ATVs: 2005-2006 & 2011-2013 Foreman 500, 2005 Rincon 650, 2006-2007 & 2010-2022 Rincon 680, 2005-2007 & 2011-2014 Rubicon 500. Set includes 2 CV axles, 2 wheel bearings, 6 seals.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (left) 44350-HN8-A41 44220-HN8-A41, (right) 44250-HN8-A41, 44250-HN8-A42, 44250-HN8-A43 (bearings & seals) 91051-HA7-651, 91209-HA7-773, 91256HP0A00. Compressed Length: Left - 475.5 mm, Right - 494 mm, Inboard Spline Count - 20 (both), Outboard Spline Count - 21 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

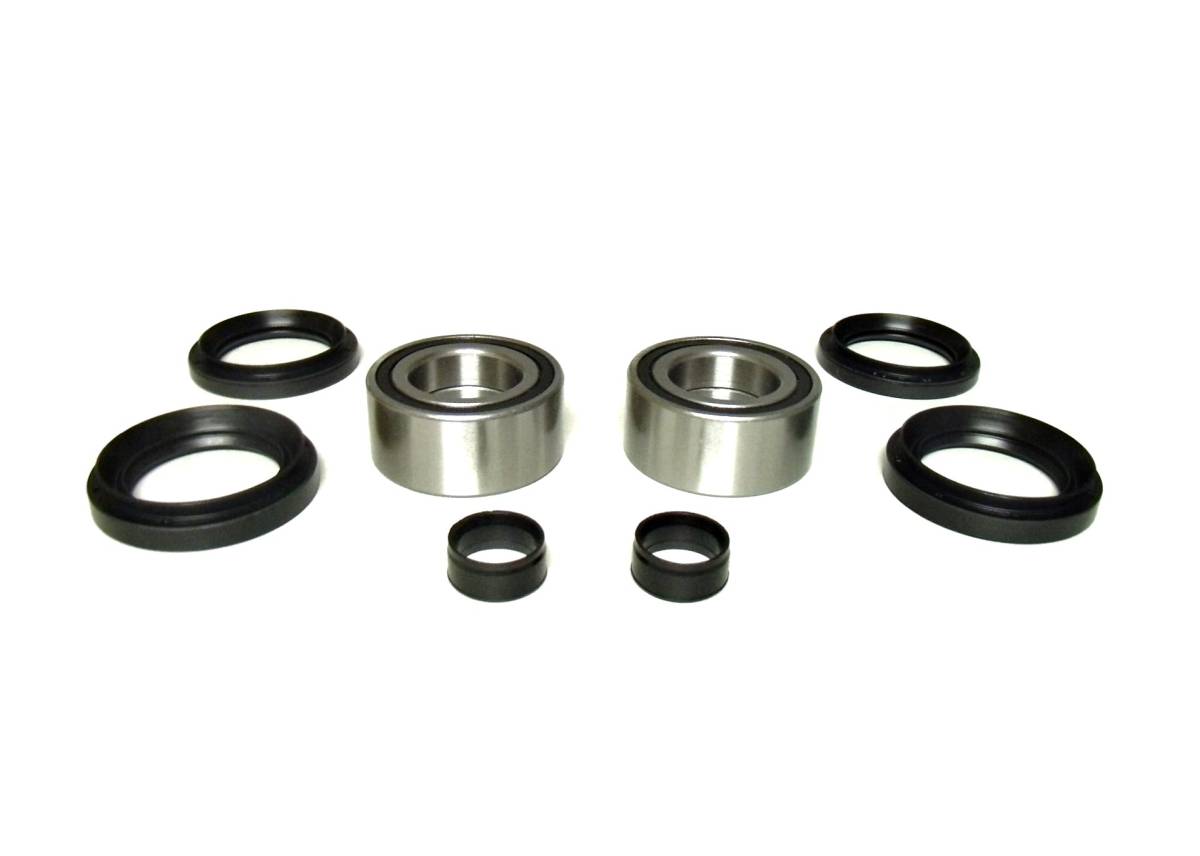

  • 2 CV axles & 2 wheel bearing kits
  • Application List

    YearMakeModelSubmodelNotes
    2013HondaForeman 500TRX500FE 4x4 ES
    2013HondaForeman 500TRX500FM 4x4 S
    2013HondaForeman 500TRX500FPE 4x4 ES EPS
    2013HondaForeman 500TRX500FPM 4x4 EPS
    2013HondaForeman 500TRX500PG Canadian Trail Edition
    2012HondaForeman 500TRX500FE 4x4 ES
    2012HondaForeman 500TRX500FM 4x4 S
    2012HondaForeman 500TRX500FPE 4x4 ES EPS
    2012HondaForeman 500TRX500FPM 4x4 EPS
    2011HondaForeman 500TRX500FE 4x4 ES
    2011HondaForeman 500TRX500FM 4x4 S
    2011HondaForeman 500TRX500FPE 4x4 ES EPS
    2011HondaForeman 500TRX500FPM 4x4 EPS
    2006HondaForeman 500TRX500FE 4x4 ES
    2006HondaForeman 500TRX500FM 4x4 S
    2006HondaForeman 500TRX500TM 2x4
    2005HondaForeman 500TRX500FE 4x4 ES
    2005HondaForeman 500TRX500FM 4x4 S
    2005HondaForeman 500TRX500TM 2x4
    2014HondaForeman Rubicon 500TRX500FA 4x4
    2014HondaForeman Rubicon 500TRX500FPA 4x4 EPS
    2013HondaForeman Rubicon 500TRX500FA 4x4
    2013HondaForeman Rubicon 500TRX500FPA 4x4 EPS
    2012HondaForeman Rubicon 500TRX500FA 4x4
    2012HondaForeman Rubicon 500TRX500FPA 4x4 EPS
    2011HondaForeman Rubicon 500TRX500FA 4x4
    2011HondaForeman Rubicon 500TRX500FPA 4x4 GPScape
    2007HondaForeman Rubicon 500TRX500FA 4x4
    2007HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
    2006HondaForeman Rubicon 500TRX500FA 4x4
    2006HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
    2005HondaForeman Rubicon 500TRX500FA 4x4
    2005HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
    2005HondaRincon 650TRX650FA 4x4
    2005HondaRincon 650TRX650FGA 4x4 GPScape
    2022HondaRincon 680TRX680FA5
    2021HondaRincon 680TRX680FA5
    2020HondaRincon 680TRX680FA5
    2019HondaRincon 680TRX680FA5
    2018HondaRincon 680TRX680FA
    2017HondaRincon 680TRX680FA
    2017HondaRincon 680TRX680FA Camo
    2016HondaRincon 680TRX680FA
    2015HondaRincon 680TRX680FA 4x4
    2014HondaRincon 680TRX680FA 4x4
    2013HondaRincon 680TRX680FA 4x4
    2012HondaRincon 680TRX680FA 4x4
    2011HondaRincon 680TRX680FA 4x4
    2010HondaRincon 680TRX680FA 4x4
    2010HondaRincon 680TRX680FGA 4x4 GPScape
    2007HondaRincon 680TRX680FA 4x4
    2007HondaRincon 680TRX680FGA 4x4 GPScape
    2006HondaRincon 680TRX680FA 4x4
    2006HondaRincon 680TRX680FGA 4x4 GPScape

    Details

    • HO-117/HO-217/WB-1572/WB-1572
    • HO-117/HO-217/WB-1572/WB-1572
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 18.0 lbs.
    • W10.0000” x H5.0000” x L26.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
