Front CV Axle Pair with Wheel Bearings for Polaris RZR 900 XP 900 XP4 2011-2014

Location on vehicle: Front,Left,Right

PO-313/PO-313/WB-1628/WB-1628

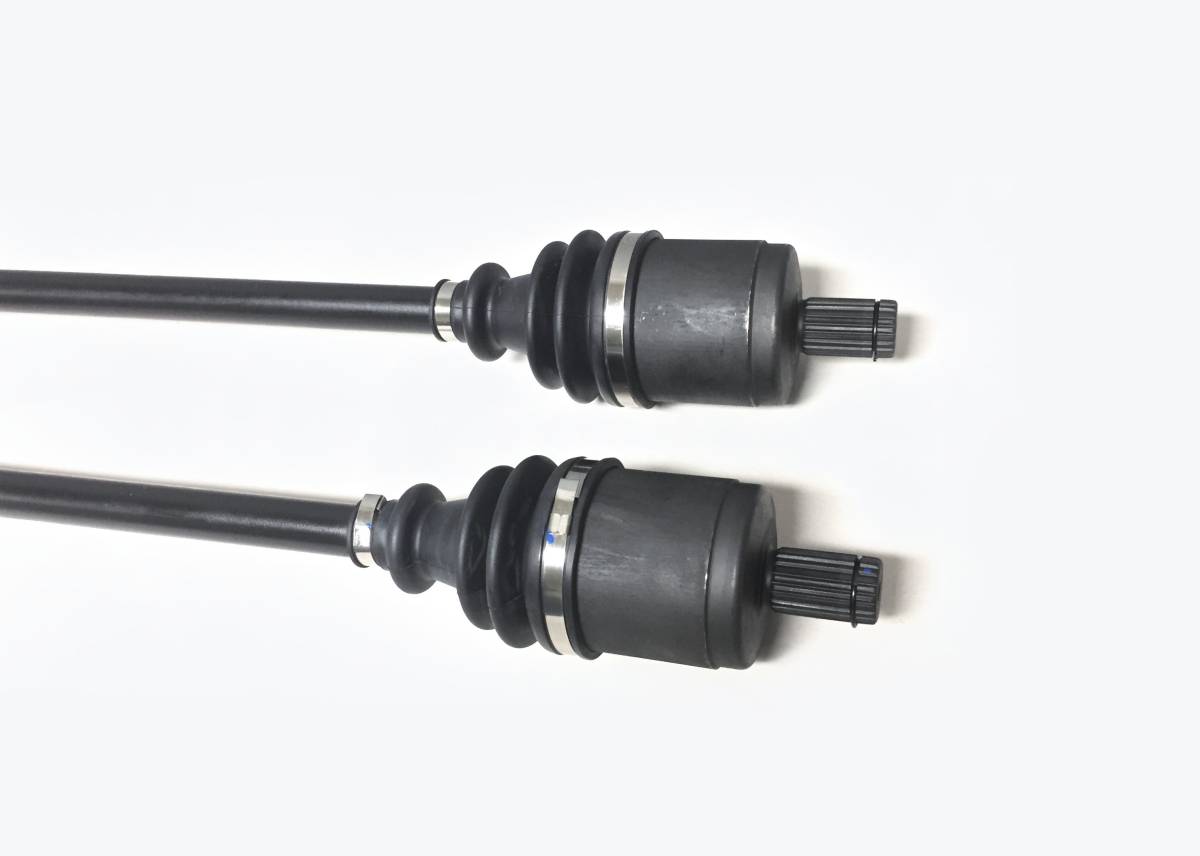

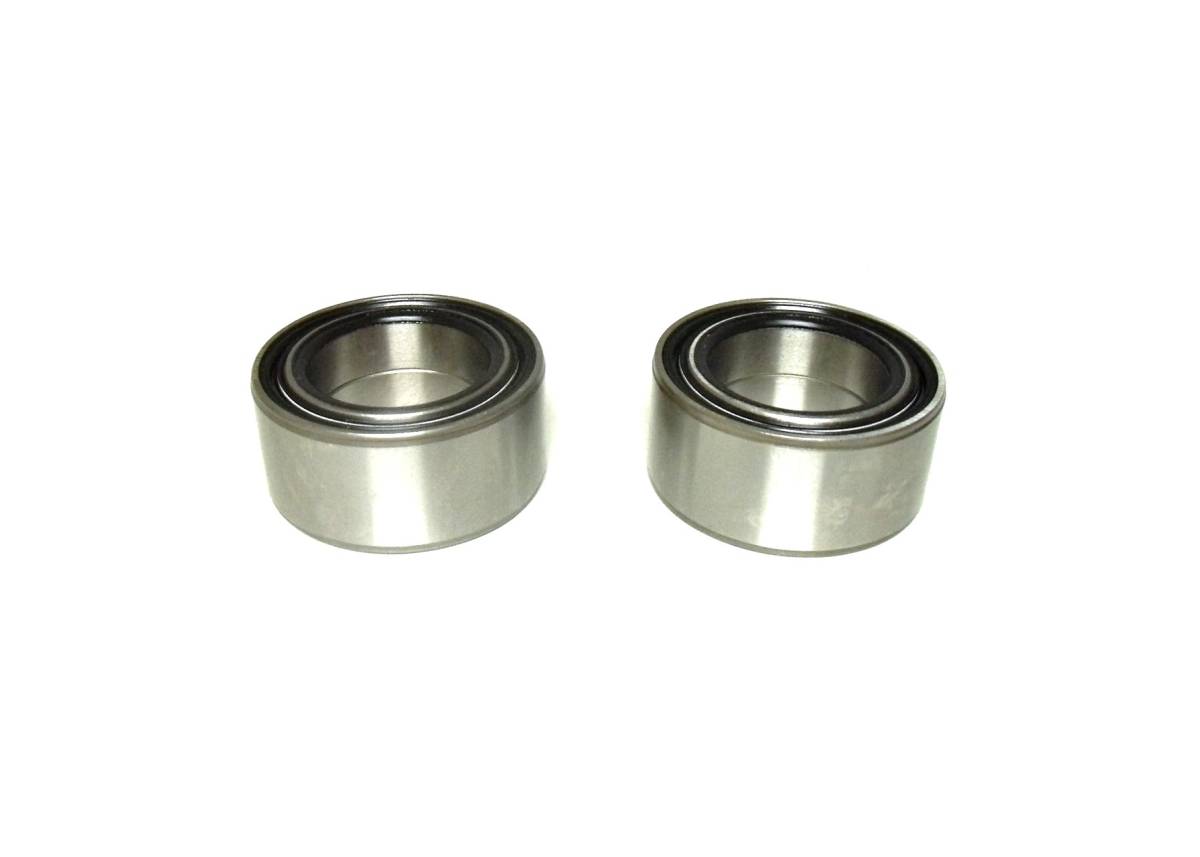

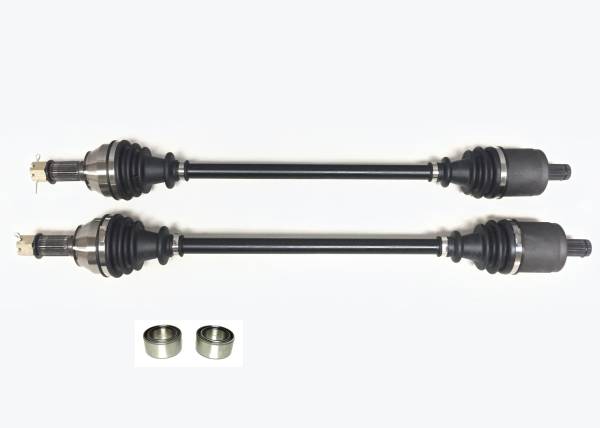

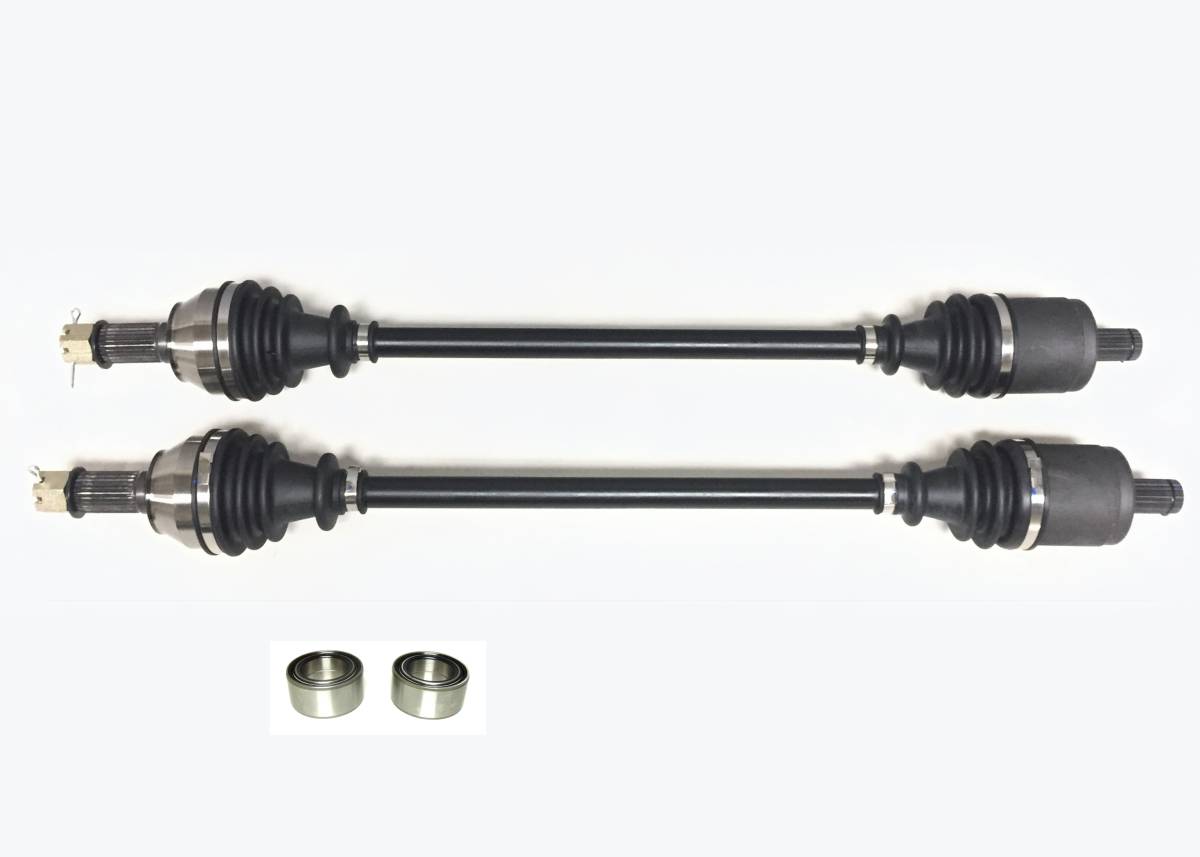

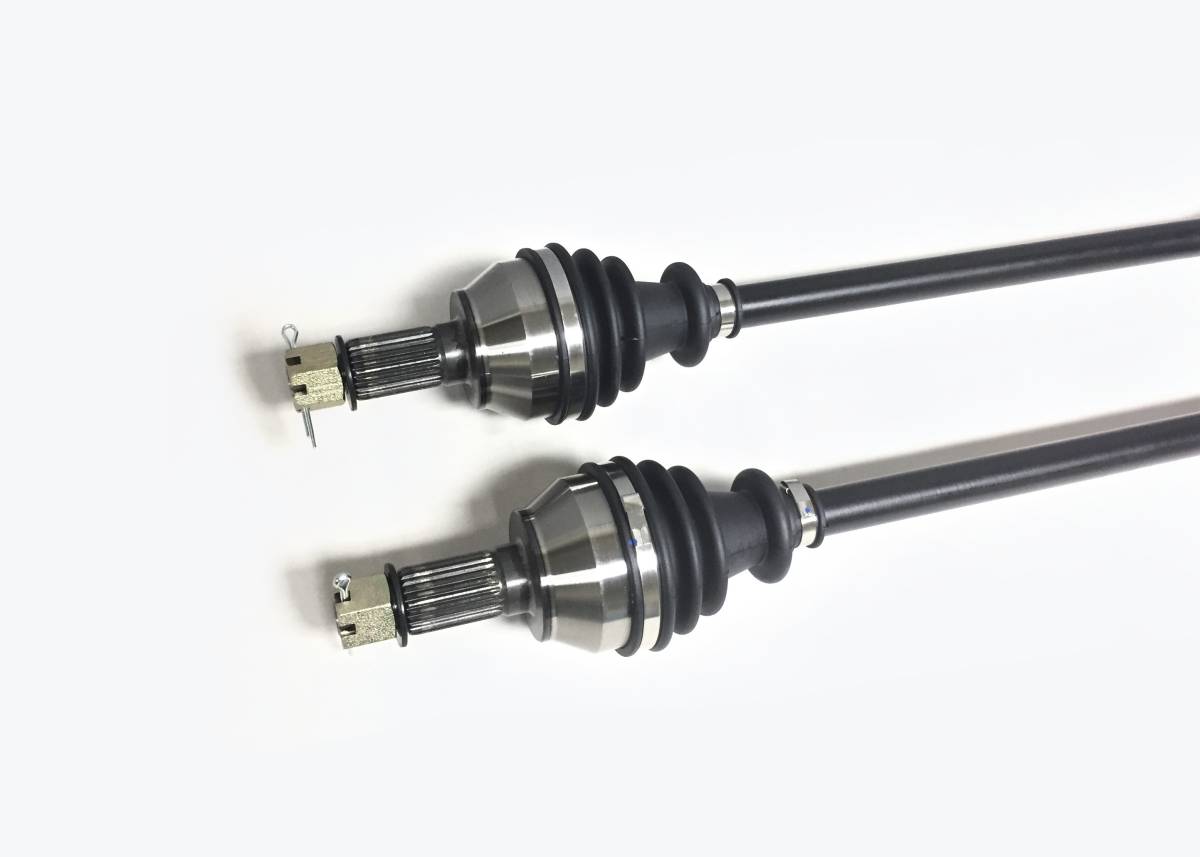

This is a set of new Front CV axles & wheel bearings for a Polaris UTV.

They fit the following 4x4 applications:

2011-2013 ... RZR XP 900

2012-2014 ... RZR 4 900 / XP 4 900

(Standard EFI, Jagged X and EPS models)

2014 ... RZR 900

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 22 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 747 mm (both)
  • Replaces Polaris OEM # (axles) 1332825, (bearings) 3514627, 3514699
Limited Supply: only 8 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $164.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2011-2014 Polaris RZR 900, XP 900, XP4 900, & 4 900 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Polaris OEM # (axles) 1332825, (bearings) 3514627, 3514699. Compressed overall axle length: 747 mm (both), Inboard CV joint spline count: 22 (both), Outboard CV joint spline count: 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 CV axles & 2 wheel bearings
  • Application List

    YearMakeModelSubmodelNotes
    2014PolarisRZR 4 900LE EPS
    2012PolarisRZR 4 XP 900--
    2012PolarisRZR 4 XP 900EPS
    2012PolarisRZR 4 XP 900LE EPS
    2014PolarisRZR 900--
    2014PolarisRZR 900LE EPS
    2014PolarisRZR 900Pursuit
    2014PolarisRZR 900XC Edition
    2013PolarisRZR XP 4 900--
    2013PolarisRZR XP 4 900LE EPS
    2013PolarisRZR XP 900EFI
    2013PolarisRZR XP 900Jagged X Edition HO
    2013PolarisRZR XP 900LE
    2013PolarisRZR XP 900LE EPS
    2013PolarisRZR XP 900Walker Evans Edition EPS
    2012PolarisRZR XP 900EFI
    2012PolarisRZR XP 900LE EFI
    2011PolarisRZR XP 900--
    2011PolarisRZR XP 900LE

    Details

    • PO-313/PO-313/WB-1628/WB-1628
    • PO-313/PO-313/WB-1628/WB-1628
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 26.0 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
