CV Axle Set for Polaris ETX, 500 & Midsize 570 4x4 1333238 1333069

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
PO-331/PO-331/PO-375/PO-375

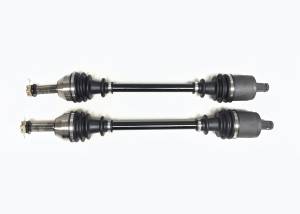

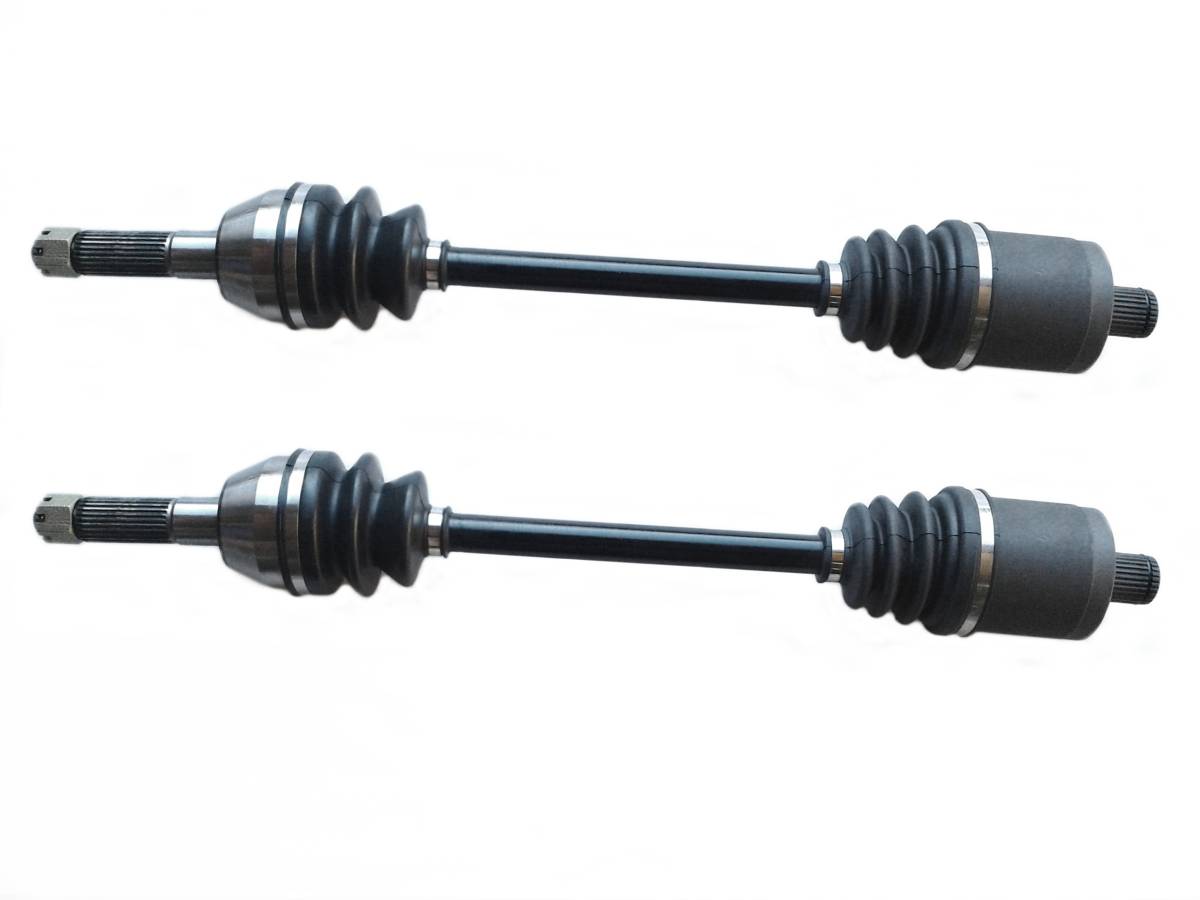

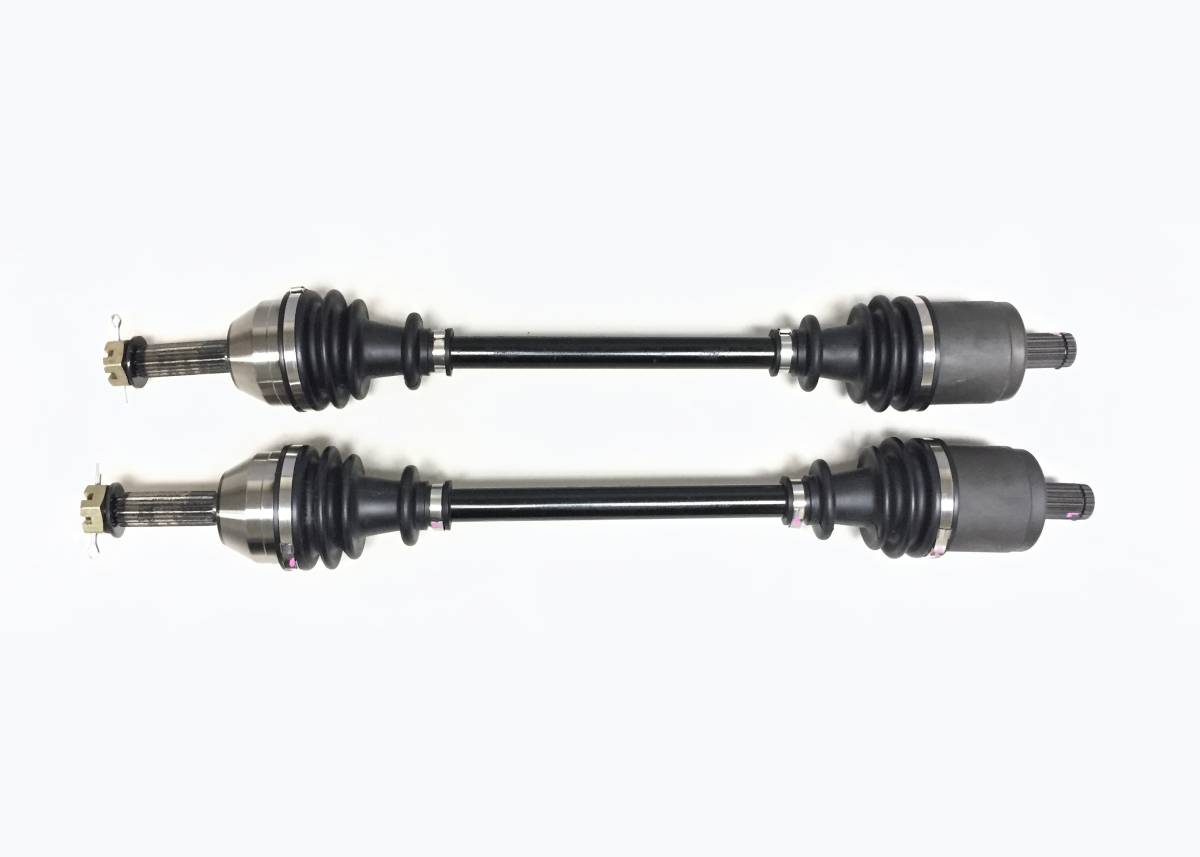

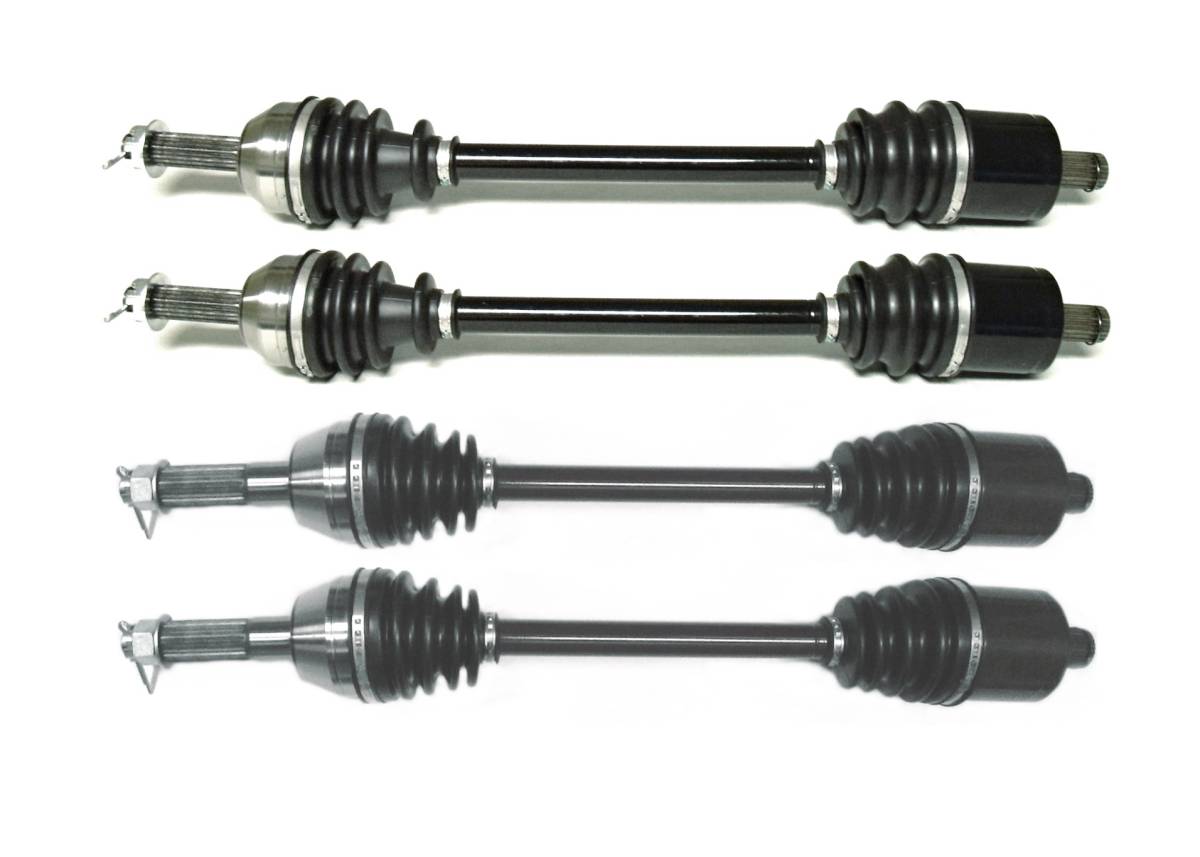

This is a set of 4 new CV axles for a Polaris UTV.

They fit the following models:

2015-2017 Ranger ETX

2018-2020 Ranger 500 (built before 10/8/2019)

2015-2018 'Midsize' Ranger 570/Crew 570

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Replaces OEM # (fronts) 1333238, 1333742, (rears) 1333069, 1333628
  • Inboard CV joint spline count: Fronts - 22, Rears - 28
  • Outboard CV joint spline count: Fronts - 20, Rears - 26
  • Compressed overall axle length: Compressed axle length: Fronts - 619 mm, Rears - 641.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $249.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the following Polaris models: 2015-2017 Ranger ETX, 2018-2020 Ranger 500 (built before 10/8/2019), 2015-2018 'Midsize' Ranger 570/Crew 570. Set includes 4 fully-assembled axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: Fronts - 619 mm, Rears - 641.5 mm, Inboard Spline Count: Fronts - 22, Rears - 28, Outboard Spline Count: Fronts - 20, Rears - 26.
  • Replaces OEM # (fronts) 1333238, 1333742, (rears) 1333069, 1333628.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Application List

    YearMakeModelSubmodelNotes
    2020PolarisRanger 500--built before Oct. 8, 2019
    2019PolarisRanger 500--
    2018PolarisRanger 500--
    2018PolarisRanger 570--
    2018PolarisRanger 570EPS
    2017PolarisRanger 570--
    2017PolarisRanger 570EPS
    2017PolarisRanger 570Pursuit Camo
    2016PolarisRanger 570--
    2016PolarisRanger 570EPS
    2016PolarisRanger 570Hunter Edition EPS
    2016PolarisRanger 570Pursuit Camo
    2015PolarisRanger 570--
    2015PolarisRanger 570EPS
    2016PolarisRanger ETX--
    2015PolarisRanger ETX--

    Details

    • PO-331/PO-331/PO-375/PO-375
    • PO-331/PO-331/PO-375/PO-375
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 53.0 lbs.
    • W10.0000” x H10.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
